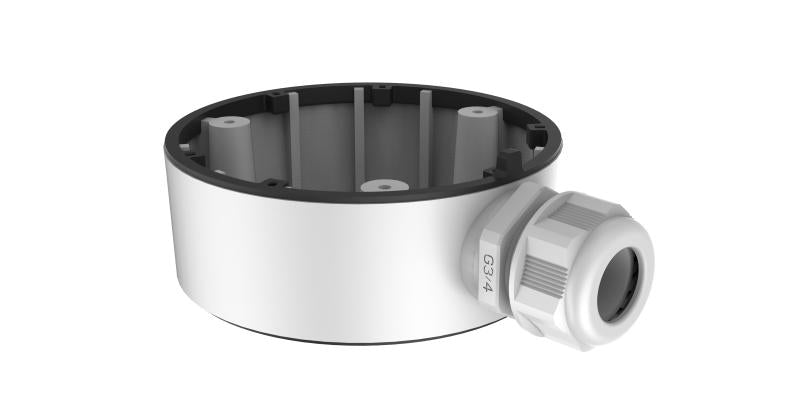

Hikvision DS-1280ZJ-TR13 Strong Junction Box

Model: DS-1280ZJ-TR13

Who This Is For

When cable concealment and a clean wall finish matter as much as the camera itself, the DS-1280ZJ-TR13 Strong Junction Box is the bracket to specify. Designed for installers mounting compatible Hikvision turret and dome cameras to masonry, brick, or rendered walls, this junction box sits between the wall surface and the camera base - hiding the cable entry point and providing a solid, flush-mounted platform. It suits residential installs where exposed conduit is not acceptable, as well as commercial and light industrial sites where a tidy finish is part of the job spec. The TR13 model is built to match the footprint of specific Hikvision camera bases, making it a deliberate accessory purchase rather than a universal bracket. Electricians and security installers who pre-plan cable routing before wall surfaces are finished will find this the correct solution for a professional result.

What This Junction Box Actually Does

Who Buys This Model

• Security Installers: Specifying a clean cable-in-wall finish on residential or small commercial Hikvision turret camera installations where the junction box is part of the original job scope.
• Builders and Electricians: Roughing in camera cabling during construction or renovation, where a junction box is installed flush to the wall before the camera arrives on site.
• Property Managers and Body Corporates: Retrofitting cameras to rendered or brick exteriors on apartment complexes or commercial properties where a tidy, professional mounting is required by strata or council.
• DIY Installers Upgrading an Existing Setup: Replacing a surface-mounted camera that previously had exposed cabling, using the DS-1280ZJ-TR13 to improve the finish when re-routing cable through the wall.

Honest Assessment

The DS-1280ZJ-TR13 does one thing well - it gives a compatible Hikvision turret or dome camera a flush, cable-concealed wall mount with a solid metal base. For installers who care about job finish, this is the correct way to mount a camera on a masonry or rendered surface rather than leaving cable draped down the wall or relying on surface conduit. The metal build means the mounting point does not flex, and the matched footprint means the camera base sits correctly without improvised adaptors or visible gaps. What it will not do is suit every Hikvision camera in the range - compatibility with the TR13 footprint needs to be confirmed against the specific camera model being installed. It also does not replace a pole mount or ceiling adapter if the installation surface is not a flat wall. Available through Security Australia, the DS-1280ZJ-TR13 is an accessory purchase that is easy to overlook during planning and difficult to retrofit neatly afterward.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Hikvision turret or dome camera to a flat masonry or rendered wall and want to route the network cable through the wall cavity with no exposed cabling at the camera head.
• Good match if: The job requires a rigid, metal mounting base rather than a plastic adaptor - particularly relevant for external walls where thermal expansion, UV, and weather cycling would degrade a plastic bracket over time.
• You may need a different model if: The camera is being mounted to a pole, soffit, ceiling, or non-flat surface - a pole mount adaptor, corner mount, or ceiling bracket from the Hikvision accessories range will be the correct product type for those surfaces.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a flush, cable-concealed wall mount with a metal build for a compatible Hikvision turret or dome camera on a flat wall surface - this is the purpose-built solution rather than a workaround with a generic bracket.
• You may need a different model if: The mounting surface is a ceiling, pole, corner, or angled soffit - Hikvision's ceiling mount, pole mount adaptor, and corner bracket accessories are the correct product types for those surfaces.
• Pairs well with: A compatible Hikvision turret camera with matching TR13 base footprint, specified and ordered at the same time as the junction box to confirm fit before installation begins.

Common Questions

1. Does the DS-1280ZJ-TR13 work with all Hikvision cameras?

   No. The TR13 designation refers to a specific base footprint size, meaning it is compatible with Hikvision cameras whose mounting base matches the TR13 pattern. Not all Hikvision dome or turret cameras use the same base diameter or hole spacing. Check the datasheet of the specific camera model against this junction box before ordering to confirm the fit.

2. Will this junction box work for an outdoor wall installation?

   Yes, it is suited to outdoor wall mounting, provided the cable entry into the junction box is sealed correctly during installation. The metal construction handles external wall conditions better than plastic alternatives, but the sealing of the cable penetration through the wall is the installer's responsibility and determines long-term weather resistance at that point.

3. Can the DS-1280ZJ-TR13 be used on a ceiling instead of a wall?

   No. This is a wall-mount junction box designed for vertical surfaces. For ceiling installations with cable routed through the ceiling void, a ceiling mount accessory from the Hikvision range is the correct product type - the DS-1280ZJ-TR13 is not intended for overhead mounting.

4. Is this the same as a standard back box or electrical junction box?

   No. The DS-1280ZJ-TR13 is a Hikvision-specific camera mounting accessory, not a generic electrical back box. Its dimensions, mounting hole pattern, and cable exit position are designed to align with compatible Hikvision camera bases. A generic electrical back box will not match the camera base footprint and may leave visible gaps or misaligned fixings. The product is stocked by Security Australia as a deliberate accessory to match specific Hikvision camera models.

5. How much cable space is inside the junction box?

   The internal cavity is sized to accommodate a standard Cat5e or Cat6 network cable connector. It is not designed to house large cable spools or multiple cables. For installations where excess cable needs to be stored, the cable should be trimmed to length before the junction box is fitted rather than coiled inside the unit.

6. Does the junction box include mounting hardware?

   Hikvision typically includes fixing screws with this type of accessory, but the wall anchors or fixings required for masonry or brick surfaces need to be sourced separately based on the wall substrate. For hollow-wall or timber stud installations, appropriate wall anchors should be selected by the installer to suit the surface type and the weight of the camera being mounted.
