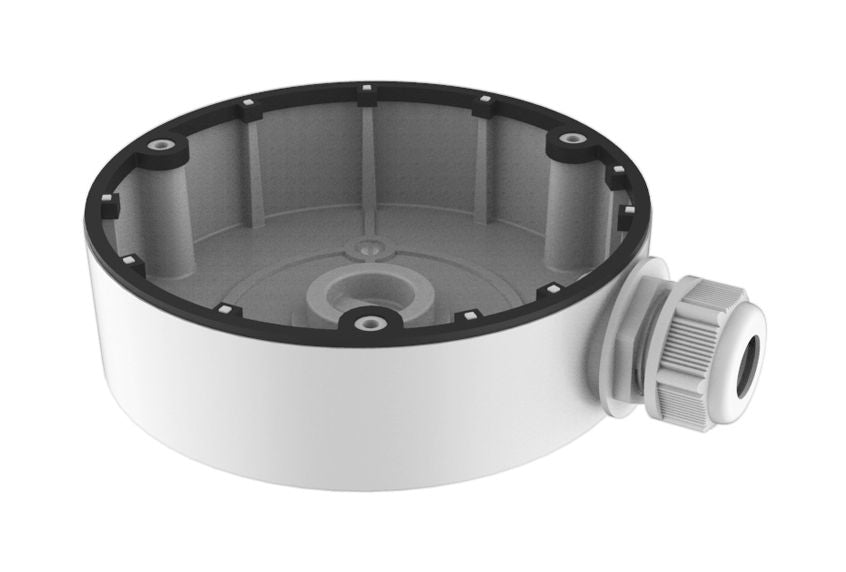

Hikvision DS-1280ZJ-DM8 CCTV Camera Bracket

Model: DS-1280ZJ-DM8

Who This Is For

For installers and integrators who need a clean, professional finish when surface-mounting Hikvision dome cameras onto concrete, brick, or masonry walls. The DS-1280ZJ-DM8 is a dome camera junction box designed to sit between the camera base and the mounting surface, concealing the cable entry point and eliminating exposed conduit runs that compromise both aesthetics and cable protection. It suits commercial fit-outs, strata buildings, and retail environments where tidy cable management is expected as standard. Electricians and security technicians specifying Hikvision dome installations will find this bracket simplifies the rough-in stage - cables are routed through the box during the first fix, and the camera mounts directly onto it during the second fix. At 210 g and Ø126.7 x 35 mm, it adds minimal profile to the ceiling or wall and maintains colour consistency with Hikvision White dome cameras.

What This Actually Does

Who Buys This Model

• Security Installers on Commercial Fit-Outs: Specifying a neat finish on multi-camera dome jobs where exposed cabling at the camera base is not acceptable to the building owner or architect.
• Electricians Doing First-Fix Rough-In: Fixing and cabling the junction box before camera delivery, enabling the security contractor to mount cameras directly onto pre-wired boxes during the second fix stage.
• Strata and Property Managers: Replacing existing dome camera junction boxes on building exterior walls where the original bracket has corroded or broken, requiring a compatible aluminium replacement.
• Retail and Office Fit-Out Contractors: Installing Hikvision dome cameras in tenant spaces where the building manager requires all cabling to be concealed and the installation to match the ceiling or wall colour.

Honest Assessment

The DS-1280ZJ-DM8 does what a junction box needs to do: it conceals cables, provides a stable mounting surface for compatible Hikvision dome cameras, and does so in a material that suits both indoor and outdoor use. The aluminium alloy construction is the meaningful difference over basic plastic alternatives - it will not crack under UV exposure on a north-facing external wall, and the Hikvision White finish maintains colour consistency with the camera body across the life of the installation. At 210 g and 35 mm depth, it adds almost nothing to the visual footprint of the dome assembly. What it will not do is suit every dome model in the Hikvision range - compatibility should be confirmed against your specific camera model before ordering. It also does not provide additional weather sealing beyond what the camera itself offers. Available through Security Australia, this bracket suits installers who want a tidy, durable finish without sourcing a third-party back-box.

Before You Buy

Quick Fit Check

• Good match if: You are surface-mounting a compatible Hikvision dome camera onto a wall or ceiling and need to conceal the cable entry point with a colour-matched, durable aluminium housing.
• Good match if: The installation requires a two-stage process where cabling is run and terminated before the camera is fixed - the junction box accepts cabling at the rough-in stage and the camera mounts directly onto it at fit-off.
• You may need a different model if: Your dome camera requires a pendant, pole, or parapet mount - those applications need a dedicated mounting arm or pendant bracket rather than a flush junction box.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a colour-matched, aluminium junction box that sits flush to the surface and conceals cabling at the camera base on indoor or outdoor Hikvision dome installations.
• You may need a different model if: The camera requires an angled wall bracket, pendant drop, or pole mount - those applications need a dedicated mounting arm rather than a flush junction box.
• Pairs well with: Hikvision dome cameras requiring surface-mounted cable concealment, and Cat5e or Cat6 PoE cabling terminated inside the box prior to camera fit-off.

Common Questions

1. Will this junction box work with all Hikvision dome cameras?

   Not necessarily. The DS-1280ZJ-DM8 is designed for Hikvision dome cameras, but different dome series within the Hikvision range use different base footprints and mounting hole patterns. Before ordering, check your camera's datasheet or the Hikvision compatibility list to confirm the DS-1280ZJ-DM8 is the recommended junction box for that specific model.

2. Can this bracket be used outdoors?

   Yes. The aluminium alloy construction and surface spray finish make it suitable for outdoor surface mounting. It resists UV degradation and corrosion that would affect plastic alternatives over time. For external installations, sealing the cable entry point with an appropriate outdoor sealant is recommended to prevent water tracking into the wall cavity.

3. What does the junction box actually do - is it just a cosmetic cover?

   No. It serves a functional purpose by providing a stable mounting base for the camera and a managed cable entry point at the wall or ceiling surface. The cable is routed through the junction box from inside the wall cavity to the camera, keeping the connection point enclosed and protected. It also enables a two-stage installation process where cabling is completed before the camera is fitted.

4. Does this junction box add significant depth to the camera installation?

   No. At 35 mm deep and 210 g, the DS-1280ZJ-DM8 adds minimal profile and weight to the camera assembly. The Ø126.7 mm footprint is sized to match the dome camera base, so the overall installation reads as a single unit rather than a camera sitting on a noticeably separate bracket. This is relevant for low-ceiling applications where minimising protrusion matters.

5. Will this fit onto a standard wall back-box or conduit entry?

   The DS-1280ZJ-DM8 mounts directly onto a flat wall or ceiling surface using its own fixing points and accepts cabling through its integrated cable hole. It is not designed to sit over a standard electrical back-box. Cabling should be routed through the wall surface and into the junction box via the cable entry point. If you are working with conduit, ensure the conduit terminates flush with or recessed into the surface before the bracket is fixed. The team at Security Australia can assist with compatibility queries if your installation has specific conduit requirements.

6. Does the DS-1280ZJ-DM8 come in colours other than white?

   Based on available product data, the DS-1280ZJ-DM8 is supplied in Hikvision White only. If your installation requires a different finish - such as black for a dark ceiling or grey for an industrial environment - check whether an alternative junction box model in the Hikvision bracket range is available for your camera model.
