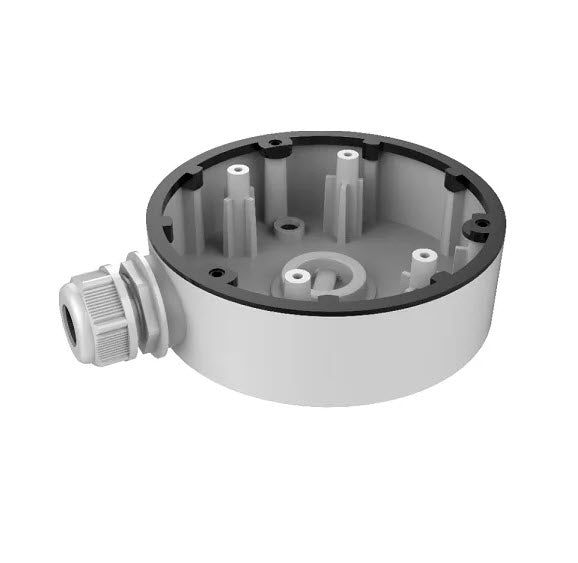

Hikvision DS-1280ZJ-DM46 Junction box White
- Sku: DS-1280ZJ-DM46
- Vendor: SecurityAustralia
When a clean, concealed cable entry is the requirement, the DS-1280ZJ-DM46 junction box provides a purpose-built mounting solution for Hikvision mini dome cameras. Constructed from aluminium alloy with a surface spray finish, it suits flat wall or ceiling installation and supports a maximum load of 4.5 kg. Waterproof rubber is required for outdoor use.
Why This Model
- Aluminium alloy build: Durable metal construction with surface spray treatment resists corrosion and wear, making it a longer-lasting alternative to plastic housings in demanding environments.
- Interchangeable waterproof cover and side gland nut: Adapts cable entry direction to suit the actual installation conditions, reducing the need for awkward cable routing on site.
- 4.5 kg load rating: Comfortably accommodates compatible Hikvision mini dome cameras and their mounting hardware without risk of structural failure at the junction point.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: DS-1280ZJ-DM46
Who This Is For
Security installers finishing a Hikvision mini dome installation who need a clean, cable-managed junction point between the wall or ceiling structure and the camera mount will find the DS-1280ZJ-DM46 Junction Box a straightforward fit. This white aluminium alloy box is designed specifically for Hikvision mini dome cameras, providing a recessed cable entry point that keeps wiring concealed and the finished installation tidy. It mounts flat to walls or ceilings, suits both indoor and outdoor applications when waterproof rubber is used correctly, and carries a maximum load of 4.5 kg - enough for the camera and mount combined. If you are specifying Hikvision mini dome cameras on a multi-camera installation and want a consistent, professional finish across every camera position, this junction box is the component that completes the job properly.
What This Accessory Actually Does
Cable Concealment
Routes network and power cabling through the junction box body before it reaches the camera mount. This eliminates exposed cable runs along the wall surface, giving a finished look that matters in visible installation areas like reception spaces or retail ceilings.
Aluminium Alloy Construction
The box is cast from aluminium alloy with a surface spray treatment rather than moulded plastic. That means it resists knocks, holds its shape under load, and does not yellow or become brittle over time in sun-exposed outdoor eave positions.
Interchangeable Bottom Cover and Side Gland Nut
The waterproof bottom cover and side gland nut are interchangeable, so you can route the cable from the bottom or the side depending on how the conduit or surface cable arrives at the mount position. This makes it adaptable across different wall and ceiling configurations.
4.5 kg Maximum Load
Rated to hold up to 4.5 kg, which covers the combined weight of a Hikvision mini dome camera and its mount with margin. The supporting wall or ceiling structure itself should be rated to at least 3 times the total load - confirmed before installation.
Flat Wall or Ceiling Mount
Designed to sit flush against a flat surface, whether that is a plasterboard ceiling, concrete soffit, or brick wall. The flat-back profile keeps the installed camera close to the surface without requiring a separate back plate or adapter bracket.
Who Buys This Model
- Security Installers on Commercial Fit-Outs: Specifying Hikvision mini dome cameras throughout an office or retail space where a clean ceiling finish is expected and exposed cabling is not acceptable to the client.
- Electricians Adding Cameras to New Builds: Roughing in conduit to camera positions during the build phase and needing a junction point that will accept the conduit entry from below or from the side.
- Installers Working on Outdoor Eave Positions: Mounting mini dome cameras under building eaves where a weather-resistant junction box with proper waterproofing capability is required to protect the cable entry point.
- Property Maintenance Teams Replacing Mounts: Upgrading an existing Hikvision mini dome installation where the original mount has been damaged and needs a like-for-like replacement that matches the existing camera footprint.
Honest Assessment
The DS-1280ZJ-DM46 does its job without complication: it gives Hikvision mini dome cameras a proper cable-managed mount point, keeps the installation looking finished, and handles the load. The aluminium alloy build holds up better than plastic alternatives in outdoor positions, and the interchangeable entry options mean it fits most cable routing approaches without forcing a workaround. Where it falls short is scope - this box is specific to Hikvision mini dome cameras and will not suit bullet camera brackets, larger dome housings, or cameras from other brands. It is also not a substitute for a proper in-wall back box if you are chasing cables into a cavity wall. If you are working with a different Hikvision camera form factor, check the compatible mount accessories available through Security Australia before ordering to confirm the right junction box for that specific camera series.
Before You Buy
Installer Note: For outdoor installations, waterproof rubber must be applied at both the cable entry gland and the junction between the box and the camera mount - the DS-1280ZJ-DM46 does not include pre-applied gasket sealing. Confirm this before signing off on any outdoor position. Also verify that your mounting surface can support at least 3 times the combined weight of the camera, mount, and junction box - not just 4.5 kg total.
Compatibility Note: This junction box is designed for Hikvision mini dome cameras. Before ordering, confirm your specific mini dome model is compatible with this mount footprint. Not all Hikvision dome cameras share the same base dimensions.
Quick Fit Check
- Good match if: You are mounting a Hikvision mini dome camera to a flat wall or ceiling and need a cable-managed junction point that presents cleanly without exposed wiring.
- Good match if: Your cable routing arrives from either the bottom or the side of the mount position - the interchangeable gland nut and bottom cover let you choose the entry direction on site.
- You may need a different model if: You are mounting a Hikvision bullet camera, turret, or larger dome housing - those camera types require their own specific bracket and junction box accessories designed for their base profile.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You are mounting a Hikvision mini dome camera to a flat wall or ceiling and want an aluminium alloy junction box that handles both indoor and outdoor positions with the correct waterproofing applied.
- You may need a different model if: Your installation uses a Hikvision bullet or turret camera - those camera types require bracket and junction box accessories specific to their own mounting footprint and form factor.
- Pairs well with: Hikvision mini dome cameras and compatible PoE network switches or NVRs that connect via the Cat5e or Cat6 cable routed through this junction box.
Common Questions
-
Will the DS-1280ZJ-DM46 work for outdoor camera positions?
Yes, with conditions. The aluminium alloy housing is built to handle outdoor environments, but the DS-1280ZJ-DM46 requires waterproof rubber to be applied at the cable entry points before outdoor use. The box does not come with pre-applied sealing, so this step is the installer's responsibility on every outdoor position. -
Does this junction box work with all Hikvision dome cameras?
No. This box is designed specifically for Hikvision mini dome cameras. Larger Hikvision dome cameras or different form factors use their own mount accessories. Confirm your specific camera model is compatible with the DS-1280ZJ-DM46 footprint before ordering. -
Can the cable enter from the side instead of the bottom?
Yes. The DS-1280ZJ-DM46 includes both an interchangeable bottom waterproof cover and a side gland nut, so you can route the cable from whichever direction suits your installation. This is useful when surface-mounted conduit arrives horizontally rather than from below. -
What is the maximum weight this junction box can support?
The DS-1280ZJ-DM46 is rated to a maximum load of 4.5 kg. This covers the combined weight of a Hikvision mini dome camera and its mount. The mounting surface itself - whether plasterboard, concrete, or brick - must be capable of supporting at least 3 times that combined load, so check your substrate before drilling. -
Is this junction box only for ceiling mounting?
No. The DS-1280ZJ-DM46 is designed for flat wall or ceiling mounting. Its flat-back profile sits flush against either surface, so it works equally well on a vertical wall as it does on a horizontal ceiling - provided the surface is flat and the structure meets the load requirement. -
Why choose an aluminium alloy junction box over a plastic one?
Aluminium alloy holds its shape under physical load and does not degrade with UV exposure the way standard plastics do over time. For outdoor eave or wall positions where the box is exposed to sun and temperature variation, the DS-1280ZJ-DM46's aluminium construction with surface spray treatment is a more durable long-term choice. This accessory is stocked by Security Australia as part of the Hikvision mounting hardware range.
