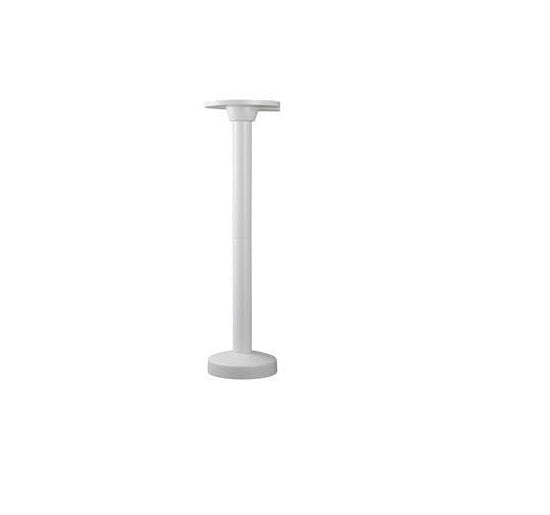

Hikvision DS-1271ZJ-120 Pendent Mounting Bracket

Model: DS-1271ZJ-140-2

Who This Is For

Property managers specifying dome camera installations where ceiling-mounted positioning is not practical will find this bracket a straightforward solution. The Hikvision DS-1271ZJ-120 Pendant Mounting Bracket is built for installers who need to drop a mini dome camera from a structural ceiling, exposed beam, or overhead fixture and still achieve a clean, professional finish. At 543 mm in length, it provides enough clearance to position cameras below ceiling obstructions such as ductwork, suspended ceilings, or decorative soffits. The aluminium alloy construction keeps the bracket rigid under load without adding excessive weight to the fixing point, while the Hikvision White finish integrates cleanly with compatible Hikvision dome camera housings. This bracket suits commercial interiors including retail stores, offices, stairwells, and covered outdoor areas where pendant mounting is the most practical or only viable option.

What This Bracket Actually Does

Who Buys This Model

• Commercial Fit-Out Installers: Running Hikvision mini dome cameras in retail stores or office fit-outs where exposed ceilings or high-bay spaces require a pendant drop to bring the camera to a usable height.
• Facility Managers in Industrial or Warehouse Environments: Covered loading areas and high-ceiling warehouses where ceiling mounts place cameras too far from the monitored zone - the 543 mm drop brings the camera into an effective coverage position.
• Architects and Designers on Commercial Projects: Specifying pendant-mounted cameras as part of a deliberate interior design approach, where the matched Hikvision White finish is needed to maintain a consistent aesthetic.
• Security Integrators Replacing Like-for-Like: Swapping out ageing pendant brackets on existing Hikvision dome camera systems and requiring a direct OEM replacement that matches the original mounting dimensions and finish.

Honest Assessment

The DS-1271ZJ-120 does one job well: it provides a rigid, professionally finished pendant drop for compatible Hikvision mini dome cameras in situations where direct ceiling mounting is not suitable. The aluminium alloy construction is a genuine advantage over plastic alternatives in long-term installations, and the internal cable routing keeps the finished result clean. The Hikvision White finish is consistent with Hikvision dome camera housings, which matters in client-facing environments. Available through Security Australia, this bracket is a purpose-built OEM accessory rather than a universal fit solution. It will not work with every dome camera on the market - compatibility should be confirmed against your specific camera model before ordering. If your installation requires a shorter drop, a wall arm, or a corner mount, a different bracket type from the Hikvision accessory range will be the more appropriate choice.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Hikvision mini dome camera from an exposed or obstructed ceiling and need a 543 mm drop to position the camera at an effective coverage height.
• Good match if: Your installation requires concealed cabling and a professionally matched finish - the internal cable routing and Hikvision White colour align with OEM dome camera housings.
• You may need a different model if: Your camera requires a wall arm, corner mount, or a different pendant drop length - the Hikvision bracket accessory range on securityaustralia.com.au includes alternative mounting configurations suited to those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a pendant drop specifically sized at 543 mm for a compatible Hikvision mini dome camera, with concealed cabling and a finish that matches the Hikvision camera housing.
• You may need a different model if: Your installation requires a wall arm, corner mount, or a shorter or longer pendant drop - the broader Hikvision mounting accessory range on securityaustralia.com.au covers these configurations.
• Pairs well with: Compatible Hikvision mini dome cameras (indoor or outdoor), ceiling junction boxes, and PoE switches where cabling terminates above the ceiling and routes through the pendant body.

Common Questions

1. Will this bracket work with any Hikvision dome camera?

   Not all Hikvision dome cameras - it is designed specifically for mini dome models that use a compatible pendant mount interface. Larger full-size dome cameras, turrets, and bullet cameras use different mounting systems. Always confirm your specific camera model's mounting base dimensions against this bracket before purchasing.

2. Can this bracket be used outdoors?

   Yes, in covered or partially exposed outdoor locations. The aluminium alloy construction resists corrosion and the bracket is designed for use in both indoor and outdoor environments. It is not rated for direct rain exposure - confirm your camera's IP rating independently and ensure the bracket installation point is sheltered from direct water ingress.

3. Does cabling route through the inside of the bracket?

   Yes. The tubular pendant design is built for internal cable routing, allowing power and data cabling to pass from the ceiling fixing point through the bracket body to the camera. This keeps cables concealed and reduces the risk of tampering with exposed wiring runs.

4. What is the fixed drop length and can it be adjusted?

   The drop length is fixed at 543 mm - it is not adjustable. If your installation requires a different pendant length, the DS-1271ZJ bracket series includes models with varying drop lengths. Check the Hikvision accessory range at Security Australia to identify the drop length that suits your ceiling height and camera positioning requirements.

5. How much weight can this bracket support?

   The bracket itself weighs 1290 g and is rated to support compatible Hikvision mini dome cameras. Mini dome cameras in this category typically weigh between 400 g and 900 g. The 150 mm diameter base distributes load across the ceiling fixing point. For the maximum supported camera weight, refer to the Hikvision product datasheet for this bracket model.

6. Does this bracket suit suspended grid ceilings?

   Only with the correct structural backing. The bracket's 150 mm base must be fixed to a structural ceiling slab or a rated cross-member - not to a suspended ceiling tile or lightweight grid rail on its own. In suspended ceiling installations, a backing plate or drop rod anchored to the structural slab is required to carry the combined weight of the bracket and camera safely.

Downloads & Resources

No downloads available for this product.
