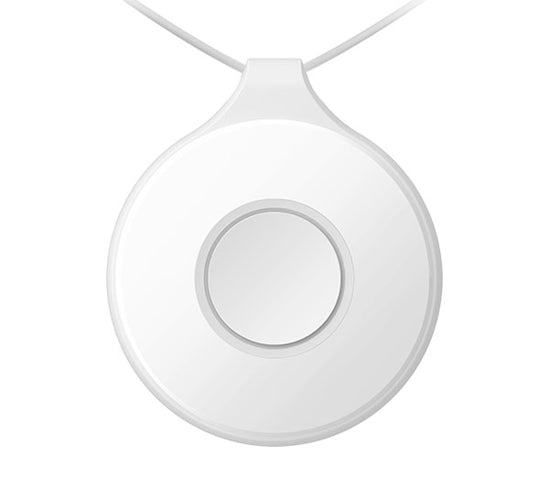

Hikvision AX PRO DS-PDEBP1-EG2-WB Portable Wireless Emergency Button

Model: DS-PDEBP1-EG2-WB

Who This Is For

When immediate manual alerting is the priority - for elderly residents, lone workers, reception staff, or anyone who needs a fast one-press emergency trigger - the Hikvision AX PRO DS-PDEBP1-EG2-WB Portable Wireless Emergency Button fits directly into an existing AX PRO alarm system without any cabling. At 45.5g and 63.8 x 63.8 x 17.9mm, it is compact enough to carry or mount on a wall in a discreet location. Running on a single CR2450 battery rated for up to 3 years, it operates at 433MHz with two-way RF wireless communication and an open-area transmission range of 800m. Installers specifying AX PRO systems for aged care facilities, medical practices, small offices, or residential properties will find this button adds a direct human-triggered emergency layer that passive sensors cannot replicate.

What This Device Actually Does

Who Buys This Model

• Aged care and home-care providers: Installing AX PRO systems in residential aged care or home-assist settings where a resident needs a wearable or bedside panic trigger that connects directly into the alarm panel.
• Medical and allied health practices: Fitting out consulting rooms or reception areas where a staff member working alone needs a discreet, fixed emergency button that does not require a phone or internet connection to activate.
• Retail and small business owners: Adding a counter-mounted or under-desk emergency trigger to an existing AX PRO system for staff duress situations during trading hours.
• Residential AX PRO system owners: Expanding an existing AX PRO installation with a portable button for a family member - particularly those with mobility limitations or medical conditions - who may need to call for help from anywhere in the home.

Honest Assessment

The DS-PDEBP1-EG2-WB does its job clearly: it puts a manual emergency trigger into the hands of a person who needs it, connects wirelessly to an AX PRO panel at up to 800m, confirms the transmission both ways, and runs for up to 3 years on a single battery. The portable and wall-mount dual format is genuinely useful for sites where the same person moves between locations. Low-battery and tamper notifications through the panel mean the button remains a managed part of the alarm system rather than a standalone device that gets forgotten. What it will not do is work independently of an AX PRO hub - this is not a standalone personal alarm that contacts emergency services directly. It also has no GPS tracking or fall detection. For users who need an independent medical alert device without an alarm panel, a different product category is more appropriate. The DS-PDEBP1-EG2-WB is available through Security Australia as part of the broader AX PRO wireless accessory range.

Before You Buy

Quick Fit Check

• Good match if: You already have a Hikvision AX PRO alarm system installed and need to add a manual panic or duress trigger for a staff member, resident, or family member - this enrolls directly into the panel as a wireless zone with no cabling required.
• Good match if: The installation requires a device that can be both carried on a person and mounted to a wall in the same location - the 45.5g form factor supports both uses from a single unit.
• You may need a different model if: The site does not have a Hikvision AX PRO hub, or the user needs a self-contained personal alarm that contacts emergency services directly without any alarm panel infrastructure - a standalone medical alert or GPRS personal alarm device would be more suitable for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You have an existing Hikvision AX PRO alarm panel and need a cable-free manual emergency trigger with two-way RF confirmation and a 3-year battery life that integrates as a managed zone within the alarm system.
• You may need a different model if: The site does not use an AX PRO panel, or the application requires a self-contained personal alarm with GSM/GPS capability that calls emergency services independently - a standalone personal safety alarm or GPRS duress device would be the appropriate product type in that case.
• Pairs well with: AX PRO wireless PIR detectors, AX PRO indoor sirens, and additional AX PRO wireless sensors to build out a complete zone-managed alarm system around the same hub.

Common Questions

1. Will this button work with my existing alarm panel if it is not a Hikvision AX PRO?

   No. The DS-PDEBP1-EG2-WB is designed exclusively for the Hikvision AX PRO platform and communicates via 433MHz two-way RF proprietary to that system. It will not enrol into third-party panels, older Hikvision alarm generations, or generic 433MHz receivers. If your panel is not AX PRO, this device is not compatible.

2. Does this button contact emergency services directly when pressed?

   No. Pressing the DS-PDEBP1-EG2-WB triggers an alert on the connected AX PRO panel only. Whether that alert then contacts emergency services depends entirely on how the AX PRO system is configured - for example, whether it is connected to a professional monitoring centre or integrated with the Hik-Connect app for push notifications. The button itself has no independent communication capability.

3. What does "two-way RF wireless" mean in practice for this button?

   Two-way RF means the AX PRO panel acknowledges receipt of the emergency signal back to the button, rather than simply receiving it passively. This confirmation loop reduces the risk of a missed or dropped transmission going undetected - the system knows whether the alert was successfully received, which matters in a genuine emergency activation.

4. Does the 800m transmission range apply inside a building?

   No - not reliably. The 800m figure is measured in open-area conditions with no obstructions. Inside a building, walls, floors, and structural materials reduce effective range significantly. Concrete and brick construction has a greater impact than timber framing. During commissioning, signal strength should be tested from the intended mounting position before the button is permanently installed, particularly in larger or multi-storey buildings.

5. How will I know when the battery needs replacing?

   The DS-PDEBP1-EG2-WB sends a low-battery notification to the AX PRO panel before the battery is fully depleted. This means the alert appears in the panel's event log and can trigger a push notification through Hik-Connect, giving time to replace the CR2450 battery before the button goes offline. The rated battery life is up to 3 years under normal working conditions.

6. Can this button be carried as a wearable personal alarm?

   It can be carried as a portable device, yes. At 45.5g and 63.8 x 63.8 x 17.9mm it is compact enough to be kept on a person, placed in a pocket, or left on a surface. It is not a wearable in the sense of a wrist-worn or lanyard panic button by design, but the portability is built in. Note that effective range indoors will be less than the 800m open-area specification, so the user must remain within reliable RF range of the AX PRO hub. The button is listed as stocked by Security Australia as part of the AX PRO accessory range.

7. What happens if someone tries to remove or tamper with the button from its wall mount?

   A tamper alert is sent to the AX PRO panel immediately. This keeps the device accountable as part of a managed alarm system - any interference is logged as an event and can trigger a notification, meaning the button cannot be quietly removed or disabled without the panel recording it.

Downloads & Resources

No downloads available for this product.
