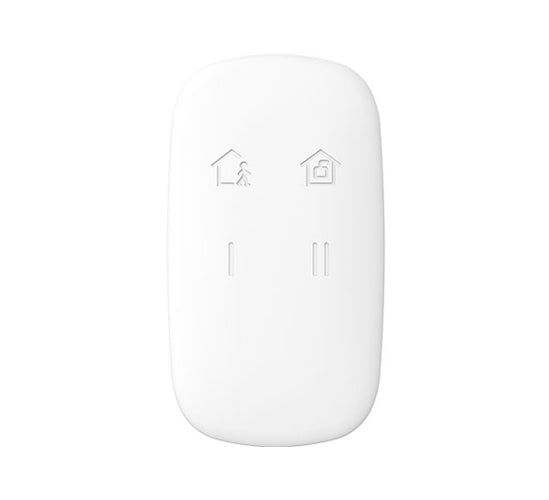

Hikvision AX PRO Series DS-PKF1-WB Wireless Keyfob

Model: DS-PKF1-WB

Who This Is For

Property managers specifying Hikvision AX PRO wireless alarm systems who need a convenient arming and disarming option for staff or residents without relying on keypads. The DS-PKF1-WB is a compact wireless keyfob that pairs directly with the AX PRO hub over 433MHz RF, allowing users to arm, disarm, and trigger a panic alarm from their keyring. It suits multi-user environments - rental properties, small offices, childcare facilities, and residential installations - where different people need independent system access. The keyfob supports programmable buttons, provides buzzer feedback on each action, and includes a low battery alert so it is not silently dead when someone needs it. At roughly 30g and approximately 70mm x 40mm x 15mm, it carries easily and is built for daily handling without becoming a liability.

What This Device Actually Does

Who Buys This Model

• Residential AX PRO Users: Homeowners who want keyring-based arming and disarming without entering a PIN every time they arrive, particularly useful when managing entry for multiple family members.
• Small Business Owners: Retail or office operators adding a second or third keyfob so staff can arm at close-of-business without needing keypad access codes shared between everyone.
• Property Managers: Those running short-term rental or multi-tenancy sites where different users need independent, revocable access to the alarm system without a shared PIN.
• Lone Worker Installations: Security-conscious sites specifying the panic button function as a duress option for a single staff member working after hours or in an isolated area.

Honest Assessment

The DS-PKF1-WB does what a keyfob should do well: it is compact, long-lived on a standard CR2032 cell, and integrates cleanly with the Hikvision AX PRO ecosystem over 433MHz RF. The panic button is a genuine addition, not just a marketing feature, and buzzer feedback reduces user error on sites where confirmation matters. Battery life rated to up to 2 years keeps maintenance low. What it will not do is work with any non-AX PRO system - this is a proprietary RF device, not a universal alarm keyfob. It also does not provide two-way communication or GPS location, so it is not a personal safety device in that sense. If your installation requires biometric or PIN-based credential management, a keypad or reader is a more appropriate solution. The DS-PKF1-WB is available through Security Australia as an add-on peripheral for existing or new AX PRO deployments.

Before You Buy

Quick Fit Check

• Good match if: You already have a Hikvision AX PRO alarm hub installed and want to add keyring-based arm, disarm, and panic functionality for one or more users without giving them keypad access.
• Good match if: Your site has multiple users who need independent system access - the AX PRO supports multiple enrolled keyfobs, so each person can carry their own without sharing credentials.
• You may need a different model if: Your installation requires access control with audit trails, time-restricted credentials, or biometric verification - a dedicated keypad or access control reader would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You have a Hikvision AX PRO alarm system and need a fast, portable arming and disarming method - or want to add panic alarm capability for one or more users without installing additional keypads.
• You may need a different model if: Your site requires credential management with access logs, time-based restrictions, or biometric verification - a dedicated alarm keypad or access control reader handles those requirements more appropriately.
• Pairs well with: Additional AX PRO wireless peripherals such as door/window sensors, PIR detectors, and wireless sirens to build out a complete AX PRO alarm system.

Common Questions

1. Will this keyfob work with my existing Hikvision alarm panel?

   Only if your panel is a Hikvision AX PRO hub. The DS-PKF1-WB communicates over 433MHz RF and is designed exclusively for the AX PRO series. It will not enroll to older Hikvision alarm panels, third-party alarm systems, or non-AX PRO Hikvision products. Check your hub model before purchasing.

2. How many keyfobs can be enrolled to a single AX PRO hub?

   Multiple keyfobs are supported, but the exact maximum depends on your specific AX PRO hub model. Each keyfob enrolls as a separate peripheral, and each can be individually removed when a user's access needs to be revoked. Confirm the peripheral capacity of your hub model before deploying across a large number of users.

3. How long does the battery last and what type does it use?

   The CR2032 cell is rated for up to 2 years depending on how frequently the keyfob is used. The DS-PKF1-WB includes a low battery alert that signals before the battery fails completely, giving you time to replace it without being caught off guard. CR2032 cells are widely available at hardware and electronics stores.

4. Does this keyfob work as a panic button?

   Yes. A dedicated panic function is included, allowing the user to send an immediate alarm signal to the AX PRO hub at any time - not just when the system is armed. This makes it useful as a personal duress option for lone workers or vulnerable residents, not just as an arming convenience tool.

5. Can I customise what each button on the keyfob does?

   Yes. The DS-PKF1-WB supports programmable buttons, so functions can be configured to match the site's operational needs rather than being locked to a fixed layout. Configuration is managed through the AX PRO hub and the Hik-Connect app, which also provides remote system status updates. Security Australia stocks the full range of AX PRO accessories to support complete system builds.

6. Will the keyfob work at range - for example from a car in a driveway?

   RF range depends on the environment, building construction, and any RF interference present. The DS-PKF1-WB operates at 433MHz, which offers reasonable penetration through standard walls, but range is not specified as a fixed figure. Testing the effective range at your specific site during installation is recommended before finalising the position of the AX PRO hub relative to where the keyfob will be used.

7. Does the keyfob give any confirmation that the system armed successfully?

   Yes. The built-in buzzer provides audible feedback when a button press is registered. For full confirmation that the AX PRO hub actioned the command, the Hik-Connect app sends real-time status notifications to enrolled users' smartphones, so you can verify arm or disarm status remotely if needed.
