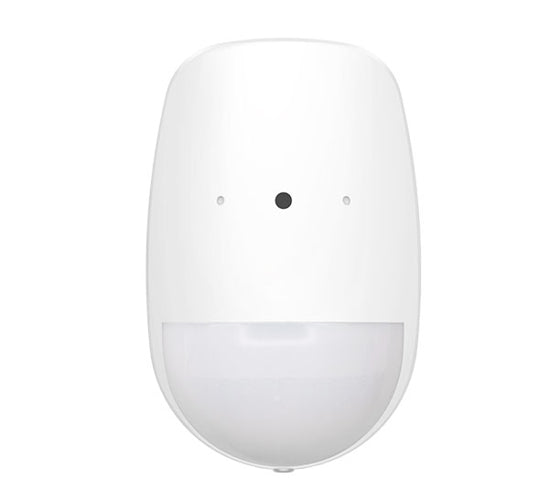

Hikvision AX PRO Series DS-PDPG12P-EG2-WB Wireless PIR-Glass Break Detector

Model: DS-PDPG12P-EG2-WB

Who This Is For

For installers and property owners who need dual-technology intrusion detection at glazed entry points without running cable to every window or door. The Hikvision AX PRO DS-PDPG12P-EG2-WB combines passive infrared motion sensing with an acoustic glass break sensor in a single wireless unit, addressing two of the most common intrusion vectors - a body crossing the detection zone and the sound of breaking glass - with one device. Its 12 metre range and 85.9-degree detection angle mean a single unit can cover a corner installation and reach across a standard room or retail bay. Battery operation lasting up to 5 years and IP65 weather resistance make it equally suited to covered external locations and interior deployments. It integrates exclusively with Hikvision AX PRO wireless alarm systems and is managed through the Hik-Connect platform.

What This Detector Actually Does

Who Buys This Model

• Residential AX PRO system owners: Homeowners already on the Hikvision AX PRO platform who want to add glass break coverage to large windows or sliding glass doors without cabling across finished walls.
• Security installers on multi-site retail projects: Installers deploying wireless alarm systems across shopfronts where shopfront glazing is the primary entry risk and cable concealment in existing fitouts is not feasible.
• Property managers in pet-occupied residences: Managers specifying alarm detectors for rental properties with large dogs present, where pet immunity to 30 kg reduces call-outs from false activations during unoccupied periods.
• Commercial tenants in unconditioned spaces: Warehouses or workshops in warm Australian climates where digital temperature compensation maintains PIR accuracy without requiring climate control at the sensor location.

Honest Assessment

The DS-PDPG12P-EG2-WB does two specific jobs well: it detects unauthorised entry through glazing using two complementary technologies, and it does so without requiring any cabling at the installation point. The 5-year battery life, 85.9-degree detection angle, and IP65 rating give it a wider application range than most wireless PIR-only detectors. The anti-mask feature adds a layer of tamper awareness that standalone PIR units typically lack, and the 30 kg pet immunity threshold handles most large-breed dog scenarios without sensitivity tuning.

It will not work outside the Hikvision AX PRO ecosystem - this is not a standalone detector and cannot integrate with third-party alarm panels. Buyers comparing wireless alarm detectors will find this available through Security Australia alongside compatible AX PRO panels and accessories. If the installation requires wired zone inputs or integration with a non-Hikvision control panel, a different detector type is the more appropriate solution.

Before You Buy

Quick Fit Check

• Good match if: You are deploying or expanding a Hikvision AX PRO wireless alarm system and need to cover large windows or glazed door panels where running cable to a wired detector is not practical.
• Good match if: The installation environment has large pets (up to 30 kg) that have access to the detection zone during unoccupied periods and false alarm reduction is a priority.
• You may need a different model if: Your alarm panel is not a Hikvision AX PRO system - in that case, a wired dual-technology detector compatible with your existing panel's zone inputs would be the appropriate product type to explore.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation uses a Hikvision AX PRO wireless panel and you need to protect glazed openings where both motion detection and glass break sensing are required from a single cableless device.
• You may need a different model if: Your existing alarm panel is from a different manufacturer or accepts only wired zone inputs - in that case, a wired dual-technology PIR detector compatible with your panel's input type would be the appropriate product category.
• Pairs well with: A Hikvision AX PRO wireless control panel and a compatible indoor wireless PIR-only detector for interior zones that do not require acoustic glass break coverage.

Common Questions

1. Does this detector work with any alarm panel, or only Hikvision AX PRO?

   Only Hikvision AX PRO panels. The DS-PDPG12P-EG2-WB uses Hikvision's proprietary wireless protocol and is not compatible with third-party alarm panels, DSC, Bosch, or other manufacturers' systems. Before purchasing, confirm your control panel is within the AX PRO product family and has available wireless zones to enrol the detector.

2. Will this detector trigger on my large dog moving through the room at night?

   No, provided the animal is 30 kg or under. The pet immunity threshold is rated to 30 kg, which covers most large domestic breeds. Animals above this weight may generate detection events. Pet immunity applies to the PIR element - if glass breaking occurs simultaneously, the alarm will still activate regardless of animal movement.

3. What does the acoustic sensor actually detect - any loud noise, or specifically glass breaking?

   Specifically the acoustic signature of glass breaking. The acoustic sensor is tuned to the frequency range produced when glass fractures, not general loud sounds. This means nearby music, shouting, or impacts on other surfaces are unlikely to trigger the acoustic channel. Both the PIR and acoustic channels must activate for the detector to generate an alarm event.

4. Does the IP65 rating mean I can install this fully outdoors?

   Yes, for covered or semi-exposed locations. IP65 confirms full dust protection and resistance to water jets from any direction, which suits verandahs, carports, covered loading areas, and similar partially exposed environments. Direct exposure to driving rain over extended periods pushes the limits of IP65, and a covered mounting position is still recommended where possible.

5. How long does the battery actually last in a commercial installation?

   Up to 5 years is the manufacturer's figure, but this assumes typical residential usage patterns. In commercial environments with higher activation frequency - busy shopfronts, frequent arm/disarm cycles, or high foot traffic near the detection zone - battery consumption will be faster. Plan for annual battery checks in commercial deployments and replace proactively rather than waiting for low-battery alerts during critical periods.

6. What does digital temperature compensation do, and why does it matter in Australia?

   It automatically adjusts the PIR detection threshold as ambient temperature changes. Standard PIR detectors measure the temperature difference between a moving body and the background. As room temperature approaches body temperature - common in unconditioned spaces during Australian summer - this difference shrinks and detection reliability drops. Digital temperature compensation recalibrates the threshold in real time, maintaining consistent detection accuracy without manual sensitivity adjustment.

7. Can I monitor and configure this detector remotely, or does it require on-site access?

   Remote monitoring and configuration are supported through the Hik-Connect app. Users can check detector status, view alert history, and receive push notifications without being on site. Configuration changes to sensitivity or zone settings are made through the AX PRO panel's interface, which is also accessible remotely via Hik-Connect. The DS-PDPG12P-EG2-WB is part of the Security Australia range of AX PRO compatible wireless accessories.

Downloads & Resources

No downloads available for this product.
