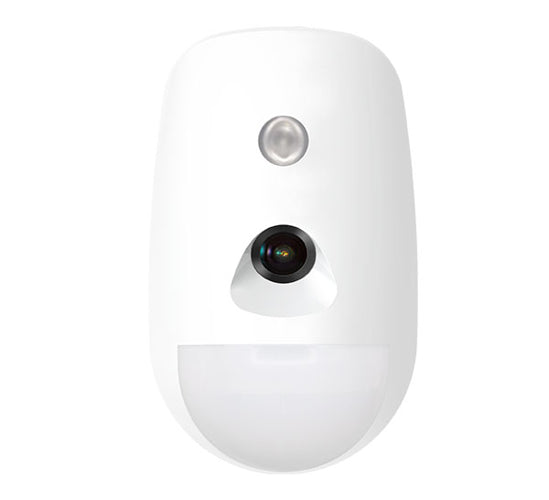

Hikvision AX PRO Series DS-PDPC12PF-EG2-WB Wireless PIRCAM Detector with Image Verification Colorvu

Model: DS-PDPC12PF-EG2-WB

Who This Is For

When reducing false alarm call-outs is the priority, alarm installers and security integrators specifying Hikvision AX PRO wireless systems turn to the DS-PDPC12PF-EG2-WB. This wireless PIRCAM detector pairs standard passive infrared motion detection with on-board image capture and ColorVu full-colour low-light imaging, so every alarm event is accompanied by a visual snapshot that confirms whether the trigger is genuine. That combination matters in monitored alarm environments where a guard response costs money and an unverified alert wastes it. With a 12-metre detection range, 85.9-degree field of view, IP65 weather resistance, and pet immunity up to 30 kg, the DS-PDPC12PF-EG2-WB suits perimeter rooms, garages, entryways, and covered outdoor zones in residential and light commercial AX PRO installations where wireless reach and visual confirmation are both required.

What This Product Actually Does

Who Buys This Model

• Alarm Installers on AX PRO Projects: Integrators building out Hikvision AX PRO wireless systems who need image verification on key detection zones to meet monitoring centre visual confirmation requirements.
• Residential Owners with Pets: Households with dogs or cats up to 30 kg where standard PIR detectors have a history of generating overnight false alarms, triggering costly monitoring responses.
• Property Managers at Remotely Monitored Sites: Commercial or rental properties where the monitoring centre needs a visual snapshot before authorising a guard response, reducing per-event call-out costs.
• Installers Avoiding Cable Runs: Technicians working in heritage buildings, rental properties, or retrofit jobs where running detection cabling to perimeter rooms or garages is not practical.

Honest Assessment

The DS-PDPC12PF-EG2-WB does one thing better than a standard PIR detector - it gives you a reason to act or stand down before committing to a response. The ColorVu image capture at 640x480 in JPEG format is not a surveillance-grade recording; it is a verification snapshot. It is enough to confirm a person is present, identify general clothing or build, and distinguish a human from a curtain moving in a draught. The 12-metre range and IP65 rating make it genuinely usable in outdoor-covered positions without extra housing. Pet immunity to 30 kg is a practical inclusion for the residential market. Where the device has limits: it requires a Hikvision AX PRO wireless panel to function - it is not a standalone device and will not integrate with third-party alarm systems. The 640x480 image resolution is adequate for verification but not for detailed facial identification. Available through Security Australia, this detector suits AX PRO installations where cutting false alarm rates is the measurable goal.

Before You Buy

Quick Fit Check

• Good match if: You are expanding an existing Hikvision AX PRO wireless alarm system and need image verification on interior or covered outdoor detection zones to satisfy a monitoring centre's visual confirmation policy.
• Good match if: The installation site has pets up to 30 kg and previous standard PIR detectors have generated repeated false alarms that trigger monitoring responses overnight.
• You may need a different model if: Your site runs a third-party or non-AX PRO alarm panel - this detector will not integrate. A wired PIR with camera output compatible with your existing panel, or a standalone IP camera paired with video analytics, would be more suitable options to explore on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are already running a Hikvision AX PRO wireless alarm system and need to add image verification capability to specific detection zones without cabling - particularly where pet immunity and IP65 outdoor tolerance are both required in the same device.
• You may need a different model if: Your site uses a non-Hikvision or non-AX PRO alarm panel - this detector will not pair with other systems. A wired PIR-camera combination compatible with your existing panel type would be a more appropriate path, and securityaustralia.com.au stocks options across multiple alarm platforms.
• Pairs well with: A Hikvision AX PRO wireless alarm hub with sufficient wireless detector capacity, and optionally a Hikvision AX PRO wireless siren or sounder for audible deterrence on confirmed events.

Common Questions

1. Will this detector work with my existing Hikvision NVR or CCTV system?

   No. The DS-PDPC12PF-EG2-WB is an alarm detector that communicates exclusively with a Hikvision AX PRO wireless alarm panel - it does not connect to an NVR, DVR, or any CCTV recording platform. The image it captures is a verification snapshot sent through the AX PRO system to the Hik-Connect app or a monitoring centre, not a continuous recorded video stream.

2. Does this detector work in colour at night without additional lighting?

   Yes. ColorVu technology enables full-colour image capture in low light without requiring an external light source. The verification JPEG sent on alarm activation will be in colour even in a dark room or poorly lit entry point, providing more usable detail than a monochrome image for identification purposes.

3. What image resolution does the verification photo provide?

   The captured image is 640 x 480 pixels in JPEG format. This resolution is sufficient for confirming human presence and general identifying features such as clothing colour and approximate build, but it is not comparable to a full HD CCTV camera. The purpose of the image is alarm verification, not evidential-quality recording.

4. Will this work outdoors, or is it indoor only?

   It is rated IP65, which means it can be installed in covered outdoor positions such as porches, carports, and covered walkways. IP65 provides full dust ingress protection and resistance to direct water jets. It is not rated for full submersion or direct, sustained heavy rain exposure without some form of overhead protection.

5. How does the pet immunity work and what is the weight limit?

   The PIR element is calibrated to discount heat signatures from animals up to 30 kg moving through the detection zone. Animals above 30 kg, or multiple animals moving together, may still trigger the detector. The immunity applies to the PIR trigger - if the camera were to capture an image, it would still show the animal, which is itself a useful confirmation that the event is not a human intruder.

6. Can the detector be managed remotely, and how are alerts delivered?

   Yes. The AX PRO system manages the DS-PDPC12PF-EG2-WB through the Hik-Connect app, which delivers real-time push notifications including the verification image when motion is detected. Remote configuration of zone settings is also available through the app. For professionally monitored installations, the AX PRO panel connects to a monitoring centre that receives the event and accompanying image data. This product is part of the Security Australia range for AX PRO system builds.

7. What happens if someone tries to cover or remove the detector?

   A tamper alert is generated and sent immediately to the AX PRO panel and Hik-Connect app. Tamper detection is active regardless of whether the alarm system is armed or disarmed, meaning any attempt to interfere with the unit - covering the lens, removing the cover, or pulling the device from its bracket - will generate a separate tamper event that is logged and notified.

Downloads & Resources

No downloads available for this product.
