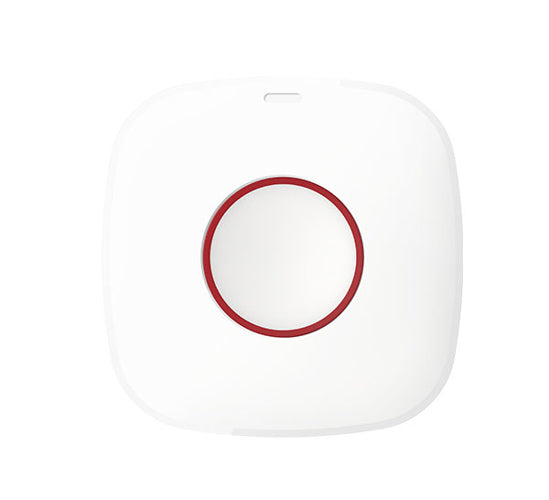

Hikvision AX PRO Series DS-PDEB1-EG2-WB Wall-mounted Wireless Emergency Button

Model: DS-PDEB1-EG2-WB

Who This Is For

When rapid manual alerting is a core requirement of a security or duress plan, the Hikvision AX PRO DS-PDEB1-EG2-WB Wall-mounted Wireless Emergency Button fills that gap without adding cabling complexity. Designed for indoor wall mounting, it integrates directly into the AX PRO wireless alarm ecosystem and transmits a duress signal up to 800m in open areas via 433MHz two-way RF. A single CR2450 battery powers it for up to 3 years, making it a low-maintenance addition to reception desks, staff rooms, consultation spaces, and residential common areas. Facilities coordinators, alarm installers, and small business owners specifying AX PRO systems will find this a straightforward way to add a dedicated manual trigger point - separate from motion and door sensors - wherever a staff member or resident may need to call for help quickly.

What This Device Actually Does

Who Buys This Model

• Medical and allied health practices: Clinics and consulting rooms requiring a discreet duress point at reception desks or treatment areas, integrated into an existing AX PRO alarm panel.
• Retail store managers: Small to medium retailers adding a manual panic trigger near the point of sale, positioned to be reached quickly without drawing attention during a hold-up situation.
• Residential aged care and NDIS properties: Facilities mounting emergency call buttons in common areas, bathrooms, or resident rooms where a resident may need to alert staff without raising a verbal alarm.
• AX PRO system installers: Security professionals expanding existing AX PRO deployments with a dedicated manual alert zone - separate from motion detectors and door contacts - at a client's request.
• Property managers and strata: Building managers adding wireless duress capability to common areas, car parks, or lift lobbies without the cost and disruption of running new cable to a hard-wired device.

Honest Assessment

The DS-PDEB1-EG2-WB does its core job well - it provides a clean, low-maintenance wall-mounted duress trigger with front and rear tamper detection, a 3-year battery rating, and 800m open-area RF range that handles most commercial and residential floor plans comfortably. Two-way RF communication means it is not a silent device operating in isolation; the panel and app stay informed of both activation and device health. The compact 63.8 x 63.8mm footprint makes it unobtrusive on any wall. What it will not do is operate outside the Hikvision AX PRO ecosystem - it is not a standalone device and requires a compatible AX PRO hub to function. It is also rated for indoor use only, so outdoor duress applications need a different solution. If your site requires a wearable personal duress option rather than a fixed wall point, a different device type is more appropriate. Available through Security Australia, this button suits fixed-location indoor alert requirements within an AX PRO installation.

Before You Buy

Quick Fit Check

• Good match if: You are running an AX PRO wireless alarm system and need to add a fixed wall-mounted duress point at a reception counter, consulting room, or staff area - the DS-PDEB1-EG2-WB enrols directly into the existing panel without any additional hardware.
• Good match if: Your site needs a low-maintenance alert device with minimal service requirements - the 3-year battery life on a single CR2450 and remote battery status reporting via Hik-Connect reduce ongoing maintenance visits.
• You may need a different model if: You require a wearable or portable personal duress device, or need outdoor-rated emergency alerting - a different device type within the AX PRO accessory range or a dedicated personal duress transmitter would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fixed wall-mounted indoor duress point that integrates natively with an AX PRO panel, with no cabling, front and rear tamper protection, and a 3-year battery life on a single CR2450.
• You may need a different model if: Your application requires a wearable or portable personal duress transmitter, or the installation environment is outdoors - a different device type within the AX PRO wireless accessory range is better suited to those requirements.
• Pairs well with: Hikvision AX PRO wireless alarm panels, AX PRO indoor passive infrared detectors, and AX PRO door/window contacts to build a complete zoned wireless alarm system.

Common Questions

1. Does this emergency button work without a Hikvision AX PRO panel?

   No. The DS-PDEB1-EG2-WB is a wireless peripheral designed exclusively for the AX PRO ecosystem. It communicates via the proprietary 433MHz two-way RF protocol used by the AX PRO hub. Without a compatible panel, the button has no way to process or forward any alert - it cannot function as a standalone device or pair with other alarm brands.

2. Will this button work through internal walls and floors?

   Yes, within limits. The stated 800m range applies in open air with no obstructions. Concrete walls, metal partitions, and multi-storey structures will reduce effective range meaningfully. For most single-storey commercial or residential spaces this is not a concern, but installers working in heavy construction should walk-test the RF link from the intended mounting location before committing to final placement.

3. How long does the battery actually last and how do I know when it needs replacing?

   The rated battery life is up to 3 years on a single CR2450 coin cell under normal working conditions. The two-way RF communication means the device can report its battery status back to the AX PRO panel, which in turn pushes a low-battery notification through Hik-Connect to connected app users - you do not need to physically inspect the device to know when replacement is approaching.

4. What happens if someone tries to remove the button from the wall?

   A tamper alert is triggered immediately. The DS-PDEB1-EG2-WB has both front tamper detection (if the cover is opened) and rear tamper detection (if the device is pulled from the wall). Either event sends a tamper signal through the AX PRO panel to connected users via Hik-Connect, logged as a separate tamper event rather than a duress activation.

5. Can this button be used outdoors?

   No. The DS-PDEB1-EG2-WB is rated for indoor use only. If your application requires an outdoor emergency alert point - such as a car park, loading area, or external access path - you will need a device rated for outdoor exposure. The Security Australia range includes AX PRO accessories suited to different environmental conditions.

6. Does pressing the button trigger a siren or just a silent alert?

   The button itself does not contain a built-in siren. The alert behaviour - whether it triggers a local siren, sends a silent signal to a monitoring centre, pushes a Hik-Connect notification, or all three simultaneously - is determined by how the AX PRO panel zone is configured. This gives installers flexibility to set up the button as a silent duress trigger, an audible alarm activator, or both, depending on the site's requirements.

7. How many emergency buttons can be added to a single AX PRO system?

   The maximum number of devices is determined by the specific AX PRO panel model in use, not by the button itself. Different AX PRO hub models support different total zone counts across all enrolled wireless devices. Check the capacity of your installed panel before ordering multiple units to confirm the available zone slots.
