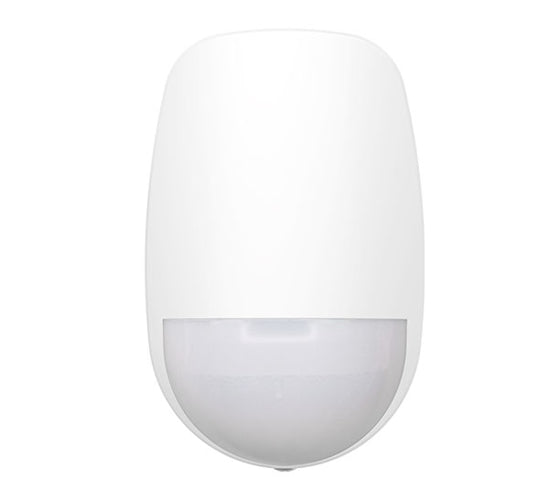

Hikvision AX PRO Series DS-PDD12P-EG2-WB Wireless Dual-Tech Detector

Model: DS-PDD12P-EG2-WB

Who This Is For

For security installers and property owners who need a wireless motion detector that can hold its own in real-world conditions - outdoor entries, garages, undercover areas - without constant false alarms from passing animals or temperature swings, the Hikvision AX PRO DS-PDD12P-EG2-WB is built specifically for that brief. It combines passive infrared and microwave sensing in a single IP65-rated housing, runs from a single CR123A battery for up to 5 years, and integrates directly into the Hikvision AX PRO wireless alarm ecosystem. The 12-metre detection range and 85.9-degree field of view make it practical for standard doorways, open rooms, and covered outdoor zones. Pet immunity up to 30 kg filters out most domestic animals, which matters on sites where a standard PIR would be triggering false alarms daily.

What This Detector Actually Does

Who Buys This Model

• Residential installers on AX PRO systems: Specifying wireless detectors for covered verandas, garages, and entry halls where IP65 protection and pet immunity make the DS-PDD12P-EG2-WB a straightforward fit without running cabling.
• Small business owners with high false-alarm fatigue: Retail stores and small warehouses where standard PIRs have been triggering on air conditioning movement or heat sources - the dual-tech requirement eliminates most of these without adjusting sensitivity.
• Property managers on multi-site AX PRO deployments: The 5-year battery life and Hik-Connect remote management reduce the number of site visits needed to maintain detector health across a portfolio of properties.
• Homeowners with large or multiple dogs: Where a 30 kg pet immunity threshold prevents nightly false alarms on properties where animals are free-roaming indoors after hours.

Honest Assessment

The DS-PDD12P-EG2-WB does the dual-tech job well. The combination of PIR and microwave with digital temperature compensation addresses the most common reasons wireless detectors fail in Australian conditions - heat-related sensitivity drift and single-sensor false alarms. The IP65 rating genuinely extends placement options beyond what most wireless detectors allow, and the 5-year battery life is realistic for a low-traffic zone. Anti-masking and tamper alerts add meaningful integrity to the install. Where this unit has limits: it is exclusive to the Hikvision AX PRO wireless ecosystem, so it cannot be mixed into a third-party alarm panel or a wired zone input without a converter. The 12-metre range also means it is not suited to large open-plan warehouses or long corridors where a long-range curtain detector or dual-head PIR would cover more ground. Available through Security Australia, this detector suits sites where the AX PRO platform is already the chosen system.

Before You Buy

Quick Fit Check

• Good match if: You are building or expanding an AX PRO wireless alarm system and need a detector rated for outdoor or semi-exposed positions - the IP65 housing and dual-tech sensing make this the right tool for covered entries, garages, and undercover outdoor zones.
• Good match if: The site has pets up to 30 kg roaming freely after hours and previous standard PIR detectors have caused persistent false alarm problems - the dual-tech threshold eliminates most animal-triggered events.
• You may need a different model if: Your alarm panel is not part of the Hikvision AX PRO platform, or the zone to be covered exceeds 12 metres in depth - a long-range PIR or wired dual-tech detector would be a better fit for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your system is Hikvision AX PRO and you need a wireless detector that can go outdoors or in semi-exposed positions with genuine pet immunity and low false alarm performance in variable temperatures.
• You may need a different model if: The zone requires coverage beyond 12 metres, the area is fully open and large-scale, or the alarm panel is not part of the AX PRO platform - in those cases a wired long-range dual-tech detector or a different wireless alarm ecosystem would be more appropriate.
• Pairs well with: A Hikvision AX PRO wireless hub and panel, combined with wireless door and window contacts to complete zone coverage without additional cabling infrastructure.

Common Questions

1. Will this detector work with my existing Hikvision alarm panel?

   Only if your panel is the Hikvision AX PRO series. The DS-PDD12P-EG2-WB uses the AX PRO wireless protocol and cannot enrol into the older Hikvision AX series, third-party panels, or generic wireless alarm systems. Check your hub model against the AX PRO compatible device list before purchasing.

2. Does this detector actually ignore pets, or is it just marketing?

   The immunity is genuine up to 30 kg when the detector is mounted correctly. The dual-tech requirement means both PIR and microwave must trigger together - an animal moving low to the ground produces a different combined signature than a standing human. However, correct mounting height matters; if installed too low, a large dog moving at the same height as the detection beam may still trigger it. Follow Hikvision's recommended installation height for the pet immunity to function as rated.

3. Can this be installed outdoors in Queensland or Northern Territory conditions?

   Yes, with the IP65 rating covering dust and water jet ingress. The digital temperature compensation also addresses the well-known issue with PIR detectors in high-ambient-temperature environments where body heat contrast drops and sensitivity degrades. That said, avoid direct sun exposure on the detector face, as intense direct radiant heat can still affect performance in extreme conditions - undercover or shaded placement is preferable even with this model.

4. How long does the battery actually last, and what type does it use?

   The rated life is up to 5 years on a single CR123A lithium cell, though this depends on detection frequency and wireless communication traffic. High-traffic zones with frequent detections will consume the battery faster than a low-activity zone. The AX PRO system pushes a low battery notification through the Hik-Connect app before the detector reaches a critical state, so replacement can be planned rather than reactive. CR123A cells are widely available from hardware and electronics retailers in Australia.

5. What does the anti-masking feature actually do?

   Anti-masking detects when the detector's sensing face is being deliberately obstructed - by spray paint, tape, or a physical cover placed over it. When masking is detected, an alert is sent to the AX PRO panel and through to the Hik-Connect app. This is a meaningful security addition in commercial installs where a deliberate intruder might attempt to defeat the detector before entering, rather than simply walking past it.

6. Does this work for a garage or workshop with a running engine or equipment?

   This requires careful placement assessment. Microwave sensing can detect movement through lightweight partition walls or thin roller doors, meaning a running engine or moving equipment in an adjacent space could contribute to a trigger - especially if combined with any PIR-detectable heat source. In workshops with active machinery, a wired dual-tech detector with adjustable microwave sensitivity is often a more appropriate choice. The DS-PDD12P-EG2-WB suits garages monitored while empty, not active work environments. Security Australia stocks wired alternatives for those sites.

7. Is professional installation required, or can this be self-installed?

   The wireless design and Hik-Connect app mean a technically capable homeowner can enrol and mount the detector without specialist tools. However, in most Australian states, connecting devices to a monitored alarm system or configuring a system for insurance compliance does require a licensed security installer. If this detector is part of a monitored AX PRO system, engage a licensed installer to ensure compliance with relevant state requirements.
