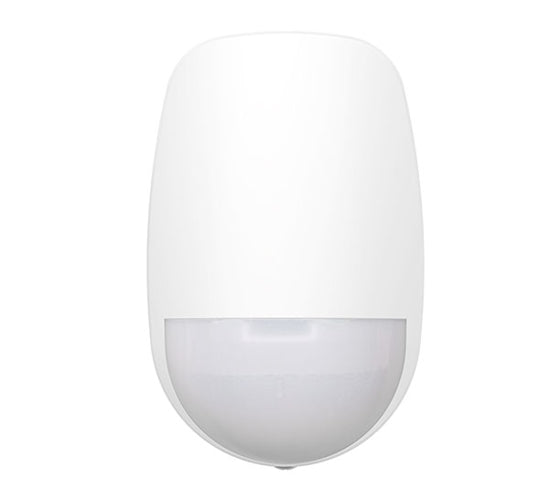

Hikvision AX PRO Series DS-PDC15-EG2-WB Wireless Curtain PIR Detector

Model: DS-PDC15-EG2-WB

Who This Is For

When protecting a narrow entry point - a doorway, window, or corridor - with pinpoint precision is the priority, the Hikvision AX PRO DS-PDC15-EG2-WB Wireless Curtain PIR Detector is built for exactly that task. Unlike wide-angle PIR sensors that sweep large open areas, this detector uses a 6.3-degree curtain beam across a 15-metre range to create an invisible tripwire across a specific line of intrusion. Installers deploying AX PRO wireless alarm systems will find it pairs directly with the existing ecosystem, adding targeted zone coverage without additional wiring. It suits residential installs protecting sliding door entries and sash windows, as well as small commercial sites where access control points require more precise perimeter logic than a standard broad-coverage detector can deliver. The IP65 rating means it handles outdoor-facing installations, and single CR123A battery operation keeps maintenance low across extended deployments.

What This Detector Actually Does

Who Buys This Model

• AX PRO Alarm Installers: Professionals building out Hikvision AX PRO wireless systems who need a curtain detector to cover doorway or window breach points where a standard wide-angle PIR would generate too many false activations from nearby movement.
• Residential Security Integrators: Installers specifying wireless intrusion detection for homes with large sliding glass doors, bifold entries, or sash windows where the entry vector is specific and the beam needs to be held to a precise line.
• Small Commercial Premises: Businesses protecting corridor access points, server room entries, or perimeter fence lines where a single crossing line must be detected without triggering on activity on either side of it.
• Property Managers with Outdoor Entry Points: Those needing IP65-rated wireless detection on covered outdoor entries - car park stairwells, gate passages, building entries - where running power for a wired sensor is not practical.

Honest Assessment

The DS-PDC15-EG2-WB does one thing exceptionally well: it creates a precise, wireless detection line across a defined entry point. The 6.3-degree beam width, 18-zone segmentation, and digital temperature compensation make it a genuinely capable curtain detector for installers who need a narrow-field sensor that holds its calibration across temperature variation and bright light conditions. The IP65 rating and single CR123A battery operation add to its practicality on outdoor-facing installs within an AX PRO deployment.

What it will not do is cover open rooms or broad perimeter areas - that is a different sensor category entirely. It also has no pet immunity per confirmed specifications, so environments with animals will require a different detector type. This model is available through Security Australia and is a deliberate, specialist choice for installers who already understand curtain PIR logic and are building within the AX PRO ecosystem.

Before You Buy

Quick Fit Check

• Good match if: You are deploying an AX PRO wireless alarm system and need a narrow-beam detector to cover a doorway, window, or corridor crossing point up to 15 metres long where side-of-beam activity must not trigger an alarm.
• Good match if: The install location is outdoor-facing or exposed to bright ambient light - the IP65 rating and 6500 lux white light filter are specifically suited to entry points that get direct sun or vehicle headlight wash.
• You may need a different model if: You need broad room coverage, pet immunity, or compatibility with a non-AX PRO panel - a wide-angle PIR detector within the AX PRO range would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a narrow, line-of-crossing wireless PIR specifically for doorway, window, or corridor protection within an AX PRO deployment - where a wide-angle sensor would generate false activations from adjacent movement.
• You may need a different model if: Your site requires broad room or open-area perimeter coverage - a wide-angle or dual-technology PIR detector from the AX PRO range would be better suited to those scenarios.
• Pairs well with: Hikvision AX PRO wireless hub with available zones, supplemented by wide-angle AX PRO PIR detectors covering open interior areas and AX PRO door/window contact sensors on adjacent openings.

Common Questions

1. Does this detector work as a standalone device without an AX PRO hub?

   No. The DS-PDC15-EG2-WB is a wireless peripheral that requires a Hikvision AX PRO hub to function. It communicates exclusively within the AX PRO ecosystem and cannot operate independently or pair with third-party alarm panels. Confirm you have an AX PRO hub with available wireless zones before purchasing this detector.

2. What is the actual beam width at the end of its 15-metre range?

   At 15 metres, the 6.3-degree curtain beam projects to approximately 1.65 metres wide. This is narrow by design - the detector is intended to create a crossing line, not a coverage zone. At shorter distances the beam is proportionally narrower, which is why precise mounting alignment perpendicular to the expected path of intrusion is critical to avoid missed detections.

3. Will this detector work in a property with cats or dogs?

   No. The confirmed specification for this model lists pet immunity as None. The detector has no adjustable pet tolerance setting. Animals moving through the detection curtain will trigger an alarm event. For pet-occupied environments, a different AX PRO PIR detector with confirmed pet immunity is the correct choice.

4. How does the 6500 lux white light filter affect performance near windows?

   It prevents false triggers caused by strong ambient light. Standard PIR sensors can misinterpret rapid illumination changes - sunlight through a moving blind or car headlights sweeping through glass - as heat movement events. The 6500 lux filter blocks that optical interference at the sensor level, which makes this detector stable in positions where direct or reflected sunlight is a regular factor.

5. How long does the CR123A battery last in this detector?

   Hikvision does not publish a specific battery life figure in the confirmed specification data for this model. Battery duration in wireless PIR detectors is highly dependent on detection frequency, wireless signal quality, and ambient temperature. The AX PRO hub monitors battery status and will notify via the Hik-Connect app when replacement is needed. CR123A cells are widely available and straightforward to replace without tools.

6. Does the anti-masking feature generate a separate alarm event from a standard intrusion trigger?

   Yes. Anti-masking and tamper events are reported to the AX PRO hub as distinct alert types, separate from a standard PIR detection event. This means an attempt to cover or obstruct the sensor face is logged and notified independently, allowing the monitoring system or end user to identify interference attempts rather than treating them as a missed detection.

7. Can this detector be managed remotely, and does it support real-time alerts?

   Yes. The DS-PDC15-EG2-WB integrates with the Hik-Connect app via the AX PRO hub, providing real-time alarm notifications, device status, and signal strength monitoring. App-based management also includes signal quality feedback, which helps confirm the detector is positioned within reliable wireless range of the hub. The app is available through the standard Hikvision ecosystem and is part of the Security Australia supported product range.
