Hikvision DS-PWA96-Kit-WB AX PRO Alarm Security Kit - Control Panel, Reed, PIR + Remote

Model: DS-PWA96-Kit-WB

Who This Is For

When whole-property wireless alarm coverage is the priority, the Hikvision DS-PWA96-Kit-WB AX PRO Alarm Security Kit gives installers and property owners a professional-grade starting point without the complexity of a hardwired installation. The kit combines the AX PRO control panel with reed switches for door and window detection, a PIR motion sensor, and a wireless remote - covering the core detection needs for a residential or small commercial site out of the box. The panel supports up to 96 wireless zones, meaning this kit can grow well beyond its initial configuration as a site's requirements expand. TCP/IP, Wi-Fi, and 3G/4G connectivity options mean monitoring can be maintained across a variety of network environments, and the SIA DC09 protocol ensures compatibility with professional alarm receiving centres for sites that require professional monitoring.

What This System Actually Does

Who Buys This Model

• Security installers setting up residential sites: The wireless design and kit format reduce installation time significantly. The 96-zone capacity means the same panel can handle a small home today and be expanded into a larger configuration without replacing the head-end equipment.
• Small business owners in tenanted premises: Because all sensors are wireless, there is no need for cable runs through walls or ceilings - the system can be relocated or expanded without structural work, which matters for tenanted retail or office spaces.
• Properties requiring professional monitoring: SIA DC09 and Contact ID protocol support means this panel connects directly to accredited Australian alarm receiving centres without requiring additional interface hardware.
• Site managers needing multi-user access control: With up to 48 network users supported - including separate installer, administrator, and standard user roles - larger households and small teams can each have their own access without sharing credentials.

Honest Assessment

The DS-PWA96-Kit-WB AX PRO does several things well at this price point. The tri-path connectivity (IP, Wi-Fi, and cellular) is a genuine differentiator - most entry-level wireless panels rely on a single path and have no automatic fallback. AES-128 encrypted RF communication is a meaningful step above consumer-grade systems. The 96-zone capacity gives installers headroom that most equivalent panels don't offer, and SIA DC09 support makes professional monitoring straightforward to arrange. Available through Security Australia, this kit includes the core components to cover a standard entry point and interior motion detection from day one.

What this kit will not do is provide video verification on its own - the included PIR is a standard motion sensor, not a PIRCAM. Sites needing verified alarm video at trigger points will need to add PIRCAM-capable sensors separately. This panel also does not include a built-in keypad - arming and disarming relies on the wireless remote, the app, or an optional wired keypad added to the installation. For sites requiring a wall-mounted keypad as the primary control interface, that accessory should be factored into the overall budget.

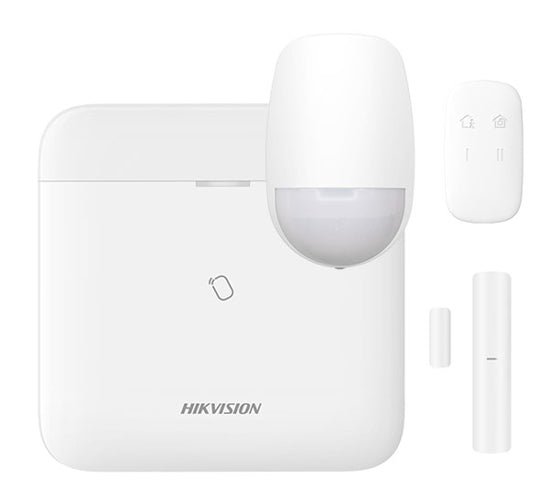

Complete Package Contents

• Reed switches (door/window magnetic contacts) - wireless, 433 MHz
• PIR motion sensor - wireless passive infrared detector
• Wireless remote keyfob - arm/disarm/panic
• 1 x AX PRO Control Panel (DS-PWA96-M-WE) - up to 96 wireless zones, TCP/IP/Wi-Fi/3G/4G, 4520 mAh backup battery, SIA DC09

Before You Buy

Quick Fit Check

• Good match if: You need a wireless alarm system that can report to a professional monitoring centre - SIA DC09 and Contact ID protocol support means this panel works directly with accredited ARCs without additional interface hardware.
• Good match if: The site has unreliable or shared broadband - the automatic fallback through Wi-Fi and 3G/4G means alarm reporting continues even if the primary IP connection is unavailable.
• You may need a different model if: Your primary requirement is integrated video verification at every detection point from day one - a kit that bundles PIRCAM sensors alongside the panel would be a more suitable starting configuration for that use case.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a professionally capable wireless alarm panel with tri-path communication, ARC-compatible monitoring protocol, and genuine room to expand to 96 zones without changing the panel.
• You may need a different model if: Video verification at the point of detection is required from the start - a kit bundling PIRCAM sensors rather than standard PIR sensors would be a better fit for that use case.
• Pairs well with: Wireless PIRCAM sensors, a compatible wired or wireless keypad for wall-mounted arming/disarming, and a PoE IP camera system for full visual surveillance coverage alongside the alarm detection layer.

Common Questions

1. Does this kit work with a professional alarm monitoring centre?

   Yes. The AX PRO control panel supports the SIA DC09 protocol with Contact ID and SIA level 2 data formats - both are standard requirements for accredited Australian alarm receiving centres. No additional IP communicator or protocol converter is needed; the panel reports directly to the ARC over its TCP/IP or cellular connection.

2. Will this alarm system keep working if the power goes out?

   Yes, for up to 12 hours. The built-in 4520 mAh lithium battery takes over automatically during a mains failure. Detection, alarm output, and communication to the monitoring centre all continue during this period without any manual intervention required.

3. How many sensors can I add to this system over time?

   Up to 96 wireless zones total, with up to 48 of those zones able to carry PIRCAM sensors (camera-integrated PIRs). This kit provides the starting sensors to cover basic entry and motion detection, and additional wireless sensors can be enrolled directly through the installer configuration interface as the site grows.

4. Does this system work without an internet connection?

   Partially. Local detection and alarm output function regardless of connectivity. However, remote app access, push notifications, and ARC reporting over IP all require an active network connection - either broadband, Wi-Fi, or the 3G/4G fallback path. If all 3 paths are unavailable, local alarm functions remain active but remote monitoring is suspended.

5. Is a SIM card included for the 3G/4G backup?

   No. The panel supports 3G/4G communication but a SIM card must be sourced and installed separately. Any standard Australian SIM with a data plan will work in the panel's SIM slot. This is worth arranging before commissioning if cellular fallback is part of the site's communication plan.

6. How secure is the wireless communication between the panel and sensors?

   The Tri-X/Cam-X protocol uses AES-128 encryption for all RF communication between the panel and wireless devices. This protects against signal interception and basic jamming attacks. The 433 MHz operating frequency is standard for professional-grade wireless alarm sensors in the Australian market, and the encrypted channel significantly raises the bar compared to unencrypted consumer alarm systems. The DS-PWA96-Kit-WB is part of the Security Australia range for buyers who want to confirm local stock and support availability.

7. Can different people have their own access to arm and disarm the system?

   Yes. The panel supports up to 48 network users with separate access credentials - 1 installer account, 1 administrator account, and up to 46 standard user accounts. Each user can arm/disarm via the Hik-Connect app or a wireless remote, and the 5000-entry event log records which user performed each action, providing a clear audit trail of system activity.
