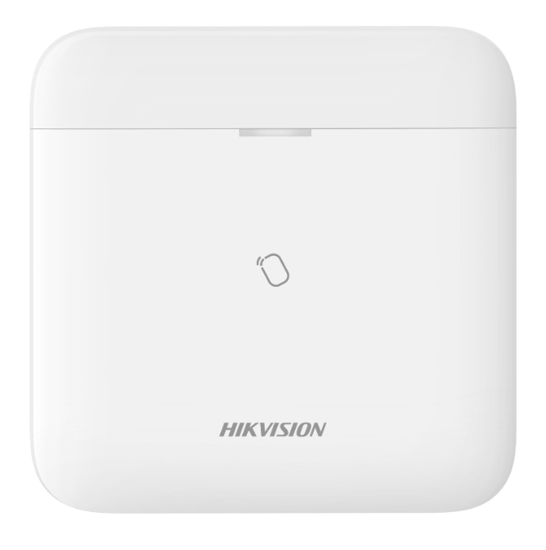

Hikvision AX PRO DS-PWA96-M-WB Wireless 4G Control Panel 433MHz

Model: DS-PWA96-M-WB

Who This Is For

For security installers and integrators who need a fully wireless alarm hub that can communicate independently of fixed broadband, the Hikvision AX PRO DS-PWA96-M-WB is built around that requirement. The panel runs on 4G as its primary communication path and pairs with 433MHz wireless sensors, making it a strong fit for properties where cable runs are impractical - commercial tenancies, heritage buildings, rural sites, and residential retrofits where the occupant refuses wall penetrations. The DS-PWA96-M-WB supports remote management through the Hik-Connect platform, so installers can provision, arm, disarm, and check device health without attending site. Backup power support keeps the system running through mains outages. If you are specifying a wireless-first alarm system for a site that cannot rely on a fixed internet connection, this panel is built around exactly that scenario.

What This Panel Actually Does

Who Buys This Model

• Security Installers on Retrofit Jobs: The fully wireless 433MHz sensor network eliminates cable runs, making this panel the practical choice when walls cannot be opened or the property is already finished.
• Rural and Semi-Rural Property Owners: Sites without reliable fixed broadband benefit directly from 4G primary communication - the panel does not depend on an NBN or ADSL service to function.
• Commercial Tenants and Small Business Operators: Tenants who cannot permanently modify leased premises use this panel because the wireless design means the system moves with them at lease end.
• Property Managers Across Multiple Sites: Hik-Connect remote access allows a single operator to arm, disarm, and check system health across multiple properties without attending each site, reducing ongoing management costs.
• Homeowners Upgrading from Basic Systems: The expandable architecture means a homeowner can start with a small zone count and add sensors and peripherals over time without replacing the central panel.

Honest Assessment

The DS-PWA96-M-WB does two things particularly well: it removes the dependency on fixed internet at the site, and it removes the need for sensor cabling. Those two characteristics make it the right tool for retrofits, rural installs, and leased commercial spaces where a wired system is either impractical or prohibited. The Hik-Connect integration is functional and well-supported across iOS and Android, and the expandable architecture means the panel is not quickly outgrown as detection requirements increase. What it will not do is serve as a monitored alarm solution on its own - if you need professional monitoring centre integration, confirm that your chosen monitoring provider supports the Hikvision AX PRO platform before purchasing. This panel is also not the right fit for very large-scale commercial sites requiring hundreds of zones; a hardwired panel with dedicated zone modules will be more appropriate in that context. The DS-PWA96-M-WB is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: Your site has no reliable fixed broadband and you need alarm communication that runs independently via 4G without depending on an internet router.
• Good match if: You are retrofitting an alarm system into a completed building where running sensor cables through walls and ceilings is not feasible - the 433MHz wireless sensor network eliminates that requirement entirely.
• You may need a different model if: Your site requires a very high zone count or deep integration with a professional monitoring station - a hardwired commercial panel with dedicated zone expansion modules may be a better fit. Browse the alarm panel range at securityaustralia.com.au for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site cannot rely on fixed broadband for alarm communication and you need a wireless sensor network that installs without cabling infrastructure.
• You may need a different model if: Your project requires a high zone count with deep monitoring centre integration or wired sensor inputs - a hardwired commercial alarm panel with dedicated expansion modules will serve that scenario better. The alarm panel range at securityaustralia.com.au includes options across both wireless and hardwired categories.
• Pairs well with: Hikvision AX PRO series wireless motion detectors, door and window contacts, wireless keypads, and wireless indoor or outdoor sirens - all operating on the same 433MHz ecosystem.

Common Questions

1. Does the DS-PWA96-M-WB come with a SIM card included?

   No. The panel includes 4G hardware but does not ship with an active SIM. You need to source a SIM separately from a carrier with confirmed 4G coverage at the installation address. Check signal strength at the exact site before purchasing - fringe coverage areas may not provide reliable alarm transmission, which would undermine the core advantage of this panel.

2. Will this panel work with my existing third-party 433MHz sensors?

   Not reliably. The DS-PWA96-M-WB is designed for the Hikvision AX PRO wireless peripheral ecosystem. While the frequency is 433MHz, the communication protocol used by Hikvision AX PRO devices is proprietary, and third-party sensors are not guaranteed to pair or operate correctly. Plan your sensor selection from within the Hikvision AX PRO accessory range to avoid commissioning issues.

3. What happens to the alarm system if mains power is lost?

   The system continues operating. The DS-PWA96-M-WB supports backup power, which maintains panel operation and 4G communication during a mains outage. Because the 4G communication path does not depend on the site's router - which also loses power during an outage - the panel can still transmit alerts and receive remote commands while mains is unavailable.

4. Does this panel work with professional alarm monitoring centres?

   Compatibility with monitoring centres depends on the specific monitoring provider and their supported protocols. The DS-PWA96-M-WB communicates via 4G and the Hik-Connect platform. Before purchasing for a monitored application, confirm directly with your intended monitoring centre that they support Hikvision AX PRO panel integration. Not all monitoring providers accept all panel types.

5. Can I manage multiple DS-PWA96-M-WB panels across different sites from one app?

   Yes. The Hik-Connect app supports multiple devices and sites under a single account. Property managers or security operators can switch between sites, arm or disarm individual panels, view event histories, and receive notifications from each location without logging in and out between accounts.

6. What is the operating temperature range of the DS-PWA96-M-WB?

   The panel is rated to operate between -10°C and +55°C. This covers the temperature range found in most Australian residential and commercial indoor environments. The panel is not rated for outdoor installation - it should be mounted inside the building in a protected, ventilated location away from direct heat sources.

7. Does the DS-PWA96-M-WB support zone partitioning?

   Partitioning capability on this panel should be confirmed against the current Hikvision AX PRO firmware documentation or with Security Australia prior to purchase. The panel's flexible configuration does support different arming modes and area-based management via Hik-Connect, but the exact partitioning depth depends on firmware version and the specific peripherals connected.
