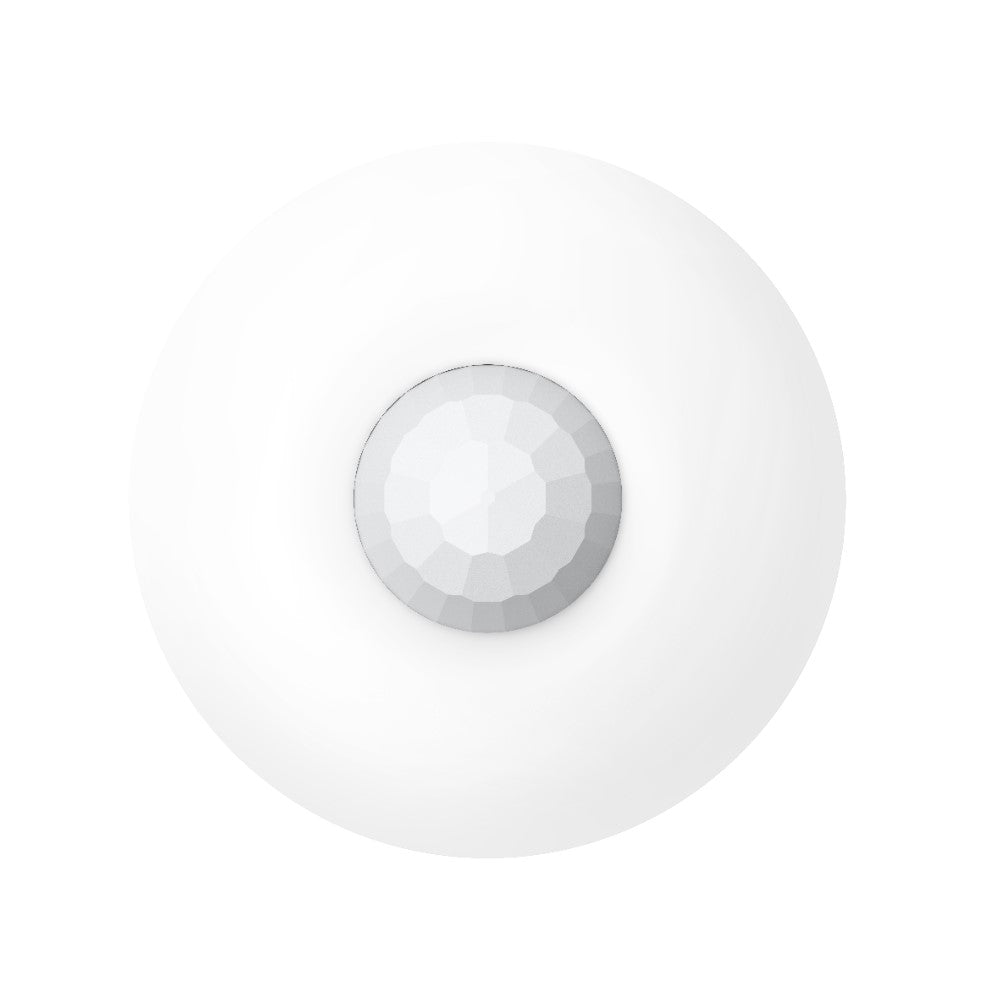

Hikvision Ax Pro DS-PDCL12-EG2-WB Wireless 360 Degree PIR Detector

Model: DS-PDCL12-EG2-WB

Who This Is For

For installers and property owners who need full-room coverage from a single ceiling-mounted sensor, the Hikvision AX Pro DS-PDCL12-EG2-WB delivers a 360-degree PIR detection sweep across a 12m radius - covering up to 450 square metres from one mounting point. It's designed specifically for the Hikvision AX Pro wireless alarm ecosystem, making it the right choice when you're building out or expanding an AX Pro installation and need a ceiling-mount detector that handles open-plan spaces without creating coverage gaps. The wireless design on 433MHz with frequency hopping removes the need for cabling runs, and the CR123A battery rated for up to 5 years means it can go into a ceiling void or high-mount position without regular access for maintenance. IP65 rating makes it suitable for covered outdoor areas and environments where dust or moisture is a factor.

What This Detector Actually Does

Who Buys This Model

• Alarm Installers Expanding AX Pro Systems: Adding ceiling-mount coverage to an existing AX Pro installation where wall-mount PIRs would leave detection gaps in open-plan rooms or wide corridors.
• Commercial Fitout Contractors: Specifying wireless alarm components for office, retail, or hospitality fitouts where surface cabling is not acceptable and ceiling mount is the preferred sensor position.
• Industrial and Warehouse Operators: Deploying in dusty or damp environments such as covered loading areas, workshops, or storage facilities where IP65 rating is needed for long-term reliability.
• Property Managers with Hard-Access Ceilings: Locations such as heritage buildings, high-bay warehouses, or strata properties where running new cabling is impractical and a 5-year battery cycle minimises maintenance call-outs.

Honest Assessment

The DS-PDCL12-EG2-WB does its primary job well: delivering full-room ceiling coverage from a single device, with a wireless link that holds up across large buildings thanks to frequency hopping and a 1km open-area transmission range. The AES-128 encrypted communication and tamper alert are meaningful security features rather than marketing additions, and the IP65 rating genuinely extends its usable locations beyond a standard indoor PIR. Battery life rated to 5 years is a practical advantage for high-mount installs. Available through Security Australia as part of the AX Pro accessories range. Where this detector is not the right choice: it requires a Hikvision AX Pro wireless panel to operate - it is not compatible with third-party alarm panels or standalone use. If your installation runs a different alarm platform, you will need to source a detector matched to that system. For perimeter-focused detection at long distances rather than wide-area ceiling coverage, a curtain PIR or beam detector would be more appropriate.

Before You Buy

Quick Fit Check

• Good match if: You are running a Hikvision AX Pro wireless alarm system and need to cover an open-plan room, large reception area, or warehouse bay from a single ceiling-mount point using the 360-degree 12m detection field.
• Good match if: Your installation is in a location where cabling is not viable - covered outdoor areas, heritage buildings, or high-bay ceilings - and you need the IP65 rating combined with a 5-year battery cycle to reduce return maintenance visits.
• You may need a different model if: Your alarm panel is not Hikvision AX Pro, or you need a detector that covers a long, narrow corridor or perimeter line - in which case a curtain-lens PIR or active infrared beam detector on the Security Australia site would be more suited to the detection geometry.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-room ceiling coverage from a single device within an AX Pro system, particularly in open-plan spaces where wall-mount PIRs would require multiple units and more complex zone planning.
• You may need a different model if: Your detection priority is a long, narrow corridor, doorway, or perimeter line - in those cases a curtain-pattern PIR or active infrared beam detector is a better geometric match than a 360-degree ceiling unit.
• Pairs well with: Hikvision AX Pro wireless control panels, AX Pro door/window contacts for zone-based arming logic, and a Hikvision network video recorder if you want verified alarm events cross-referenced with camera footage from the same system.

Common Questions

1. Will this detector work with my existing alarm panel if it is not Hikvision AX Pro?

   No. The DS-PDCL12-EG2-WB is exclusively compatible with the Hikvision AX Pro wireless alarm panel series. It uses a proprietary 433MHz protocol with AES-128 encryption that is specific to the AX Pro ecosystem. It will not pair with other Hikvision alarm panels, third-party wireless alarm systems, or any wired alarm panel.

2. Does this detector work outdoors?

   Yes, in covered outdoor locations. The IP65 rating protects against dust ingress and water jets, making it suitable for covered verandas, carports, covered loading docks, and similar semi-outdoor environments. It is not rated for direct rain exposure or fully exposed outdoor mounting, where a weatherproof housing or outdoor-specific detector would be required.

3. How does frequency hopping actually reduce interference on the 433MHz band?

   Frequency hopping works by rapidly cycling the transmission across multiple frequency channels within the 433MHz band rather than locking onto a single fixed frequency. If a competing device - such as a remote control, another wireless sensor, or a RF transmitter - is active on one channel, the AX Pro detector and panel re-synchronise on a clear channel automatically. This significantly reduces the risk of missed alarm signals caused by RF congestion, which is a genuine concern in commercial environments with multiple wireless systems operating simultaneously.

4. What does the AES-128 encryption actually protect against in a wireless PIR detector?

   AES-128 encryption on this detector protects against 2 specific attack types. First, signal replay attacks - where an intruder records the detector's disarm communication and replays it to suppress an alarm trigger. Second, signal spoofing - where a device mimics a legitimate sensor signal to generate false states on the panel. Without encryption, both attacks are feasible on a simple 433MHz system. AES-128 ensures that only the paired AX Pro panel can interpret signals from this specific detector, and the rolling code structure prevents replayed packets from being accepted.

5. How many of these detectors can I add to a single AX Pro panel?

   The number of wireless zones supported depends on the specific AX Pro panel model in your installation. AX Pro panels come in different channel configurations - typically 32, 64, or 96 zones - and each DS-PDCL12-EG2-WB occupies one zone. Check your panel's current enrolled device count against its maximum zone capacity before ordering. Security Australia stocks a range of AX Pro panel models if you need to expand capacity alongside your detector count.

6. Does the 12m detection range apply at any ceiling height?

   No. The 12m detection radius is measured at a standard ceiling installation height - typically around 2.4m to 3m. As ceiling height increases, the effective floor-level coverage radius changes because the detector's PIR lens is designed to sweep outward from the mount point at a specific downward angle. At significantly higher ceilings such as in warehouses or high-bay spaces above 5m or 6m, confirm detection geometry with the manufacturer's installation guide before assuming full 12m floor coverage is maintained.

7. Can I monitor and configure this detector remotely without being on site?

   Yes. The Hik-Connect app provides remote access to detector status, zone configuration, and alarm event history through the AX Pro panel's cloud connection. You can view signal strength, battery status, and tamper state, and receive push notifications for alarm or fault events. Configuration changes are made through the panel via the app - the detector itself does not have a standalone network connection.
