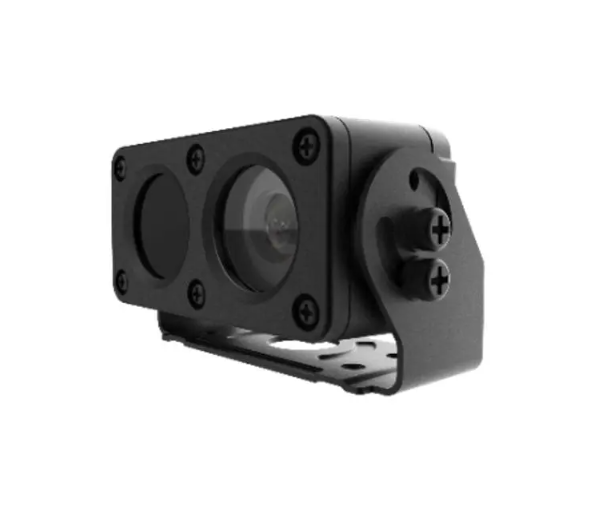

Hikvision AE-VC253T-IT Mobile 1080P TVI 1/2.9”CMOS infrared array square Camera

Model: AE-VC253T-IT

Who This Is For

When vehicle-mounted or mobile surveillance is the priority, the Hikvision AE-VC253T-IT is built specifically for that application. This compact square-body TVI camera connects via an aviation plug interface and operates across an extreme temperature range of -40 °C to 75 °C, making it suited to fleet vehicles, mining trucks, public transport, and machinery where standard cameras would fail. The M12 lens mount gives installers flexibility to match the field of view to the specific vehicle or mobile platform. At 83.2 mm x 46 mm x 41.6 mm, the body fits into tight mounting locations inside cabins, on roll bars, or within enclosed equipment bays. The TVI output feeds directly into vehicle DVRs or mobile recording systems that accept composite-style connections. Installers specifying cameras for transport operators, earthmoving contractors, or any mobile recording application where ruggedness and compact form factor matter will find this camera purpose-built for the task.

What This Camera Actually Does

Who Buys This Model

• Fleet and transport operators: Bus, truck, and taxi companies fitting mobile DVR systems who need a compact 1080P TVI camera that connects via aviation plug and survives the vibration and temperature extremes of in-service vehicles.
• Mining and earthmoving contractors: Sites running heavy equipment in extreme heat or cold where the -40 °C to 75 °C operating range and small form factor allow placement in locations that would destroy standard IP cameras.
• Security integrators building mobile systems: Installers sourcing cameras to populate vehicle DVR builds who need TVI output, an interchangeable M12 lens, and a reliable aviation plug connection to match existing vehicle wiring harnesses.
• Public transport authorities: Operators specifying cabin-facing cameras for driver monitoring or passenger area recording where a compact, low-profile square body fits within the confined interior geometry of buses or light rail vehicles.

Honest Assessment

The AE-VC253T-IT does one thing well: it is engineered for mobile and vehicle environments where standard cameras are not appropriate. The extreme temperature rating, aviation plug connector, compact square body, and TVI output combine into a product that integrates cleanly with mobile DVR systems without workarounds. The 85 dB WDR and infrared array mean it handles the mixed-lighting conditions common in vehicle cabins and low-light loading areas. This camera is available through Security Australia as part of the Hikvision mobile range. What it will not do is function as a standalone networked IP camera - there is no Ethernet port, no PoE, no onboard storage, and no audio capability. It requires a compatible TVI mobile DVR to record. If your application is a fixed-position outdoor or indoor installation rather than a vehicle or mobile platform, a standard Hikvision IP camera will serve that use case more effectively.

Before You Buy

Quick Fit Check

• Good match if: You are building or expanding a vehicle DVR system using TVI cameras and need a compact square-body unit that connects via aviation plug and operates reliably across extreme temperatures.
• Good match if: Your installation site experiences ambient temperatures outside the range of standard cameras - mining equipment, refrigerated transport, or sun-exposed external vehicle mounts where the -40 °C to 75 °C rating directly addresses a known operational risk.
• You may need a different model if: Your application is a fixed building or site installation requiring network connectivity, remote access, or PoE power - a standard IP turret or bullet camera will be a more suitable product type for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your application is a vehicle or mobile platform requiring TVI output, an aviation plug connector, and an operating temperature range that covers extreme environmental conditions that standard cameras cannot handle.
• You may need a different model if: Your installation is a fixed building, site perimeter, or networked IP system - a standard IP bullet or turret camera with PoE will provide remote access, onboard processing, and network integration that this TVI mobile camera is not designed to deliver.
• Pairs well with: A TVI-compatible mobile vehicle DVR with matching aviation plug inputs, paired with a suitable M12 board lens selected for your specific field-of-view requirement.

Common Questions

1. Does this camera work with a standard IP NVR?

   No. The AE-VC253T-IT outputs a TVI signal, not an IP stream. It has no Ethernet port and does not transmit over a network. It requires a TVI-compatible mobile DVR or a hybrid DVR with a TVI input channel. Standard IP NVRs will not detect or record this camera.

2. Does this camera come with a lens fitted?

   No. The M12 lens mount is empty - no lens is included in the box. You need to select and purchase a compatible M12 board lens separately. Your choice of lens determines the field of view and focus distance, so this should be confirmed before installation to match the mounting position and coverage area required.

3. Will this camera handle Australian outback summer temperatures?

   Yes. The operating range extends to 75 °C, which covers the thermal conditions encountered in sun-exposed vehicle installations and equipment enclosures in high-ambient-temperature environments. Standard surveillance cameras typically have upper limits of 50 °C to 60 °C, so the AE-VC253T-IT is specifically suited to applications where standard cameras would shut down or sustain damage.

4. How does the aviation plug wiring work?

   The aviation plug is a 4-pin connector. Pin 1 carries the video signal, pin 2 is unused, pin 3 carries DC power (9 to 16 V), and pin 4 is ground. Your mobile DVR or vehicle wiring harness must supply power on pin 3 within the 9 to 16 V DC range. Maximum power draw is 2.5 W. Confirm the pin assignment matches your DVR's camera input harness before wiring.

5. Does this camera support two-way audio?

   No. The AE-VC253T-IT has no built-in microphone and no built-in speaker. Audio recording is not available from this camera. If audio capture is required for your vehicle or mobile installation, a separate audio input device connected to your DVR would be needed.

6. What does the 85 dB WDR rating mean in a vehicle application?

   85 dB WDR means the camera can manage scenes where the brightest and darkest areas of the image differ significantly in exposure. In a vehicle context, this is relevant for a cabin-facing camera that must capture both the dark interior and a bright windscreen simultaneously, or an externally mounted camera transitioning between a shaded undercover area and a bright open yard. The sensor adjusts exposure across the frame to reduce both silhouetting and overexposure. The camera is stocked by Security Australia as part of the Hikvision mobile range.

7. Does the PAL/NTSC setting matter for Australian installations?

   PAL is the default and correct setting for Australian use. Australia uses PAL video format, so no adjustment is required out of the box. The NTSC switchover option is relevant only if the camera is being used with North American or Japanese video equipment that requires NTSC input. For standard Australian mobile DVR installations, leave the factory default PAL setting in place.

Downloads & Resources

No downloads available for this product.
