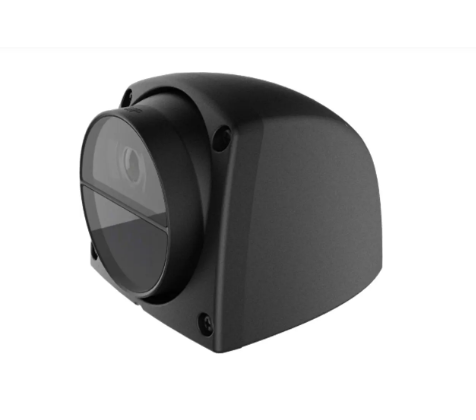

Hikvision AE-VC224T-IT Mobile 1080P 1/2.9”CMOS infrared array conch Vehicle Camera

Model: AE-VC224T-IT

Who This Is For

When mounting a camera inside a vehicle cabin, engine bay, or cargo area that gets hammered by temperature extremes is the priority, the Hikvision AE-VC224T-IT is built around that exact problem. This is a mobile conch-style vehicle camera rated to operate from -40 °C through to 75 °C, which makes it a practical option for fleet operators running vehicles in outback heat or alpine cold - conditions that quickly compromise standard fixed-site cameras. The 1080P at 25 fps output feeds into existing vehicle DVR or mobile recording systems through a composite video aviation plug, and the infrared array means usable footage in cabin darkness or poorly lit loading areas. The M12 lens mount gives operators the ability to match the field of view to the specific vehicle layout. This is a specialised tool for fleet, transit, mining vehicles, and heavy equipment rather than a general-purpose fixed-site camera.

What This Camera Actually Does

Who Buys This Model

• Fleet operators: Running trucks or coaches fitted with mobile DVR systems who need a camera that handles the 9-16 V DC vehicle supply and outputs composite video directly into existing onboard recorders.
• Mining and resources companies: Equipping haul trucks, loaders, or site vehicles that operate in extreme heat or dust and require a camera rated well beyond standard -10 °C to 60 °C limits.
• Public transit operators: Installing interior cabin cameras on buses or rail vehicles where composite video integration, a compact footprint, and IR capability for night routes are all required simultaneously.
• Security integrators: Building custom mobile surveillance systems for armoured vehicles, cash-in-transit vans, or emergency response vehicles where a ruggedised, compact conch-style camera is specified.

Honest Assessment

The AE-VC224T-IT does a specific job well: it delivers 1080P composite video from inside a vehicle in conditions - temperature extremes, vibration, variable DC power - that would push a standard fixed-site camera out of spec. The -40 °C to 75 °C operating range is a genuine differentiator for Australian fleet and mining applications, and the aviation plug connector is built for repeated connection and disconnection in field environments. The IR array and wide shutter speed range handle the lighting variability common in mixed indoor-outdoor vehicle use.

What it will not do is connect to an IP network, support PoE, or feed into a standard NVR. It is a composite analog camera designed exclusively for mobile DVR systems. If the target system is IP-based or requires onboard analytics, a different camera type is needed. Available through Security Australia, this model is best specified alongside a compatible mobile DVR rather than as a standalone unit.

Before You Buy

Quick Fit Check

• Good match if: Your vehicle recording system uses composite video input via aviation plug connectors and the installation environment regularly hits temperature extremes beyond the range of standard fixed-site cameras.
• Good match if: You need a compact cabin or cargo camera where the field of view must be selected per installation position - the M12 lens mount supports this without requiring a different camera model for each location.
• You may need a different model if: Your recording infrastructure is IP-based with PoE - in that case, an IP mobile vehicle camera with an RJ45 output is the more compatible product type for your system.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your vehicle recording system is composite-based with aviation plug inputs, and the installation environment requires a camera rated beyond the -10 °C to 60 °C range typical of standard fixed-site cameras.
• You may need a different model if: Your mobile recording infrastructure is IP-based - an IP mobile vehicle camera with PoE or 12 V DC power and RJ45 output is the correct product type for that system architecture.
• Pairs well with: A compatible mobile DVR unit with composite video inputs, matching aviation plug cabling, and sufficient channel capacity for the number of camera positions on the vehicle.

Common Questions

1. Will this camera connect directly to a standard NVR or IP network recorder?

   No. The AE-VC224T-IT is a composite analog camera with a 1 Vpp video output via an aviation plug - it does not have an IP address, RJ45 port, or PoE capability. It is designed exclusively for mobile DVR systems that accept composite video input. Attempting to connect it to an NVR without an appropriate video encoder in between will not work.

2. Does this camera work in extreme heat conditions, such as inside a vehicle parked in direct Australian sun?

   Yes. The operating temperature range is -40 °C to 75 °C, which covers the internal temperatures reached inside parked vehicles in northern Australia. Most standard surveillance cameras are rated only to 50 °C or 60 °C, making them unsuitable for sealed vehicle interiors in summer. The 75 °C upper limit is a confirmed specification for this model.

3. What lens comes with the AE-VC224T-IT?

   The confirmed specification lists an M12 lens mount - the specific lens is not included as a standard fit in the published data. The M12 mount is a common vehicle camera standard that supports a wide range of angle options. The correct lens for each installation position should be selected and ordered separately based on the field of view required for that camera location on the vehicle.

4. How is the camera powered, and does it draw from the vehicle's electrical system?

   Yes. The IR supplement light unit is powered from a 9-16 V DC supply, which is within the range of standard 12 V vehicle electrical systems. Maximum power consumption for the supplement light unit is 2.5 W. This makes direct connection to a vehicle auxiliary circuit practical without requiring a separate power converter, provided the circuit can support the combined load of the camera and any other connected equipment.

5. Will this camera provide usable footage in complete darkness inside a cargo area?

   Yes. The infrared array supplement light provides illumination when ambient light is absent, and the electronic day/night function automatically transitions to IR mode as light levels drop. The 42 dB signal-to-noise ratio helps maintain image quality in low-light conditions. The combination of the IR array and the 1/50 s to 1/50,000 s shutter range allows the camera to adapt to the shift between lit and unlit environments as cargo doors are opened and closed.

6. Is the AE-VC224T-IT suitable for use in refrigerated vehicle bodies?

   Yes. The lower operating limit of -40 °C means this camera remains operational inside refrigerated trailers and van bodies without modification or add-on heater kits. Standard fixed-site cameras typically have a lower limit of -10 °C or -20 °C, which is insufficient for cold-chain transport environments. This model is part of the Security Australia range and is one of the few vehicle cameras with a confirmed operating range suited to this application.

7. What does the SNR of 42 dB mean in practical terms for this camera?

   It means the camera produces a relatively clean signal with moderate noise suppression. A 42 dB signal-to-noise ratio is sufficient for vehicle interior monitoring where image detail matters for incident review, though it is lower than the 50 dB or higher figures found in premium fixed-site cameras. In vehicle applications with controlled IR illumination, 42 dB delivers adequate footage quality for the intended use case without overstating capability.
