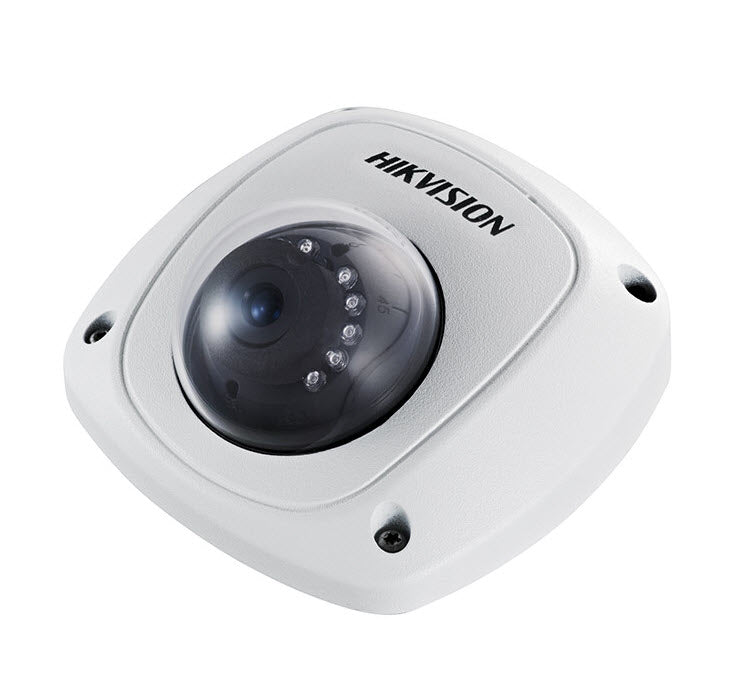

Hikvision AE-VC211T-IRS Mobile 1080P Vehicle Camera 1M IR / 2.8mm Lens

Model: TVI-AE-VC211T-IRS

Who This Is For

When mobile surveillance is the priority - whether for a bus fleet, a heavy haulage operation, a cash-in-transit vehicle, or a utility service truck - the Hikvision AE-VC211T-IRS is built specifically for that environment. This is not a repurposed indoor or fixed-site camera adapted for vehicle use; it is a dedicated mobile unit rated to operate from -40°C to 60°C, drawing as little as 4W from a DC 9V-16V vehicle supply. Fleet operators, transport security managers, and mobile CCTV installers who need a compact 1080P camera that can handle Australian temperature extremes, vibration, and the confined mounting positions inside or on vehicles will find this model fits that brief directly. The 2.8mm fixed lens provides a wide 101° horizontal field of view, while the pan, tilt, and rotation adjustment range makes positioning straightforward regardless of the mounting surface inside a cabin or cargo area.

What This Camera Actually Does

Who Buys This Model

• Fleet and transport operators: Bus companies, courier fleets, and logistics providers fitting mobile DVR systems who need a compact 1080P camera that runs directly off vehicle DC power without additional converters.
• Cash-in-transit and security vehicle operators: Operators requiring audio and video evidence from in-cabin interactions, where the built-in microphone and 1080P resolution provide a combined evidentiary record.
• Mining and resource sector vehicle managers: Sites operating in extreme ambient temperatures where the -40°C to 60°C rating and 4W low-draw power suit heavy equipment cabins and remote site vehicles that standard cameras cannot handle reliably.
• Mobile CCTV system integrators: Installers building multi-camera vehicle DVR systems who need a consistent, compact camera format that mounts on pillars, overhead rails, or bulkheads using the full pan/tilt/rotation adjustment range.

Honest Assessment

The AE-VC211T-IRS does what purpose-built vehicle cameras need to do: it tolerates thermal extremes that eliminate standard IP cameras from consideration, draws minimal power from vehicle circuits, and delivers 1080P video with IR night vision through a single aviation port connection. The built-in microphone adds audio evidence without extra hardware, and the mounting adjustment range is genuinely useful in the constrained spaces of vehicle cabins and cargo areas. Available through Security Australia, it suits operators who need a proven mobile camera rather than an adapted fixed-site unit.

What it will not do is replace an exterior vehicle camera for licence plate capture or wide-area perimeter coverage - the 2.8mm lens and IR range are suited to short-to-medium interior distances, not long-range external approaches. It also outputs via an aviation port connection, meaning it requires a compatible mobile DVR input; it will not connect directly to a standard NVR or PoE switch. Buyers needing exterior-facing vehicle cameras with longer IR throw or varifocal capability should review dedicated exterior mobile camera options.

Before You Buy

Quick Fit Check

• Good match if: You are building or expanding a mobile DVR system in a bus, truck, or service vehicle and need a compact 1080P camera that draws DC power directly from the vehicle supply without additional power conversion hardware.
• Good match if: Your vehicle operates in high-heat or cold-climate conditions where the -40°C to 60°C operating range is a hard requirement and standard IP cameras rated to 50°C are not adequate.
• You may need a different model if: Your requirement is exterior-facing - for example, capturing approaching vehicles, loading dock activity, or licence plates from outside the vehicle - where an exterior-rated mobile camera with greater IR throw and weatherproofing is the more appropriate product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a dedicated mobile camera rated to 60°C that runs on DC vehicle power, outputs via aviation port to a compatible mobile DVR, and records audio via a built-in microphone - tasks a standard IP camera cannot perform in this format.
• You may need a different model if: Your application is exterior-facing on the vehicle body - for forward-facing road capture, reverse camera use, or external perimeter coverage - where an exterior-rated mobile camera with weatherproof housing and appropriate lens coverage is the more suitable product type.
• Pairs well with: A compatible mobile DVR unit with aviation port inputs, a 12V vehicle power management module for multi-camera installations, and a GPS tracking module if fleet location recording is required alongside video evidence.

Common Questions

1. Will this camera connect to a standard NVR or PoE switch?

   No. The AE-VC211T-IRS outputs via an aviation port connector and operates on DC 9V-16V vehicle power - it is not an IP camera and does not use PoE or a network connection. It is designed specifically for use with mobile DVR systems that accept aviation port inputs. Attempting to connect it to a standard NVR or IP camera system is not compatible with this model.

2. Does this camera work in a vehicle that sits in direct sun in Australian summer conditions?

   Yes, within the confirmed operating range. The camera is rated to 60°C, which covers the interior temperatures commonly reached in vehicle cabins parked in direct Australian sun. Standard IP cameras are typically rated to 50°C, which can be exceeded in enclosed vehicle spaces. However, if your installation is in an area that may exceed 60°C - such as directly behind windscreen glass in extreme conditions - a thermal check of the specific location is advisable before installation.

3. What does the aviation port connection mean for my wiring?

   It means you need a mobile DVR with matching aviation port inputs - this is the standard connector format used across most mobile CCTV and fleet DVR systems. The aviation port carries both video signal and, depending on the cable configuration, power. Confirm your DVR's input connector type and the cable specification required before purchasing. The camera itself requires a separate DC 9V-16V power feed; the power source and video output connections may be separate depending on your system's cabling arrangement.

4. Does this camera record audio as well as video?

   Yes. A built-in microphone is confirmed on this model, enabling audio recording alongside the 1080P video output. The audio is captured at the camera and transmitted through the same output connection to the DVR. Note that recording audio in a vehicle may be subject to state-based privacy regulations in Australia - operators should confirm their obligations with relevant legal guidance before enabling audio recording in a fleet environment. This model is part of the Security Australia range.

5. What is the field of view with the 2.8mm lens and is there a narrower option?

   The 2.8mm lens provides a 101° horizontal, 54° vertical, and 120° diagonal field of view - wide enough to cover most in-cabin applications from a single mounting position. A 3.6mm lens option is listed, which reduces horizontal FOV to 87° and vertical FOV to 44° for a slightly tighter framing angle. Confirm your required lens at the time of ordering, as lens configurations are specified at purchase.

6. How does the mounting adjustment help with awkward vehicle installation positions?

   The physical adjustment range - pan -30° to 30°, tilt 0° to 75°, and rotation -180° to 180° - means you can mount the camera on a surface that is not perfectly aligned with the coverage zone you need and correct the angle after fixing. In vehicle cabins where mounting surfaces include angled pillars, curved bulkheads, and overhead rails, this range of adjustment avoids the need to fabricate custom mounting brackets to achieve the correct aim point.

7. How much power does this camera draw and will it affect my vehicle's electrical system?

   The camera draws a maximum of 4W at DC 9V-16V. For a single camera installation, this is a negligible load on any standard vehicle auxiliary circuit. For multi-camera builds, 4 cameras at maximum draw totals 16W - well within the capacity of a standard 10A auxiliary fuse circuit. The DC input range also means the camera tolerates the voltage variation typical of 12V vehicle systems under engine load without requiring a voltage regulator.

Downloads & Resources

No downloads available for this product.
