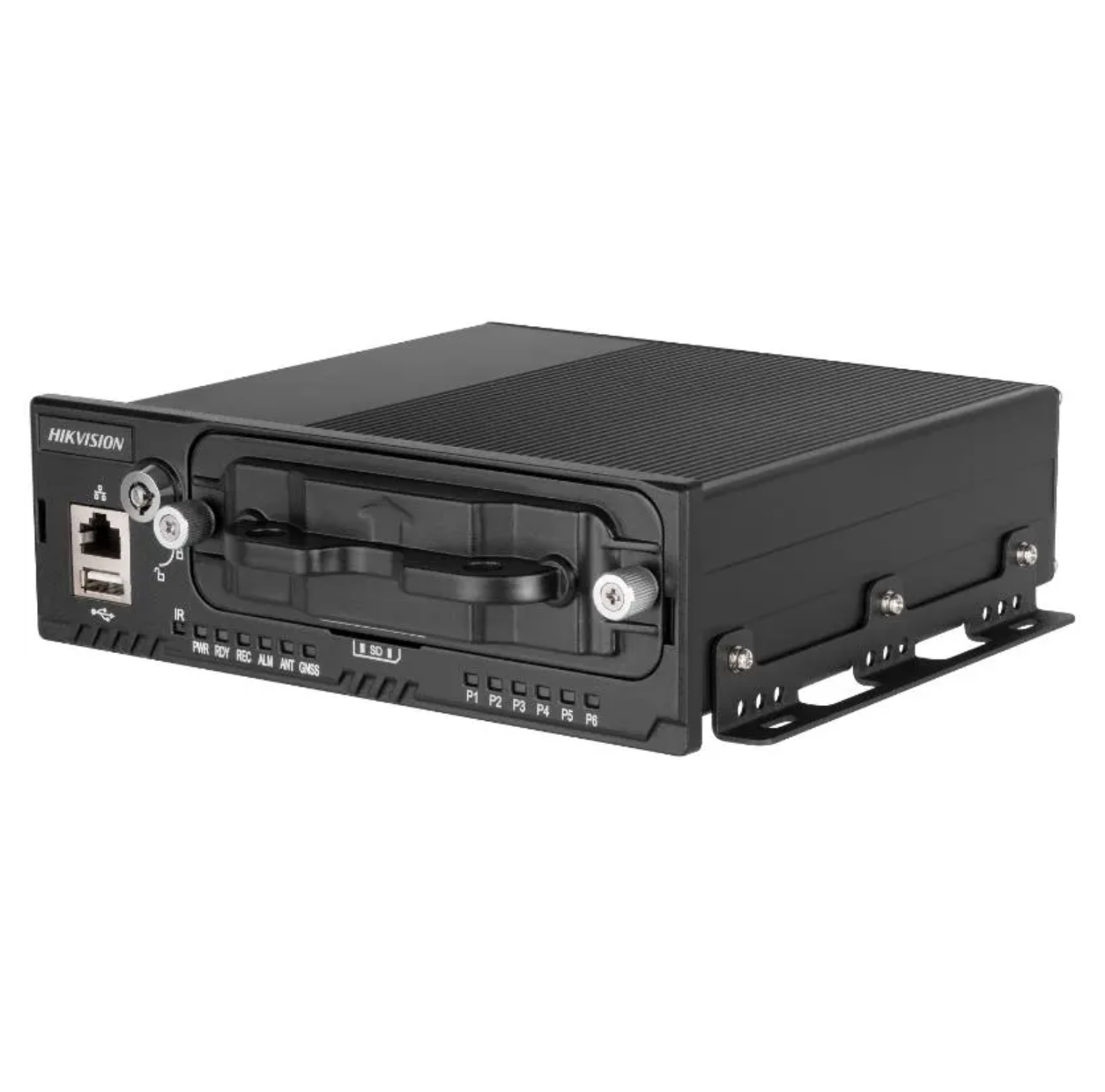

Hikvision AE-MN5043(RJ45) 4-ch Mobile NVR without WIFI / 4G module

Model: AE-MN5043(RJ45)-NO4GWIFI

Who This Is For

For fleet operators and mobile security integrators who need a hardened onboard recording platform that runs from vehicle power without relying on a wireless data module, the Hikvision AE-MN5043(RJ45) is built around that exact brief. It accepts 4 PoE-connected cameras directly, draws between +9 and +32 VDC so it works across 12V and 24V vehicle electrical systems, and is rated IP66 so it survives dust, water ingress, and the vibration of daily vehicle operation. The wide operating temperature range of -20°C to +60°C means it holds up in refrigerated transport vehicles as well as in outdoor trailers in peak summer. If your deployment uses an existing wired LAN or a fixed network drop rather than a 4G or Wi-Fi link, this variant removes the module cost while keeping the full recording and PoE functionality of the platform. It suits transit vehicles, utilities fleets, cash-in-transit vans, and mobile command units where connectivity is handled separately.

What This NVR Actually Does

Who Buys This Model

• Fleet and transport operators: Companies running buses, coaches, or passenger vans that need a hardened onboard recorder drawing from the vehicle's 12V or 24V system and recording 4 camera angles without requiring a mobile data module.
• Cash-in-transit and secure logistics teams: Installers specifying an IP66-rated recorder that handles wash-down environments and stores footage locally across redundant SATA and microSD storage, with ANR to recover footage gaps.
• Utilities and infrastructure fleet managers: Operations using 24V heavy vehicles - earthmovers, service trucks, boom lifts - where the wide voltage input range and -20°C to +60°C operating spec matter more than built-in connectivity.
• Mobile command and incident response units: Agencies deploying temporary surveillance on trailers or response vehicles that connect back to a fixed wired LAN rather than relying on 4G, making this no-module variant the right procurement choice.
• Security integrators managing costs across a fleet rollout: Integrators who handle connectivity via a separate router or managed switch and want to avoid paying for a built-in wireless module that will not be used.

Honest Assessment

The AE-MN5043(RJ45) does a specific job well: it puts a compact, IP66-rated, 4-channel PoE recorder into a mobile environment and tolerates the voltage variations, temperature extremes, and physical abuse that standard NVRs will not survive. The dual SATA bay plus microSD storage layout gives meaningful local retention, and H.265 compression stretches that storage further. ANR is a practical addition when the vehicle returns to base and reconnects to a wired network. The wide DC input range is genuinely useful and not a feature to overlook when specifying for mixed fleets.

This unit will not provide remote live viewing or offload footage wirelessly on its own - that requires pairing it with a separate 4G router or managed switch. If standalone over-the-air connectivity is essential for your deployment, the variant with the 4G module installed is the more direct solution and is available through Security Australia. This recorder is also limited to 4 channels; a larger mobile fleet application needing 6 or 8 camera positions will need a different platform.

Before You Buy

Quick Fit Check

• Good match if: Your vehicle runs on 12V or 24V and you need a 4-channel PoE recorder that connects to an existing onboard wired LAN or base-station network without requiring a built-in cellular module.
• Good match if: The installation is in a wash-down, dusty, or temperature-extreme environment - refrigerated transport, plant machinery, or open-tray service vehicles - where IP66 and the -20°C to +60°C operating range are actual requirements, not marketing specs.
• You may need a different model if: You need the recorder to transmit footage or support remote viewing over 4G independently - look at the module-equipped variant of this platform, which carries the hardware for mobile data connectivity built in.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your mobile application uses an external router or wired depot network for connectivity and you do not need a built-in 4G or Wi-Fi module - you get the full mobile NVR recording platform at a lower hardware cost.
• You may need a different model if: The vehicle needs to transmit live footage or trigger remote alerts independently while on the road - the module-equipped variant of this same platform provides that capability without requiring a separate device.
• Pairs well with: Mobile-rated PoE IP cameras (dome or bullet profile, suited for vehicle-mounting), a vibration-rated 2.5-inch SSD for SATA storage, and a managed 4G router if remote access is required.

Common Questions

1. Does this NVR work on a 12V vehicle electrical system?

   Yes. The AE-MN5043(RJ45) accepts +9 to +32 VDC, which covers both 12V passenger vehicle and light commercial systems and 24V heavy vehicle and truck systems. No external voltage converter is required. Connect through a correctly rated automotive fuse to protect the unit against voltage spikes during engine starts.

2. Will this recorder work without any network connection at all?

   Yes. The unit records locally to microSD (up to 256 GB) and to fitted SATA drives without needing a network connection. ANR and NAS features become active when a network is available, but local recording operates independently. This makes it suitable for remote or off-road deployment where connectivity is intermittent or absent.

3. Can I add a 4G or Wi-Fi module to this unit later?

   No. This variant is the no-module version of the AE-MN5043(RJ45) and is not field-upgradeable for wireless connectivity. If mobile data or Wi-Fi is a current or future requirement, specify the module-equipped variant at procurement rather than attempting a retrofit. A separate 4G router connected via the RJ45 interface is the supported workaround for this variant.

4. What storage capacity can this NVR support in total?

   Up to approximately 8.25 TB across all storage slots. The 2 SATA bays each accept an SSD up to 4 TB (or HDD up to 2 TB), and the microSD slot adds up to 256 GB. In practice, using 2 x 4 TB SSDs with a 256 GB microSD gives just over 8 TB of local storage - at H.265 encoding, this provides substantial multi-day retention across 4 camera channels.

5. Does this NVR support two-way audio through the connected cameras?

   Yes. Two-way audio is supported across the 4 PoE channels using G.711a, G.711u, G.722.1, and G.726 compression. Actual two-way audio in operation requires that the connected IP cameras also have built-in microphones and speakers - the NVR provides the audio management capability but does not add audio hardware to cameras that lack it.

6. Will this NVR operate in a refrigerated trailer or extreme heat environment?

   Yes. The rated operating range of -20°C to +60°C covers both cold-chain transport at temperature and outdoor summer conditions in Australian climates. This is a confirmed specification for the AE-MN5043(RJ45) and is one of the practical differentiators from standard NVRs, which typically operate only down to 0°C. The Security Australia listing confirms this temperature specification.

7. What type of hard drives should I use in the SATA bays for a vehicle install?

   Use SSDs or drives rated for continuous mobile/vibration use - not standard desktop HDDs. Desktop drives are not designed for the persistent vibration of vehicle operation and have elevated failure rates in mobile installs. 2.5-inch SSDs rated for surveillance or industrial use are the recommended choice. The bays accept 2.5-inch SATA format up to 4 TB per drive when fitted with SSDs.
