4-ch , H.264/H.265, 2xHDD/SSD Mobile DVR
The AE-MD5043 integrates seamlessly with other Hikvision products, creating a comprehensive security system. It is ideal for applications such as fleet management, public transportation, and law enforcement. The device’s encryption capabilities ensure the protection of recorded data. Additionally, it supports a range of video outputs for flexible monitoring solutions. The AE-MD5043 represents a blend of innovation and practicality, making it a reliable choice for mobile surveillance needs.
Key Features
Code/SKU: AE-MD5043
Quick Specs:
| Specifications | |
|---|---|
| Video/Audio Input | 4-ch HIK wiring sequence analog camera, Max. 1080P |
| Two-way Audio | 1, integrated in EXT.DEV interface |
| Video/Audio Output | |
| Audio Output | 1 |
| Video Output | Main output: 1, integrated in EXT.DEV interface |
| Encoding/Decoding Parameters | |
| Video Compression | H.265/H.264 |
| Audio Compression | G.711a/G.711u/G.722.1/G.726 |
| Audio Bit Rate | 16 Kbps |
| Stream Type | Video, video & audio |
| Dual Stream | Supported |
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps |
| Encoding Resolution | Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF |
| Wireless Network | |
| Wi-Fi | WI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.) |
| 3G/4G Dialing | 1 × 4G card slot, 1 ×FAKRA antenna 5G module (optional) |
| Storage | |
| SD Card Storage | 1 × SD card, up to 256 GB (not for baseline. Note the SD card capacity when ordering) |
| HDD/SDD | 2 × 2.5 inch SATA HDD/SSD, up to 2 TB for HDD, up to 4 TB for SSD |
| Auxiliary Interface | |
| Network Interface | Front panel: 1 × 10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note: The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional. |
| Alarm Input | 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input |
| Alarm Output | 2 relay signal outputs |
| Sensor-in | 4 high/low level signal inputs |
| Serial Port | 2 × RS-232 (harness is optional), 1 × RS-422 (integrated in EXT.DEV interface) |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector) |
| Positioning | |
| GNSS (Global Navigation Satellite System) | GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × FAKRA antenna |
| Sensor | G-Sensor: Built-in |
| General | |
| Power Supply | +9 to +32 VDC |
| Product Dimension | 206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37") |
| Power Consumption | Standby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Operation Method | Mouse, IR remote control, Web control, and touchscreen |
| Weight (Without Storage Media) | 1.7 kg (3.75 lb.) |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019) |
| Safety | CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020) |
| Environment | CE-RoHS (2011/65/EU and amendment 2015/863/EU) |
| Automotive and Railway | EN50155 (EN 50155:2017 clause 13, EN 50121-3-2:2016+A1:2019, EN50153:2014+A1:2017+A2:2020; BS EN ISO:13732-1:2008; EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

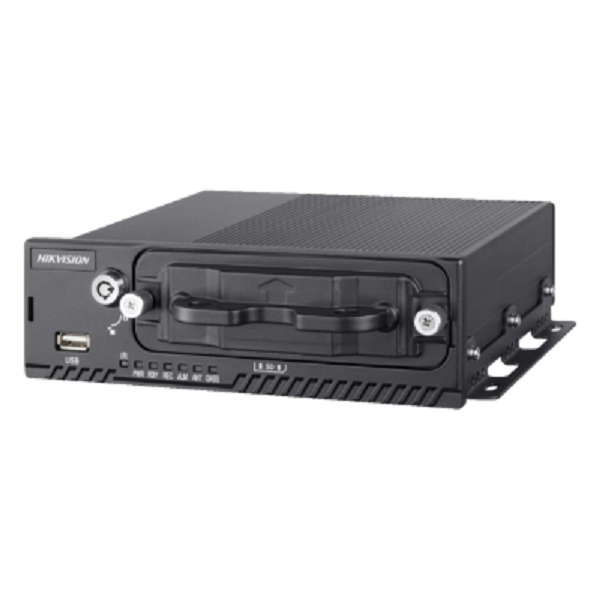

Hikvision AE-MD5043 4-ch , H.264/H.265, 2xHDD/SSD Mobile DVR
The AE-MD5043 is a versatile 4-channel Mobile DVR from Hikvision, designed to offer robust video surveillance solutions for vehicles. It supports both H.264 and H.265 video compression standards, providing efficient and high-quality video recording. This model is equipped with two HDD/SSD slots, allowing for flexible storage options and increased capacity. The device is built to withstand the harsh conditions typically encountered in mobile environments, ensuring reliable operation in various transportation settings. Its compact design makes it easy to install and integrate into different vehicle types. The AE-MD5043 offers real-time monitoring and playback capabilities, enhancing security and situational awareness. With its advanced features, it supports high-resolution video recording and playback.
The DVR also includes network connectivity options, enabling remote access and management. Its user-friendly interface simplifies configuration and operation, making it accessible for both novice and experienced users. The device is engineered with durability in mind, featuring rugged construction to endure vibrations and temperature fluctuations. The AE-MD5043 integrates seamlessly with other Hikvision products, creating a comprehensive security system. It is ideal for applications such as fleet management, public transportation, and law enforcement. The device’s encryption capabilities ensure the protection of recorded data. Additionally, it supports a range of video outputs for flexible monitoring solutions. The AE-MD5043 represents a blend of innovation and practicality, making it a reliable choice for mobile surveillance needs.
Features
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector) |
| Positioning | |
| GNSS (Global Navigation Satellite System) | GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × FAKRA antenna |
| Sensor | G-Sensor: Built-in |
| General | |
| Power Supply | +9 to +32 VDC |
| Product Dimension | 206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37") |
| Power Consumption | Standby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Operation Method | Mouse, IR remote control, Web control, and touchscreen |
| Weight (Without Storage Media) | 1.7 kg (3.75 lb.) |
