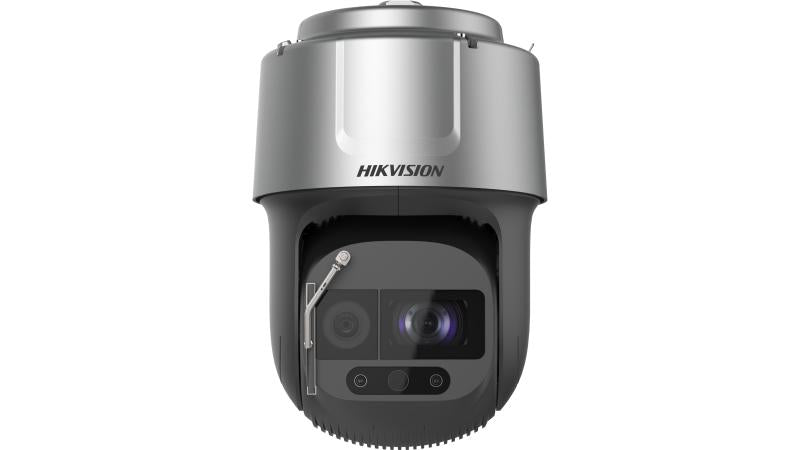

Hikvision 9C Series 8MP 48X DarkFighter Laser Network Speed Dome - DS-2DF9C848LXG-LW
The Hikvision DS-2DF9C848LXG-LW is an Ultra Series 8 MP 48× PTZ camera engineered for precise, long-range monitoring in diverse lighting conditions. By integrating a powerful optical zoom with advanced imaging technology, it delivers unparalleled detail and clarity, making it an ideal choice for large-scale outdoor surveillance.
Key Features
-
48× Optical Zoom – Capture distant details with remarkable clarity.
-
8 MP Resolution – Enjoy high-definition imaging for more precise surveillance.
-
Laser IR Technology – Ensure extended-range visibility in low-light or nighttime conditions.
-
Weather-Resistant Design – Built to withstand harsh environments for reliable outdoor performance.
-
Intelligent Functions – Utilize smart detection, tracking, and analytics for efficient incident response.
-
6-8 weeks lead time
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
The Hikvision DS-2DF9C848LXG-LW is an Ultra Series 8 MP 48× PTZ camera engineered for precise, long-range monitoring in diverse lighting conditions. By integrating a powerful optical zoom with advanced imaging technology, it delivers unparalleled detail and clarity, making it an ideal choice for large-scale outdoor surveillance.
Key Features
-
48× Optical Zoom – Capture distant details with remarkable clarity.
-
8 MP Resolution – Enjoy high-definition imaging for more precise surveillance.
-
Laser IR Technology – Ensure extended-range visibility in low-light or nighttime conditions.
-
Weather-Resistant Design – Built to withstand harsh environments for reliable outdoor performance.
-
Intelligent Functions – Utilize smart detection, tracking, and analytics for efficient incident response.
-
6-8 weeks lead time
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
Camera
| Image Sensor | 1/1.2" progressive scan CMOS |
|---|---|
| Max. Resolution | 3840×2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Speed | 1/1 to 1/30,000s |
| Zoom | 48x optical, 16x digital |
| Slow Shutter | Yes |
Lens
| Focal Length | 6.6 mm to 316.8 mm |
|---|---|
| FOV | Horizontal field of view: 61.0° to 2.1° (wide-tele)Vertical field of view: 35.9° to 1.2° (wide-tele)Diagonal field of view: 68.5° to 2.4° (wide-tele) |
| Focus | Auto, semi-auto, manual, rapid focus |
| Aperture | Max. F1.6 |
| Zoom Speed | Approx. 7.4s |
Illuminator
| Supplement Light Range | Laser distance: up to 800 m |
|---|---|
| Smart Supplement Light | Yes |
PTZ
| Movement Range (Pan) | 360° |
|---|---|
| Movement Range (Tilt) | -25° to 90° (auto flip) |
| Pan Speed | Configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt Speed | Configurable from 0.1° to 150°/s; preset speed: 250°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
Video
| Main Stream | 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 24fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|---|---|
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)60Hz: 24fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline profile, main profile, high profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
Audio
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
|---|---|
| Audio Bit Rate | 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 Kbps to 192 Kbps (MP2L2) |
Network
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|---|---|
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, G, T), ISAPI, Hikvision SDK |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Web Browser | IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ |
| Image Parameters Switch | Yes |
|---|---|
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 140 dB WDR |
| SNR | ≥ 55 dB |
| Defog | Optical defog |
| Image Stabilization | OIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
Interface
| Video Output | 1.0 V[p-p]/75Ω, PAL, NTSC, BNC connector |
|---|---|
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, supports microSD/microSDHC/microSDXC cards up to 256 GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 7 inputs, 2 outputs |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
Event
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception |
|---|---|
| Smart Event | Object removal detection, unattended baggage detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection |
| Linkage | Preset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP, smart tracking, NAS video recording |
| Smart Tracking | Manual tracking, auto-tracking |
Deep Learning Function
| Face Capture | Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
|---|---|
| Road Traffic | Supports vehicle detection (license plate number, vehicle model, and vehicle color recognition) |
General
| Power | 36 VDC, max. 90 W, including max. 18 W for IR |
|---|---|
| Dimension | Φ 293 mm × 422 mm (Φ 11.5" × 16.6") |
| Weight | Approx. 13 kg (28.7 lb) |
| Material | ADC12 |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| General Function | Mirror, password protection, watermark, IP address filter |
| Vandal-proof Alarm | Yes |
| Wiper | Yes. Rain-sensing auto control |
| Language | 32 languages, including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian,Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
Approval
| EMC | Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5 |
|---|---|
| Protection | IP67 |
