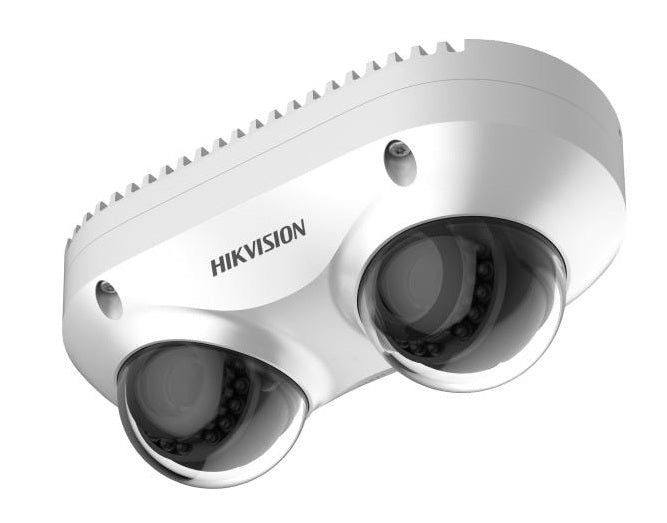

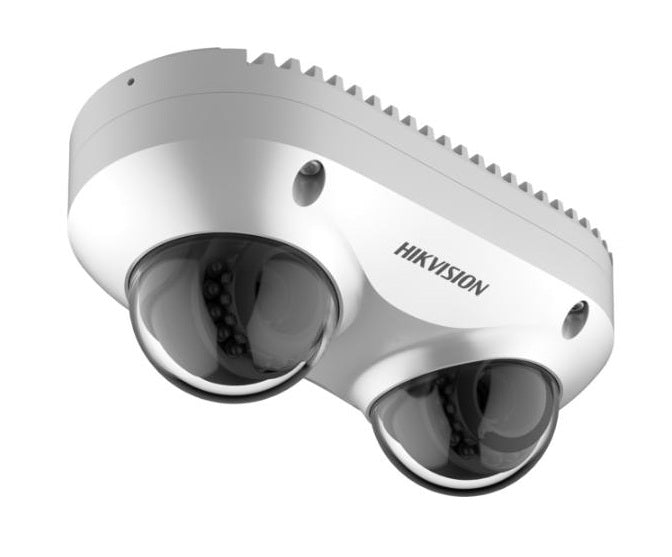

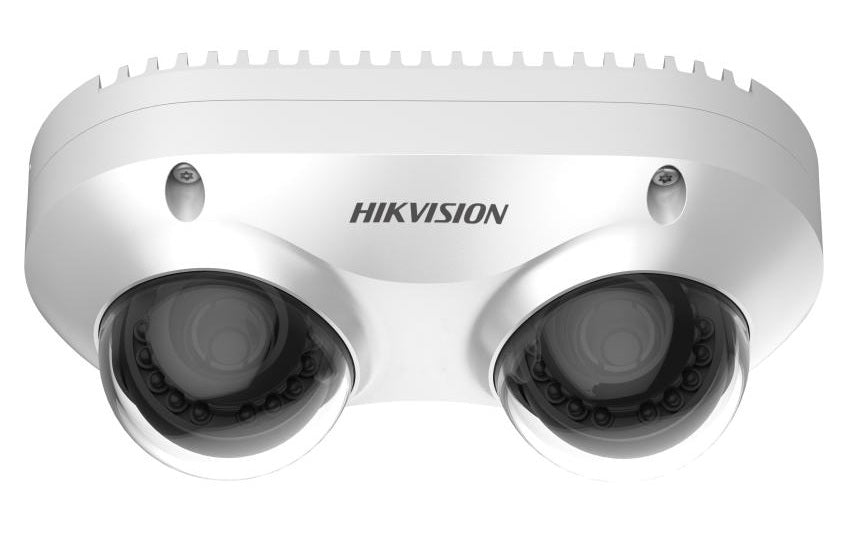

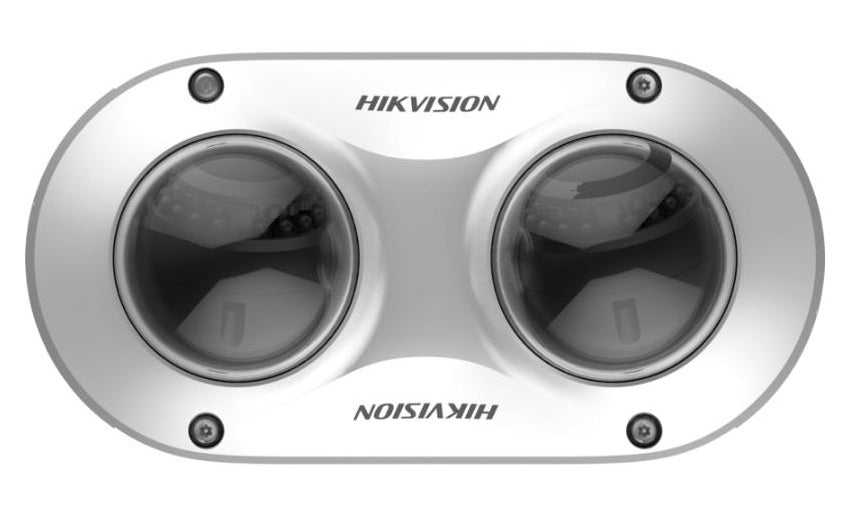

Hikvision 8MP PanoVu DS-2CD6D82G2-IS Dual-Directional Camera with Built-in Microphone, PoE, IP67 & IK10

Model: DS-2CD6D82G2-IS

Who This Is For

Security managers covering bi-directional traffic flows - entry corridors, perimeter fence lines, double-loaded car parks, or retail aisles - will find the Hikvision PanoVu DS-2CD6D82G2-IS purpose-built for exactly this challenge. Two independent 4MP lenses face opposite directions from a single housing, giving you a combined 8MP dual-directional view with one cable run, one mounting point, and one NVR channel per lens. IP67 weatherproofing and an IK10-rated housing mean this camera works equally well mounted on a carpark boom gate post, a warehouse wall, or a school gate column. The built-in microphone captures audio at each installed position, adding evidential value without a separate device. Installers who have previously used two cameras to cover opposing directions - and paid for two sets of cabling and mounting hardware - find this a straightforward consolidation.

What This Camera Actually Does

Who Buys This Model

• Carpark & Facility Managers: Covering boom gate entry and exit simultaneously with a single housing mounted on the gate post - one cable run replaces two separate camera installations at each lane position.
• School & University Security Teams: Monitoring dual-traffic gate columns or covered walkways where students approach from both directions, using the IK10-rated housing to handle exposure to pedestrian contact and outdoor conditions.
• Warehouse & Logistics Operators: Placed at loading dock access points where inbound and outbound vehicle movement needs independent video capture, avoiding a second camera and bracket on the same wall or column.
• Commercial Integrators Reducing Cable Budgets: Specifying this camera at any bi-directional pinch point where cutting a cable run directly reduces project cost - the dual sensor means half the cabling for the same coverage outcome at that position.
• Retail & Hospitality Security Managers: Deploying at entry vestibules and double-door foyers where both incoming and outgoing customer flow needs coverage for loss prevention review and incident verification, with audio capture adding context to footage.

Honest Assessment

The DS-2CD6D82G2-IS does one thing that most cameras cannot: it delivers coverage in two opposite directions from a single mounting point, with 8MP total resolution, a built-in microphone, and a housing rated to withstand outdoor weathering and physical impact. At bi-directional chokepoints, this is a genuine infrastructure saving - one cable, one bracket, one position. The IP67 and IK10 ratings make it appropriate for real outdoor and semi-industrial environments, not just sheltered installs. Where this camera is not the right choice: if your coverage requirement spans more than 2 directions, a fisheye or multi-sensor panoramic camera available through Security Australia will cover 180 or 360 degrees from a single unit. Similarly, if your primary need is long-range IR detection down a single axis rather than bi-directional coverage, a bullet or turret camera will deliver better reach for that specific scenario. This is a specialist tool for a well-defined installation type.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor traffic or pedestrian movement in 2 opposing directions from a single mounting point - such as a boom gate post, corridor junction, or double-door entry - and want to eliminate the cost of a second cable run and camera bracket at that position.
• Good match if: Your install location is exposed to outdoor conditions and potential physical contact, and you need IP67 weatherproofing combined with IK10 impact resistance in the same unit - without stepping up to a heavier industrial housing.
• You may need a different model if: Your site requires coverage across more than 2 directions from one position - a multi-sensor panoramic or fisheye camera will serve that scenario better without requiring multiple mounting points.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You have a defined bi-directional coverage requirement at a single mounting position and want to eliminate a second camera, bracket, and cable run at that point - while retaining individual 4MP resolution streams from each direction.
• You may need a different model if: Your coverage requirement extends beyond 2 opposing directions - a fisheye or multi-sensor panoramic camera delivers 180-degree or 360-degree coverage from one position and is better suited to open-area or intersection monitoring scenarios.
• Pairs well with: A PoE NVR with sufficient channel capacity - allow 2 channels per DS-2CD6D82G2-IS unit installed, and confirm the NVR PoE budget can support the combined power draw of both sensors per port.

Common Questions

1. Does this camera use 1 NVR channel or 2?

   It uses 2 NVR channels - one per lens. The DS-2CD6D82G2-IS produces 2 independent video streams from its dual sensors, and each stream is recorded as a separate channel on your NVR. Before specifying this camera across multiple positions, confirm your NVR has sufficient available channels. A 6-camera deployment will consume 12 NVR channels total.

2. Will this camera work on a standard PoE switch port?

   Yes, provided your switch port meets the power budget required for both sensors operating simultaneously. The camera is PoE-powered via a single RJ45 connection - one cable delivers both data and power to the unit. Confirm your switch or NVR PoE port supplies sufficient wattage for the dual-sensor configuration before installing.

3. Does this camera support two-way audio?

   No. The DS-2CD6D82G2-IS includes a built-in microphone for audio capture (audio in), but there is no built-in speaker. Audio is recorded at the install location and can be reviewed alongside footage, but the camera cannot broadcast audio or announcements back through the unit.

4. Is the IK10 rating sufficient for outdoor and semi-industrial environments?

   Yes. IK10 is the highest mechanical impact rating in the IEC 62262 standard, indicating the housing can withstand impacts of up to 20 joules. Combined with the IP67 ingress rating - which covers full dust protection and sustained water jet resistance - the DS-2CD6D82G2-IS is suitable for outdoor gate columns, loading dock walls, and exposed building perimeters without additional protective enclosures.

5. Can the lens direction be adjusted after mounting?

   No. The dual lenses are fixed in opposing orientations from the factory. The directional split cannot be changed post-installation. Before ordering, confirm that the two target coverage zones at your install position are genuinely opposing - a site plan with marked coverage angles is recommended. If your zones are offset rather than directly opposing, a PTZ or multi-sensor camera may be a better fit, and the team at Security Australia can assist with coverage planning before you commit.

6. Does this camera cover more than 2 directions?

   No. The DS-2CD6D82G2-IS has exactly 2 lenses oriented in opposing directions. It is engineered for bi-directional scenarios, not wide-area or all-round coverage. If you need 180-degree or 360-degree coverage from a single mounting position - such as an open carpark, intersection, or large foyer - a fisheye or multi-sensor panoramic camera is the appropriate product type.

7. What resolution does each individual lens record at?

   Each lens records at 4MP independently. The 8MP figure represents the combined total resolution across both sensors - not a single wide image stitched together. The 2 streams are recorded separately on the NVR, allowing each direction to be reviewed, exported, and timestamped independently at 4MP resolution.
