Kit Includes:
Overview:
This Hikvision surveillance kit offers advanced security features with four AcuSense turret cameras equipped with strobe lights and sirens, perfect for deterring intruders. The kit also includes an 8-channel NVR for easy management and monitoring of all cameras.
Key Features:
Technical Details:
Suitable For:
This kit is ideal for users seeking an advanced surveillance system with additional deterrent features for enhanced security.
| Camera | Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | Wide Dynamic Range 120 dB Day & Night IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Iris Type Fixed Focal Length & FOV 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m |
| Illuminator | Supplement Light Type IR IR Range Up to 30 m IR Wavelength 850 nm Smart Supplement Light Yes Visual Alarm Yes |
| Video | Max. Resolution 3840 × 2160 Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | H.264 Type: 32 Kbps to 16 Mbps (Baseline Profile/Main Profile/High Profile) H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | Audio Type Mono sound Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network | Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host Security | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | Web Browser iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | SNR ≥ 52 dB Target Cropping Yes Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone Built-in Microphone Yes Built-in Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Scene change detection Deep Learning Function Face Capture Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification |
| General | Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light Web Client Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| Firmware Version | V5.5.112 |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.75 A, max. 9 W PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Camera Material | Metal except for trim ring |
| Camera Dimension | Ø138.3 mm× 124.5 mm (Ø5.4" × 4.9") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9") |
| Camera Weight | Approx. 840 g (1.9 lb.) |
| With Package Weight | Approx. 1160 g (2.6 lb.) |
| Approval | EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision 8MP Acusense 4 x Outdoor Turret With Strobe & Siren + 8CH NVR CCTV Kit

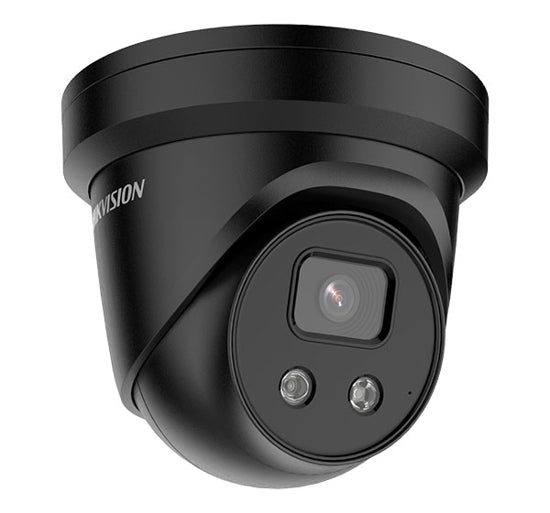

Comprehensive Surveillance with Hikvision DS-2CD2386G2-ISU/SL 8MP 4K AcuSense Turret Camera System:
Introducing the Hikvision DS-2CD2386G2-ISU/SL 8MP 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera system. This advanced surveillance system is designed for outdoor use, delivering exceptional video quality and intelligent features that elevate your security to the next level. Whether you’re securing a residential property or a commercial establishment, the DS-2CD2386G2-ISU/SL provides comprehensive coverage with its high-resolution imaging, advanced detection capabilities, and robust design.
With 8MP 4K resolution, this camera captures crystal-clear video, ensuring you don't miss any details. The system's DarkFighter technology excels in low-light conditions, making it perfect for round-the-clock surveillance. Moreover, the AcuSense technology enhances security by reducing false alarms, accurately classifying human and vehicle targets using deep learning algorithms. Equipped with a strobe light and audible alarm, this camera actively deters potential intruders, while the built-in two-way audio allows for real-time communication.
Functions:
Advanced Low-Light Performance: The DS-2CD2386G2-ISU/SL is equipped with DarkFighter technology, which delivers superior image clarity even in low-light conditions. This feature ensures that you can maintain high-quality surveillance around the clock, capturing critical details that might be missed by other cameras.
Human and Vehicle Classification: Powered by Hikvision’s AcuSense technology, this camera uses deep learning algorithms to differentiate between human and vehicle targets and other irrelevant objects. This function significantly reduces false alarms, ensuring that your surveillance system only alerts you to real threats.
Two-Way Audio Communication: The built-in microphone and speaker allow for real-time communication through the camera. This feature is invaluable for interacting with visitors or deterring potential intruders by issuing warnings directly through the camera's audio system.
Active Deterrence: Featuring a strobe light and an audible warning system, the DS-2CD2386G2-ISU/SL actively deters unauthorized individuals from approaching your property. This function enhances the camera's preventive capabilities, making it a powerful tool in maintaining security.
Efficient Data Management: With H.265+ compression technology, the camera optimizes storage and bandwidth usage without sacrificing video quality. This ensures that you can store more footage and transmit data efficiently, saving on storage costs and improving overall system performance.
Environmental Resilience: The IP66-rated housing of this camera guarantees its durability and resistance to water and dust, making it ideal for outdoor installations. This rugged design ensures that the camera continues to function optimally even in harsh environmental conditions.
Key Features:
Specifications:
| Resolution | 8MP (4K) |
|---|---|
| Low Light Performance | Powered by DarkFighter technology |
| Wide Dynamic Range | 120dB true WDR |
| Compression | H.265+ |
| Intelligent Detection | Human and vehicle classification |
| Active Deterrence | Strobe light and audio alarm |
| Audio | Two-way audio |
| Protection | IP66-rated for water and dust resistance |
| NVR | 8 Channel, 3TB HDD, AcuSense firmware |
