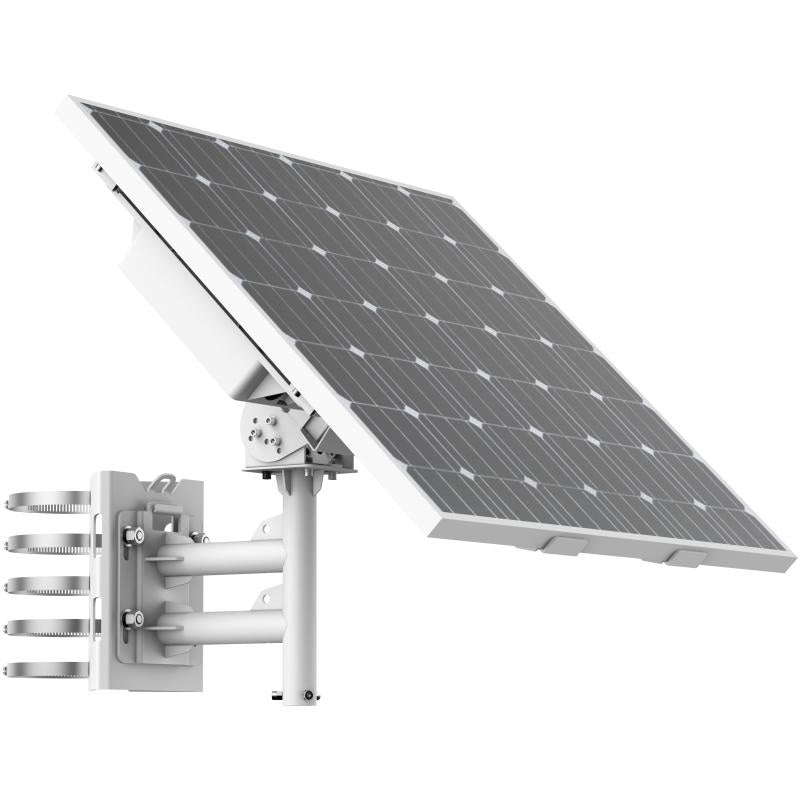

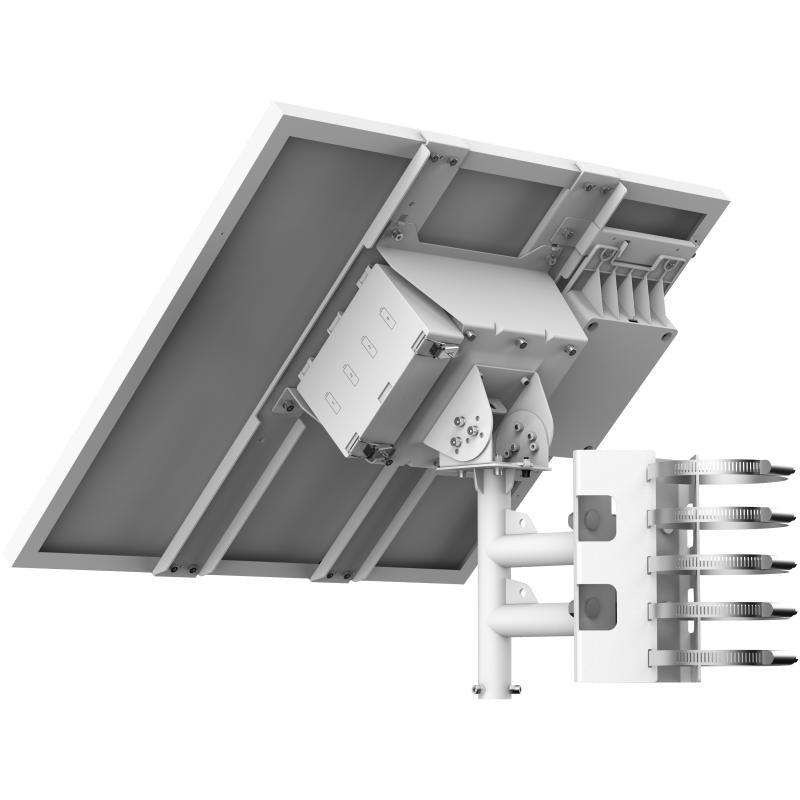

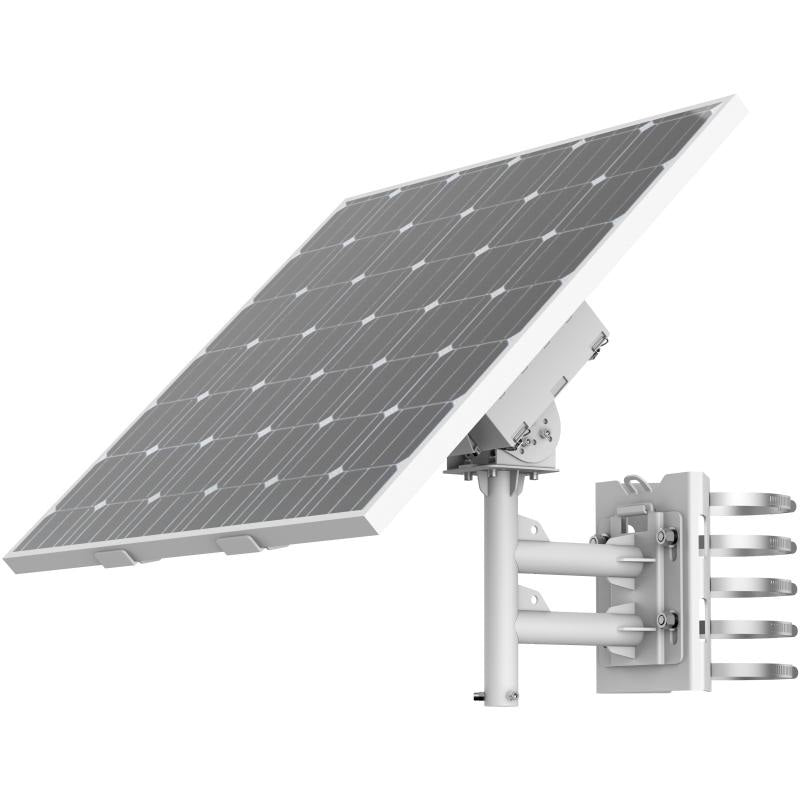

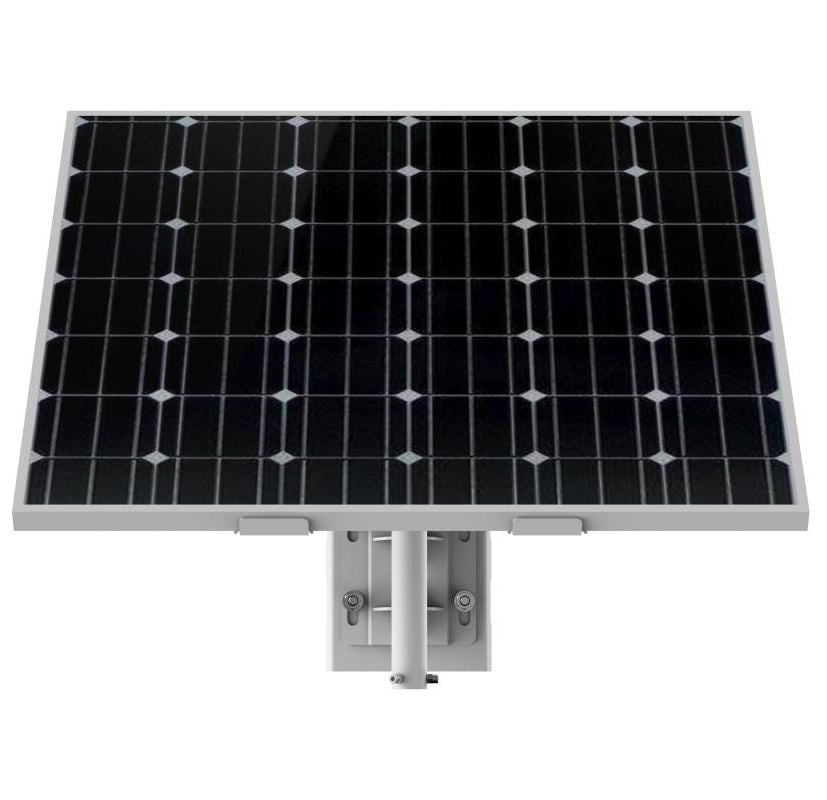

Hikvision 80W DS-2XS6K01-C36S80 Solar Power Module with 360Wh Lithium Battery, Battery Management, IP66 Weather Resistance

Model: DS-2XS6K01-C36S80

Who This Is For

When mains power is unavailable and running cable is either cost-prohibitive or physically impractical, the DS-2XS6K01-C36S80 gives installers a self-contained power solution designed specifically for off-grid security deployments. This 80W solar power module pairs an 80W solar panel with a 360Wh lithium battery, an integrated battery management system, and an IP66-rated housing built for year-round outdoor exposure. It suits remote perimeter monitoring across rural properties, construction sites without permanent power infrastructure, temporary surveillance setups, and agricultural operations where trenching cable simply is not viable. Installers specifying solar-powered Hikvision camera systems will find the DS-2XS6K01-C36S80 is engineered to match that ecosystem, providing stable managed power without the ongoing cost of generator fuel or the complexity of grid connection approvals.

What This Camera Actually Does

Who Buys This Model

• Rural and Agricultural Property Owners: Monitoring remote gates, water points, or paddock entries where running mains power involves expensive trenching across large distances.
• Construction Site Managers: Temporary surveillance setups on sites without permanent power, where the 360Wh battery provides overnight operation without a generator running.
• Security Installers on Hikvision Solar Projects: Professionals building out off-grid Hikvision camera deployments who need a matched, managed power source rather than a generic solar kit.
• Local Councils and Infrastructure Operators: Monitoring remote assets - pump stations, reserve entrances, unmanned facilities - where grid connection is impractical and IP66 durability is a procurement requirement.
• Mine and Resource Site Coordinators: Perimeter and access point coverage at remote sites where power infrastructure is limited to operations buildings and camera runs would be impractically long.

Honest Assessment

The DS-2XS6K01-C36S80 does two things well: it provides a properly managed 360Wh lithium power reserve that protects battery longevity, and it handles the full outdoor environment with IP66-rated protection that generic solar panels typically do not carry. For installers putting up Hikvision solar camera systems in locations with no mains access, this is a purpose-built solution rather than a workaround. The battery management system is a meaningful differentiator - lithium cells managed correctly last significantly longer than those in unmanaged budget solar kits, which matters when the module is mounted on a fence post 4 kilometres from the nearest building. Where this module will not serve well is in high-power-draw applications. If the connected camera runs continuous IR, active deterrence, or heated housing in cold climates, available capacity may not sustain 24-hour operation through extended overcast periods. In those scenarios, a higher-capacity or dual-panel configuration would be worth reviewing. Available through Security Australia as part of the Hikvision solar power accessory range.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision solar camera at a remote location with no mains power access and need a managed lithium battery system rated for permanent outdoor exposure.
• Good match if: Your site requires a temporary or relocatable surveillance power solution where cable trenching is not viable and IP66 weatherproofing is a site requirement.
• You may need a different model if: Your camera system has a high continuous power draw - such as a PTZ with active heating or multi-sensor configuration - where a higher-capacity solar power module or dual-panel setup would better sustain year-round operation.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a Hikvision-matched solar power module with an integrated battery management system and IP66-rated outdoor housing for a permanent or semi-permanent off-grid camera installation.
• You may need a different model if: Your camera system has a high continuous power draw or your site experiences extended low-sunlight periods - a higher-capacity solar module with a larger panel wattage or increased battery storage would better sustain operation through those conditions.
• Pairs well with: A compatible Hikvision solar-series camera designed to operate within the power envelope of this module.

Common Questions

1. Does the DS-2XS6K01-C36S80 work with any Hikvision camera or only specific solar-series models?

   It is designed for use within the Hikvision solar camera ecosystem, not as a universal power supply. The module's output voltage and connector type are matched to compatible Hikvision solar-series cameras. Before purchasing, confirm that your intended camera model is listed as compatible - attempting to power a standard Hikvision PoE camera or a higher-draw model directly from this module is not a supported configuration and may affect battery life or system stability.

2. How long will the 360Wh battery run the camera when there is no sunlight?

   The runtime depends entirely on the power draw of the connected camera. A low-power camera drawing 5W would theoretically run for over 70 hours from the 360Wh reserve alone - approximately 3 days of overnight operation. A higher-draw camera at 10-15W would reduce that proportionally. In practice, the solar panel begins recharging from first light each day, so full discharge is only relevant during extended periods of cloud cover or if the panel is poorly oriented.

3. What does the battery management system actually do and why does it matter?

   The battery management system (BMS) actively monitors and controls charge and discharge cycles to protect the lithium cells. It prevents over-discharge - which permanently damages lithium batteries - and prevents overcharge, which causes heat and accelerated cell degradation. In a remote installation where servicing is costly, a BMS meaningfully extends the functional lifespan of the battery compared to unmanaged solar systems where cells are simply charged and discharged until they fail.

4. Will this solar module handle Australian outdoor conditions year-round?

   Yes. The IP66 rating confirms the enclosure is fully dust-tight and rated against powerful water jets, which covers Australian conditions including heavy rain, coastal spray, and dust storms. IP66 is a meaningful standard for permanent outdoor power equipment - it is not a weatherproof claim but a tested ingress protection rating. The module is built for year-round outdoor installation without additional housing or shelter.

5. Does this solar module require any wired connection to a network or NVR?

   No. The DS-2XS6K01-C36S80 is a power module only - it provides electrical power to the connected camera. Any network connection, data transmission, or NVR pairing is handled by the camera itself, typically over 4G/LTE or Wi-Fi depending on the camera model. The solar module has no data functions. This means it can be installed in completely remote locations without any wired infrastructure of any kind.

6. How does the 80W panel output compare to smaller solar camera systems, and when does the wattage matter?

   80W is a meaningful specification when comparing solar power modules. Lower-wattage panels - commonly 10W to 20W in basic consumer solar camera kits - recharge more slowly and are more vulnerable to extended cloud cover depleting the battery. The 80W output combined with the 360Wh battery creates a more resilient system that can recover capacity faster after cloudy periods. This matters most for sites in southern Australia with shorter winter daylight hours, or sites where the panel cannot be positioned at the ideal tilt angle for maximum solar exposure. This module is part of the Security Australia range of Hikvision solar power accessories.

7. Can I expand the system by adding a second solar module or additional battery storage?

   Expansion capability depends on the camera model and Hikvision's confirmed configuration options for the solar ecosystem. The DS-2XS6K01-C36S80 is a self-contained unit with its own battery and panel - connecting multiple modules or adding external battery banks is not a documented standalone feature of this unit. If your site requires more power reserve or higher daily harvest than a single 80W module provides, review Hikvision's higher-capacity solar power module options rather than attempting to combine units outside of a supported configuration.
