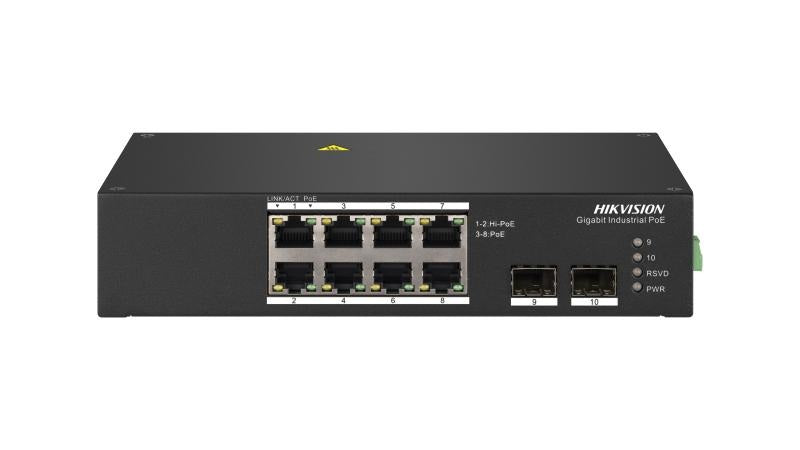

Hikvision 8-Port Gigabit Unmanaged DS-3T0510HP Industrial Hi-PoE Switch with 2 SFP Ports, 110W PoE Budget & 300m Long-Range Transmission

Model: DS-3T0510HP

Who This Is For

When powering IP cameras across a large outdoor site, a warehouse, or an industrial facility is the priority, the DS-3T0510HP fills a role that standard office switches cannot. This Hikvision 8-port Gigabit Hi-PoE switch with 2 SFP uplink ports is built for installers who need to push power and data across long cable runs - up to 300 metres in extended mode - without running additional power cabling to each camera. The 110W total PoE budget supports a mix of standard PoE cameras and Hi-PoE devices such as PTZ cameras that demand higher wattage per port. The unmanaged design means there is no configuration overhead: connect cameras, connect the uplink, and the network is live. It suits CCTV installers, system integrators, and facilities teams commissioning surveillance infrastructure on commercial properties, car parks, logistics yards, and building perimeters.

What This Switch Actually Does

Who Buys This Model

• CCTV Installers on Commercial Sites: Commissioning perimeter camera networks where individual cable runs exceed 100 metres and intermediate power injection would otherwise be required at each camera position.
• System Integrators Deploying PTZ Cameras: Specifying Hi-PoE-capable switching infrastructure to support motorised PTZ units that exceed 30W per port and cannot be powered by standard PoE+ switches.
• Logistics and Warehousing Facilities Teams: Building dedicated camera networks across large yards or loading dock areas where fibre SFP uplinks allow the switch to sit remotely from the NVR without copper distance constraints.
• Industrial Site Electricians and Contractors: Installing surveillance infrastructure in manufacturing or plant environments where the switch must tolerate conditions beyond the operating envelope of standard commercial networking hardware.
• Security System Designers Planning Multi-Stage Rollouts: Using the 8 PoE ports as a zone switch fed into a larger managed core, keeping the camera network segment simple and expansion straightforward without per-camera power cabling.

Honest Assessment

The DS-3T0510HP solves a genuine infrastructure problem: powering cameras across long cable runs without additional power hardware at each endpoint. The 300m extended range capability is a real advantage on large properties where standard 100m Ethernet limits force additional equipment. Hi-PoE support for power-hungry devices and SFP slots for fibre uplinks make this a flexible edge switch for dedicated CCTV segments. Available through Security Australia, it suits sites where an industrial-rated unmanaged switch is the right layer of the installation. Where the DS-3T0510HP will not serve is on networks that require VLAN segmentation, port-level management, SNMP monitoring, or Quality of Service configuration - those environments need a managed switch with a web interface. The 110W total budget also requires load planning: a full complement of Hi-PoE PTZ cameras will exceed the budget, so the device mix needs to be calculated before specification is finalised.

Before You Buy

Quick Fit Check

• Good match if: You are running cameras to positions more than 100 metres from the switch and need to avoid installing intermediate PoE injectors - the 300m extended range mode handles this in a single cable run.
• Good match if: Your camera specification includes PTZ or other Hi-PoE devices requiring more than 30W per port and you need a switching layer that can actually deliver that wattage without a separate power injector.
• You may need a different model if: Your network requires VLAN configuration, port mirroring, SNMP management, or access control integration - a managed Gigabit PoE switch with a web interface will be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera runs exceed 100 metres, you have PTZ or Hi-PoE devices in the mix, or you need a fibre SFP uplink from a remote switch location - and you do not need port-level management or VLAN configuration.
• You may need a different model if: Your project requires VLAN segmentation, SNMP monitoring, QoS configuration, or access control network integration - a managed Gigabit PoE switch is the appropriate product type for those requirements.
• Pairs well with: A Gigabit managed core switch at the head-end to handle network segmentation, with the DS-3T0510HP operating as a dedicated edge switch for the camera zone; or directly with a PoE-capable NVR for smaller standalone deployments.

Common Questions

1. Will this switch power a PTZ camera that draws more than 30W?

   Yes. The DS-3T0510HP supports Hi-PoE, which delivers up to 60W per port. This covers PTZ cameras with built-in heaters and blowers, as well as other devices that exceed the 30W ceiling of standard PoE+ (IEEE 802.3at). Confirm the exact wattage of your PTZ model and verify it falls within 60W before specifying this switch.

2. Does the 300m extended range work with any cable, or is there a specific requirement?

   Cat5e or Cat6 is required, and the cable run must be uninterrupted. Patch panels, couplers, or in-line connectors between the switch port and the camera will reduce achievable distance and can cause unreliable link behaviour at extended range. A single continuous run of Cat5e or Cat6 with no intermediate connections is the correct installation method for 300m operation.

3. Can I connect this switch to my existing managed network?

   Yes, but with a consideration. The DS-3T0510HP is unmanaged, so it will pass traffic onto your managed network without any VLAN tagging or QoS markings. If your managed network uses VLANs to segment camera traffic, the unmanaged switch will place all connected cameras on the same VLAN as its uplink port. For fully segmented networks, a managed PoE switch is more appropriate.

4. What SFP modules are compatible with the uplink ports?

   The DS-3T0510HP has 2 Gigabit SFP slots. Standard Gigabit SFP modules for single-mode or multi-mode fibre are compatible. Hikvision-branded SFP transceivers are the recommended option for confirmed compatibility. Third-party SFP modules may work but compatibility should be verified before installation - the switch is unmanaged, so there is no web interface to check module status or errors.

5. How do I calculate whether 110W is enough for my camera mix?

   Add the maximum wattage draw of every device you plan to connect. For PoE cameras, use the rated PoE consumption figure from the camera datasheet - not the maximum input power. Allow a 10-15% overhead above your calculated total to avoid the switch throttling ports under load. If your total exceeds 95W with that buffer included, the DS-3T0510HP's 110W budget is insufficient for that configuration. The team at Security Australia can assist with load planning if you have a mixed camera specification.

6. Does the extended range mode reduce video quality or frame rate?

   No, not directly. The 300m extended range mode operates at a reduced link speed compared to standard Gigabit, which means total bandwidth capacity on that port is lower. For a single IP camera with a typical 4-8 Mbps bitrate, this reduction in link speed has no practical impact on video quality or frame rate. The constraint only becomes relevant if you are pushing very high-bitrate streams - such as 4K at high frame rates - on a single extended-range port.

7. Is this switch suitable for outdoor installation?

   Not without an appropriate enclosure. The DS-3T0510HP is an industrial-grade switch but is not rated for direct outdoor exposure. For outdoor or weatherproof deployments, it needs to be installed inside a sealed IP-rated enclosure. Cameras can then be located outdoors with their cable running back to the switch inside the protected enclosure - this is a common installation approach for car park and perimeter applications.
