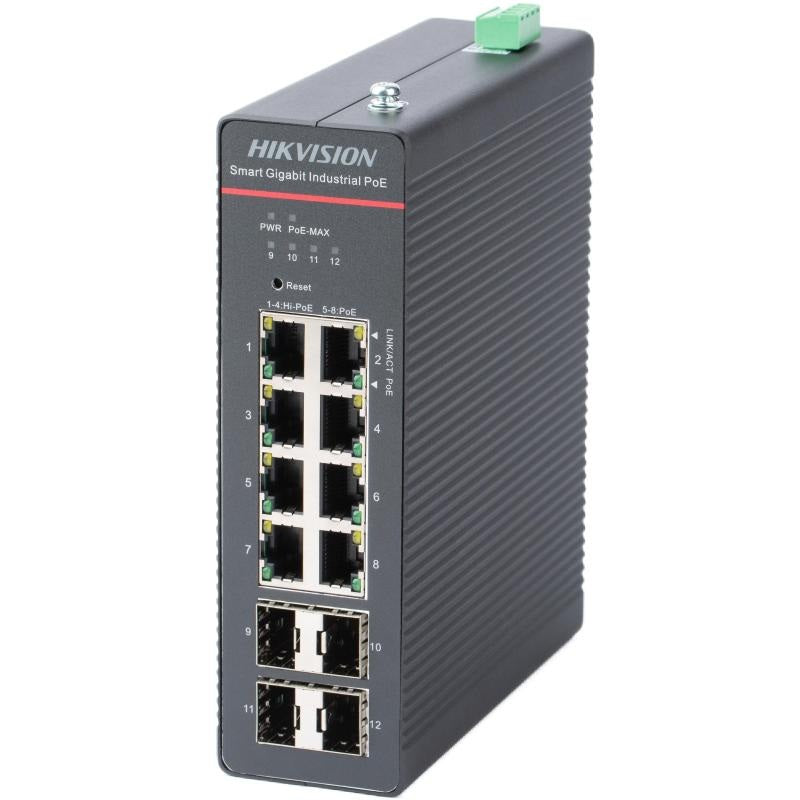

Hikvision 8-Port Gigabit Smart Managed DS-3T1512HP-SI/8P4F Industrial Hi-PoE Switch with 4 SFP Ports, 802.1Q VLAN & 802.3bt PoE

Model: DS-3T1512HP-SI-8P4F

Who This Is For

For installers and IT integrators who need a managed PoE switch capable of powering high-draw devices - such as PTZ cameras, multi-sensor units, and access control panels - without compromising on network control or uplink flexibility. The Hikvision DS-3T1512HP-SI 8P4F delivers 802.3bt Hi-PoE across 8 Gigabit RJ45 ports, with 4 SFP slots for fibre or long-distance uplinks. Its smart managed feature set includes 802.1Q VLAN segmentation, making it well-suited to installations where camera traffic needs to be isolated from corporate or guest networks. Industrial-grade construction makes it appropriate for environments beyond a standard comms room - plant floors, outdoor-rated enclosures, transport hubs, and warehouses where temperature variation and electrical noise are real concerns. If you are specifying a surveillance network that mixes standard PoE cameras with high-power PTZ or corridor devices, and you need uplink options beyond a single RJ45, this switch belongs in the planning conversation early.

What This Switch Actually Does

Who Buys This Model

• Security integrators on commercial CCTV jobs: Specifying a switch that can power PTZ cameras and full-colour turrets from the same ports without injectors, while keeping camera VLANs off the client's business network.
• Industrial site contractors: Installing surveillance across factory floors, warehouses, or outdoor yards where temperature variation and electrical interference rule out standard office-grade switching equipment.
• IT managers on multi-building campuses: Using the SFP ports for fibre uplinks between buildings or floors where copper runs would exceed the 100-metre Ethernet limit between the switch and the head-end NVR.
• Installers mixing high-power and standard PoE devices: Sites combining 802.3bt PTZ cameras with 802.3af/at IP intercoms or access readers on the same switch, needing per-port negotiation rather than a fixed-budget unmanaged unit.
• Resellers building rack-mounted surveillance infrastructure: Putting together a complete NVR-plus-switch solution in a comms cabinet where managed VLAN control, fibre uplinks, and Hi-PoE capacity all need to come from a single unit.

Honest Assessment

The DS-3T1512HP-SI 8P4F does three things genuinely well: it delivers real 802.3bt Hi-PoE capacity so high-draw cameras run cleanly without injectors, the 4 SFP slots solve the distance problem on multi-building or large-footprint sites, and the smart managed interface gives you the VLAN control that separates professional installs from plug-and-hope setups. For a mid-size commercial or industrial surveillance network, this is a well-specified unit from a brand with strong ecosystem integration with Hikvision NVRs and cameras. Where it will not be the right fit: if you only need 802.3af or 802.3at PoE for standard dome cameras and have no requirement for fibre uplinks or VLAN management, a simpler unmanaged switch will cost less and require no configuration overhead. It is also not a full Layer 3 managed switch, so large enterprise networks requiring routing between VLANs will need additional infrastructure. Available through Security Australia with full Hikvision warranty support.

Before You Buy

Quick Fit Check

• Good match if: Your install includes PTZ cameras, multi-sensor units, or any 802.3bt device that needs more than 30W of PoE per port - the Hi-PoE capability on all 8 ports means you are not limited to which port a high-draw device connects to.
• Good match if: The switch will be installed at a remote IDF more than 100 metres from the core network or NVR, and you need fibre uplinks via SFP rather than being constrained to a copper Gigabit run.
• You may need a different model if: Your site only uses standard 802.3af cameras with no fibre uplink requirement and no VLAN management needs - a simpler unmanaged PoE switch will deliver the same connectivity at a lower cost and with zero configuration overhead. Security Australia stocks a range of unmanaged PoE options suited to straightforward camera-only deployments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires 802.3bt Hi-PoE for high-draw cameras, fibre uplink capability via SFP, and VLAN-based network segmentation - none of which are available on standard unmanaged PoE switches at this port count.
• You may need a different model if: Your site runs only standard 802.3af dome cameras with a single copper uplink back to the NVR - an unmanaged PoE switch will cost less, require no configuration, and deliver identical performance for that simpler use case.
• Pairs well with: A Hikvision rack-mounted NVR with multiple network interfaces, PTZ cameras requiring 802.3bt power, and SFP fibre modules matched to your existing fibre plant type (single-mode or multimode).

Common Questions

1. Does this switch power 802.3bt cameras without a separate PoE injector?

   Yes. All 8 RJ45 ports natively support IEEE 802.3bt, delivering up to 90W per port. Any 802.3bt-compatible camera or device connects directly via Cat5e or Cat6 and receives both data and power from the switch with no injector required. The switch also negotiates down to 802.3at or 802.3af automatically for lower-power devices on the same switch.

2. Will this switch work with non-Hikvision cameras and PoE devices?

   Yes. The PoE ports follow IEEE standards (802.3bt, 802.3at, 802.3af), so any standards-compliant PoE device - regardless of brand - will be powered and connected correctly. VLAN and management features are also brand-agnostic and operate independently of what cameras or devices are plugged in.

3. What SFP modules does this switch support?

   The switch has 4 Gigabit SFP slots, but SFP modules are not included and must be purchased separately. You will need to select modules that match your fibre type - single-mode for longer runs, multimode for shorter in-building distances - and confirm the wavelength matches the SFP at the other end of each fibre link. Mismatched modules are the most common cause of SFP uplink failure on initial commissioning.

4. How does the 802.1Q VLAN feature work in a surveillance network?

   802.1Q VLAN tagging allows you to assign each port - or group of ports - to a separate logical network segment, all on the same physical switch. In practice, you configure camera ports to one VLAN and uplink the NVR on the same VLAN, keeping surveillance traffic completely separate from business or guest traffic on the same cable infrastructure. This is configured through the web management interface - no additional hardware is required.

5. Is this switch suitable for outdoor or harsh-environment installation?

   It depends on the enclosure. The switch itself is industrial-grade in terms of operating temperature range and resistance to electrical interference, but it is not rated for direct outdoor exposure. For outdoor deployment, it needs to be housed in an IP-rated outdoor enclosure appropriate to your environment. Contact Security Australia if you need guidance on suitable cabinet options for specific site conditions.

6. Can I manage PoE power delivery per port rather than sharing a fixed total budget?

   Yes. The smart managed interface allows you to set PoE priority levels on individual ports. Higher-priority ports - such as those connected to access control panels or critical PTZ cameras - will maintain power if the total PoE budget comes under pressure, while lower-priority ports are reduced first. This is a meaningful difference from unmanaged switches where power allocation is entirely automatic with no installer control.

7. Does the DS-3T1512HP-SI 8P4F support link aggregation or redundant uplinks?

   Check the full Hikvision datasheet for confirmed link aggregation (LACP/802.3ad) support on this specific model, as smart managed switches at this tier vary in their Layer 2 feature set. If uplink redundancy is a firm requirement for your install, confirm this feature is listed in the product datasheet before specifying the switch. The 4 SFP ports do provide multiple physical uplink options regardless of aggregation support.
