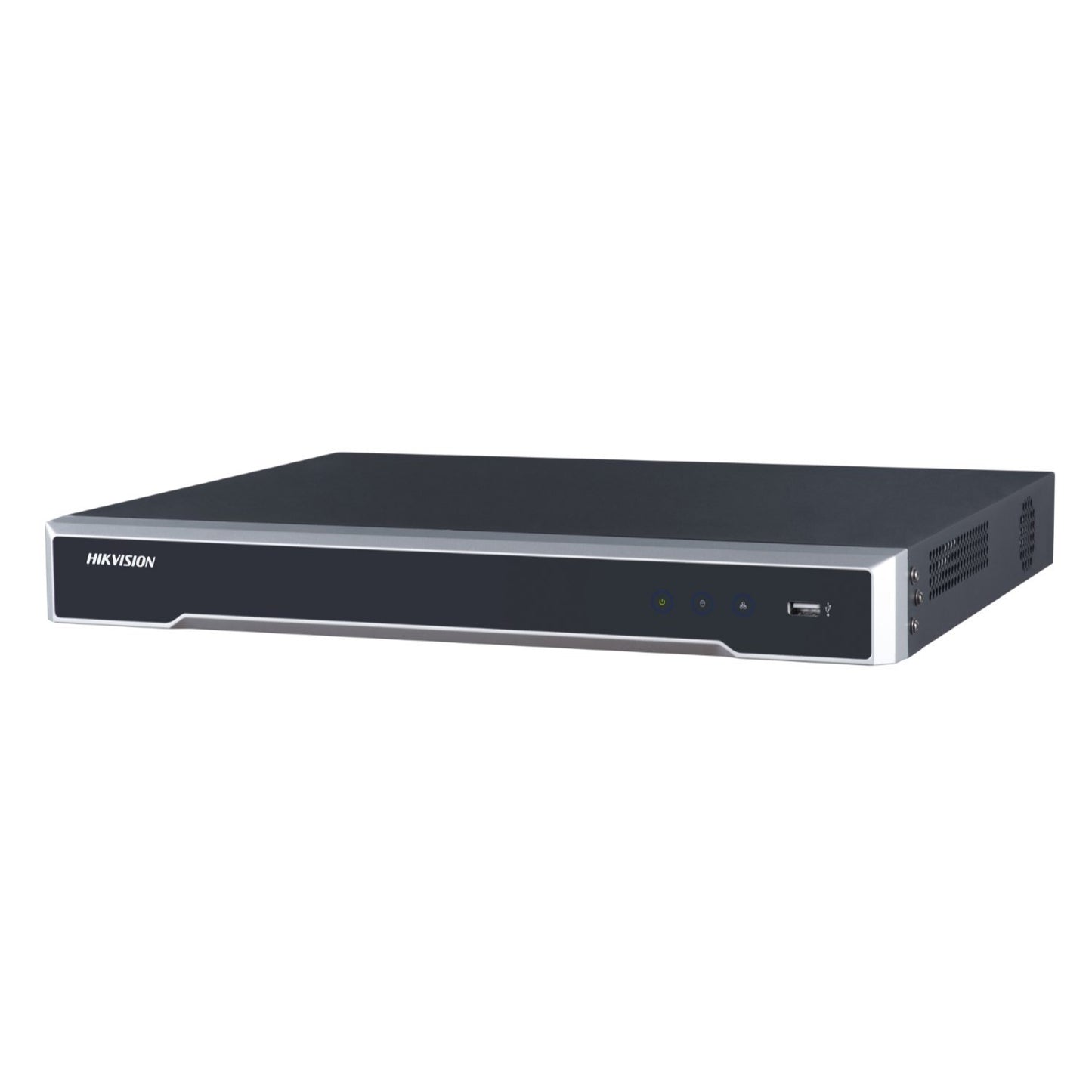

Hikvision DS-7616NI-I2 16 Channel PoE NVR + 3TB Hard Drive

$1,200.00 AUD
$1,032.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

Hikvision DS-7616NI-I2 16 Channel PoE NVR + 3TB Hard Drive

Hikvision's DS-7616NI-I2 is a 16 channel network video recorder with 16 embedded plug and play PoE ports. Part of Hikvision's I Series NVR range, it houses a 4-core processor and supports the H.265+ intelligent compression standard which aims to reduce bandwidth and storage requirements by up to 50%. This NVR combines features such as audio and video decoding technology which ultimately contribute to the I Series range running smoother than previous generations. Also featuring 16 PoE network interfaces for easy plug and play setup, it is capable of 4K ultra HD video output via HDMI and 1080P via VGA, supporting up to 12MP resolution recording.

Features

  • Supports H.265/H.264/H.264+/MPEG4 compression for efficient storage and bandwidth usage.
  • HDMI output supports up to 4K (3840x2160) resolution for crystal-clear viewing.
  • VGA output at up to 1080P resolution.
  • Up to 8TB capacity per HDD ensures ample storage space for surveillance needs.
  • Dual operating systems ensure high reliability and seamless performance.
  • Integrated Video Content Analytics (VCA) enhances security monitoring capabilities.
  • Mobile application and PC client for convenient remote access and management.
  • Simplified setup process for quick deployment and configuration.

Code/SKU: DS-7616NI-I2
Quick Specs:

  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 10 to 90%
  • Dimensions (W × D × H): 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
  • Weight (without hard disk): ≤ 3 kg (6.6 lb)

Addons

Hikvision DS-7604...
$711.00
Hikvision DS-7608...
$817.00 $1,015.00
4TB HDD - Surveil...
$156.00 $286.00
3TB HDD - Surveil...
$156.00 $209.00
6TB HDD - Purple ...
$300.00 $418.00
8TB HDD - Purple ...
$430.00 $616.00

Specifications


Model DS-7608NI-I2/8P DS-7616NI-I2/16P DS-7632NI-I2/16P
IP video input 8-ch 16-ch 32-ch
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming bandwidth 80 Mbps 160 Mbps 256 Mbps
Outgoing bandwidth 256 Mbps
Remote connection 32 128
Recording resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
CVBS output (Optional) 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480
HDMI output resolution 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output resolution 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Live view/Playback resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 8-ch 16-ch 16-ch
Capability 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
Network Management
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA 2 SATA interfaces
Capacity Up to 8TB capacity for each HDD
External Interface
Network interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out 4/1
PoE Interface
Interface 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Power ≤ 120 W ≤ 200 W
Supported standard IEEE 802.3 af/at
General
Power supply 100 to 240 VAC, 50 to 60 Hz
Power ≤ 180 W ≤ 280 W
Consumption (without hard disk) ≤ 15 W (without enabling PoE)
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10 to 90%
Dimensions (W × D × H) 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight (without hard disk) ≤ 3 kg (6.6 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-7616NI-I2 16 Channel PoE NVR + 3TB Hard Drive

Hikvision DS-7616NI-I2 16 Channel PoE NVR + 3TB Hard Drive

The Hikvision DS-7616NI-I2 is an advanced 16-channel PoE NVR designed for robust video surveillance. It supports 4K resolution, providing stunning visual clarity and detailed playback for effective monitoring.

This compact 1U NVR features 8 built-in PoE ports, simplifying camera installations by powering them directly through the Ethernet, eliminating the need for separate power supplies for each device.

The NVR enables smooth incoming video transmission with a bandwidth capacity of up to 160 Mbps, ensuring reliable streaming from multiple connected IP cameras, effectively managing surveillance operations.

With multiple recording modes including continuous and motion-triggered recording, users can customize how footage is captured, based on specific surveillance needs, maximizing efficiency and reliability.

Features:

  • Supports 16 channels with up to 8 MP resolution recording, allowing for high-definition video clarity across various locations, enhancing effective monitoring capabilities in diverse environments.
  • 4K video output via HDMI ensures stunning visuals during playback, providing clear insights into monitored areas crucial for reviewing critical incidents or evaluating security effectiveness.
  • Advanced H.265+ compression technology reduces storage space requirements by up to 75%, optimizing disk usage while maintaining high quality, particularly beneficial for extensive surveillance setups.
  • Diverse recording options allow for flexible configurations, including continuous, scheduled, and event-triggered recording, ensuring customizable operating modes tailored to user needs and environmental conditions.
  • Remote access capability offers users the convenience of monitoring live feeds and recorded footage from anywhere using mobile apps or web interfaces, significantly enhancing accessibility of security management.
  • Supports up to 8TB HDD storage capacity, providing sufficient space for recording extensive amounts of video footage, allowing for prolonged data retention without compromising performance.
  • Multiple network interfaces enhance overall connectivity, facilitating seamless integration with various IP cameras and third-party devices, ensuring flexible scalability and configurability in security installations.
  • User-friendly interface with intuitive design simplifies setup and operation, making it accessible for both novice and experienced users, facilitating effective management of surveillance infrastructure.

Functions:

Dual-Stream Recording:
The NVR supports dual-stream recording capabilities, optimizing bandwidth usage while allowing flexible video resolution settings to accommodate different user needs and storage limitations.

Smart Event Management:
Integrated event management allows users to set alerts for unusual activity detected by cameras, ensuring proactive responses to potential threats and enhancing the security monitoring experience.

Remote Management:
Users can access the NVR remotely, enabling live monitoring, playback, and configuration adjustments, providing comprehensive control of the surveillance system from any location.

User Management and Security:
Multiple user roles and password protections ensure secure access to the NVR, safeguarding against unauthorized use and ensuring data protection in sensitive monitoring environments.

Health Monitoring:
Built-in HDD health monitoring capabilities alert users to storage device status, allowing for timely preventive measures and maintaining operational integrity across long-term video capture.

Stream Over TLS:
The NVR supports stream encryption technology over TLS, ensuring secure data transmission for sensitive video streams while reducing risks associated with unauthorized access.

RAID Configuration Support:
Enables the NVR to support RAID setups, enhancing data redundancy and protection against drive failures, thus ensuring continuous video recording availability.

Analytics Integration:
The NVR supports various Video Content Analytics (VCA), enhancing monitoring capabilities by providing smart alerts based on defined detection criteria for improved security management.

Technical Specifications:

Model DS-7616NI-I2
Video Channels 16 channel IP video input
Maximum Resolution Up to 8MP at 3840 × 2160
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 256 Mbps
Compression Formats H.265+/H.265/H.264+/H.264
Storage Capacity Supports up to 8TB per HDD, 2 HDD bays
HDMI Output Up to 4K (3840×2160) resolution
VGA Output Up to 1920 × 1080 resolution
Power Supply 100 to 240 VAC, 50 to 60 Hz
Operating Temperature -10°C to +55°C
Dimensions 445 × 400 × 71 mm (17.5" × 15.7" × 2.8")
Weight ≤ 5 kg (11 lb without HDD)
