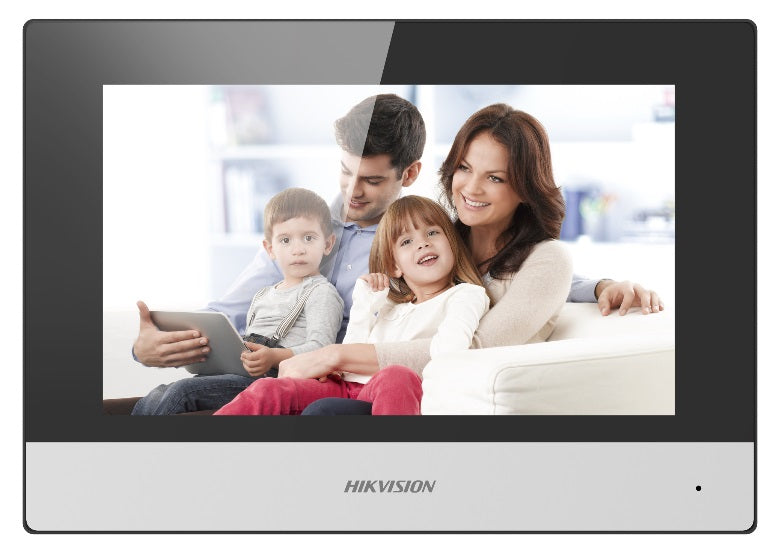

Hikvision DS-KC001 7" Touch Screen Android Tablet Monitor, 1024x600, Wi-Fi, 32GB TF Card

Model: DS-KC001

Who This Is For

For residential installers and homeowners who need a dedicated indoor intercom monitor without relying on a smartphone as the primary answer point, the Hikvision DS-KC001 offers a fixed 7-inch touchscreen station that stays mounted and ready. This is the monitor you specify when a household wants a permanent, wall-stationed unit that answers door calls, streams live video from compatible Hikvision door stations, and stores footage locally on its built-in 32 GB TF card - no cloud subscription required. The Wi-Fi connectivity means the unit can be positioned away from a wired data port, which suits retrofits where running Cat cable to a specific room is not practical. With 8 alarm inputs and an RS-485 port onboard, it also suits integrators building a small Hikvision-ecosystem installation where the tablet acts as a central touchpoint for both intercom and basic alarm visibility.

What This Product Actually Does

Who Buys This Model

• Residential Hikvision Intercom Installers: Integrators specifying a fixed indoor answer point for Hikvision video intercom systems where the homeowner wants a dedicated screen rather than relying solely on a mobile app.
• Retrofit Homeowners: Households adding a video intercom answer point to an existing room where running a new data cable is difficult - the Wi-Fi 802.11 b/g/n option allows wall-mounting without cable runs.
• Small Multi-Resident Installations: Townhouse or duplex setups where each tenancy needs its own fixed indoor monitor connected to a shared Hikvision door station at the building entry.
• Light Commercial Reception Areas: Small offices or businesses that want a front-desk intercom answer point with local recording on the built-in 32 GB TF card and the ability to receive alarm-input alerts without a separate panel interface.

Honest Assessment

The DS-KC001 does its primary job well: it provides a fixed, always-on 7-inch touchscreen answer point for Hikvision video intercom systems, with genuine two-way audio featuring echo cancellation, local storage via the built-in 32 GB TF card, and the flexibility of both wired Ethernet and Wi-Fi connection in a single unit. The 8 alarm inputs add practical value for integrators who want basic alarm-notification visibility without a separate display. What it will not do is operate independently as a standalone device - it requires a compatible Hikvision video intercom door station to function as intended. It also runs Android 5.1 with 1 GB RAM, which means it is not a general-purpose tablet and should not be purchased with that expectation. For households or installers who want a more capable indoor monitor with a higher-resolution display or additional integration features, exploring the broader Hikvision intercom indoor station range available through Security Australia may be worth comparing before committing.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision video intercom system and need a fixed 7-inch indoor answer point with built-in local recording on a 32 GB TF card, without relying on a smartphone as the only answer device.
• Good match if: The mounting location does not have a nearby data port and the installer prefers to connect via Wi-Fi 802.11 b/g/n rather than running additional Cat cable through finished walls.
• You may need a different model if: You require a higher-resolution display, a touchscreen with a faster processor, or an indoor monitor that doubles as a home automation control panel - a more advanced Hikvision indoor station or a dedicated smart home intercom terminal would be more suitable.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You want a fixed dedicated intercom answer point with a 7-inch touchscreen, built-in two-way audio, local 32 GB TF card recording, and the option to connect via Wi-Fi rather than running a new Ethernet cable.
• You may need a different model if: Your installation requires a higher-resolution display, a faster processor for more complex on-screen functions, or a unit with PoE power input rather than 12 VDC - a more advanced Hikvision indoor station model would be the appropriate category to review.
• Pairs well with: A compatible Hikvision video intercom door station at the entrance, and optionally a 12 VDC regulated power supply sized for the installation position.

Common Questions

1. Does the DS-KC001 work with any video intercom door station, or only Hikvision?

   It is designed specifically for the Hikvision video intercom ecosystem and will not reliably operate with third-party door stations. The unit uses Private SIP alongside TCP/IP and RTSP, but full two-way audio, call handling, and door-release functions are validated only within the Hikvision intercom product range. Always verify your door station model is listed as compatible before purchasing.

2. Does this monitor support PoE, or does it need a separate power supply?

   No. The DS-KC001 requires a 12 VDC power supply and does not accept PoE from a network switch. You will need a suitable 12 VDC adapter or a local power point at the mounting position in addition to the network connection - whether wired via RJ45 or wireless via Wi-Fi.

3. Will this camera record automatically when someone presses the door station button?

   Yes, provided the unit is configured to do so. The built-in 32 GB TF card is the recording destination for call events and visitor footage. No external NVR or cloud account is required for local storage. The amount of footage the card retains will depend on recording settings and how frequently the door station is triggered.

4. What does the RS-485 port and 8 alarm inputs actually allow in practice?

   The RS-485 interface supports connection to compatible devices such as access controllers or third-party panels that use RS-485 communication. The 8 alarm inputs allow door contacts, PIR sensors, or similar dry-contact devices to trigger alert notifications on the DS-KC001 screen. This makes the unit a basic alarm-notification touchpoint as well as an intercom answer station, without requiring a separate keypad or display at that location.

5. Can multiple DS-KC001 monitors be registered to a single door station?

   Yes, within the limits of the Hikvision intercom system configuration. A single door station can call multiple indoor monitors simultaneously, which is how duplex or small multi-tenant setups are typically configured. The exact number of indoor monitors supported per door station depends on the specific door station model - check the door station's specifications for its maximum indoor monitor count before designing a multi-unit installation. The team at Security Australia can assist with compatibility questions across the Hikvision intercom range.

6. Is the audio quality on the DS-KC001 good enough for clear conversation at the door?

   Yes, for typical residential and light commercial use. The unit uses G.711 audio compression at 64 Kbps with confirmed noise suppression and echo cancellation built in. The omnidirectional microphone picks up voice from the front of the unit at normal speaking distance. In very noisy environments - such as directly next to a kitchen rangehood or in a high-traffic office - the noise suppression will help but may not eliminate all background sound entirely.

7. Does the DS-KC001 work as a general-purpose Android tablet when not in use as an intercom monitor?

   No. While it runs Android 5.1, the DS-KC001 is a dedicated intercom monitoring terminal with 1 GB RAM and 4 GB of flash storage. It is not intended or suited for general app use, web browsing, or media playback. Purchasing it as a secondary Android device would not meet those expectations.

Cabling Considerations

• Wired Network Cable: Cat5e or Cat6 terminated with an RJ45 connector for the 10/100 Mbps network port. Standard straight-through patch cable configuration.
• Power Cable: 12 VDC supply required - this is separate from the network connection. Route a suitable power cable to the mounting position or ensure a power point is accessible nearby for an adapter.
• Wi-Fi Option: If using Wi-Fi 802.11 b/g/n instead of a wired run, only the 12 VDC power cable needs to reach the mounting position. Test signal strength at the intended location before finalising the install, particularly in masonry or double-brick construction.
• RS-485 and Alarm Inputs: If using the RS-485 port or any of the 8 alarm inputs, plan for additional low-voltage wiring from the relevant sensors or access control devices to the back of the unit. Use screened cable for RS-485 runs in environments with electrical interference.

Downloads & Resources

No downloads available for this product.
