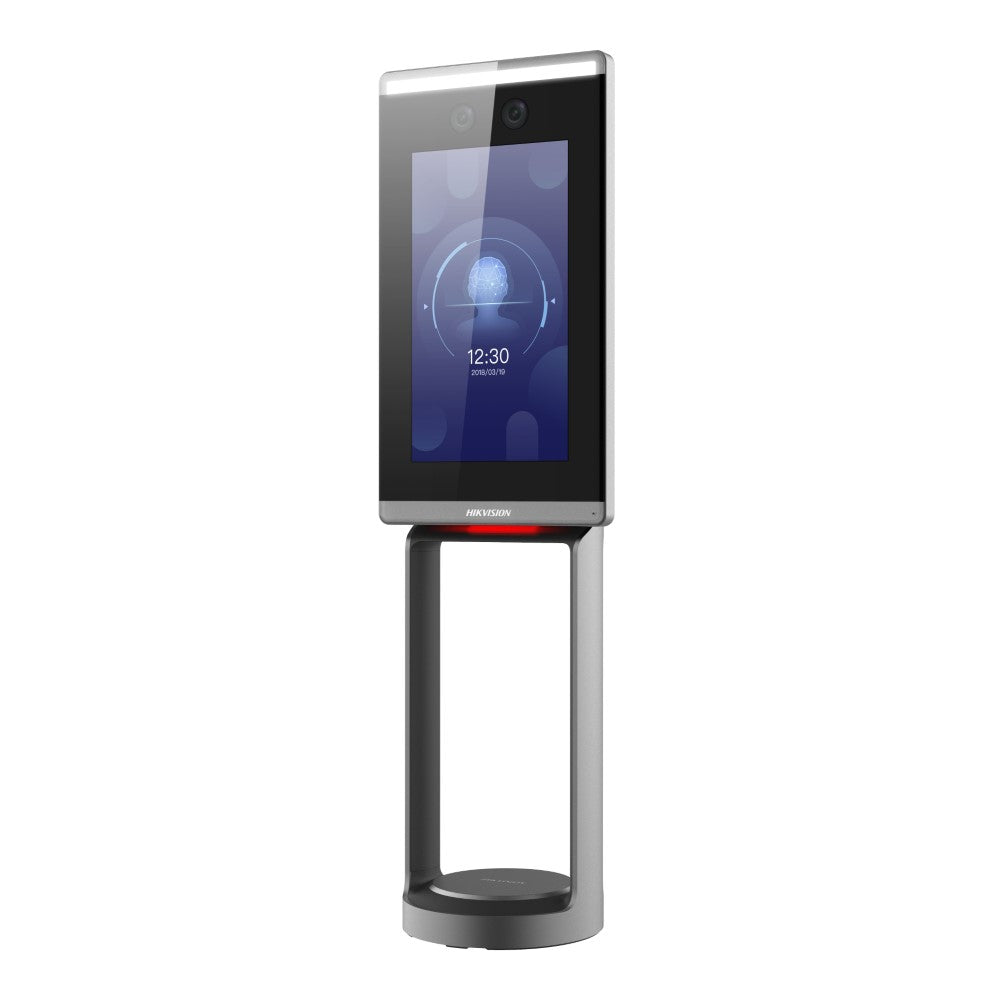

Hikvision 7" Face Recognition Terminal, to suit Hik Turnstile Barrier, Type 1

Model: DS-K5671-ZU-1

Who This Is For

For security integrators and facilities managers who need hands-free, high-throughput access control at a turnstile entry point, the Hikvision DS-K5671-ZU-1 is a 7-inch face recognition terminal built specifically for that application. It mounts directly to Hikvision turnstile barriers and communicates with third-party turnstiles via built-in Wiegand or IO output, giving integrators flexibility across mixed-brand installations. The 2 MP camera delivers recognition across a 0.3 m to 3 m range at under 0.2 seconds per person, making it practical for high-traffic corporate lobbies, transit facilities, university campuses, and secure industrial sites where queuing at an entry point is not acceptable. With a 50,000-face database, IP65 weatherproofing, and an operating range of -30 °C to 60 °C, this terminal suits both climate-controlled indoor foyers and covered outdoor entry points across Australian conditions.

What This Terminal Actually Does

Who Buys This Model

• Security Integrators: Specifying turnstile access control for corporate fit-outs, transit hubs, or stadia where high throughput is required and card-based entry creates queuing problems.
• Facilities Managers at Multi-Tenant Buildings: Needing a scalable face database (up to 50,000 records) to manage staff, contractors, and visitor access across a high-occupancy site without re-issuing credentials.
• University and Campus Administrators: Managing controlled access at library turnstiles, gym entries, or restricted laboratory zones where student population creates high daily transaction volumes across multiple entry points.
• Industrial Site Managers: Running PPE-mandatory work zones who need mask enforcement logic at the barrier - blocking entry automatically rather than relying on manual compliance checks.
• Managed Service Providers: Running multi-site access control under HikCentral Professional or Hik-ProConnect, who need a terminal that reports centrally and supports remote face enrolment without on-site visits.

Honest Assessment

The DS-K5671-ZU-1 does its core job well: fast, contactless face recognition at a turnstile with a large on-device database and genuine third-party integration options via Wiegand and IO. The sub-0.2-second recognition speed and 99% accuracy rate are confirmed specs, not marketing estimates, and the IP65 rating with a -30 °C to 60 °C working range gives it real-world durability at covered outdoor access points. The 7-inch capacitive touchscreen and multi-language support make enrolment and daily management straightforward without specialist tooling. This terminal is available through Security Australia as part of a broader Hikvision access control range. Where it will not suit: it is designed as a turnstile-integrated terminal, not a standalone door controller - for single-door access control without a barrier, a wall-mount face recognition terminal will be a more appropriate and cost-effective fit. It also requires Hikvision platform software to unlock centralised management, so purely third-party VMS environments may face integration constraints.

Before You Buy

Quick Fit Check

• Good match if: You are installing or retrofitting a turnstile access point and need a face recognition terminal that can trigger third-party barriers via Wiegand or IO output without replacing the barrier hardware.
• Good match if: Your site requires PPE or mask enforcement at a controlled entry point - the 2 configurable mask detection modes allow either alert-only or hard-block authentication behaviour.
• You may need a different model if: Your application is a standard single door without a turnstile barrier - a wall-mount face recognition access terminal will be more suited to that scenario and more cost-effective for that purpose. Browse the access control range at securityaustralia.com.au to compare options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a dedicated face recognition terminal that physically integrates with a turnstile barrier and supports Wiegand or IO output for third-party barrier hardware - this is not a role a standard wall-mount face terminal fills cleanly.
• You may need a different model if: Your access point is a standard hinged door without a barrier - a wall-mount face recognition terminal or video intercom with face recognition will be a better physical and functional match for that installation type.
• Pairs well with: Hikvision PoE network switches for structured cabling across multi-lane turnstile installations, and HikCentral Professional server hardware for centralised management of large face databases across multiple entry points.

Common Questions

1. Will this terminal work with a non-Hikvision turnstile barrier?

   Yes. The DS-K5671-ZU-1 has built-in Wiegand output and IO output specifically to communicate with third-party turnstile controllers. You will need to confirm that your existing barrier controller accepts Wiegand input and verify the Wiegand format (26-bit is most common) is compatible before wiring. If the barrier uses a different input protocol, check with your supplier before purchasing.

2. How accurate is the face recognition, and does it work with masks on?

   The confirmed accuracy rate is 99% or above at distances between 0.3 m and 3 m. Mask detection is a separate configurable function - the terminal can either alert and still grant access when a mask is detected on the face during recognition, or block authentication entirely. The 2 modes are configured independently depending on your site's compliance requirements.

3. Does the terminal continue working if the network goes down?

   Yes. All face recognition runs on the device locally. The 50,000-face database and 100,000-event log are stored on the terminal itself, so authentication and barrier triggering continue operating during a network outage. Event data is retained and can be synchronised back to HikCentral Professional or Hik-ProConnect once connectivity is restored.

4. What power supply does the DS-K5671-ZU-1 require?

   The terminal requires 12 VDC at 2 A. It does not support PoE, so a dedicated 12 V power supply must be provided at the installation point. For turnstile installations, confirm the barrier cabinet or mounting column has space and conduit access for the power feed before finalising the mounting position.

5. Can I manage this terminal remotely without visiting the site?

   Yes. The DS-K5671-ZU-1 integrates with both HikCentral Professional and Hik-ProConnect via their respective OpenAPIs. Remote functions include face enrolment, access schedule management, and event log retrieval. Wi-Fi is also supported as a secondary network option, though a wired Ethernet connection is recommended for turnstile applications where reliability is critical. Security Australia stocks the compatible HikCentral licensing and hardware to support multi-site deployments.

6. Is this terminal suitable for outdoor installation in Australian conditions?

   Yes, within limits. The IP65 rating protects against dust ingress and direct water jets, and the operating temperature range of -30 °C to 60 °C covers the full range of Australian climates. It is suited for covered outdoor locations such as carport barriers, undercover loading docks, and roofed entry walkways. Direct, unprotected exposure to sustained rain or full afternoon sun in tropical regions is worth assessing before finalising the mounting position.

7. What is the practical throughput at a busy turnstile lane?

   The confirmed recognition speed is under 0.2 seconds per person at 0.3 m to 3 m. In practice, throughput is limited more by walking pace and physical turnstile mechanics than by the terminal's processing speed. For high-traffic peak periods such as a morning office rush or stadium entry, 3 to 4 lanes running parallel DS-K5671-ZU-1 terminals is the typical integrator recommendation to avoid queuing.
