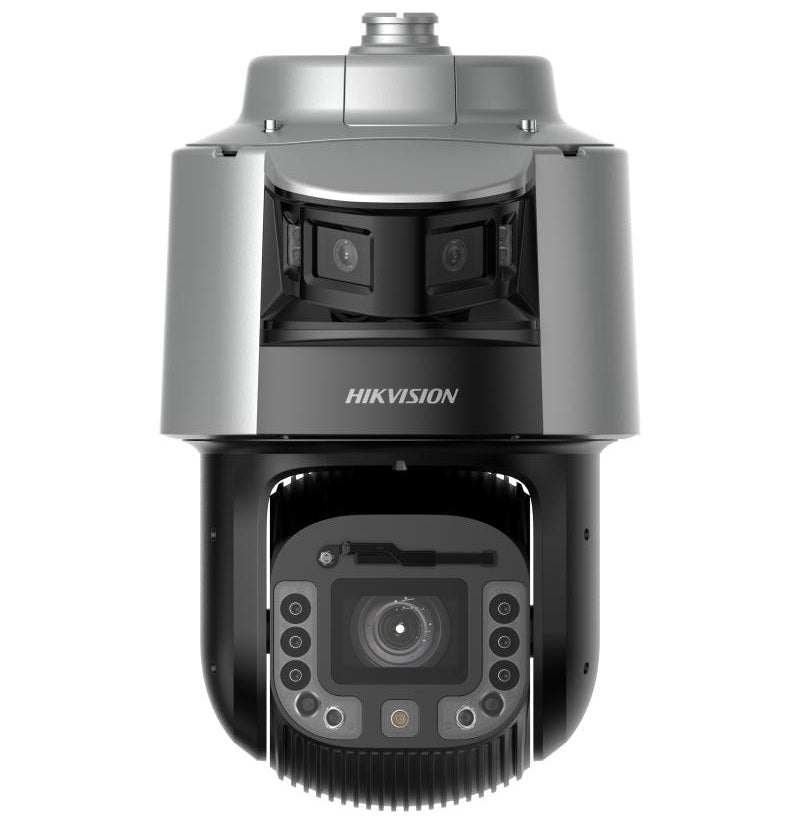

Hikvision 6MP + 8MP TandemVu Ultra DS-2SF8C848MXG1-EL(W)(Y)/26 PTZ Camera with ColorVu, 26x Optical Zoom, IR 500m

Model: DS-2SF8C848MXG1-EL(W)(Y)/26

Who This Is For

When wide-area situational awareness and close-up detail zoom need to run simultaneously from a single camera position, the Hikvision TandemVu Ultra DS-2SF8C848MXG1-EL(W)(Y)/26 is built for exactly that scenario. It pairs a 6MP panoramic overview sensor with an 8MP PTZ sensor in a single housing - so operators always have full-scene context on one channel while the PTZ investigates a specific target on another. With 26x optical zoom, ColorVu full-colour low-light imaging, DarkFighter sensitivity, and IR reaching 500m, this unit suits large outdoor sites where a conventional PTZ would leave blind spots the moment it pans away. Installers working on ports, logistics yards, mining sites, large retail car parks, and perimeter monitoring projects will find this camera addresses the core problem of trading overview for detail - this one does both at once.

What This Camera Actually Does

Who Buys This Model

• Port and Logistics Security Teams: Need continuous wide-area dock coverage while simultaneously tracking specific vehicles or personnel - TandemVu's dual-stream architecture delivers both without switching views.
• Mining and Resources Site Managers: Large open perimeters with long approach roads benefit from 500m IR illumination and 26x zoom to identify vehicles and personnel at distance during night operations.
• Large Retail and Commercial Car Park Operators: ColorVu full-colour night imaging captures vehicle and clothing colour detail that greyscale IR cannot - important for after-hours incident investigation.
• Critical Infrastructure and Utility Site Security: Power stations, water treatment facilities, and substations require overview plus zoom from a single camera position to reduce pole and mounting infrastructure costs across large secured areas.
• Professional Security Integrators: Installers designing systems where a single high-spec camera replaces multiple fixed cameras specify TandemVu Ultra to reduce cabling, NVR channel usage, and ongoing maintenance across large sites.

Honest Assessment

The TandemVu Ultra solves a genuine problem with conventional PTZ cameras - the moment they zoom in, you lose the overview. Running a simultaneous 6MP wide-scene stream alongside the 8MP PTZ channel means operators do not have to choose. The 26x optical zoom combined with 500m IR illumination and ColorVu colour performance make this a strong specification for large outdoor sites where night visibility and long-range detail are both non-negotiable. The active deterrence options add response capability without extra hardware.

This is not the right choice for indoor ceiling installs, small retail environments, or applications where budget is the primary driver - a standard fixed turret or dome will do that job at a fraction of the cost. The TandemVu Ultra demands a capable NVR with sufficient channel count and bandwidth for dual streams, and installation should be handled by an experienced integrator familiar with PTZ commissioning. Available through Security Australia, this camera sits at the serious end of the PTZ market and is specified accordingly.

Before You Buy

Quick Fit Check

• Good match if: You need an overview wide-shot and a zoom detail shot running simultaneously from a single mounting point - the TandemVu dual-sensor architecture delivers both streams independently without operator trade-offs.
• Good match if: Your site has perimeter approaches or open areas beyond 200m that need to be monitored at night - the 500m IR range and DarkFighter sensitivity mean the PTZ can illuminate and identify subjects at distances a standard PTZ cannot reach.
• You may need a different model if: Your application is indoor, short-range, or primarily fixed-angle coverage - a fixed dome, turret, or multi-sensor panoramic camera will deliver better value and simpler installation for those scenarios. The Security Australia range includes purpose-built options for each of those use cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your application requires simultaneous wide-area overview and long-range PTZ zoom from a single mounting position - no standard PTZ delivers both streams independently, which is what TandemVu Ultra is specifically built to solve.
• You may need a different model if: Your requirement is fixed wide-area coverage without active PTZ operation - a multi-sensor panoramic camera covering 180 or 360 degrees will deliver more pixels-on-ground across a wide scene at lower cost and without the PTZ mechanical components to maintain.
• Pairs well with: A high-channel-count NVR with sufficient bandwidth headroom for dual-stream recording from multiple TandemVu positions, combined with a PoE+ managed switch to deliver adequate power per port across the installation.

Common Questions

1. Does the overview camera keep recording when the PTZ is actively zooming and panning?

   Yes. The 6MP overview sensor and the 8MP PTZ sensor operate as completely independent streams - the overview channel is not affected by PTZ movement at any time. This is the fundamental purpose of TandemVu architecture: the wide-scene record continues uninterrupted while the PTZ tracks a subject, which a conventional single-sensor PTZ cannot provide.

2. Will this camera work on a standard PoE switch port?

   No - not reliably. A PTZ of this specification with dual sensors, motorised 26x zoom, 500m IR illuminators, and active deterrence output will draw more than the 15.4W available from standard IEEE 802.3af PoE. A PoE+ switch (IEEE 802.3at, 30W per port) is the minimum requirement. Confirm your switch's per-port power budget before installation, particularly if multiple TandemVu units are deployed on the same switch.

3. How many NVR channels does one TandemVu Ultra camera consume?

   This depends on your NVR and how it handles dual-stream PTZ cameras. The TandemVu outputs 2 independent streams, and some NVR configurations record both streams as separate channels - meaning one physical camera may occupy 2 NVR channels. Confirm your NVR's TandemVu compatibility and channel allocation behaviour before finalising your channel count. Hikvision NVRs in the Pro and Ultra series generally support TandemVu natively.

4. What does the (W)(Y) designation mean and which variant should I choose?

   The (W) variant includes a white light supplement for full-colour illumination, while the (Y) variant includes a yellow/amber strobe for active deterrence alerting. Both are used in conjunction with AI detection rules to trigger visible alerts when intrusion events are detected. If your site requires a visible deterrent response rather than simply supplemental lighting, the (Y) strobe variant is appropriate. Confirm with your installer which variant suits your operational response plan before ordering.

5. Does the 26x optical zoom on the PTZ channel degrade image quality at maximum zoom?

   No - optical zoom does not degrade image quality the way digital zoom does. The 26x optical zoom uses the lens mechanism to magnify the subject, so the full 8MP sensor resolution is available at all zoom levels. Digital zoom beyond the optical range would introduce pixel degradation, but within the 26x optical range the PTZ maintains native 8MP detail. This is why optical zoom ratio matters more than headline megapixel count when specifying long-range PTZ cameras.

6. Does this camera support auto-tracking of moving subjects?

   Auto-tracking capability on TandemVu PTZ cameras depends on firmware configuration and NVR compatibility. The TandemVu architecture is particularly well suited to auto-tracking scenarios because the overview stream maintains scene context while the PTZ tracks the subject - overcoming the key weakness of single-sensor PTZ auto-tracking where the wide view is lost. Confirm auto-tracking support with your integration partner and verify firmware version requirements before committing to an automated tracking workflow. The team at Security Australia can assist with compatibility verification for specific NVR and firmware combinations.

7. Will this camera work in heavy rain or coastal environments?

   The DS-2SF8C848MXG1-EL(W)(Y)/26 is an outdoor-rated PTZ camera built for installation in exposed conditions. For specific IP ingress protection rating and operating temperature range, confirm the datasheet specification for your exact variant. For coastal or marine environments with salt air exposure, additional consideration should be given to mounting hardware material and cable gland sealing to prevent corrosion at connection points over time - this applies to any outdoor camera in those conditions regardless of the camera's own IP rating.

8. How does ColorVu compare to standard IR night vision at long range on this PTZ?

   ColorVu and IR serve different purposes at night. ColorVu uses a large-aperture lens and high-sensitivity sensor to capture colour in low ambient light without active illumination, preserving detail like clothing and vehicle colour. IR illumination (which reaches 500m on this camera) takes over in true darkness, producing greyscale imagery. On this model both technologies are present - ColorVu handles the low-light colour performance range, and the 500m IR handles full darkness. The practical benefit is that colour footage is available across a wider range of real-world lighting conditions before the camera switches to IR monochrome.
