Hikvision 6MP 4CH CCTV Kit: 4 Turret Cameras with AcuSense + 4CH PoE NVR (DS-2CD2366G2H-IU, DS-7604NI-I1-4P without HDD)

Model: DS-2CD2366G2H-IU / DS-7604NI-I1-4P

Who This Is For

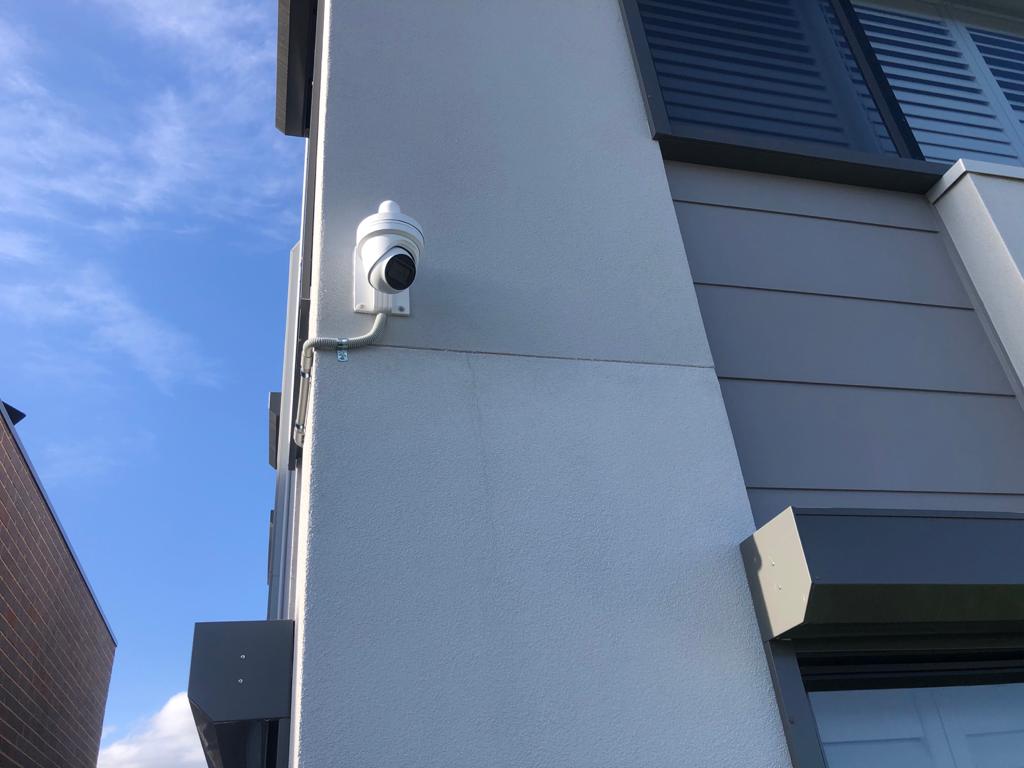

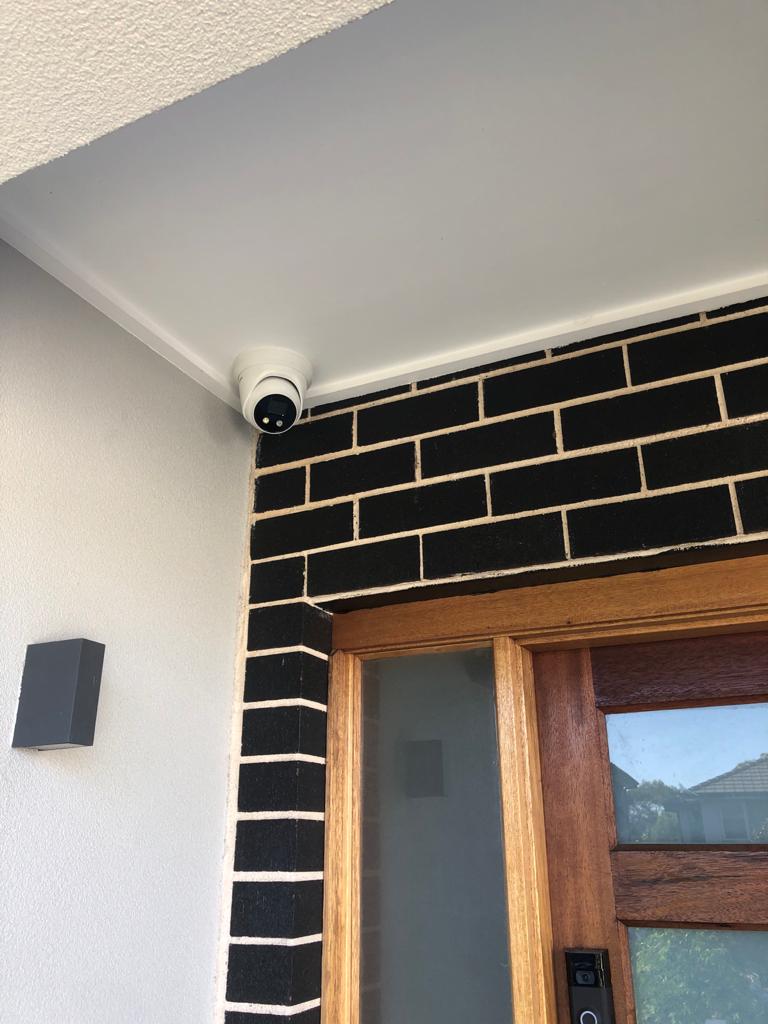

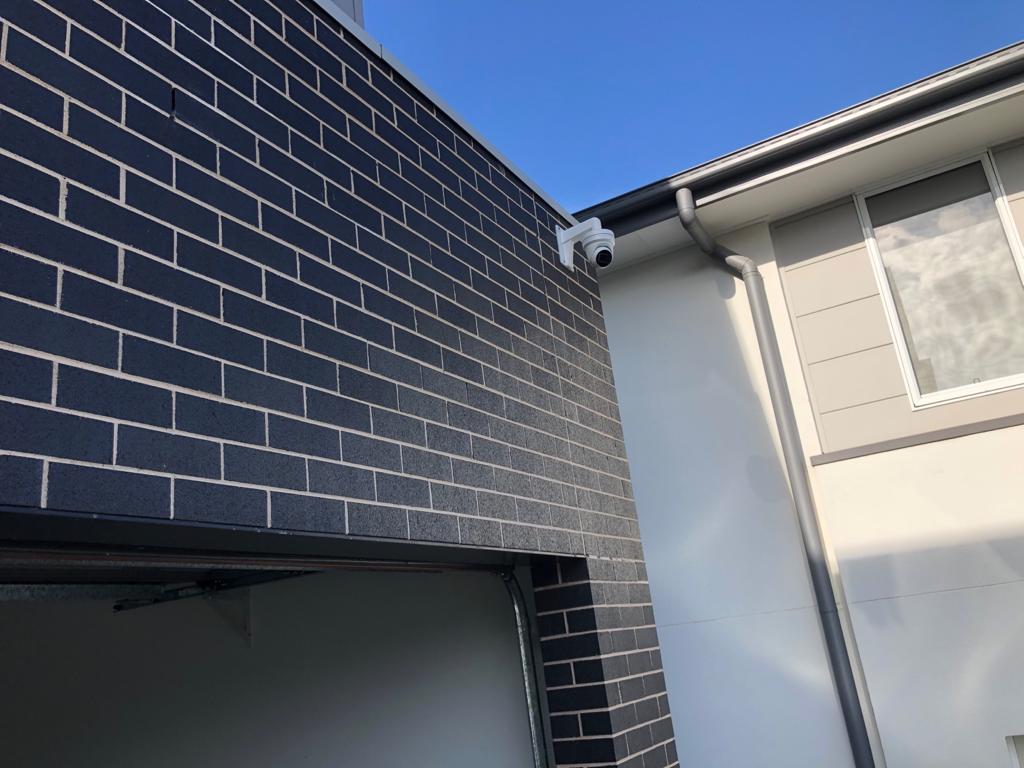

Property managers specifying a complete, ready-to-run surveillance system for small commercial premises, residential properties, or retail sites will find this kit covers the essentials without requiring piecemeal component selection. The Hikvision 6MP 4-Channel CCTV Kit pairs 4 AcuSense turret cameras with a 4-channel PoE NVR, delivering human and vehicle classification at each camera position over a single Cat5e or Cat6 run per camera. The turret form factor suits eave, soffit, and wall mounting across a range of outdoor positions, and the 6MP sensor captures enough detail for usable identification at typical approach distances. This is a practical entry point for anyone who needs a structured, brand-matched system with AI filtering built in from the outset - rather than mixing cameras and recorders from different generations or brands.

What This System Actually Does

Who Buys This Model

• Small Business Owners: Retail stores, cafes, and small warehouses needing a structured 4-camera setup with AI filtering to reduce nuisance alerts - without commissioning a full enterprise system.
• Residential Installers: Tradies and security technicians fitting out a house perimeter with 4 cameras who want brand-matched hardware and single-cable PoE runs back to one central NVR.
• Property Managers: Those specifying surveillance for a rental property, short-stay accommodation, or strata common area where a complete, pre-matched kit reduces procurement and compatibility risk.
• Light Industrial Sites: Small workshops, trade yards, or storage facilities with 4 key coverage positions - entries, yards, or loading areas - where 6MP resolution and AcuSense classification justify the step up from basic 2MP systems.

Honest Assessment

This kit does three things well: it delivers 6MP AcuSense classification across 4 positions out of the box, the PoE architecture keeps installation straightforward, and the brand-matched pairing means the NVR is built to surface the cameras' AI alerts natively without third-party integration workarounds. The built-in microphone on each camera is a genuine addition for sites where audio context matters in incident review. What this kit will not do is scale beyond 4 channels without replacing the NVR - if there is any realistic prospect of adding cameras beyond position 4, an 8-channel NVR system is a more future-proof starting point. The NVR ships without a hard drive, so HDD selection and installation is a required step before the system records. For sites needing long-range IR beyond 40m, a bullet camera system would be a better fit. This kit is available through Security Australia and is suited to sites where 4 positions, compact turret housings, and AI filtering are the core requirements.

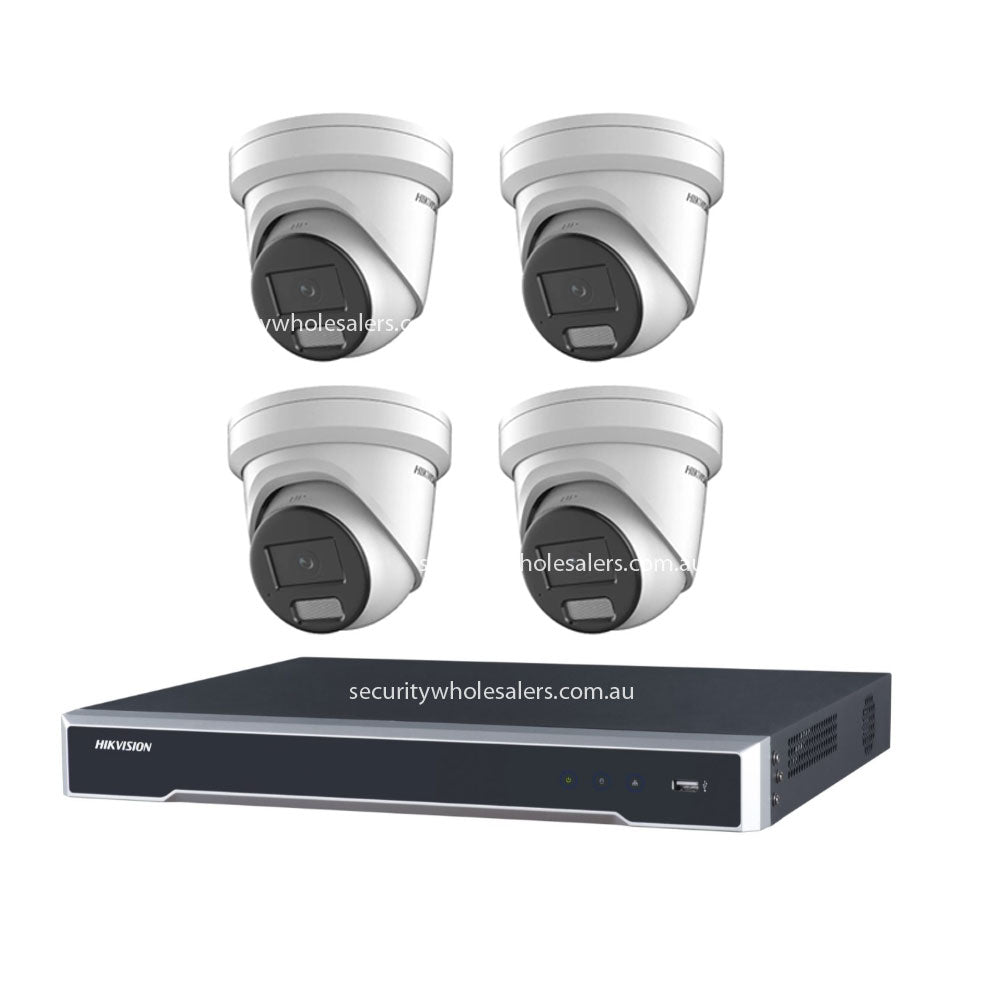

Complete Package Contents

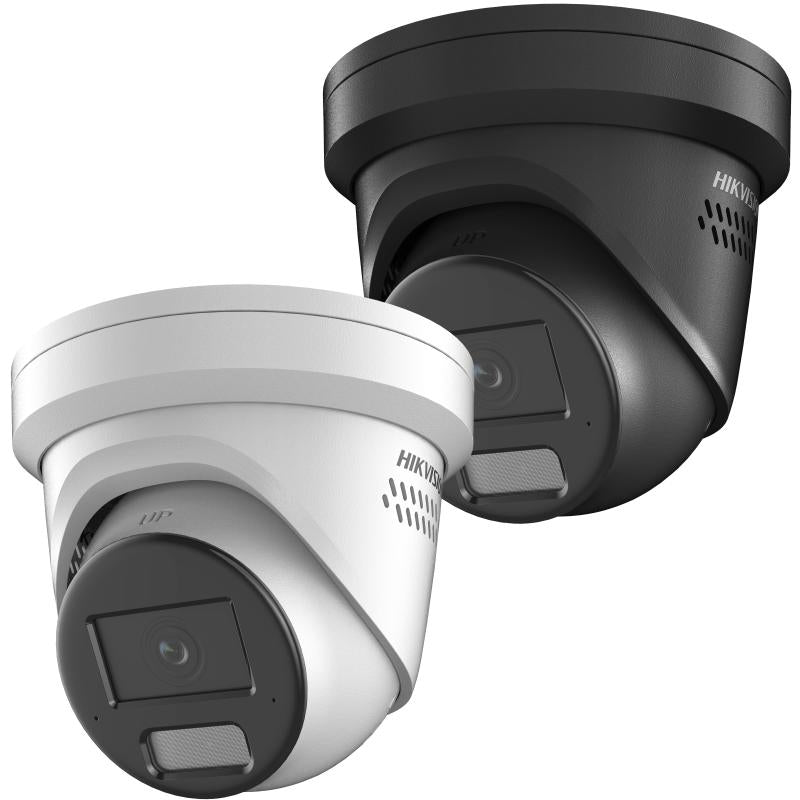

• 4 x Hikvision DS-2CD2366G2H-IU - 6MP AcuSense Hybrid Light turret camera, built-in microphone, IP67, H.265+

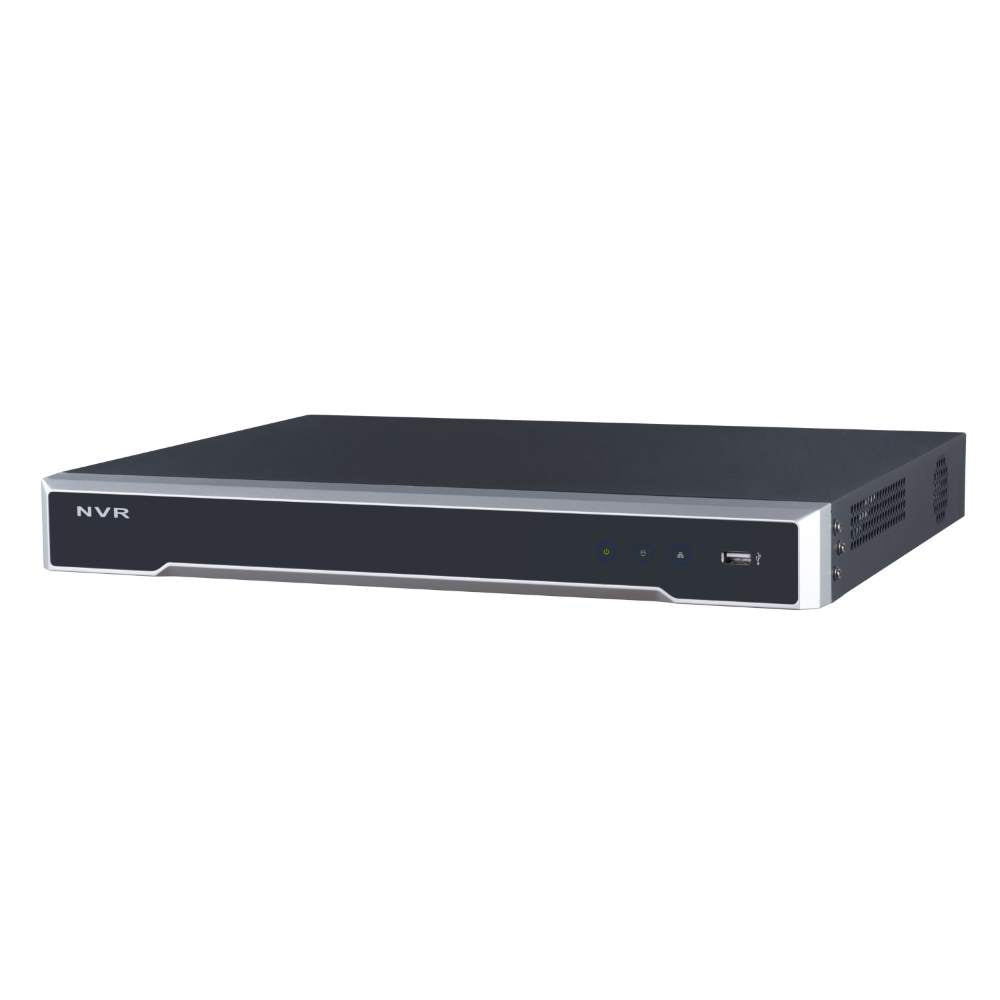

• 1 x Hikvision DS-7604NI-I1-4P - 4-channel PoE NVR, 1 SATA bay, HDMI and VGA output, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need exactly 4 outdoor camera positions with AcuSense filtering and want a brand-matched PoE system installed from a single NVR without a separate switch.
• Good match if: Your site has mixed lighting conditions - dusk, artificial lighting, or poorly lit approaches - where the Hybrid Light sensor technology preserves colour detail before falling back to infrared.
• You may need a different model if: You anticipate needing more than 4 camera positions in the next 12 months - an 8-channel or 16-channel NVR kit from the Security Australia range would avoid an early NVR replacement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4 positions covered with AcuSense human and vehicle classification, Hybrid Light low-light performance, and a single PoE cable per camera - all matched and ready to configure.
• You may need a different model if: You need to cover more than 4 camera positions now or in the near future - an 8-channel or 16-channel PoE NVR kit would avoid replacing the recorder when you expand.
• Pairs well with: A surveillance-grade SATA hard drive (4TB or 6TB) installed into the NVR before commissioning, and a UPS (uninterruptible power supply) on the NVR to protect recordings during power interruptions.

Common Questions

1. Does this kit include a hard drive?

   No. The DS-7604NI-I1-4P NVR is supplied without a hard drive. The NVR has 1 SATA bay and accepts a standard 3.5-inch surveillance-grade HDD. You will need to purchase and install a compatible drive before the system can record. For 4 cameras running 6MP H.265+ continuously, a 4TB to 6TB surveillance-rated drive is a reasonable starting point depending on your required retention period.

2. Will this system work with cameras I already own from other brands or older Hikvision generations?

   Possibly, but with limitations. The DS-7604NI-I1-4P NVR supports ONVIF-compatible IP cameras, so third-party cameras may connect. However, AcuSense AI features, Hybrid Light optimisation, and integrated alert workflows are only guaranteed when using matched Hikvision AcuSense cameras. Mixing brands or older Hikvision generations risks losing AI classification functionality entirely.

3. Does this system support remote viewing on a phone?

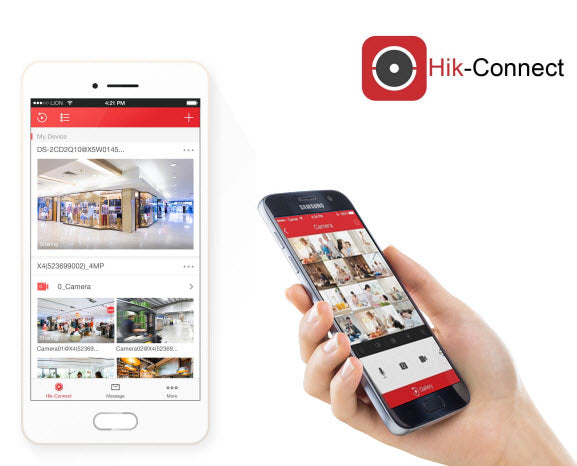

   Yes. The NVR supports remote access via the Hik-Connect application on iOS and Android. You will need to create a Hik-Connect account and configure network access on the NVR. Live view and recorded footage playback are both accessible remotely through the app, subject to your internet connection speed at the installation site.

4. What does AcuSense actually do differently from standard motion detection?

   AcuSense classifies detected motion as human, vehicle, or other at the camera level before an alert is generated. Standard motion detection triggers on any pixel change - tree movement, animals, passing car headlights. AcuSense filters those out and only alerts when the camera has classified the moving object as a person or vehicle. This is processed on the camera itself, so classification is not dependent on the NVR performing the analysis after the fact.

5. How much cable do I need per camera, and what type?

   Each camera requires a single Cat5e or Cat6 Ethernet cable run from the camera position back to a PoE port on the NVR. Maximum cable run length is 100 metres per segment. Cat6 is preferred for longer runs or where cable is being installed in conduit for future-proofing. No separate power cable is required at the camera end - the PoE connection carries both data and power from the NVR.

6. Does the kit record audio from the built-in microphones?

   Yes, provided audio recording is enabled on the NVR and your jurisdiction permits it. Each DS-2CD2366G2H-IU has a built-in microphone. When connected to the DS-7604NI-I1-4P and configured correctly, audio is recorded alongside video. It is your responsibility to comply with applicable state and federal laws regarding audio recording, including any requirements to notify individuals that audio is being captured. The team at Security Australia can advise on configuration if needed.

7. Are the cameras rated for outdoor use in Australian weather conditions?

   Yes. The DS-2CD2366G2H-IU carries an IP67 ingress protection rating, meaning it is fully dust-tight and protected against water immersion up to 1 metre for 30 minutes. This makes the cameras suitable for exposed outdoor mounting positions including eaves, soffits, exterior walls, and covered car parks. The rating covers sustained rain, humidity, and dust typical of Australian outdoor environments.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended - particularly for runs over 60m or where cable will be pulled through conduit.
• Max Cable Run: 100m per camera from NVR PoE port to camera. Runs beyond 100m require a PoE extender inserted in the cable path.
• PoE Notes: The DS-7604NI-I1-4P provides PoE power directly from the NVR to all 4 cameras. No external PoE switch or injectors are needed. Total PoE budget is shared across all 4 ports - confirm the NVR's total PoE budget covers the combined draw of all connected cameras.
• Wiring Tips: Plan cable routes before installation and avoid running Ethernet parallel to mains power cabling for extended distances. Use outdoor-rated (UV-stabilised) Cat6 where cable runs are exposed to direct sunlight. All terminations should be made with RJ45 connectors rated for solid-core cable if using structured cable.
