Hikvision 5MP TVI 4CH Fixed Dome CCTV Bundle Kit

Model: HIK-7204HUHI-K1_2CE56H1T-VPIT

Who This Is For

For property owners and installers who need a complete analogue upgrade path without pulling new cable, the Hikvision 5MP TVI 4-Channel Fixed Dome CCTV Bundle Kit is built around that exact scenario. It pairs the DS-7204HUHI-K1 DVR with 4 outdoor dome cameras delivering 5MP resolution over existing coax infrastructure, plus a 2TB hard drive pre-installed and ready to record from day one. This is a practical fit for small commercial premises, residential properties, and light industrial sites where 4 camera positions cover the critical zones - driveways, entry points, carparks, and rear access areas. The DVR accepts TVI, AHD, CVI, CVBS, and IP inputs, so the system can absorb any legacy cameras already on site rather than forcing a full rip-and-replace. The 2.8mm fixed lens on each dome gives a wide 102-degree horizontal field of view, and EXIR night vision reaches out to 80 metres.

What This System Actually Does

Who Buys This Model

• Small business owners upgrading analogue systems: Existing coax cable stays in the walls - the 5MP TVI cameras and multi-format DVR connect directly to runs already in place, avoiding the cost and disruption of a full recable.
• Residential installers covering 4-camera sites: Driveways, front entry, garage, and rear yard covered by a single kit that arrives pre-HDD and ready to commission, reducing on-site time and parts-sourcing complexity.
• Property managers overseeing rental premises or small strata: The wide 102-degree field of view from the 2.8mm lens covers common area access points without requiring tight aiming accuracy during initial install.
• Light industrial and warehouse operators: The 80-metre EXIR night vision range suits loading dock approaches and external perimeters where distances exceed the capability of standard short-range cameras.

Honest Assessment

This kit earns its position as a straightforward 4-camera coaxial solution. The combination of 5MP resolution, 130dB true WDR, and 80-metre EXIR night vision covers the three scenarios most often responsible for poor footage - low resolution, blown highlights, and inadequate night range. The multi-format DVR input is a genuine advantage on mixed-camera sites, and the pre-installed 2TB drive eliminates a common commissioning gap. What it will not do: there is no AI-based detection, no smart motion classification, and no colour night vision. If you need perimeter intrusion detection with alert filtering, or full-colour footage after dark without IR, a TiOC or IP-based system with AI processing is a more suitable product type. At 4 channels maximum, this DVR does not scale beyond the included cameras without a recorder upgrade. Available through Security Australia, it suits sites where a clean coaxial install at high resolution is the priority over advanced analytics.

Complete Package Contents

• 4 x DS-2CE57H8T-VPITF Outdoor Dome Camera - 5MP, 2.8mm fixed lens, 80m EXIR, IP67, 130dB WDR, 12V DC
• 1 x DS-7204HUHI-K1 4-Channel DVR - supports TVI, AHD, CVI, CVBS, and IP inputs
• 1 x 2TB Security Hard Drive - pre-installed in DVR

Before You Buy

Quick Fit Check

• Good match if: You have existing coaxial cable runs on site and want to upgrade to 5MP without rewiring - the TVI cameras and multi-format DVR connect directly to RG59 or RG6 infrastructure already in place.
• Good match if: Your coverage requirement is 4 fixed camera positions covering a mix of entry points, driveways, and external areas where 80-metre night vision range and IP67 weatherproofing are the primary hardware requirements.
• You may need a different model if: Your site needs more than 4 cameras, requires AI-based motion detection and alert filtering, or demands full-colour night footage - an IP-based NVR system with smart detection cameras would be a more appropriate product type to consider at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site has existing coaxial cable infrastructure and you want to reach 5MP resolution without rewiring, while keeping all cameras and the recorder within a single, straightforward analogue-HD ecosystem.
• You may need a different model if: You need more than 4 cameras, smart AI motion detection, colour night vision, or remote push notifications based on person or vehicle classification - an IP-based NVR kit with AI-enabled cameras is the more appropriate product type available at securityaustralia.com.au.
• Pairs well with: A 12V DC multi-output power supply distribution board to centralise camera power for all 4 dome positions from a single point near the DVR location.

Common Questions

1. Will this kit work with my existing coaxial cable?

   Yes. The dome cameras transmit 5MP video over standard RG59 or RG6 coaxial cable in TVI format. The DS-7204HUHI-K1 DVR also accepts AHD, CVI, and CVBS signals, so any existing coax runs carrying older analogue cameras can be reused and plugged straight into the recorder without signal converters.

2. Does this system support Power over Ethernet (PoE)?

   No. These cameras run on 12V DC only and do not support PoE. Each camera needs a dedicated power cable or a local 12V DC power supply at the mounting position. PoE is a feature of IP-based camera systems rather than coaxial TVI systems like this kit.

3. How much recording time does the 2TB hard drive provide?

   It depends on resolution, frame rate, and compression settings selected in the DVR. At 5MP with continuous recording across all 4 cameras at standard frame rates, a 2TB drive typically yields several days of footage before overwriting. Enabling motion-triggered recording rather than continuous recording significantly extends that capacity.

4. Can I add more cameras to this DVR later?

   No. The DS-7204HUHI-K1 is a fixed 4-channel recorder and does not support channel expansion beyond 4 inputs. If your site is likely to grow beyond 4 cameras, specifying an 8-channel DVR from the start avoids the cost of replacing the recorder later. Security Australia stocks larger-channel DVR options if this is a consideration.

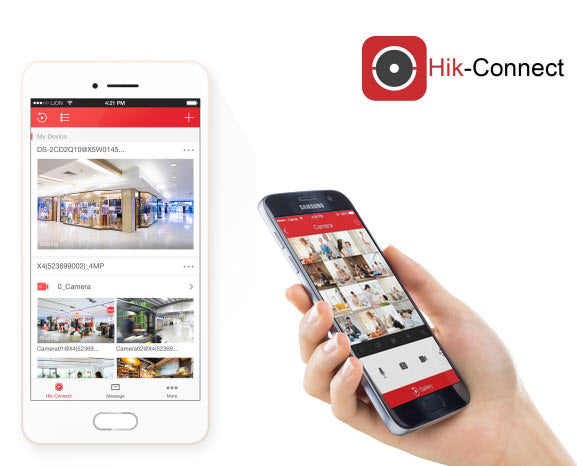

5. Does this system support remote viewing on a smartphone?

   Yes, via Hikvision's mobile app. The DS-7204HUHI-K1 DVR supports remote access over a network connection, allowing live view and playback from a smartphone or tablet. You will need to connect the DVR to your router and configure remote access through the app during setup.

6. Will this work in a fully dark environment with no external lighting?

   Yes. The dome cameras operate down to 0.003 Lux and activate EXIR infrared illumination in low-light conditions. In complete darkness, infrared IR covers up to 80 metres, producing black-and-white footage. The cameras do not produce colour footage in total darkness - colour requires at least some ambient light or external lighting to be present.

7. Does the DVR record if it loses internet connection?

   Yes. The DS-7204HUHI-K1 records locally to the pre-installed 2TB hard drive regardless of whether an internet connection is present. Internet is only required for remote viewing through the mobile app. Local recording continues uninterrupted during any network or ISP outages.

Cabling Considerations

• Cable Type: RG59 or RG6 coaxial for video signal. Separate 2-core power cable (typically 18AWG or 16AWG) required for 12V DC power to each camera.
• Max Cable Run: Up to approximately 500m for 5MP TVI signal on RG59. Longer runs may require signal-boosting baluns - confirm with your cable specification before finalising routing.
• PoE Notes: Not applicable. This system is 12V DC powered only. There is no PoE support on either the cameras or the DVR.
• Wiring Tips: Run power and coax cable together in the same conduit or bundled run to simplify installation. A centralised 12V DC multi-output power supply located near the DVR reduces the number of individual power adapters and makes the installation easier to service.
