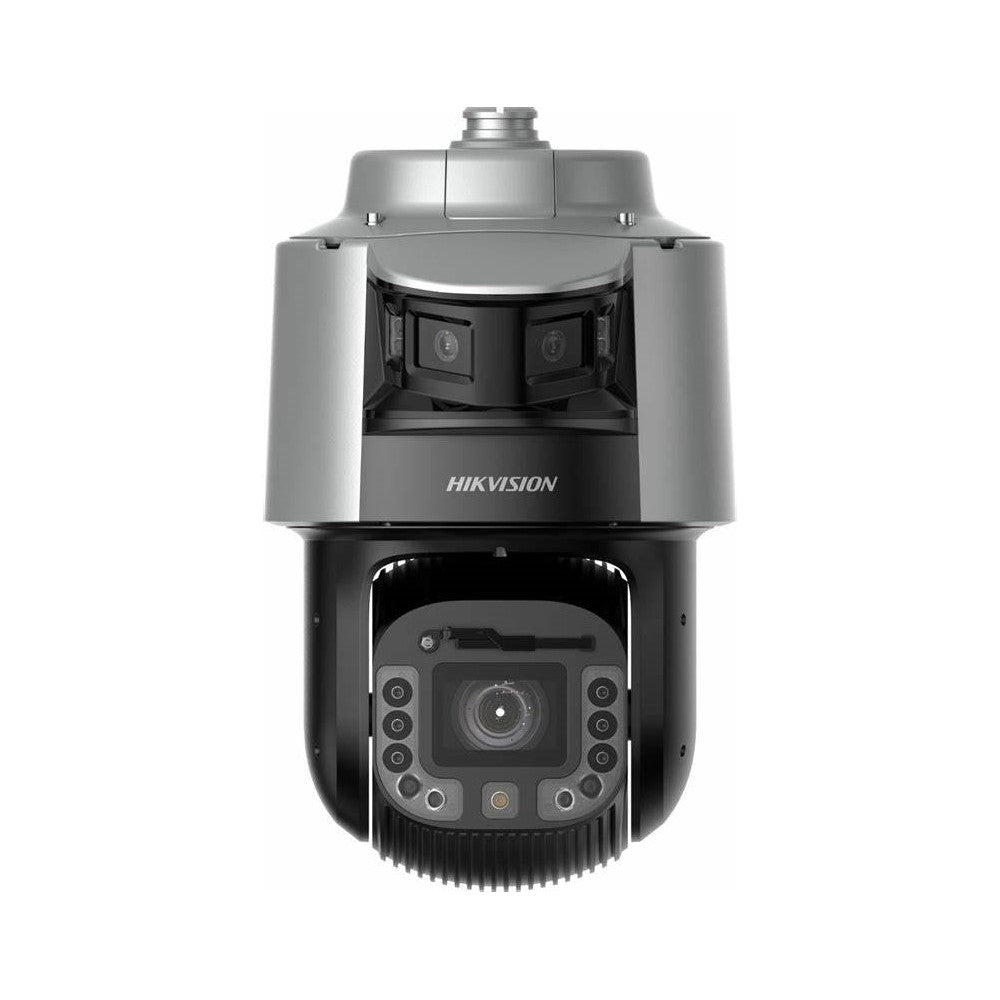

Hikvision DS-2SF8C442MXS-DLW 4MP TandemVu PTZ Camera, 24/7 Colour, 180 deg Overview, 42x Zoom

Model: DS-2SF8C442MXS-DLW

Who This Is For

When covering a wide area without losing detail on a specific target is the priority, a standard PTZ forces a trade-off - zoom in and lose your overview, or stay wide and lose identification capability. The Hikvision DS-2SF8C442MXS-DLW solves this with TandemVu technology: a fixed 180-degree overview channel and a 42x optical zoom PTZ channel running simultaneously in a single housing. Security integrators specifying large open sites - carparks, transport hubs, perimeter fencing, stadium approaches - get both situational awareness and target identification without deploying two separate cameras. The 24/7 colour imaging with DarkFighter technology, 300m IR range, IP67 weatherproofing, and IK10 vandal resistance make this a practical choice for demanding outdoor installs where lighting is inconsistent and physical protection of hardware matters.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Large Commercial Sites: Sites where a single camera position needs to cover a wide approach and also identify individuals at distance - the TandemVu dual-channel output provides both streams without requiring two camera installations or two cable runs.
• Transport and Infrastructure Operators: Rail stations, bus depots, port entries, and logistics yards where 300m IR range and 42x optical zoom allow one camera to monitor long approach lanes and zoom to identify activity at the far end of the scene.
• Council and Public Space Managers: Carparks, town centres, and public open space where IK10 vandal resistance and IP67 weatherproofing justify the hardware investment and reduce maintenance costs in exposed or high-traffic positions.
• Industrial Facility Security Teams: Mining sites, manufacturing plants, and utilities installations operating in extreme temperature ranges (-40°C to 70°C) where conventional cameras fail and the 180-degree overview channel supports perimeter monitoring without pan-and-scan delays.

Honest Assessment

The DS-2SF8C442MXS-DLW genuinely solves a problem that single-channel PTZ cameras cannot: maintaining a wide overview at the same time as zoomed tracking. The TandemVu architecture is the central reason to choose this model, and the 42x optical zoom, 300m IR reach, DarkFighter colour performance, and IK10-rated housing make it a credible choice for demanding outdoor installations. The H.265 compression keeps storage and bandwidth requirements manageable despite the dual-channel output. Where this camera is not the right fit: smaller residential or light commercial installs where the cost and complexity of 24VAC or PoE 802.3bt power planning, plus NVR channel allocation for dual streams, exceeds the operational need. A standard fixed turret or lower-specification PTZ will be more appropriate in those cases. Security Australia stocks this model for sites where the TandemVu architecture is genuinely required, not as a general-purpose PTZ replacement.

Before You Buy

Quick Fit Check

• Good match if: You need simultaneous wide-area overview and long-range zoom identification from a single mounting position - the TandemVu dual-channel design provides both outputs without any trade-off between coverage and detail.
• Good match if: The installation site is exposed to extreme temperatures, physical tampering risk, or persistent wet weather - IP67 and IK10 ratings combined with a -40°C to 70°C operating range address all three conditions in a single housing.
• You may need a different model if: Your primary requirement is covering a large indoor area from a single ceiling mount point with no zoom tracking need - a panoramic or multi-sensor camera will deliver wider static coverage at lower cost and with simpler NVR channel requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need simultaneous wide-area overview and long-range zoomed identification from one mounting point - TandemVu is the confirmed feature that separates this from any standard single-channel PTZ.
• You may need a different model if: Your site requires full 360-degree panoramic coverage across a wide horizontal plane with no tracking requirement - a multi-sensor panoramic camera will deliver more static coverage with simpler NVR channel management.
• Pairs well with: A Hikvision-compatible NVR with TandemVu channel pairing support and sufficient PoE budget - allowing coordinated recording and playback of both the overview and PTZ zoom streams together.

Common Questions

1. What exactly is TandemVu and how does it work in practice?

   TandemVu is a dual-channel camera architecture where 2 independent imaging systems share a single housing - a fixed 180-degree overview lens and a motorised PTZ zoom lens, both running at the same time. In practice, your NVR records 2 separate streams: one continuous wide-angle view of the entire scene, and one PTZ stream that operators or auto-tracking logic can direct to any specific area. Unlike a standard PTZ where zooming in means losing the overview entirely, TandemVu maintains both feeds without interruption.

2. Does this camera require 2 NVR channels?

   Yes. Each TandemVu stream - the overview channel and the PTZ zoom channel - occupies a separate NVR channel. A single DS-2SF8C442MXS-DLW requires 2 channels on your recorder. If you are planning a 4-camera installation using this model, you need an NVR with at least 8 channels. Always confirm your NVR supports TandemVu channel pairing to enable synchronised playback of both streams from the same time index.

3. What is the optical zoom ratio and what does 42x actually mean for identification distances?

   42x optical zoom means the lens can magnify a subject to 42 times the size it appears at the widest field of view with no loss of optical resolution. For a 4MP sensor, this delivers detailed imagery at distances that would be entirely unusable on a fixed lens camera. Exact identification distance depends on the subject size and lighting conditions, but 42x optical zoom combined with 4MP resolution is appropriate for identifying individuals and reading number plates at distances well beyond what fixed or varifocal cameras can manage. The additional 16x digital zoom extends range further at the cost of some pixel interpolation.

4. Will this camera work in complete darkness at 300 metres?

   Yes, with IR illumination active. The confirmed 300m IR range means the PTZ channel can illuminate and image subjects at up to 300m in complete darkness using infrared light invisible to the human eye. The 30m white light is separate and produces colour-visible illumination at closer range. DarkFighter technology keeps colour imaging active in very low ambient light before the IR or white light is needed, reducing the frequency of monochrome footage in partially lit environments.

5. Does this camera support auto-tracking?

   The DS-2SF8C442MXS-DLW includes deep learning-based intelligent video analytics. The confirmed deep learning functions support detection and classification of events. For specific auto-tracking behaviour and configuration requirements - including how the PTZ zoom channel responds to analytics triggers from the overview channel - refer to the Hikvision product datasheet or contact the team at Security Australia for technical guidance before specifying this camera in an automated monitoring role.

6. Is PoE 802.3bt sufficient to power this camera or does it need PoE+?

   The confirmed power specification is IEEE 802.3bt PoE, which delivers up to 51 W at the switch port. This is the standard PoE budget and means you do not need a PoE+ (802.3at) switch. However, cable run length matters - voltage drop over long cable runs can reduce delivered wattage below the camera's operating requirement. For runs beyond 80m, use Cat6 cable and confirm your switch port is delivering the full 51 W budget. Alternatively, the camera accepts 24VAC if a local power source is more practical for the mounting position.

7. Can the pan and tilt range cover directly overhead or straight down?

   The confirmed tilt range is -15° to 90°, where 90° is straight down and negative values angle above the horizontal plane. This means the PTZ channel can look directly downward at nadir (straight down), which is useful for installations on elevated poles or masts where ground-level activity below the camera needs to be visible. The 360-degree continuous pan means there are no rotation limits or cable-wrap restrictions in the horizontal plane.
