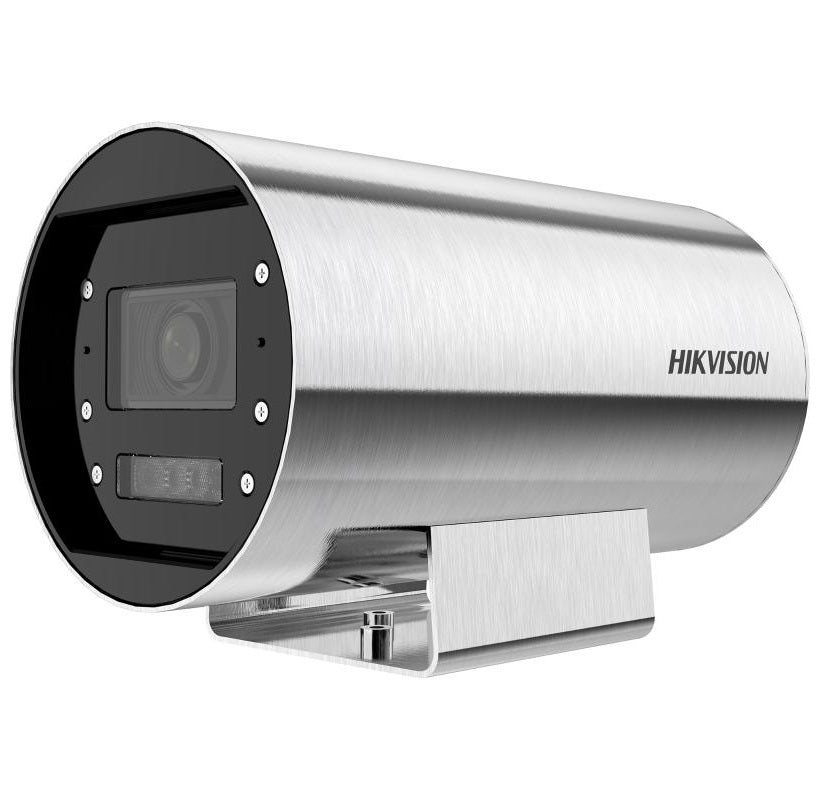

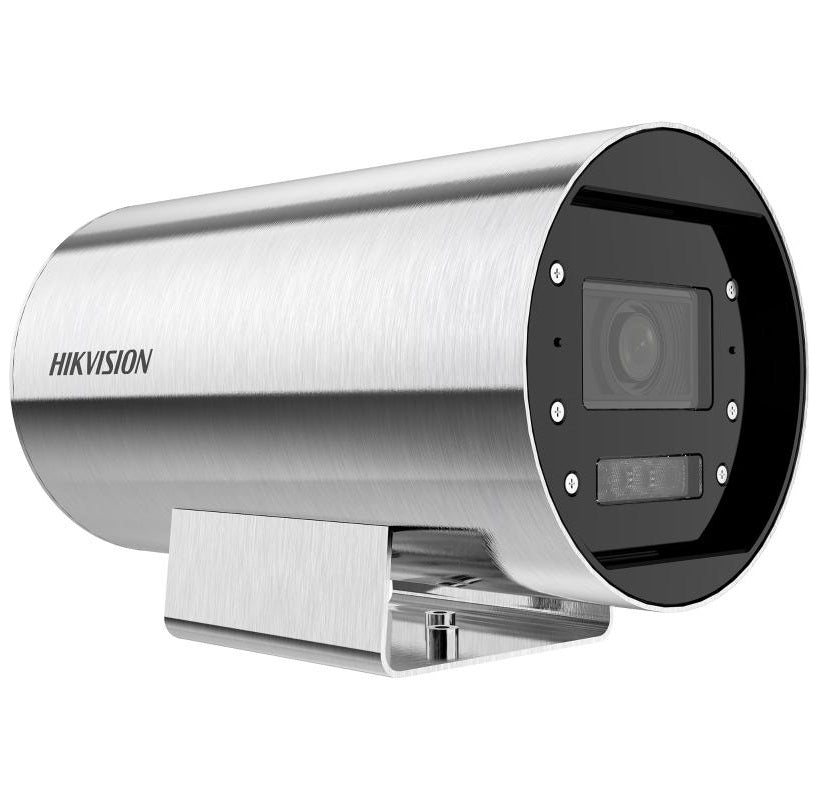

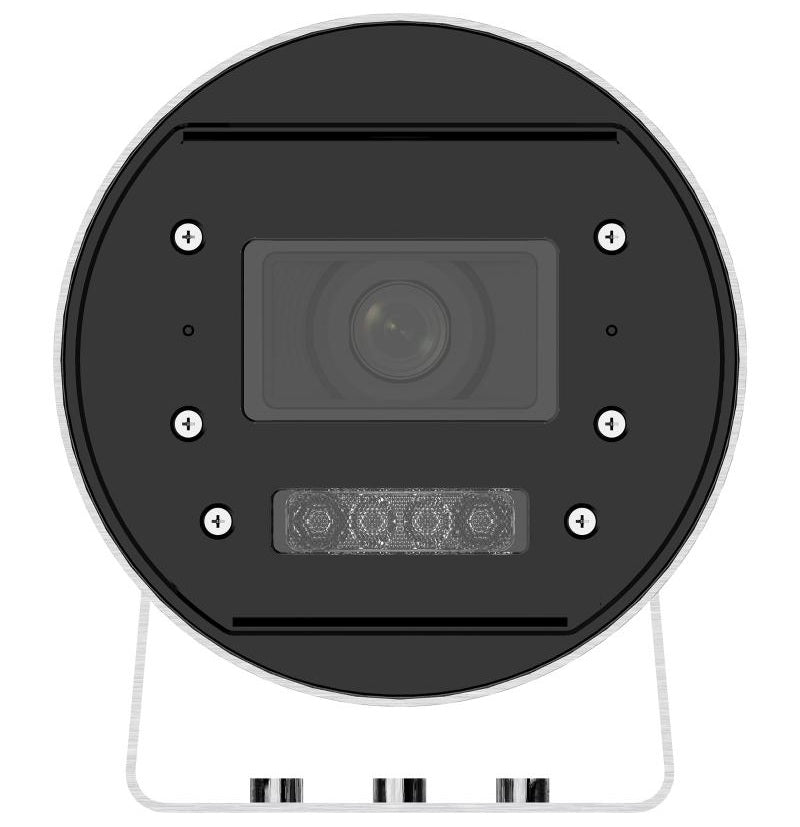

Hikvision 4MP Special Series DS-2XT6645G0-LIZS/C15 High Temperature Bullet Camera with 2.8–12mm Varifocal Lens, 120dB WDR, IP68

Model: DS-2XT6645G0-LIZS/C15

Who This Is For

When extreme ambient heat is the dominant installation challenge, standard IP cameras simply cannot be trusted to operate reliably. The Hikvision DS-2XT6645G0-LIZS/C15 is a 4MP Special Series high-temperature bullet camera built specifically for industrial environments where heat, dust, and harsh conditions would destroy conventional hardware. With a 2.8-12mm motorised varifocal lens, 120dB WDR, and an IP68-rated housing, this camera is engineered for steel mills, foundries, glass manufacturing facilities, boiler rooms, kiln monitoring, and industrial processing areas where sustained high ambient temperatures are normal operating conditions. Security installers and facilities managers specifying camera positions near heat-generating equipment, open furnaces, or high-temperature process lines will find this model addresses the core problem that makes standard bullet cameras unsuitable in these zones.

What This Camera Actually Does

Who Buys This Model

• Steel and Metal Processing Facilities: Monitoring rolling mills, furnace loading areas, and casting floors where ambient radiant heat would exceed the operating limits of conventional bullet cameras.
• Glass Manufacturing Plants: Positioning near annealing lehrs, forming sections, or melting furnaces where camera housing temperatures routinely exceed what standard IP66/67 hardware tolerates.
• Foundries and Smelting Operations: Surveillance of pouring areas and ladle handling zones where heat exposure is continuous and washdowns are frequent - requiring both high-temperature tolerance and IP68 sealing.
• Industrial Safety and Compliance Teams: Facilities required to maintain visual records of high-risk process areas for WHS compliance, incident investigation, or insurance purposes where camera reliability under extreme conditions is non-negotiable.
• Specialist Security Integrators: Contractors specifying cameras for petrochemical, power generation, or heavy industrial clients who have had standard cameras fail prematurely and need a purpose-built solution with confirmed high-temperature ratings.

Honest Assessment

The DS-2XT6645G0-LIZS/C15 does something that most cameras on the market cannot: operate continuously in sustained high ambient temperatures without the housing becoming a failure point. The combination of the Special Series high-temperature design, IP68 sealing, 120dB WDR for difficult light conditions, and a motorised varifocal lens for remote focal adjustment makes this a genuinely purpose-built tool for environments that destroy conventional hardware. The 4MP sensor provides useful resolution for monitoring wide process areas from limited mounting positions. What this camera will not do is provide thermal imaging or temperature measurement of the environment itself - if process temperature monitoring is required alongside video, a separate thermal camera type is appropriate. It is also a specialised industrial product; for standard outdoor applications like car parks or building perimeters, a conventional bullet or turret from the Security Australia range will deliver the same image quality at lower cost.

Before You Buy

Quick Fit Check

• Good match if: You are mounting inside or adjacent to an industrial heat-generating process area - furnace, kiln, foundry, or boiler room - where conventional cameras have failed or are rated out of their operating temperature range.
• Good match if: Your installation environment combines extreme heat exposure with washdown, steam, or condensation risk, where IP68 sealing and high-temperature housing tolerance are both required simultaneously.
• You may need a different model if: Your application is a standard outdoor industrial site without elevated ambient temperature concerns - a conventional IP67-rated bullet camera will deliver the same image quality at lower cost, and a wider selection is available at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation environment involves sustained high ambient temperatures that exceed the operating range of standard bullet cameras, combined with a need for IP68 sealing against steam, washdown, or condensation.
• You may need a different model if: Your requirement is temperature measurement or thermal imaging of the process itself rather than visual surveillance - a thermal camera type is the appropriate tool for that application, and options are available at securityaustralia.com.au.
• Pairs well with: A ruggedised NVR or edge recording device rated for industrial environments, positioned outside the high-temperature zone with appropriate cable management through heat-rated conduit between the camera and recorder.

Common Questions

1. What makes this camera different from a standard industrial bullet camera?

   The high-temperature housing is the core difference. Standard industrial cameras are typically rated to operate up to around 60°C ambient. The DS-2XT6645G0-LIZS/C15 belongs to Hikvision's Special Series, which is specifically engineered to sustain operation in elevated ambient temperatures beyond the range of conventional IP66/67 cameras. For installations near heat-generating industrial processes, this distinction determines whether the camera continues operating or fails prematurely.

2. Does this camera measure or detect process temperatures?

   No. This is a video surveillance camera, not a thermal or temperature measurement device. It monitors environments that operate at high ambient temperatures but does not provide temperature data about the process or equipment it is watching. If temperature measurement or thermal anomaly detection is required alongside video, a separate thermal camera type should be added to the system design.

3. Why does this camera have 120dB WDR and why does that matter in industrial environments?

   120dB WDR handles extreme contrast between very bright and very dark areas in the same frame. Industrial environments - particularly foundries, steel mills, and glass plants - commonly combine intense light sources such as molten material, arc flash, or open flames with shadowed background areas. Without high-grade WDR, the camera either clips the bright areas to white or crushes the shadows to black, losing usable image detail in one or both zones. At 120dB, the sensor can reproduce detail across both simultaneously.

4. Will the motorised varifocal lens allow remote focus adjustment after installation?

   Yes. The 2.8-12mm motorised varifocal lens supports remote zoom and focus adjustment via the camera's management interface without requiring physical access to the unit. This is a meaningful practical benefit in high-temperature industrial environments where accessing a mounted camera for manual lens adjustment may require hot work permits, elevated work platform procedures, or safe system of work controls that add significant time and cost to even minor adjustments.

5. Does the IP68 rating cover washdown and steam environments?

   Yes. IP68 provides complete protection against dust ingress and sustained immersion in water beyond the requirements of IP67. In practice this means the housing is sealed against high-pressure washdowns, steam exposure, and condensation from temperature differentials - all common in industrial process environments. Note that IP68 protects the housing itself; cable entries and junction points must also be appropriately sealed during installation to maintain the overall ingress protection of the assembly.

6. What NVR or recording system should this camera be paired with?

   This camera connects via standard IP network infrastructure, so it is compatible with any NVR or VMS platform that supports ONVIF or Hikvision protocol. For high-temperature industrial sites, the recording device itself should be positioned outside the extreme temperature zone - in a control room, equipment room, or ventilated cabinet - connected to the camera via appropriate heat-rated cabling through the industrial area. Security Australia stocks compatible Hikvision NVR options that integrate directly with this camera for simplified setup and management.

7. Is this camera suitable for hazardous area (Ex-rated) installations such as explosive atmospheres?

   No. The DS-2XT6645G0-LIZS/C15 is rated for high-temperature environments, not for installations in zones classified as explosive atmospheres under ATEX or IECEx standards. If your installation zone is classified as a hazardous area requiring intrinsically safe or explosion-proof equipment, a camera with the appropriate Ex certification is required. This camera addresses heat tolerance, not ignition source control in flammable atmospheres.

Downloads & Resources

No downloads available for this product.
