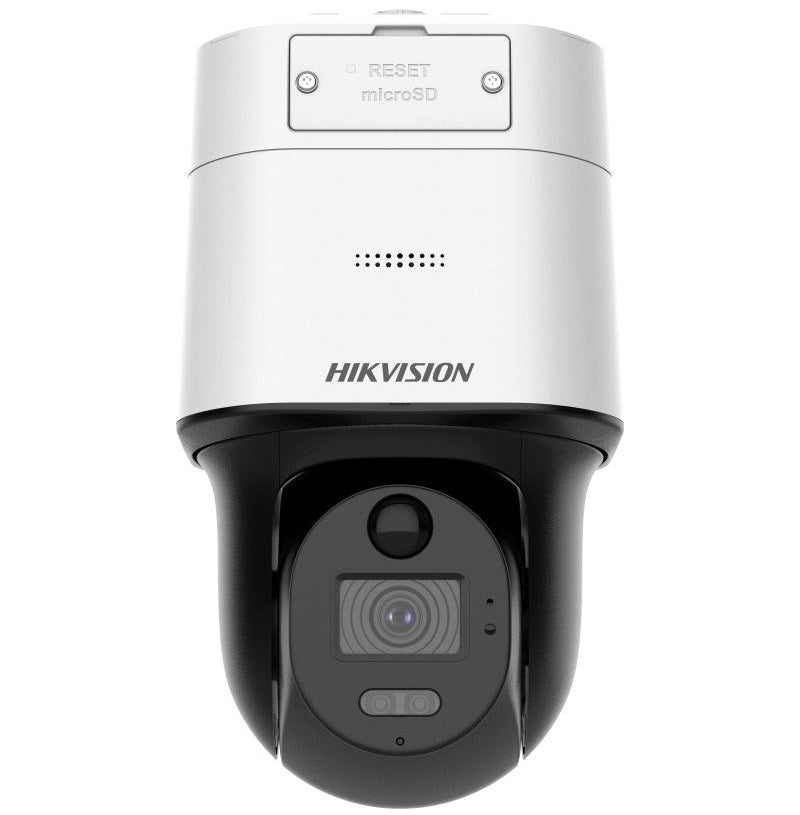

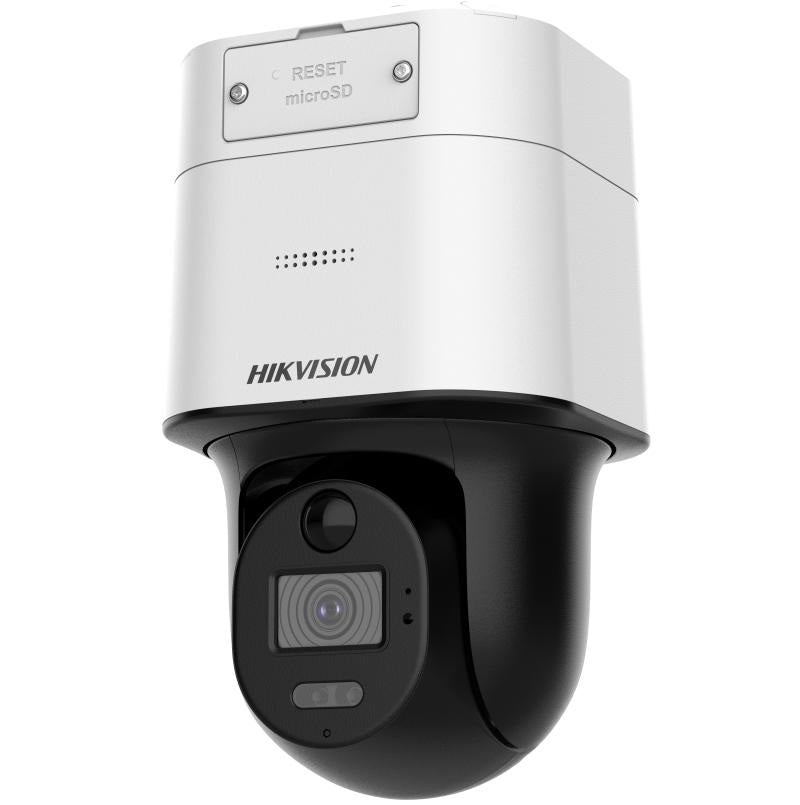

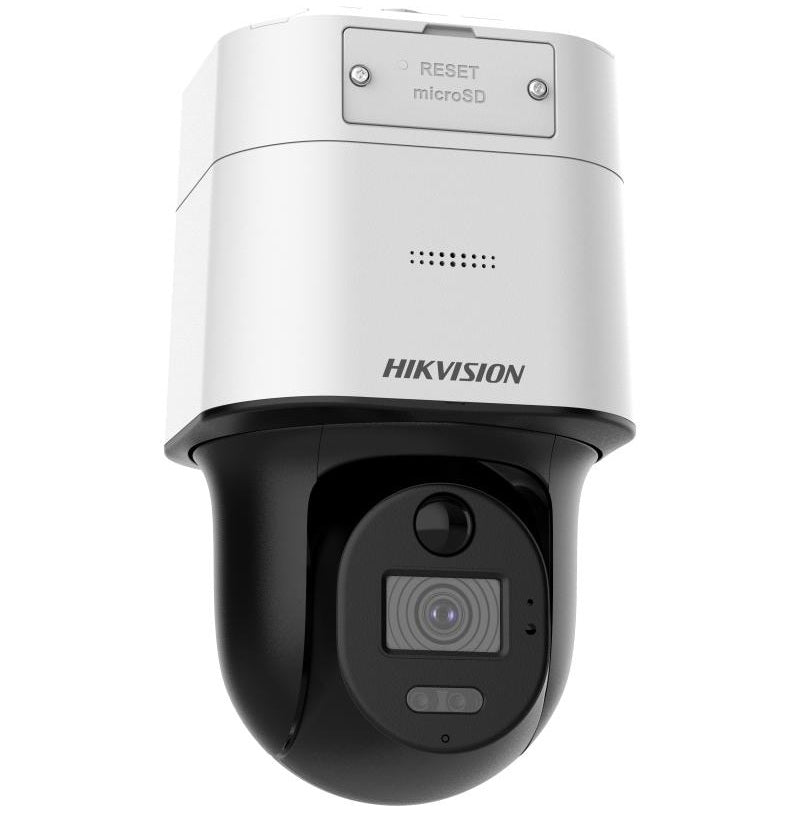

Hikvision 4MP ColorVu DS-2XS3Q47G1-LDWH-C18S40-B Solar PT Camera Bundle Kit with SMA-ADAPTER, AF003-100 Waterproof Sealing Tape & Two-Way Audio

Model: DS-2XS3Q47G1-LDWH-C18S40-B

Who This Is For

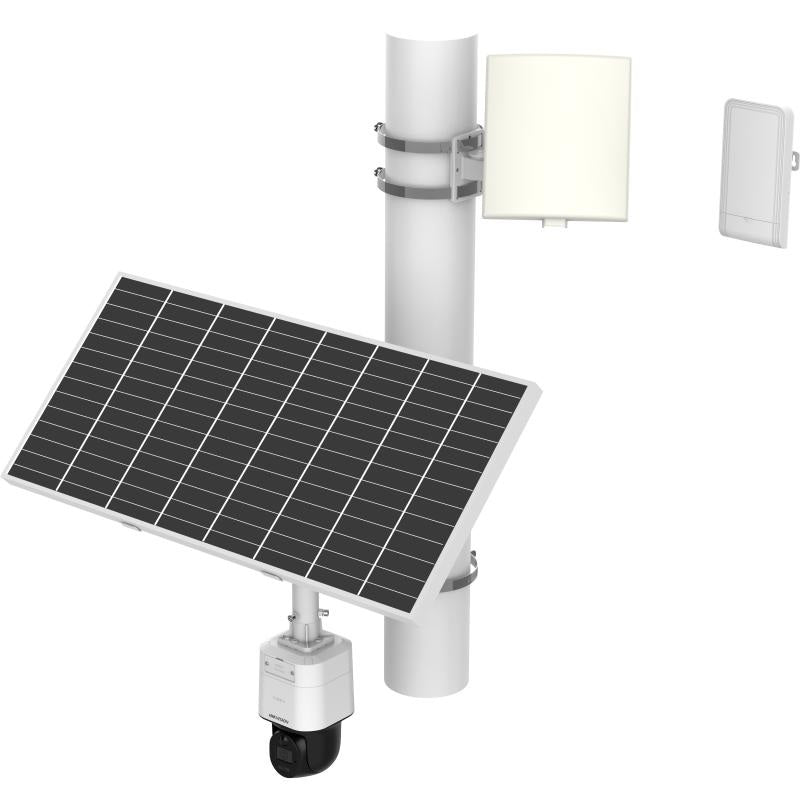

When running mains power to a camera location simply is not possible, the Hikvision 4MP ColorVu Solar PT Camera Bundle becomes the practical answer. This kit is built for remote gates, rural fence lines, construction compounds, temporary worksites, and off-grid agricultural properties where trenching cable would cost more than the security system itself. The bundle pairs a 4MP ColorVu pan-tilt camera with an 18W solar panel and 40Ah battery, an SMA antenna adapter for 4G connectivity, and AF003-100 waterproof sealing tape - everything needed to stand up a fully independent surveillance point without a power or network connection. Two-way audio means the operator can challenge anyone approaching the camera position in real time. This is not a camera for an electrician's convenience - it is a camera for locations where power infrastructure does not exist at all, and where full-colour night vision and remote pan-tilt control still need to be on the table.

What This System Actually Does

Who Buys This Model

• Rural and Agricultural Property Owners: Monitoring remote gates, water pump stations, and outbuildings where the nearest power outlet may be hundreds of metres away - the solar-plus-4G setup eliminates both cabling problems in a single bundle.
• Construction Site Managers: Deploying a mobile security point at a new compound or temporary access gate where mains power has not yet been established - the unit can be relocated as the project footprint changes.
• Mining and Resources Site Operators: Monitoring unmanned checkpoints or perimeter access roads with no infrastructure, using two-way audio to communicate with vehicles approaching from the camera position without staffing that location.
• Event and Festival Security Teams: Setting up temporary monitoring at outdoor venues, temporary car parks, or festival perimeters where no fixed wiring is possible and the camera must be operational on arrival.
• Security Integrators Specifying Off-Grid Solutions: Proposing a complete, single-SKU bundle to clients with remote monitoring requirements - the SMA adapter, sealing tape, and solar hardware ship together, simplifying procurement and avoiding forgotten accessories on install day.

Honest Assessment

The DS-2XS3Q47G1-LDWH-C18S40-B solves a genuine problem: it delivers 4MP ColorVu imaging, motorised pan-tilt control, and two-way audio at locations where infrastructure does not exist. The 18W solar panel and 40Ah battery are sized for continuous operation through normal day-night cycles, and bundling the SMA adapter and waterproof tape removes the most common installer oversights on remote deployments. Full-colour night vision is a real advantage over IR-only solar cameras when incident detail matters. What this unit will not do is serve as a replacement for a fixed PTZ on a high-traffic site - the solar power budget constrains continuous heavy pan-tilt use, and 4G latency affects real-time control responsiveness compared to wired network PTZ cameras. Sites with reliable mains power are better served by a wired ColorVu turret or bullet camera, which will deliver comparable image quality without the solar management overhead. This product is available through Security Australia and is worth specifying where the off-grid constraint is genuine.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a remote access gate, rural property boundary, or unmanned site entry point where running mains power or a data cable to the camera position is not feasible - the solar panel, 40Ah battery, and 4G SMA adapter make the unit fully self-contained.
• Good match if: The site requires full-colour night footage and the ability to remotely reposition the camera angle - ColorVu white light illumination combined with motorised pan-tilt covers both requirements in a single off-grid unit.
• You may need a different model if: The installation location has reliable mains power and wired network access - a fixed outdoor ColorVu turret or wired PTZ camera will deliver more consistent performance without the solar and 4G management considerations involved with this unit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The camera position has no mains power or network cable access and you still need full-colour night vision, remote pan-tilt repositioning, and two-way audio in a single unit - this bundle provides all of that infrastructure-free.
• You may need a different model if: Mains power and wired network are available at the install location - a fixed wired ColorVu outdoor camera or wired PTZ will offer more consistent performance, higher sustained pan-tilt duty cycles, and lower long-term management overhead than a solar-dependent unit.
• Pairs well with: A 4G router or dedicated cellular gateway at a nearby site facility if you want to aggregate multiple camera feeds onto a local NVR while still using 4G as the backhaul, rather than relying on individual SIM plans per camera.

Common Questions

1. Does this camera work completely without mains power?

   Yes. The DS-2XS3Q47G1-LDWH-C18S40-B is designed to operate with no mains power connection at all. The 18W solar panel charges the 40Ah battery during daylight hours to sustain camera operation, 4G transmission, pan-tilt movement, and white light illumination through the night. The only external requirements are adequate solar exposure and an active 4G SIM with a data plan.

2. Will this camera produce colour footage at night, or does it switch to black and white?

   It produces full-colour footage at night. ColorVu technology uses a supplemental white light LED to illuminate the scene rather than infrared, which means the camera does not switch to greyscale in low light. Clothing colour, vehicle colour, and skin tone are all captured after dark, which is a meaningful difference from standard IR cameras when footage is used for incident review or evidence purposes.

3. Is a 4G SIM card included in this bundle?

   No. The bundle includes the SMA antenna adapter needed to connect a 4G antenna to the camera unit, but a physical 4G SIM card, a data plan, and a compatible external antenna are not included and must be sourced separately. Before purchasing, verify that the camera location has adequate 4G signal strength - in areas with weak or marginal signal a high-gain directional antenna may be needed to maintain a reliable connection.

4. What does the pan-tilt function actually allow me to do remotely?

   The motorised pan-tilt head allows an operator to remotely reposition the camera's viewing angle through a compatible app or VMS interface over the 4G connection. You can sweep horizontally across a gate or access road, tilt to follow a vehicle on approach, or return to a preset home position automatically. This replaces the need for multiple fixed cameras at a single remote location where cabling additional units is not practical.

5. Will the 18W solar panel and 40Ah battery sustain operation through cloudy periods or during winter?

   It depends on the location and duration. The 18W panel and 40Ah battery are sized for normal day-night cycling in adequate sunlight. Extended overcast periods - particularly in southern Australia during winter - can reduce battery reserve. Panel orientation relative to true north and tilt angle significantly affects winter performance. Sites with frequent heavy cloud cover or significant shading should be assessed carefully before specifying this unit. The camera is stocked by Security Australia, and the team can assist with pre-purchase site assessment questions.

6. Does two-way audio work remotely over 4G, or only on a local network?

   Yes, two-way audio functions over the 4G connection. The built-in microphone picks up audio at the camera location and the built-in speaker broadcasts your voice from the remote operator position. Both operate through the app or VMS interface using the cellular data connection. Audio responsiveness is subject to 4G latency and signal quality at the install location, so strong signal coverage is important for practical two-way communication.

7. What is the AF003-100 waterproof sealing tape included for?

   The AF003-100 tape is used to weatherproof cable entry points and connector joints at the camera bracket and junction points. On remote solar installations, water ingress at a cable entry is a common failure point - particularly where an SMA antenna connector meets the camera housing or where mounting bracket cables exit to the solar panel. Applying sealing tape at these points during installation significantly reduces the risk of corrosion or fault at a location where a service call has a high attendance cost.

Downloads & Resources

No downloads available for this product.
