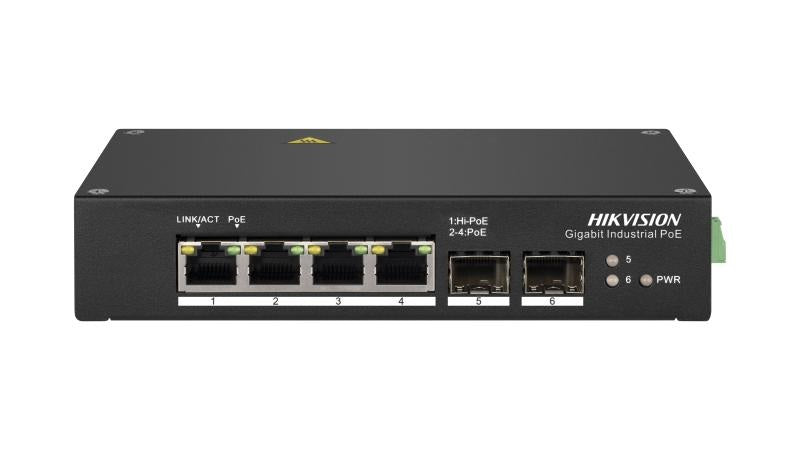

Hikvision 4-Port Gigabit Unmanaged DS-3T0506HP Industrial Hi-PoE Switch with 2 SFP Ports, 110W PoE Budget & 300m Long-Range Transmission

Model: DS-3T0506HP

Who This Is For

For installers and facility managers who need to power IP cameras at extended distances without running additional cabling or locating a switch close to the camera position. The Hikvision DS-3T0506HP is an industrial-grade Hi-PoE switch built for installations where standard switches fall short - outdoor enclosures, factory floors, car parks, perimeter fences, and remote building corners where cable runs push past the 100m Ethernet limit. With 4 Gigabit Hi-PoE ports, 2 SFP uplink ports, a 110W PoE budget, and a long-range transmission mode that extends reach to 300m, this switch is designed to simplify camera deployments in locations that would otherwise require repeaters, media converters, or additional conduit runs. Unmanaged operation means no configuration overhead - connect devices and the switch handles the rest.

What This Switch Actually Does

Who Buys This Model

• Security Installers on Industrial Sites: Warehouses, manufacturing facilities, and logistics centres where cameras sit on perimeter fences or loading dock corners well beyond 100m from the nearest comms room - the 300m long-range mode removes the need for mid-run repeaters.
• Car Park and Campus Installers: Large open-air car parks and multi-building campuses where running fibre back to a core switch is practical, but the last-leg camera connections need to be copper PoE - the SFP uplinks handle the fibre run while the Hi-PoE ports feed the cameras.
• PTZ Camera Deployments: Installers specifying PTZ cameras that require more than 30W draw rely on Hi-PoE ports rather than sourcing separate power injectors or local power supplies at each camera position.
• Rural and Remote Property Installations: Farm, station, and remote commercial sites where the distance from the main building to outbuildings, gate positions, or shed entries makes standard PoE switches impractical without the 300m transmission capability.

Honest Assessment

The DS-3T0506HP solves a specific and common problem in field installations: cameras that sit beyond 100m of cable from the nearest switch. The 300m long-range mode addresses that directly, and the Hi-PoE capability on all 4 ports means PTZ cameras and other high-draw devices do not need separate power infrastructure at the camera end. The SFP uplinks add genuine flexibility for fibre-back-to-head-end deployments. Supplied by Security Australia, this switch suits installers who need a no-configuration device that works reliably in non-climate-controlled environments. What it will not do is offer port-level management, VLAN segmentation, or traffic prioritisation - if the project requires managed switching, a managed PoE switch is the right product type. The 110W shared PoE budget also requires attention during design; high-draw PTZ cameras across all 4 ports simultaneously will exceed it, so load planning is essential before committing to this model.

Before You Buy

Quick Fit Check

• Good match if: You have cameras mounted more than 100m from the nearest switch location and want to avoid installing mid-run repeaters or running new conduit - the 300m long-range mode handles cable runs that standard PoE switches cannot.
• Good match if: Your camera spec sheet calls for more than 30W PoE and you need to avoid sourcing separate power supplies at each camera - the Hi-PoE ports on the DS-3T0506HP deliver up to 60W per port directly over the data cable.
• You may need a different model if: Your project requires VLAN configuration, port-level traffic management, SNMP monitoring, or QoS prioritisation - a managed PoE switch is the appropriate product type for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera positions exceed 100m from the switch and you need Hi-PoE output for PTZ or high-draw cameras, with no requirement for port-level management or traffic configuration.
• You may need a different model if: Your project requires VLAN segmentation, QoS configuration, SNMP monitoring, or remote management - a managed PoE switch is the appropriate product type for network-controlled deployments.
• Pairs well with: A core managed aggregation switch at the head-end connected via SFP fibre uplink, paired with Hi-PoE PTZ cameras or high-resolution cameras at extended cable runs.

Common Questions

1. Does the 300m long-range mode affect video quality or just speed?

   It affects speed, not image quality directly. In long-range mode the DS-3T0506HP drops each port to 10Mbps to achieve the 300m reach. Video quality is determined by the camera - what you need to check is that your total camera bitrate per port stays within 10Mbps. A single H.265 IP camera streaming at 4-6Mbps sits well within that. Two cameras on the same port is not possible, but one high-bitrate 4K stream approaching 10Mbps may be marginal and worth testing before finalising the design.

2. Will this switch work with non-Hikvision cameras?

   Yes, for the most part. The DS-3T0506HP is an unmanaged switch and its PoE ports are compatible with IEEE 802.3af and 802.3at devices from any brand. Hi-PoE above the 802.3at standard may require the connected device to also support Hi-PoE or a proprietary negotiation - standard PoE and PoE+ cameras from other manufacturers will negotiate correctly at 15.4W or 30W respectively. Confirm the connected device's PoE standard before assuming 60W delivery to non-Hikvision equipment.

3. Can I use both SFP ports at the same time?

   Yes. Both SFP uplink ports operate independently and can be used simultaneously. A common deployment uses one SFP port for fibre uplink to the core switch and leaves the second available for redundancy or a secondary network segment. SFP modules are not included and need to be specified separately based on your fibre type and run distance.

4. Does this switch need any software configuration to enable long-range mode?

   No. The DS-3T0506HP is an unmanaged switch. Long-range mode is typically enabled via a physical DIP switch or toggle on the unit itself rather than through any software interface. There is no web interface, CLI, or management software to install. This is a deliberate design choice for field deployments where configuration access is not practical - flip the setting for the relevant port and connect the cable.

5. Will this switch power a PTZ camera that requires more than 30W?

   Yes, provided the PTZ camera supports Hi-PoE or the Hikvision Hi-PoE negotiation standard. The DS-3T0506HP delivers up to 60W per Hi-PoE port, which covers the power draw of high-end PTZ cameras that exceed the 30W ceiling of standard PoE+ (802.3at). Always check the PTZ camera's power consumption spec before assuming 60W availability - the 110W total budget is shared, so the actual per-port ceiling depends on how many ports are drawing power simultaneously. The team at Security Australia can assist in matching the right switch to your camera power requirements.

6. Is the DS-3T0506HP suitable for outdoor installation without an enclosure?

   No. The DS-3T0506HP is an industrial-grade switch but it is not rated for direct outdoor exposure without a weatherproof enclosure. Industrial-grade typically refers to the operating temperature range, vibration tolerance, and build quality - not IP weather resistance. Mount it inside a sealed outdoor cabinet or wall-mount enclosure rated to at least IP55 for any application where moisture, dust, or condensation is a factor.
