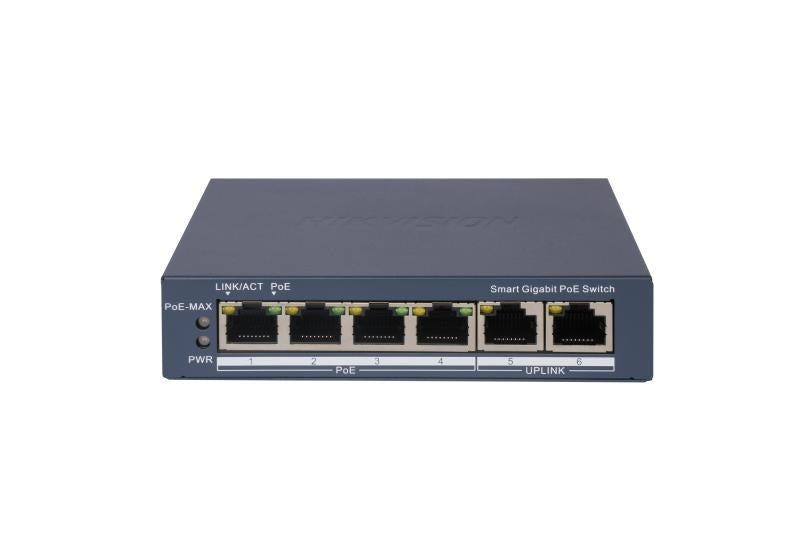

Hikvision 4-Port Gigabit Smart PoE DS-3E1506P-EI Switch with 60W PoE Budget, 802.1Q VLAN & PoE Watchdog

Model: DS-3E1506P-EI

Who This Is For

When keeping a small surveillance network tidy, cost-controlled, and self-managing is the priority, the Hikvision DS-3E1506P-EI sits in a practical spot between unmanaged switches and full-blown managed enterprise hardware. Designed for installers deploying up to 4 PoE cameras at a single location - a retail shopfront, small office, warehouse entry, or residential gatehouse - this switch delivers 60W of shared PoE power across its 4 PoE ports, with 2 Gigabit uplink ports for connecting to an NVR or upstream router. The built-in PoE Watchdog automatically detects and reboots frozen cameras without on-site intervention, while 802.1Q VLAN support lets installers segment surveillance traffic away from general office or Wi-Fi networks. Smart web management means port-level configuration is accessible without specialist networking knowledge, making it well suited to security-focused tradespersons who want meaningful control without enterprise complexity.

What This Switch Actually Does

Who Buys This Model

• Security installers on small commercial jobs: Deploying 2-4 cameras at a retail outlet, café, or small office where a single switch needs to power cameras, feed an NVR, and stay manageable via browser without a network engineer on call.
• IT managers at branch offices: Sites where surveillance traffic needs to be separated from staff LAN traffic using 802.1Q VLAN, without investing in a full managed rack-mount switch for a handful of camera ports.
• Property managers with remote sites: Locations where no one is on-site to reboot a frozen camera - the PoE Watchdog handles automatic recovery, reducing call-out costs when a camera drops off the network after a power event.
• DIY commercial installers upgrading from unmanaged switches: Buyers who have outgrown plug-and-play unmanaged hardware and want per-port PoE monitoring and Watchdog without stepping up to complex enterprise switching.

Honest Assessment

The DS-3E1506P-EI does a specific job well: it powers up to 4 PoE cameras cleanly, keeps them online via the Watchdog, and gives installers just enough network management to configure VLANs and monitor per-port power draw through a browser interface. The Gigabit uplinks prevent recording bottlenecks, and the 60W budget is practical for a 4-camera installation running standard 12-15W devices. It is stocked by Security Australia as part of the Hikvision switching range. What it will not do is scale - 4 PoE ports is a hard limit, and sites expecting to grow beyond that camera count will need a higher-port switch from the outset. The PoE ports themselves run at 10/100Mbps rather than Gigabit, which is sufficient for IP camera streams but not appropriate if future devices require Gigabit PoE to each endpoint. This is a purpose-built surveillance switch, not a general-purpose network device.

Before You Buy

Quick Fit Check

• Good match if: You are installing 2-4 PoE cameras at a small site and want automatic camera recovery via the PoE Watchdog without needing to attend site every time a device freezes.
• Good match if: Your client requires surveillance traffic to be segmented from their business LAN and you need 802.1Q VLAN support in a compact, wall-mountable switch without enterprise-level complexity.
• You may need a different model if: The site requires more than 4 PoE camera connections - a higher-port PoE switch with a larger wattage budget will be the better long-term fit. Security Australia carries a broader range of Hikvision switching options for larger deployments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact, web-managed PoE switch for up to 4 cameras with automatic Watchdog recovery and VLAN segmentation, without the cost or complexity of a full managed rack switch.
• You may need a different model if: The site has more than 4 cameras or requires Gigabit PoE to each device - a higher-port, higher-budget managed PoE switch will serve that installation better and is worth reviewing before committing to this model.
• Pairs well with: A 4-channel or 8-channel PoE NVR connected via the Gigabit uplink ports, alongside compact outdoor turret or dome cameras drawing under 15W each.

Common Questions

1. Will this switch power 4 cameras simultaneously without dropping any ports?

   Yes, provided the combined PoE draw of all connected devices stays within the 60W total budget. The switch supports IEEE 802.3af (up to 15.4W per port) and 802.3at (up to 30W per port). Four standard IP cameras drawing 12-15W each total roughly 48-60W - right at the ceiling. If any camera draws above average, calculate the total before installation to avoid port prioritisation cutting power to lower-priority ports.

2. Does the PoE Watchdog work automatically or does it need to be configured?

   It requires configuration via the web interface before it will activate. Once set up, the Watchdog pings each connected PoE device at a defined interval. If a device fails to respond after the configured number of attempts, the switch automatically cuts and restores power to that port. The ping interval and retry count are adjustable through the browser management console.

3. Will this switch work with non-Hikvision cameras?

   Yes. The DS-3E1506P-EI uses standard IEEE 802.3af and 802.3at PoE, which is compatible with any PoE-compliant IP camera regardless of brand. VLAN and Watchdog features also operate independently of the connected camera brand. There is no proprietary Hikvision-only PoE mode on this switch.

4. Do the PoE ports run at Gigabit or Fast Ethernet speed?

   Fast Ethernet only - the 4 PoE ports run at 10/100Mbps. The 2 uplink ports are Gigabit. For IP camera streams, 100Mbps per port is more than sufficient - a 4K camera typically uses 8-16Mbps of bandwidth, leaving substantial headroom. The limitation only matters if you intend to connect a device that requires Gigabit throughput directly to a PoE port, which this switch does not support.

5. How do I access the web management interface on the DS-3E1506P-EI?

   Connect a laptop or PC to one of the PoE ports using a Cat cable, set your computer to a static IP address in the same subnet as the switch's default management IP, then open a browser and navigate to that address. The default login credentials are printed on the switch label or found in the Hikvision documentation available through Security Australia. First-time setup includes setting a new admin password before full access is granted.

6. Can I mount this switch inside an outdoor enclosure or pit?

   The DS-3E1506P-EI is not rated for direct outdoor exposure and does not carry an IP weather rating. It is designed for installation inside a weatherproof enclosure, communications cabinet, or indoor equipment room. For gate or pit installations, use it inside a sealed IP-rated enclosure with appropriate ventilation, and ensure ambient temperature stays within the operating range specified in the datasheet.
