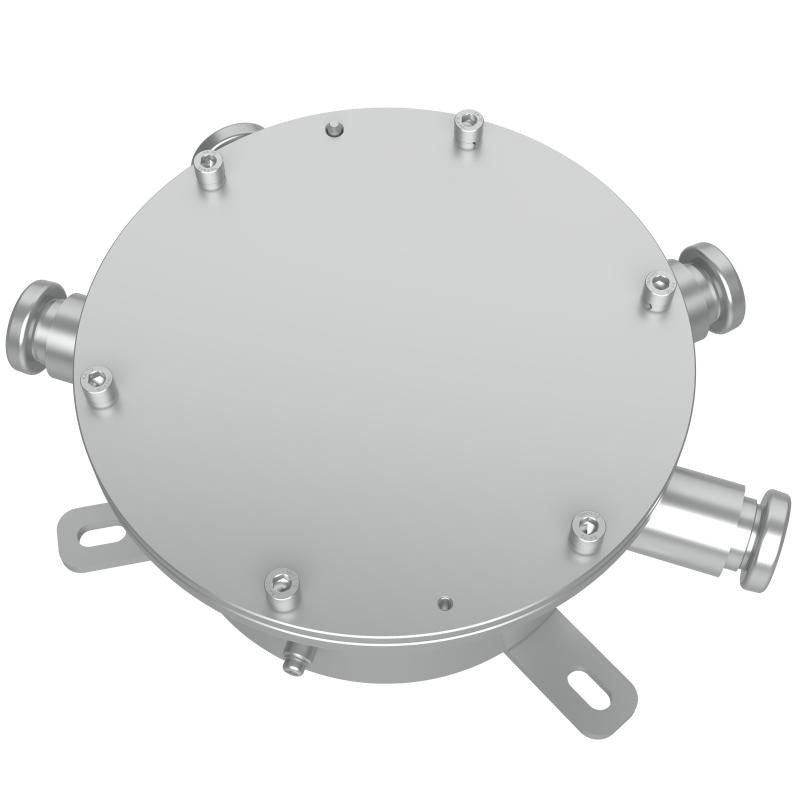

Hikvision 316L DS-2XE2705-M04(316L) Explosion-Proof Junction Box with Anti-Corrosion Stainless Steel, 4 Cable Outlets, ATEX & IECEx Certification

Model: DS-2XE2705-M04-316L

Who This Is For

For electrical and security installers working in classified hazardous locations who need a certified cable management solution that meets both ATEX and IECEx requirements. The DS-2XE2705-M04(316L) is a 316L stainless steel explosion-proof junction box designed specifically for environments where flammable gases, vapours, or dust make standard enclosures unsuitable - think petrochemical facilities, offshore platforms, grain handling facilities, paint spray areas, and chemical processing plants. With 4 cable outlets, it accommodates multi-cable runs entering a single enclosure point, keeping hazardous-area wiring organised and compliant. The 316L stainless steel grade offers superior resistance to chloride-induced corrosion compared to standard 304 stainless, making it the right call for coastal industrial sites or applications involving chemical exposure. If your project specification requires certified explosion-proof cable entry, this is the component that satisfies that requirement.

What This Product Actually Does

Who Buys This Model

• Hazardous Area Electrical Contractors: Installers certifying security camera or lighting cabling in Zone 1 or Zone 2 gas-classified areas who require a dual ATEX/IECEx-certified junction point to meet project compliance documentation.
• Petrochemical & Refinery Site Managers: Facilities teams managing surveillance upgrades on processing plants where all enclosures must meet explosion-proof standards - the 316L grade handles the chemical exposure typical of these environments.
• Offshore & Marine Installation Teams: Projects on offshore platforms or coastal industrial facilities where standard stainless steel degrades prematurely under salt-laden air and chloride exposure, making 316L the minimum acceptable grade.
• Grain Handling & Agricultural Facility Installers: Dust-classified Zone 21 or Zone 22 sites such as grain silos, flour mills, and feed processing plants where explosion-proof cable management is required by site safety classification.
• Security System Integrators on Major Industrial Projects: Integrators specifying Hikvision explosion-proof camera systems who need matching certified accessories to satisfy the project's hazardous area equipment schedule.

Honest Assessment

The DS-2XE2705-M04(316L) does what it needs to do in a highly specific role: it provides a certified, corrosion-resistant cable junction point for hazardous classified areas. The dual ATEX and IECEx certification is genuine value - having both standards covered on a single component simplifies compliance documentation on projects where certification audits are thorough. The 316L stainless steel selection is appropriate rather than overspecified; it is the correct material choice for chemical and coastal environments where 304 stainless would corrode within years. What this enclosure will not do is function as a general-purpose junction box - it is purpose-built for classified hazardous locations and priced accordingly. It is also an accessory component, not a standalone security device, so it should be specified alongside compatible Hikvision explosion-proof cameras and cabling. Available through Security Australia as part of the broader Hikvision explosion-proof product range.

Before You Buy

Quick Fit Check

• Good match if: Your project specification requires ATEX or IECEx-certified cable junction enclosures in a gas or dust-classified hazardous area and you are already deploying Hikvision explosion-proof cameras on the same system.
• Good match if: The installation environment involves chemical exposure, salt air, or aggressive wash-down cycles where standard aluminium or painted steel enclosures have a known history of premature corrosion failure.
• You may need a different model if: Your installation is in a non-classified, general industrial environment - a standard IP-rated stainless steel junction box will meet the requirement without the cost premium of hazardous area certification.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires a certified explosion-proof cable junction in a gas or dust-classified hazardous area with exposure to corrosive chemicals, salt air, or harsh wash-down cycles where 316L stainless steel is the appropriate material grade.
• You may need a different model if: Your installation is in a general industrial or outdoor environment without a formal hazardous area classification - a standard IP66/IP67-rated stainless steel enclosure will meet the ingress protection requirement at significantly lower cost.
• Pairs well with: Hikvision explosion-proof bullet or dome cameras (DS-2XE series), ATEX-certified cable glands suited to your cable diameter, and explosion-proof conduit fittings for the full certified cable containment system.

Common Questions

1. Is this junction box certified for use in Zone 1 gas-classified areas?

   Yes. The DS-2XE2705-M04(316L) carries both ATEX and IECEx certification, which covers use in Zone 1 and Zone 2 classified hazardous areas for gas and vapour atmospheres. Always verify the specific gas group and temperature class marked on the certification against your site's area classification documentation before installation.

2. Why is 316L stainless steel specified instead of standard 304 stainless?

   316L stainless steel provides meaningfully better corrosion resistance in environments containing chlorides - including salt air, seawater splash, and many industrial chemicals. The "L" designation indicates a low-carbon alloy, which resists sensitisation at weld zones. In coastal, offshore, or chemical processing environments, 304 stainless can corrode significantly faster than 316L under the same conditions.

3. Do the cable glands come included with this junction box?

   No. Cable glands are not included with the DS-2XE2705-M04(316L). To maintain the enclosure's certified explosion-proof protection, you must use separately sourced ATEX/IECEx-certified cable glands that are rated for your specific cable diameter and hazardous area zone classification. Using non-certified glands compromises the protection concept and invalidates compliance.

4. Will this junction box work with Hikvision explosion-proof cameras?

   Yes. The DS-2XE2705-M04(316L) is part of the Hikvision explosion-proof accessory range and is designed to be used alongside Hikvision's DS-2XE series explosion-proof cameras. It provides a compatible certified cable management point for installations where multiple Hikvision explosion-proof devices are deployed in the same classified area.

5. Can this be used for dust-classified hazardous areas, not just gas zones?

   Yes, provided the certification covers the relevant dust zone classification. ATEX and IECEx certification frameworks cover both gas/vapour zones (Zone 1, Zone 2) and dust zones (Zone 21, Zone 22). Confirm the specific certification markings on the product against your site's dust classification requirements and consult your hazardous area engineer if the application involves combustible dust such as grain, flour, or coal dust.

6. Does the IECEx certification make this acceptable on Australian hazardous area projects?

   Yes. IECEx certification is recognised in Australia and aligns with the AS/NZS 60079 series of standards that govern hazardous area electrical equipment installation in Australian workplaces. Projects requiring compliance with Australian standards will generally accept IECEx-certified equipment. Confirm with your project's electrical certifier or principal contractor that IECEx is the accepted certification scheme for your specific project. This unit is stocked by Security Australia as part of the Hikvision explosion-proof range.

Downloads & Resources

No downloads available for this product.
