Hikvision DS-KABD8003-RS1 2nd Gen Door Shroud to suit DS-KD-ACW1

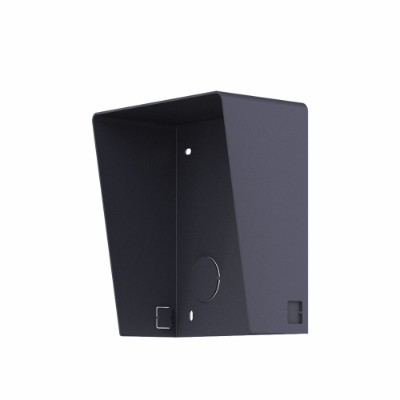

Rain Shield of Module Door Station
The Rain Shield of the Module Door Station DS-KABD8003-RS1 is designed to enhance the durability and functionality of the door station in outdoor environments. This protective feature effectively shields the device from rain and moisture, ensuring reliable operation regardless of weather conditions. Made from high-quality materials, the rain shield is built to withstand the elements, prolonging the lifespan of the door station. Its sleek design complements the aesthetic of the module, providing both form and function.
Key Features
- Convenient design available for the 1 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
- Material: SECC
Code/SKU: DS-KABD8003-RS1
Quick Specs:
- Working humidity: 10% to 95%
- Weight: 298.9g
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Rain Shield for the Module Door Station DS-KABD8003-RS1 is designed to enhance the durability and functionality of the device in outdoor environments. This accessory effectively protects the door station from rain and other weather elements, ensuring consistent performance. Constructed from high-quality materials, it resists corrosion and UV damage, prolonging the lifespan of the equipment. The sleek design integrates seamlessly with the door station, maintaining its aesthetic appeal while providing essential protection.
Features
- Weather Resistance: Designed to protect the door station from rain and harsh weather conditions.
- Durable Material: Made from high-quality, durable materials that withstand outdoor elements.
- Easy Installation: Simple installation process that allows for quick mounting on door stations.
- Sleek Design: Aesthetic design that complements the overall look of the door station.
- Enhanced Longevity: Extends the lifespan of the door station by shielding it from water damage.
- Compatibility: Specifically designed to fit the DS-KABD8003 series door stations.
- UV Protection: Protects against UV rays, preventing fading and degradation of the door station.
- Improved Functionality: Ensures optimal performance of the door station even in adverse weather.
- Customizable Options: Available in different colors or finishes to match architectural styles.
- Maintenance-Free: Requires minimal maintenance, offering convenience for users.
Technical Specifications
| General | |
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Weight | 298.9g |
| Dimension (W × H × D) | 122 x 116.4 x 58 mm (4.80" x 4.58" x 2.28") |
| Installation | 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm. 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. 3. Connect the cables to the corresponding interfaces of the main unit and insert it into the frame. 4. Use the hexagon wrench in the package to fix the cover onto the frame. |
| Material | SECC |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Rain Shield of Module Door Station
The Rain Shield of the Module Door Station DS-KABD8003-RS1 is designed to enhance the durability and functionality of the door station in outdoor environments. This protective feature effectively shields the device from rain and moisture, ensuring reliable operation regardless of weather conditions. Made from high-quality materials, the rain shield is built to withstand the elements, prolonging the lifespan of the door station. Its sleek design complements the aesthetic of the module, providing both form and function.
Key Features
- Convenient design available for the 1 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
- Material: SECC
Code/SKU: DS-KABD8003-RS1
Quick Specs:
- Working humidity: 10% to 95%
- Weight: 298.9g
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| General | |
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Weight | 298.9g |
| Dimension (W × H × D) | 122 x 116.4 x 58 mm (4.80" x 4.58" x 2.28") |
| Installation | 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm. 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. 3. Connect the cables to the corresponding interfaces of the main unit and insert it into the frame. 4. Use the hexagon wrench in the package to fix the cover onto the frame. |
| Material | SECC |
