Hikvision 2 x 6MP Liveguard + 4 x 6MP & 8CH NVR CCTV Kit: 6 Turret Cameras + 8CH 8K NVR Bundle

Model: DS-62L4A8R-NOHDD

Who This Is For

Specifying a complete 6-camera system that covers both active deterrence and standard surveillance on the same NVR is straightforward with the Hikvision DS-62L4A8R kit. The bundle pairs 2 x DS-2CD2366G2-ISU/SL Liveguard turrets - which carry a built-in strobe light, audible alarm, microphone, and speaker - with 4 x DS-2CD2366G2-IU AcuSense turrets for general coverage. All 6 cameras run at 6MP with 30-metre IR and IP67 weatherproofing, feeding into the DS-7608NI-M2/8P 8-channel PoE NVR. The Liveguard cameras are positioned at entry points where you want active intervention capability; the IU cameras handle driveways, yards, and secondary zones. This kit suits residential properties, small commercial premises, and light industrial sites where a mix of deterrence and documentation across 6 locations needs to run off a single managed recorder without separate power runs.

What This Kit Actually Does

Who Buys This Model

• Residential property owners on acreage or large blocks: The 30-metre IR range and wide 99-105 degree FOV on each camera covers long driveways and side access paths, while the Liveguard units handle the front gate or entry with active deterrence.
• Small business operators running after-hours premises: Retail stores, warehouses, or trade yards that need the NVR recording continuously but want the 2 Liveguard cameras to respond to after-hours intrusion with an on-site alarm without a security monitoring contract.
• Builders and developers fitting out new residential builds: The PoE architecture means a single Cat6 homerun to the NVR per camera during rough-in. All 6 positions are powered and connected from the one recorder location, with 2 spare channels for later expansion.
• Installers replacing an existing 6-camera or 8-camera analog system: The NOHDD variant allows the installer to carry over an existing compatible drive or specify their own storage, and the 8-channel NVR accepts ONVIF cameras on the 2 remaining ports if partial legacy integration is needed.

Honest Assessment

This kit does the combination of active deterrence and standard AcuSense recording well within a single managed system. The split between 2 Liveguard and 4 standard turrets is practical - you do not overpay for strobe-and-alarm capability on every position, just the ones where it matters. The 8K-capable NVR has headroom above the current camera specs, and the 2 spare PoE ports allow the system to grow. The IP67 rating makes all 6 cameras suitable for exposed eave and soffit positions in Australian conditions.

The kit arrives without a hard drive - factor in a compatible SATA HDD purchase alongside this order, available through Security Australia. At 6MP with 30-metre IR, this system is not designed for long-range perimeter work; properties with open boundaries longer than 30 metres or requiring licence plate capture at distance will need to add dedicated ANPR or bullet cameras on those specific runs rather than relying on these turrets alone.

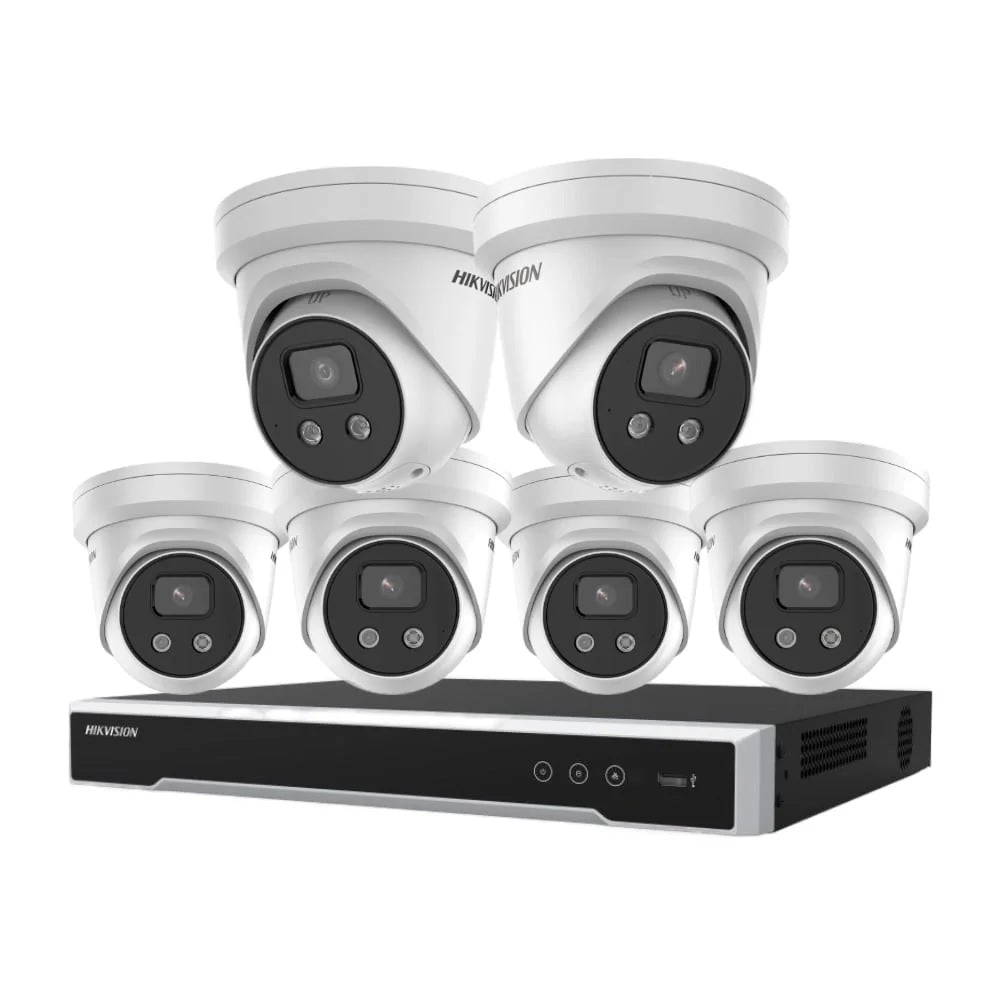

Complete Package Contents

• 2 x DS-2CD2366G2-ISU/SL - 6MP AcuSense Liveguard Turret, built-in strobe + audible alarm, built-in mic + speaker, 30m IR, IP67, PoE (802.3af)
• 4 x DS-2CD2366G2-IU - 6MP AcuSense Turret, built-in microphone, 30m IR, IP67, PoE (802.3af)
• 1 x DS-7608NI-M2/8P - 8-channel 8K PoE NVR, 8 PoE ports, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You have 5-6 outdoor camera positions requiring IP67-rated turrets and want AcuSense filtering across all channels, with active strobe and audible deterrence on up to 2 key entry points - all managed from one 8-channel PoE NVR.
• Good match if: You are running a new cable installation and want a single Cat5e or Cat6 homerun per camera position - the 8-port PoE NVR eliminates the need for separate power at each mount point.
• You may need a different model if: Your site requires more than 2 active deterrence positions, or you need coverage beyond 30 metres on open perimeters - a kit built around a higher proportion of Liveguard cameras or longer-range bullet cameras would be more suitable for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 6 outdoor IP67 turrets with AcuSense on a single 8-channel PoE NVR, and want 2 of those positions to carry active strobe and audible deterrence without adding separate siren devices.
• You may need a different model if: Your site has more than 2 positions requiring active deterrence, or you need perimeter coverage beyond 30 metres - a kit with a higher proportion of Liveguard cameras or long-range IR bullet cameras would serve those layouts better.
• Pairs well with: A surveillance-grade 3.5-inch SATA hard drive sized to your retention requirement, and a PoE network switch if you later expand beyond the 8 onboard NVR ports.

Common Questions

1. Does this kit come with a hard drive?

   No. The DS-62L4A8R-NOHDD is supplied without a hard drive. The DS-7608NI-M2/8P NVR accepts standard 3.5-inch SATA surveillance-grade HDDs. You will need to purchase and install a compatible drive separately before the system can record. A surveillance-grade drive rated for 24/7 operation is strongly recommended over a desktop drive.

2. Will the strobe and alarm trigger on all 6 cameras or only 2?

   Only 2. The strobe light and audible alarm are built into the DS-2CD2366G2-ISU/SL Liveguard cameras only. The 4 x DS-2CD2366G2-IU cameras in this kit are standard AcuSense turrets - they detect and alert, but do not carry the strobe or speaker hardware. Plan your 2 Liveguard positions at the highest-priority entry points where on-site intervention is most useful.

3. Does this system support remote viewing on a phone?

   Yes. The DS-7608NI-M2/8P NVR is compatible with the Hik-Connect application on both iOS and Android. Once the NVR is connected to your network and registered to a Hik-Connect account, you can view live feeds, review recordings, and receive AcuSense push notifications from all 6 cameras on your mobile device. The 2 Liveguard cameras also support two-way audio through the app using their built-in mic and speaker.

4. What cable do I need to run to each camera?

   Cat5e or Cat6 is the standard for PoE camera runs. All 6 cameras in this kit are powered via IEEE 802.3af PoE delivered through the NVR's 8 onboard PoE ports, so a single cable per camera carries both data and power. Maximum recommended cable run is 100 metres per PoE segment. Use shielded (STP) cable in environments with high electrical interference such as near switchboards or industrial equipment.

5. What is the recognition distance on these cameras?

   At 2.8mm, the DS-2CD2366G2-IU has a confirmed recognition distance of 15.7 metres and an identification distance of 7.9 metres based on published DORI values. In practical terms, this means a person at 15 metres can be identified by face or clothing in good lighting, and at 7.9 metres you have identification-grade detail. For higher recognition distances or dedicated licence plate reading, a longer focal length or ANPR-specific camera would be required on those positions. The DS-62L4A8R-NOHDD is stocked by Security Australia alongside compatible longer-focal-length turrets if your layout needs mixed focal lengths.

6. Can I add more cameras to this NVR later?

   Yes. The DS-7608NI-M2/8P has 8 PoE ports and this kit uses 6, leaving 2 spare channels. You can add up to 2 additional PoE cameras directly to the NVR without any additional hardware. If you need more than 8 cameras total, you would need to either add a PoE switch connected to the NVR's uplink or replace the NVR with a higher-channel model - both are options to plan for at rough-in stage by running spare cable to anticipated future positions.

Downloads & Resources

No downloads available for this product.
