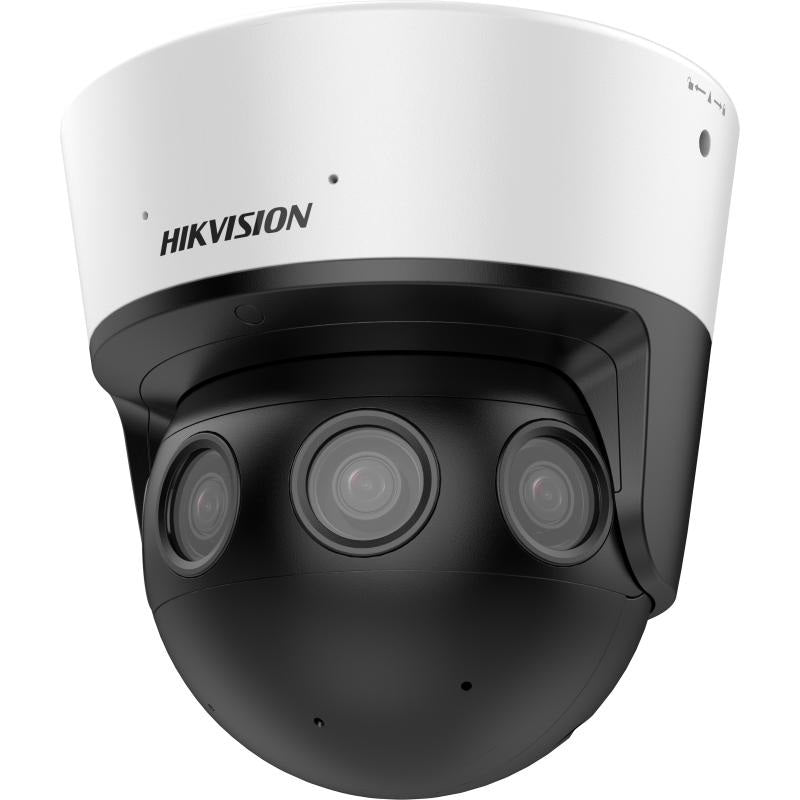

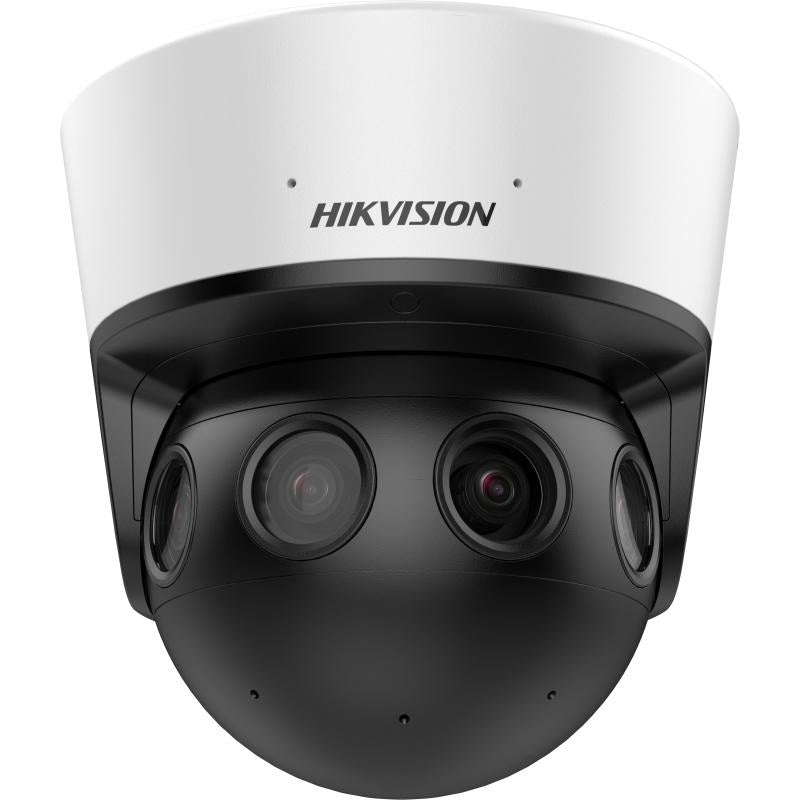

Hikvision 16MP Panoramic DS-2CD6944G1-IHS/UY Turret Camera with 180° Stitched View, 2.8mm Fixed Lens, IR 20m

Model: DS-2CD6944G1-IHS/UY

Who This Is For

When reducing camera count without sacrificing coverage width is the priority, the Hikvision DS-2CD6944G1-IHS/UY delivers a 180-degree stitched panoramic view from a single turret housing. This is the camera specifiers reach for when covering wide open areas - foyers, concourses, retail floors, car parks, and perimeter lines - where a single conventional camera simply cannot capture the full scene. The 16MP total resolution, drawn from multiple sensors stitched into one seamless 180-degree image, means the wide field of view does not come at the expense of detail. Installers working on commercial fit-outs, education campuses, and transit facilities will appreciate the turret form factor, which keeps the install discrete and ceiling-flush. The IR range of 20 metres supports use in low-light or after-hours environments where ambient lighting is inconsistent, and the DarkFighter technology underpinning the sensor stack helps maintain usable detail when light levels drop.

What This Camera Actually Does

Who Buys This Model

• Commercial integrators: Specifying wide-area lobby or concourse coverage where the client wants fewer camera positions on a ceiling plan without compromising scene width or post-incident review detail.
• Education facility managers: Monitoring open common areas, canteens, and corridors where a single 180-degree view replaces 2-3 conventional cameras and simplifies both cabling and licensing costs.
• Retail loss prevention teams: Installing above wide aisle ends or checkout zones where the 16MP panoramic frame captures the full width of activity and allows digital zoom into specific incidents during review.
• Transport and transit operators: Covering platform edges, station concourses, or bus interchange areas where a seamless 180-degree view eliminates the seam between adjacent camera angles and keeps monitoring simple for operators.
• Car park operators: Using the DarkFighter sensor performance and 20m IR to maintain coverage across undercover parking levels where fluorescent lighting is often patchy or on motion-sensor circuits.

Honest Assessment

The DS-2CD6944G1-IHS/UY does a specific job well: it delivers a high-resolution, seamless 180-degree panoramic view from one mounting point, with DarkFighter low-light capability and onboard IR making it functional after dark as well as in daylight. For any scenario where wide horizontal coverage and post-incident zoom detail matter more than tracking moving subjects, this camera is a strong fit. The fixed 2.8mm lens and in-camera PanoVu stitching keep the install clean and the NVR integration simple. Where this camera will not serve you is in situations requiring optical zoom to a distant subject, active PTZ tracking of moving targets, or full 360-degree spherical coverage - a dedicated PTZ or fisheye camera handles those tasks more effectively. The panoramic format also generates substantial data, so storage planning matters before deployment. Security Australia stocks this model for integrators and end users who have confirmed panoramic coverage is the right approach for their site layout.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a wide horizontal scene - a foyer, retail floor, or corridor intersection - from a single ceiling mount, and the 16MP resolution gives you enough detail to identify individuals within that panoramic frame during review.
• Good match if: Your site has low or inconsistent ambient lighting (car parks, undercover areas, after-hours interiors) and you need the panoramic view to remain useful after dark without installing supplemental lighting - the DarkFighter sensors and 20m IR address this directly.
• You may need a different model if: Your priority is tracking a moving subject across a large outdoor area or zooming optically to a distant point of interest - a PTZ camera with motorised zoom and auto-tracking is a better fit for that use case, and Security Australia carries PTZ options across the Hikvision range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a seamless 180-degree panoramic view at 16MP from a single turret-style mounting point, and your priority is wide horizontal scene coverage with enough resolution to digitally zoom into specific zones during review.
• You may need a different model if: You need full 360-degree coverage (a fisheye camera covers the complete sphere from a single lens), or you need to optically zoom and actively track moving subjects across a large outdoor area (a PTZ camera handles those requirements more effectively).
• Pairs well with: A compatible Hikvision NVR with sufficient storage channels and bandwidth headroom to handle the 16MP stream, or a VMS platform with native Hikvision ONVIF integration for multi-stream management.

Common Questions

1. Does this camera produce a single stream or multiple streams from its sensors?

   It delivers a single stitched stream. The PanoVu in-camera processing combines the multiple sensors into one unified 180-degree image before the output reaches your NVR or VMS. You record and view one continuous panoramic stream rather than managing 4 individual sensor feeds, which keeps channel count and NVR configuration straightforward.

2. Will this camera work for after-hours monitoring where lighting is poor or switched off?

   Yes. The DS-2CD6944G1-IHS/UY combines DarkFighter sensor technology with onboard IR illumination to 20 metres. DarkFighter sensors are designed to extract usable colour and contrast at very low light levels, and the IR extends the camera's effective range in complete darkness across the full panoramic field - not just a narrow central beam.

3. How does the 180-degree stitch actually work - does it require software on the NVR side?

   No external stitching software is required. The stitch is performed inside the camera by Hikvision's PanoVu processing engine. The NVR or VMS receives a pre-stitched panoramic stream and treats it as a single camera input. This keeps compatibility broad and avoids dependence on proprietary server-side software to assemble the panoramic view.

4. What storage and bandwidth should I plan for with a 16MP panoramic camera?

   Considerably more than a standard HD camera. A 16MP stream at typical commercial frame rates generates a bitrate multiple times higher than a 4MP or 8MP camera. Plan your NVR storage capacity and network bandwidth allocation before deployment - many first-time panoramic installations are under-provisioned on storage. Use Hikvision's bandwidth and storage calculator with your target frame rate and retention period to get an accurate figure before purchasing drives.

5. Can I digitally zoom into a specific part of the 180-degree frame during live view or playback?

   Yes. The 16MP total resolution provides enough pixel density across the panoramic frame to support meaningful digital zoom into specific zones - such as a doorway, counter, or aisle - without the zoomed image becoming too degraded to be useful. This is one of the primary reasons for specifying a 16MP panoramic over a lower-resolution wide-angle camera when post-incident detail matters.

6. What is the DORI performance of this panoramic camera - will it identify faces across the full 180-degree view?

   DORI performance varies across the panoramic frame - identification-grade detail is achievable within a limited distance from the camera, while the outer edges of the 180-degree arc deliver observation or detection-grade coverage at greater ranges. For a multi-sensor panoramic, the 2.8mm fixed focal length is optimised for wide spatial awareness rather than long-range face identification. If confirmed DORI distance figures are critical to your specification, contact the Hikvision technical team for the DS-2CD6944G1-IHS/UY datasheet distances at each DORI threshold.

7. Is this camera compatible with third-party VMS platforms, or does it require Hikvision software?

   It is compatible with third-party VMS platforms that support ONVIF or RTSP integration, in addition to native Hikvision iVMS and Hik-Connect platforms. Confirm with your VMS vendor that the panoramic stream resolution and format are supported before finalising the installation design, as some platforms have resolution or codec limitations that affect high-megapixel multi-sensor cameras.
