Hikvision 10 x 6MP AcuSense Turret Camera and 16 Channel NVR CCTV Kit

Model: DS-106MP16CH-NOHDD

Who This Is For

For property owners and security installers who need a complete, camera-to-recorder solution across a larger site without building the system component by component. The Hikvision 10 x 6MP AcuSense Turret Camera and 16 Channel NVR Kit is built around sites that generate significant false alarm noise - driveways with vegetation movement, carparks with passing traffic, or yards where animals regularly trigger standard motion alerts. AcuSense human and vehicle classification across all 10 cameras means alerts are tied to actual intrusion events rather than environmental movement. With a 16-channel PoE NVR included and 6 channels left vacant, the kit suits staged deployments where additional cameras will follow. Typical buyers include medium-sized commercial properties, multi-building residential sites, schools, aged care facilities, and light industrial premises looking to commission a properly specified system rather than piece together cameras from multiple sources.

What This System Actually Does

Who Buys This Model

• Commercial property managers: Sites with 8-10 camera positions - carparks, entry points, stairwells, and loading areas - who need a complete PoE system with room to add cameras as the site expands to 16 channels.
• Schools and education facilities: Campuses requiring wide-angle 2.8mm coverage across corridors and external zones, where AcuSense classification reduces nuisance alerts triggered by students, animals, or wind-affected vegetation outside monitored zones.
• Aged care and healthcare operators: Facilities needing comprehensive outdoor perimeter coverage and audio-capable cameras at entry and exit points, with centralised 4K-capable recording managed from a single NVR location.
• Light industrial and warehouse sites: Operators covering multiple external zones where IR night coverage to 30 m is needed across loading docks, yard perimeters, and gate access points, and where IP67-rated cameras must handle dust and weather exposure.
• Security integrators specifying staged deployments: Installers commissioning a site in phases who want a 16-channel backbone in place from day one, with 6 spare PoE ports available for additional cameras without replacing the NVR.

Honest Assessment

This kit performs well where false alarm fatigue is the core problem. AcuSense classification across all 10 cameras means monitoring staff or app users receive alerts tied to people and vehicles rather than ambient movement - a meaningful operational difference on busy sites. The 6MP sensor at 105 degrees gives wide coverage without the distortion of a fisheye, and 120 dB WDR keeps images usable across backlit entry points. The 16-channel NVR with 6 spare PoE ports is the right infrastructure choice for sites likely to expand. What this kit will not do: the fixed 2.8mm lens is not suitable where long-range identification beyond 15 m is required - a varifocal or bullet camera setup would serve those zones better. There is no built-in speaker on the cameras, so two-way audio communication is not supported. Storage planning is the buyer's responsibility - no HDD is included. The team at Security Australia can advise on HDD sizing based on your retention requirements and channel count.

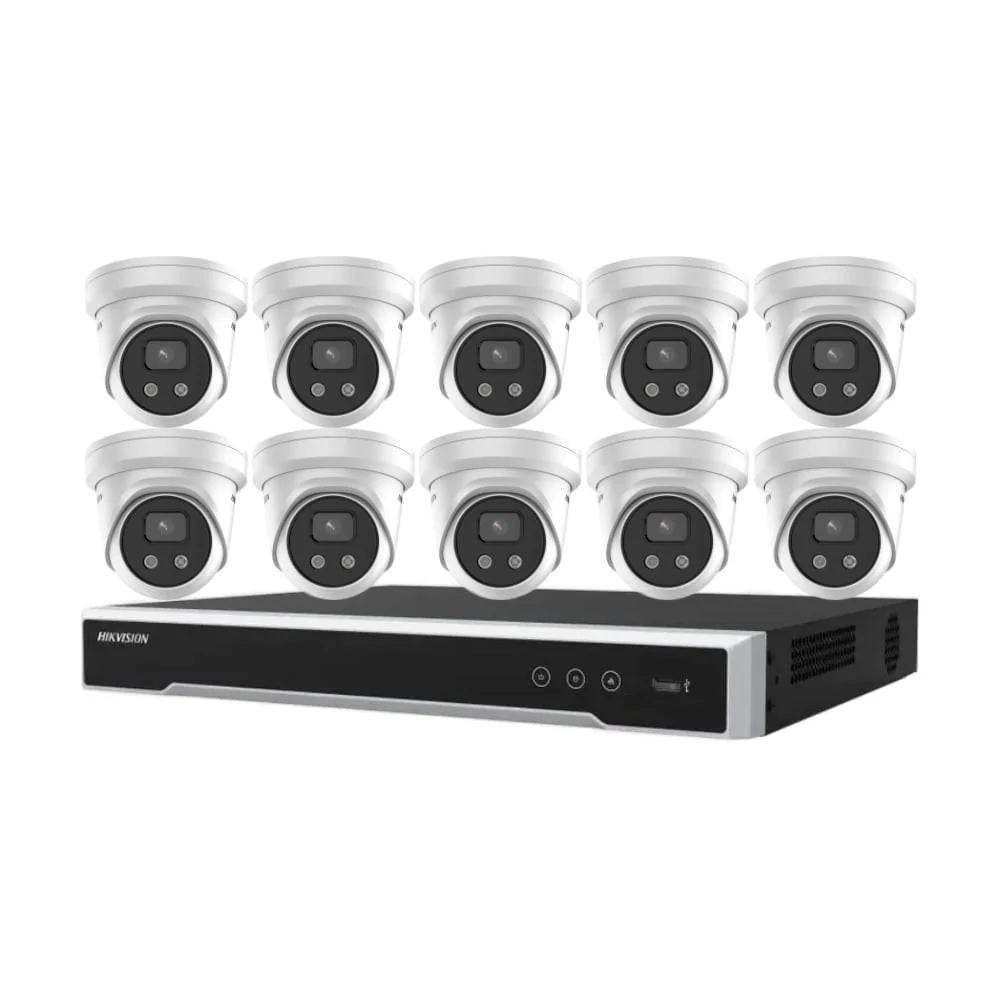

Complete Package Contents

• 10 x Hikvision DS-2CD2366G2-IU 6MP AcuSense Turret Camera - 2.8mm fixed lens, 105.1-degree HFOV, IP67, IR 30m, built-in microphone, PoE 802.3af, 120dB WDR
• 1 x Hikvision DS-7616NI-I2/16P Pro Series 16 Channel 4K NVR - 16 PoE ports, dual HDD bays, 4K recording support, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You are covering 8-10 camera positions across a commercial or multi-building site and want AcuSense false-alarm filtering active across all cameras from day one, with 6 channels spare for later expansion.
• Good match if: All camera positions are within 100 m cable runs of a central NVR location and the 2.8mm wide-angle lens suits your coverage zones - eaves, corridors, entry points, and carparks where wide coverage matters more than long-range identification.
• You may need a different model if: Your site includes long perimeter runs, gatehouse approaches, or zones where targets need to be identified beyond 15-20 m - a varifocal or bullet camera kit with longer IR range would be a more appropriate fit for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete 10-camera PoE system with AcuSense human and vehicle classification active across all cameras, centralised on a single 16-channel NVR with room to grow - without sourcing cameras, NVR, and PoE switching separately.
• You may need a different model if: Your site includes long boundary approaches, driveway entries over 30 m, or zones requiring optical identification at distance - a bullet camera kit with varifocal lenses and extended IR range would be the more appropriate choice for those applications.
• Pairs well with: Surveillance-grade HDDs sized to your recording retention requirement, a UPS unit to protect NVR uptime during power fluctuations, and a monitor or TV for local NVR display at the recording location.

Common Questions

1. Does this kit include a hard drive?

   No. The DS-7616NI-I2/16P NVR ships without a hard drive. The NVR supports 2 HDD bays, and you will need to purchase surveillance-grade drives separately before the system can record. With 10 cameras at 6MP, your HDD sizing will depend on frame rate, compression settings, and how many days of retention you require. H.265+ compression on the cameras helps reduce storage consumption compared to standard H.264.

2. Will this kit work with an existing PoE switch or NVR I already have?

   The cameras will, but the kit NVR is included and represents the intended recording platform. The DS-2CD2366G2-IU cameras are standard ONVIF-compatible IP cameras powered by PoE IEEE 802.3af, so they can technically connect to a third-party PoE switch and a compatible NVR. However, AcuSense human and vehicle classification events, smart line crossing alerts, and intrusion detection push notifications are fully supported only when paired with a Hikvision NVR that supports AcuSense event handling - using a non-Hikvision recorder may limit AI event functionality to basic motion detection.

3. How does AcuSense actually reduce false alarms compared to standard motion detection?

   AcuSense uses deep learning classification running on the camera's processor to analyse detected motion and assign it a target class - human or vehicle - before sending an alert. Standard motion detection triggers on any pixel change in a defined zone, which means blowing leaves, passing headlight reflections, and animals all generate alerts at the same priority as a person. With AcuSense, the camera only pushes a notification when the motion event is classified as a human or vehicle target. The classification happens on-camera, meaning it does not rely on the NVR to perform the analysis - all 10 cameras in this kit are running AcuSense independently.

4. What are the DORI distances for the 2.8mm lens and what do they mean in practice?

   At 2.8mm, the DS-2CD2366G2-IU has a Detection distance of 78.6 m, Observation at 31.2 m, Recognition at 15.7 m, and Identification at 7.9 m. In practical terms: the camera can detect that something is present at up to 78.6 m, but you would need a subject within 15.7 m for facial recognition-level detail, and within 7.9 m for positive individual identification from recorded footage. These distances are based on the DORI standard (EN62676-4) and assume a standard human target. For zones where identification is needed at greater distances - such as a long driveway approach - a 4mm or 6mm fixed lens model, or a varifocal camera, would be required.

5. Can I add more cameras to this system after installation?

   Yes. The DS-7616NI-I2/16P NVR has 16 PoE ports, with 10 used by this kit. The remaining 6 ports can accept additional IP cameras up to the NVR's channel and bandwidth limits. Cameras added should be Hikvision-compatible; adding further AcuSense-capable cameras will allow the expanded channels to also use human and vehicle classification event handling through the same NVR interface.

6. Do the cameras support two-way audio communication?

   No. The DS-2CD2366G2-IU (-IU variant) includes a built-in microphone for audio recording and monitoring, but there is no built-in speaker. Audio can be recorded and reviewed alongside video footage, but you cannot use the camera to broadcast audio back to the monitored area. If two-way audio communication at camera positions is a requirement, a camera model with both built-in microphone and speaker would need to be specified instead.

7. Will this system work for remote monitoring from a smartphone?

   Yes. The DS-7616NI-I2/16P NVR supports remote access via Hikvision's Hik-Connect and iVMS-4500 mobile applications. Live view, recorded footage playback, and AcuSense push notifications for human and vehicle events can all be accessed remotely. Network configuration - including port forwarding or Hik-Connect P2P cloud registration - will need to be completed during installation. All components in this kit are available through Security Australia with full Hikvision warranty coverage applicable to the Australian market.

8. Does the NVR in this kit require PoE+ (802.3at) or standard PoE (802.3af)?

   The cameras require standard PoE IEEE 802.3af, which is what the DS-7616NI-I2/16P NVR provides on its built-in PoE ports. You do not need a PoE+ switch or injectors. Each DS-2CD2366G2-IU camera draws within the 802.3af power budget, so no additional power infrastructure is required beyond the NVR and Cat5e or Cat6 cable runs from the NVR to each camera position, up to a maximum of 100 m per run.

Cabling Considerations

• Cable Type: Cat5e or Cat6 UTP or FTP - use outdoor-rated (UV-resistant) cable for external runs exposed to sunlight or weather.
• Max Cable Run: 100 m per camera from the NVR's PoE port - runs beyond this distance will require a PoE extender and are not supported natively by the kit.
• PoE Notes: All 16 PoE ports on the DS-7616NI-I2/16P deliver IEEE 802.3af. No separate PoE switch or injector is needed. Do not exceed the NVR's total PoE power budget across all connected cameras simultaneously.
• Wiring Tips: Pre-install conduit for all external runs before cabling - the turret camera housing does not include a built-in conduit entry, so a surface conduit or in-wall run to the mounting point is recommended to protect cable from UV and physical damage at the camera end.
