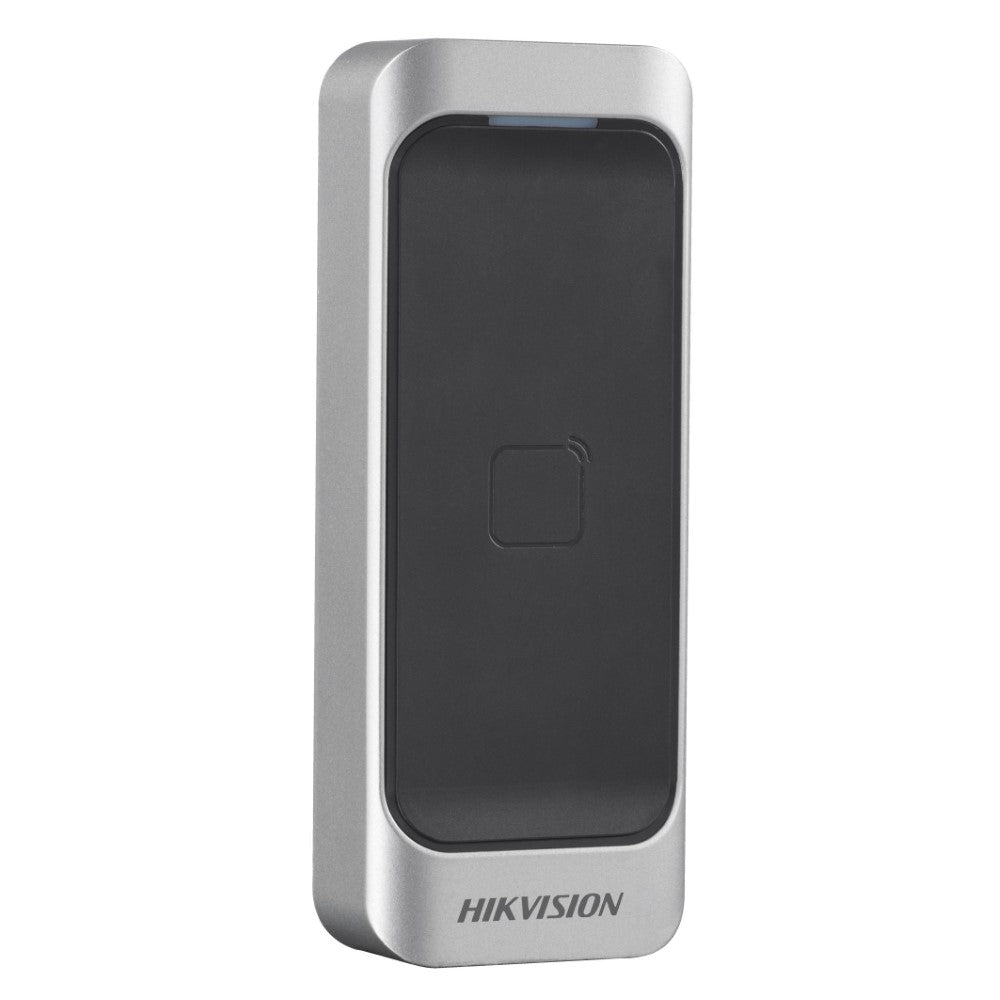

Hikivision DS-K1107M Slimline Card Reader Access Control

Model: DS-K1107M

Who This Is For

For electrical contractors and security integrators who need a clean, low-profile card reader that integrates reliably into door access control systems without bulk. The DS-K1107M is a slimline Mifare card reader built for controlled entry points where a discreet reader profile matters - think corporate office doors, server room entries, strata building lobbies, and healthcare facilities where aesthetics and hygiene are both considerations. It reads 13.56 MHz Mifare cards and outputs via Wiegand (W26/W34) or RS-485, making it straightforward to wire into most access control panels on the market. The slim housing mounts flush against a doorframe or wall surface without protruding significantly, which suits environments where a chunky reader would look out of place or create a snag hazard. It operates across a wide temperature range, handles outdoor-adjacent locations with IP65-rated protection, and draws from a standard 12V DC supply.

Download Product Datasheet (PDF)

What This Product Actually Does

Who Buys This Model

• Security integrators: Installing Hikvision access control systems who need a reader that pairs directly with Hikvision DS-K2600 series access controllers via RS-485, keeping the entire system within one ecosystem.
• Electrical contractors: Wiring door access into existing third-party panels who need guaranteed Wiegand W26/W34 compatibility without sourcing a reader specific to a single brand.
• Facilities managers at strata or commercial buildings: Specifying a replacement or additional reader at controlled entry points where the existing Mifare card stock must be retained for all current residents or staff.
• Healthcare and childcare fit-out contractors: Where a low-profile, easy-to-clean reader surface and clear LED feedback at secure door entries are a practical requirement alongside infection control protocols.

Honest Assessment

The DS-K1107M does one thing well: it reads Mifare cards cleanly and outputs that data reliably over Wiegand or RS-485. The slimline format genuinely is slimmer than many competing readers, which matters in architecturally sensitive installs or narrow doorframe situations. IP65 protection and the -40°C to 60°C temperature range make it usable in a broader range of locations than indoor-only units. It is a straightforward, no-frills credential reader - it will not add PIN entry (no keypad), it does not read 125 kHz EM proximity cards, and it has no standalone door control capability. If your project requires a combined card-and-PIN reader, or needs to handle both legacy EM proximity cards and Mifare in the same installation, a different reader model from the DS-K1107 series or a multi-technology reader would be a better fit. Available through Security Australia alongside compatible Hikvision access control panels and accessories.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision access control system and need a Mifare card reader with RS-485 connectivity to the DS-K2600 series controller - the DS-K1107M integrates directly within the Hikvision ecosystem.
• Good match if: The installation site has an outdoor-adjacent or semi-exposed entry point where IP65 weather protection is needed and a slim reader profile is preferred over a bulkier housing.
• You may need a different model if: The door entry point requires PIN code entry in addition to card presentation - a card-and-keypad reader model would be the appropriate product type for that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a slim, IP65-rated Mifare reader with both Wiegand and RS-485 output that works with virtually any access controller brand, particularly within a Hikvision access control system.
• You may need a different model if: The door entry requires PIN code capability alongside card reading - a combined card-and-keypad reader is the correct product type for that requirement.
• Pairs well with: A Hikvision DS-K2600 series multi-door access controller, a 12V DC power supply module, and electric strikes or magnetic locks appropriate to the door type.

Common Questions

1. Does the DS-K1107M work as a standalone door controller, or does it need a separate panel?

   No. The DS-K1107M is a reader only - it has no onboard access decision logic. It must be connected to a separate access control panel or controller that receives the Wiegand or RS-485 output, processes the card credential, and triggers the door lock relay. Budget for a compatible access controller in your bill of materials.

2. Will this reader work with my existing 125 kHz EM proximity cards?

   No. The DS-K1107M reads only Mifare 13.56 MHz cards and fobs. It will not read older 125 kHz EM proximity, HID Prox, or similar low-frequency credentials. If your site uses a mix of card technologies, a multi-technology reader capable of handling both frequencies is the appropriate product type.

3. Does it support both Wiegand and RS-485, and can I choose between them?

   Yes. The DS-K1107M supports Wiegand W26/W34 output and RS-485 communication. The interface used depends on the connection method wired to the access controller. RS-485 is generally preferred for longer cable runs and within Hikvision-native system setups, while Wiegand W26 or W34 suits integration with third-party panels that specify Wiegand input.

4. Is the DS-K1107M suitable for outdoor installation?

   Yes, with limitations. The IP65 rating protects against dust ingress and direct water jets, and the operating temperature range of -40°C to 60°C covers Australian outdoor conditions. It is not rated for full immersion or sustained rain exposure without a protective canopy, so mounting in a fully exposed position without overhead cover is not recommended for long-term reliability.

5. What power supply does the DS-K1107M require, and can it be powered from the access controller?

   It requires 12V DC with a maximum draw of 100 mA. Many Hikvision access controllers provide a 12V auxiliary output that can power the reader directly, which simplifies installation. Confirm the auxiliary power output capacity of your specific controller against the number of readers being powered to ensure the controller's supply is not overloaded across all connected readers.

6. Will this reader work with non-Hikvision access control panels?

   Yes, in most cases. The Wiegand W26 and W34 output formats are industry-standard interfaces accepted by the overwhelming majority of access control panels regardless of brand. RS-485 compatibility with third-party panels depends on the specific panel's protocol implementation. Check your panel's reader input specification before ordering. The DS-K1107M is stocked by Security Australia alongside a range of compatible access control panels and accessories.

Cabling Considerations

• Cable Type: Shielded multi-core cable (minimum 6-core) for Wiegand runs; shielded twisted pair (STP) for RS-485 runs in electrically noisy environments such as carparks or plant rooms.
• Max Cable Run (Wiegand): Wiegand runs should generally be kept under 100 metres to avoid signal degradation - shorter runs are preferable where possible.
• Max Cable Run (RS-485): RS-485 supports runs of up to 1200 metres, making it the preferred interface when the reader is located far from the access controller.
• Power Wiring: The DS-K1107M draws 12V DC at up to 100 mA. Include the power conductors in your cable core count. If powering from the controller's auxiliary output, account for voltage drop across long cable runs and confirm the controller can supply adequate current for all readers on that output.
• Wiring Tips: Keep signal and power cables away from high-voltage mains cabling to minimise interference. Terminate RS-485 runs with the correct termination resistor (typically 120 ohm) at the furthest device on the bus when running multiple readers on a single RS-485 chain.

Downloads & Resources

• Product Spec Sheet (PDF)
• User Manual - DS-K1107 Series Card Reader (PDF)
