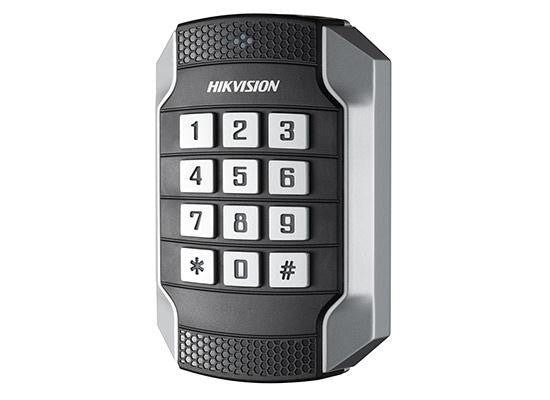

Hikivision DS-K1104MK Card Reader Access Control Vandalproof

Model: DS-K1104MK

Who This Is For

For integrators and facilities managers who need a robust card reader that holds up to everyday physical abuse without failing on presentation accuracy or protocol compatibility. The Hikvision DS-K1104MK is a Mifare-compatible card reader and 12-key keypad built from PC and zinc-alloy - a combination that gives it the structural resistance to withstand deliberate tampering in high-traffic or publicly accessible entry points. Its IP65 weatherproofing makes it equally at home on external gate posts as it is on internal access doors. Support for both RS-485 and Wiegand 26/34 means it slots into a wide range of existing or new access control panels without requiring a custom integration. The built-in tamper alarm flags physical interference attempts back to the panel, closing a gap that basic card readers often leave open. This model suits door entry, carpark barriers, lift lobbies, and any controlled access point where credential plus PIN verification is required.

What This Reader Actually Does

Who Buys This Model

• Commercial Property Installers: Specifying card readers for office building entries, lobby doors, and server room access where Wiegand protocol compatibility with third-party panels is non-negotiable.
• Facilities Managers in Education: Deploying readers at school and university entry gates where IP65 rating and zinc-alloy construction handle outdoor conditions and the higher physical wear of high foot traffic.
• Integrators Upgrading Existing Systems: Replacing ageing readers on installed Wiegand or RS-485 panels without pulling new infrastructure - DIP switch protocol selection makes the DS-K1104MK a direct swap-in candidate.
• Carpark and Gate Operators: Mounting at external boom gate or intercom pedestals where daily weather exposure, occasional physical contact from vehicles, and tamper risk at unstaffed sites make housing quality a primary specification criterion.

Honest Assessment

The DS-K1104MK does two things well: it survives outdoor and semi-public environments that destroy cheaper plastic readers, and it fits into almost any existing access panel without protocol headaches. The zinc-alloy and PC shell is noticeably more rigid than standard ABS units, and the IP65 rating holds up in exposed outdoor locations. The DIP switch protocol selection is practical for installers who regularly work across different panel brands - no laptop needed on-site to switch between Wiegand 26, Wiegand 34, and RS-485. The tamper alarm output is a genuine security improvement over readers that have no housing intrusion detection at all. What this reader will not do is manage users or store access logs independently - it relies entirely on the connected access controller for those functions. It also does not support mobile credential or Bluetooth-based access. If touchless mobile access or cloud-based user management is a project requirement, a different reader type will serve better. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are connecting to an existing Wiegand or RS-485 access panel and need a ruggedised outdoor-rated reader with keypad capability - the DS-K1104MK's DIP switch protocol selection and IP65 rating cover both requirements without extras.
• Good match if: Your site requires two-factor credential plus PIN verification at unmanned entry points - the 12-key keypad and tamper alarm output work together to add both authentication depth and physical tamper detection.
• You may need a different model if: The project specifies mobile credential, Bluetooth, or NFC-based access from smartphones - a smart reader with mobile credential support would be the appropriate product type to review instead.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your panel uses Wiegand or RS-485 and you need outdoor-rated, physically robust reader with PIN capability - the DS-K1104MK's DIP switch protocol selection, IP65 housing, and zinc-alloy shell tick all three at a practical price point.
• You may need a different model if: The project requires mobile credential, Bluetooth, or NFC smartphone-based access - a smart reader type with mobile credential support is the appropriate category to consider.
• Pairs well with: A compatible Hikvision access control panel or third-party Wiegand/RS-485 controller, combined with a 12V DC power supply appropriate for the reader count and cable run lengths on site.

Common Questions

1. Will this reader work with my existing non-Hikvision access control panel?

   Yes, in most cases. The DS-K1104MK outputs standard Wiegand 26 or Wiegand 34 data - the two most widely accepted formats across third-party access panels. If your panel has a Wiegand input, the reader will present credential data in the same format regardless of brand. RS-485 compatibility depends on your panel's specific RS-485 implementation, so confirm protocol support with your panel manufacturer before specifying RS-485 mode.

2. Does this reader support card-only mode, or does it require PIN entry every time?

   The operating mode - card only, PIN only, or card plus PIN - is determined by your access control panel configuration, not the reader itself. The DS-K1104MK presents both card credential data and keypad input to the panel; the panel decides which combination is required to grant access on a per-door or per-user basis. The reader hardware supports both inputs simultaneously.

3. How do I switch between Wiegand 26, Wiegand 34, and RS-485 on the DS-K1104MK?

   Protocol selection is made via the onboard DIP switch. This is a physical switch bank inside or on the rear of the reader housing. The correct DIP switch configuration for each protocol is documented in the DS-K1104M/MK user manual, which is linked in the Downloads section below. Set the DIP switch to match your panel's expected input before finalising the installation - changing it after mounting is possible but requires partial disassembly of the reader.

4. Is the DS-K1104MK suitable for outdoor installation in Australian weather conditions?

   Yes. The IP65 rating means the unit is fully protected against dust ingress and sustained water jets from any direction, making it suitable for exposed outdoor mounting including building facades, gate posts, and covered carpark entry points. IP65 does not cover full immersion, so mounting in a location where the reader could be submerged or continuously pooled with water is not appropriate.

5. What does the tamper alarm actually do, and how is it wired?

   The tamper alarm generates a signal output when the reader housing is physically disturbed or removed from its mounting surface. This signal is wired back to a tamper input on the access control panel, which can then generate an alert, log the event, or trigger an alarm response depending on panel configuration. The tamper alarm does not operate independently - it requires the panel to monitor and act on the tamper input. Refer to the data sheet for the specific tamper output wiring terminals. This model is stocked by Security Australia.

6. Does the DS-K1104MK support PoE for power, or does it need a separate 12V supply?

   No, this reader does not support Power over Ethernet. It requires a dedicated DC12V power supply. Power is delivered via the reader's own wiring terminals separate from the data communication cables. When planning the installation, ensure a DC12V power source is available at or routed to the reader location - this is a separate consideration from the RS-485 or Wiegand data cable run.

7. What Mifare card formats does the DS-K1104MK read, and will it read all Mifare cards?

   The DS-K1104MK is confirmed as Mifare-compatible. Mifare is a family of contactless card standards including Mifare Classic, Mifare Plus, and Mifare DESFire among others. Compatibility with specific Mifare card variants beyond the general Mifare standard is not detailed in the available product documentation. If your project uses a specific Mifare card type or custom sector encoding, confirm compatibility against the full DS-K1104MK data sheet (linked below) or contact your Hikvision distributor before deploying at scale.

Cabling Considerations

• Power Cable: DC12V supply wired directly to reader power terminals - use appropriately rated cable for the distance and current draw. Refer to the data sheet for current consumption specifications.
• Data Cable - Wiegand: Standard multi-core alarm or access control cable. Keep Wiegand runs as short as practical - Wiegand is more susceptible to noise over longer distances. Typical maximum Wiegand run is 150 metres under clean conditions.
• Data Cable - RS-485: Shielded twisted pair (STP) recommended for RS-485 runs, particularly in industrial or electrically noisy environments. RS-485 supports longer cable distances than Wiegand and handles interference better in carpark or factory cabling environments.
• Tamper Wiring: The tamper alarm output requires a dedicated cable pair back to the panel's tamper input terminal. Do not share this with the data cable pair - run it as a separate connection to ensure the panel correctly identifies tamper events independently of credential data.

Downloads & Resources

• User Manual - DS-K1104M/MK
• Data Sheet - DS-K1104M/MK
