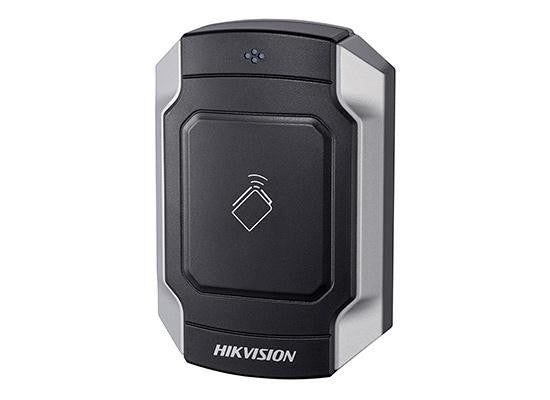

Hikivision DS-K1104M Card Reader Access Control Vandalproof

Model: DS-K1104M

Who This Is For

Property managers specifying access control for entry points that face the elements or attract deliberate interference will find the Hikvision DS-K1104M a considered fit. Rated IK10 for impact resistance and IP65 for dust and water ingress, this card reader is built to hold up at external doors, car park boom gates, loading dock entries, and covered walkways where standard readers deteriorate quickly. It communicates via both RS-485 and Wiegand W26/W34 protocols, meaning it integrates cleanly into a wide range of existing access control panels without requiring a proprietary ecosystem. The onboard dip switch simplifies address configuration during installation, which matters on multi-reader deployments where time on-site adds up. This is a wired reader aimed at commercial and light-industrial installations where durability and protocol flexibility take priority over wireless convenience.

Download Product Datasheet (PDF)

What This Reader Actually Does

Who Buys This Model

• Commercial building managers: Retrofitting or expanding existing Wiegand-based access systems at external doors, where the IK10 rating provides confidence at unattended entry points.
• Industrial facility operators: Mounting readers at loading docks, plant room entries, and perimeter gates where dust, moisture, and physical abuse would shorten the life of a standard reader.
• Security integrators: Specifying a panel-agnostic reader that communicates via RS-485 or Wiegand W26/W34 to avoid locking clients into a single controller brand.
• Strata and multi-tenancy property managers: Adding controlled access at car park entry points or common-area doors where weather exposure and tenant interference are both ongoing concerns.

Honest Assessment

The DS-K1104M is a well-specified wired card reader that earns its place in commercial and light-industrial installs. The combination of IK10 impact resistance and IP65 weather sealing is genuinely useful at external doors, and dual RS-485/Wiegand protocol support gives integrators real flexibility when working across mixed controller environments. Dip switch addressing keeps commissioning straightforward on larger deployments. Where this reader will not serve well: installations requiring IP network connectivity, mobile credential support, or standalone operation without a separate access control panel. It is also not suited to applications where a PIN keypad is needed - the DS-K1104MK variant from the same series addresses that. If your project requires a reader with built-in controller functionality or wireless communication, a different product type is the better fit. The DS-K1104M is available through Security Australia as a single-reader purchase for integration into existing or new wired access control systems.

Before You Buy

Quick Fit Check

• Good match if: You need a vandal-resistant outdoor reader rated IK10 and IP65 to integrate into an existing Wiegand-based access control panel at an exposed external entry point.
• Good match if: Your installation uses RS-485 wiring and requires address configuration via dip switch for a clean, software-free commissioning process across multiple doors.
• You may need a different model if: Your project requires PIN keypad entry, standalone door control without a separate panel, or IP network connectivity - a reader-controller combination or IP-based access device would be more suitable, and there are options available on securityaustralia.com.au to cover those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a ruggedised outdoor card reader with IK10 and IP65 ratings that connects to any RS-485 or Wiegand W26/W34 access panel, without paying for features you do not need such as a keypad or IP connectivity.
• You may need a different model if: Your installation requires PIN code entry alongside card authentication - a reader-keypad combination unit from the same series would be the appropriate product type, and examples are available on securityaustralia.com.au.
• Pairs well with: A compatible Hikvision or third-party Wiegand/RS-485 access control panel, an electric strike or magnetic lock, and a door position sensor for complete door monitoring.

Common Questions

1. Does the DS-K1104M work as a standalone reader without an access control panel?

   No. The DS-K1104M is a reader-only device and requires a compatible access control panel or controller to make access decisions, manage credentials, and operate the door lock output. The reader transmits card data to the panel via RS-485 or Wiegand; it does not store card credentials or control a lock relay on its own.

2. Will this reader connect to a third-party access control panel - not a Hikvision controller?

   Yes, in most cases. The DS-K1104M outputs standard Wiegand W26 or W34 data, which is the most widely adopted interface in access control hardware globally. If your panel accepts Wiegand input - which the majority of commercial panels do - this reader will communicate with it. RS-485 connectivity is typically used with Hikvision or compatible controllers that support the RS-485 bus protocol specifically.

3. What does IK10 actually mean in a practical installation context?

   IK10 is the maximum rating in the IEC 62262 impact protection standard, representing resistance to 20 joules of impact energy - roughly equivalent to a 5 kg mass dropped from 400 mm. For an access reader, this means the housing is built to withstand deliberate strikes with a blunt object. It does not make the reader indestructible, but it significantly reduces the likelihood of a tampering attempt disabling the unit at an unsupervised external door.

4. What is the difference between the DS-K1104M and the DS-K1104MK?

   The DS-K1104MK adds a built-in keypad to the same IK10/IP65-rated housing, enabling PIN code entry in addition to card authentication for two-factor access. The DS-K1104M is a card-only reader. If your project requires PIN plus card at any door, the MK variant is the appropriate choice for that door position.

5. How do the dip switches work, and why does it matter for multi-reader installations?

   Dip switches are small physical toggles inside the reader housing that set the device address and protocol selection without software. On an RS-485 bus, each reader must have a unique address so the controller can identify which door a card was presented at. Setting addresses via dip switch means the installer can configure each reader on-site during cable termination, which is faster than connecting to a software interface at each location - particularly on larger deployments across a commercial site with many door positions.

6. Is the DS-K1104M suitable for outdoor installation in Australian conditions?

   Yes, based on its IP65 rating. IP65 confirms full dust ingress protection and resistance to direct water jets from any angle, which covers exposure to rain, humidity, and site cleaning. The IK10 mechanical rating also addresses the physical demands of outdoor locations at industrial and commercial sites. For installation in direct coastal exposure or in areas subject to sustained immersion, a higher IP-rated enclosure may warrant consideration.
