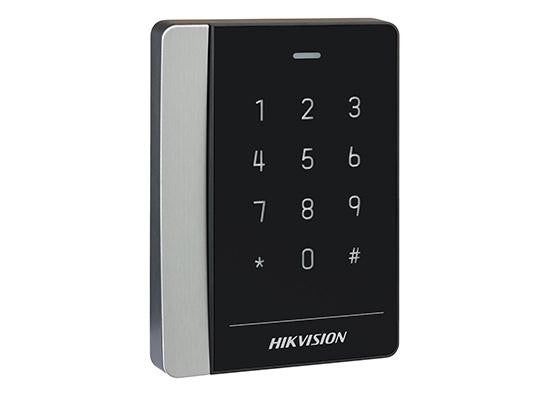

Hikivision DS-K1102MK Card Reader with Keypad Access Control

Model: DS-K1102MK

Who This Is For

Property managers specifying access control for commercial premises, strata buildings, or small office fitouts will find the DS-K1102MK a practical and straightforward reader for controlled entry points. It reads Mifare 1 cards and includes a keypad, giving site managers the option to issue PIN-only access, card-only access, or a combined card-and-PIN credential for higher-security doors. The RS485 and Wiegand (W26/W34) output means it integrates cleanly with a wide range of access controllers already in the field. Rated IP64, it handles dusty or lightly exposed installation positions without issue, and the tamper alarm deters reader interference. It mounts to standard 86 and 120 gang boxes, which keeps the installation clean and compatible with existing wall box cutouts across most Australian commercial builds.

What This Reader Actually Does

Who Buys This Model

• Commercial fitout electricians and security installers: Adding a Wiegand or RS485 reader to an existing access control panel without needing to replace the controller - the W26/W34 output covers virtually all common panel inputs.
• Strata and building managers: Specifying a two-factor credential point for plant rooms, basement car park entries, or amenity doors where card-plus-PIN access is a compliance or insurance requirement.
• Small business owners: Fitting out an office or workshop with a clean, wall-mounted reader that doesn't require a custom backplate - the standard gang box compatibility makes it straightforward for any electrician to rough in.
• Facilities managers at industrial or warehouse sites: Installing at loading dock or store room entries where dust exposure is a concern and IP64 is the minimum acceptable rating.

Honest Assessment

The DS-K1102MK does its core job without complexity: it reads Mifare 1 cards, accepts a PIN, and reports via Wiegand or RS485 to whatever controller is downstream. The gang box mounting and IP64 rating make it a practical fit for the majority of commercial and light industrial installs, and the tamper alarm adds a layer of physical security that basic readers omit. The dual-protocol output is genuinely useful for sites mixing older Wiegand controllers with newer RS485-based systems. What it will not do is handle credentials beyond Mifare 1 - if your site uses EM4100/HID proximity cards or OSDP protocol, this reader is not the right match. It also has no onboard display, biometric capability, or network connection, so access rule management is handled entirely at the controller level. If you need a reader with facial recognition, fingerprint, or standalone operation, a different product class is required. The DS-K1102MK is available through Security Australia as part of their Hikvision access control range.

Before You Buy

Quick Fit Check

• Good match if: You are connecting to an existing Wiegand-compatible access controller and your site issues Mifare 1 cards - the W26/W34 output and Mifare 1 reading are a direct fit with no adaption required.
• Good match if: The install position is in a dusty or lightly exposed location such as a covered entry, warehouse door, or undercover car park where IP64 protection is needed without moving to a fully weatherproof reader.
• You may need a different model if: Your site requires EM/HID proximity card reading, OSDP protocol, biometric verification, or a standalone reader with onboard access rule storage - a reader with those capabilities would be a better fit and is available in the broader access control range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site uses Mifare 1 cards and an existing Wiegand or RS485 controller - the DS-K1102MK outputs both protocols and reads Mifare 1 natively with no converters required.
• You may need a different model if: The site requires EM/HID 125kHz proximity card reading, OSDP protocol output, biometric enrolment, or standalone operation without an external controller - a multi-technology or standalone reader would be the appropriate product class.
• Pairs well with: A Wiegand or RS485-compatible access control panel, an electromagnetic or electric strike lock, and a request-to-exit sensor on the secure side of the door.

Common Questions

1. Will this reader work with my existing access control panel?

   Yes, provided your panel accepts Wiegand (W26 or W34) or RS485 input. The DS-K1102MK supports both protocols, which covers the overwhelming majority of commercial access panels installed in Australia. Check your controller's input specification before wiring - if it accepts Wiegand 26-bit, select W26 output at the reader.

2. Does this reader work with standard proximity (EM) cards?

   No. The DS-K1102MK reads Mifare 1 (13.56MHz) cards only. Standard EM4100 proximity cards operate at 125kHz and are not compatible. If your site currently uses EM proximity credentials, you would need either a multi-technology reader or a card reissue program before deploying this unit.

3. Can it operate as a standalone reader without an access controller?

   No. The DS-K1102MK is a reader-only device. It has no onboard access rule storage, no relay output for direct lock control, and no user database. All credential management and door control logic must be handled by a downstream access controller connected via Wiegand or RS485.

4. What does the IP64 rating mean for outdoor or exposed installation?

   IP64 confirms complete protection against dust ingress (6) and resistance to water splashing from any direction (4). This makes it suitable for covered outdoor positions, undercover car parks, and dusty indoor environments such as warehouses. It is not rated for direct rain exposure or high-pressure washdown - for fully outdoor or wet area installs, a reader with IP65 or higher would be more appropriate.

5. How does the tamper alarm work?

   The tamper alarm is triggered if the reader body is physically removed from the wall or the housing is opened. When triggered, a tamper signal is sent to the connected access controller, which can then generate an alert or lock down the door depending on how the panel is configured. The tamper function itself is passive - response actions are defined at the controller, not the reader.

6. Which gang box size does it fit?

   The DS-K1102MK mounts to both 86mm and 120mm gang boxes - the two standard electrical wall box formats used in Australian commercial construction. This means it will fit most existing wall box cutouts in commercial fitouts without requiring a custom backplate or adapter. Confirm the box size already in the wall before rough-in if you are retrofitting into an existing install. The DS-K1102MK is part of the Security Australia Hikvision access control range.

Cabling Considerations

• Wiegand Cabling: Use shielded multicore cable (typically 6-core or 8-core) for Wiegand runs. Keep Wiegand cable runs under 100m - signal integrity degrades over longer distances and data errors can occur. Avoid running Wiegand cable parallel to mains power cabling.
• RS485 Cabling: For runs exceeding 100m, RS485 is the preferred protocol. Use twisted-pair shielded cable (Belden 9841 or equivalent). RS485 supports cable runs up to approximately 1200m at low baud rates. Terminate the bus correctly at each end to prevent signal reflection.
• Power: The DS-K1102MK requires a DC power supply. Confirm the voltage requirement in the product datasheet and size your power supply to accommodate all readers on the same supply rail with adequate headroom.
• Wiring Tips: Label all cores at both ends before terminating. Route signal cable away from fluorescent lighting ballasts and motor drives, which introduce interference on Wiegand lines. If running through conduit shared with other low-voltage cabling, ensure the Wiegand or RS485 cores are shielded and the shield is grounded at one end only to avoid ground loops.

Downloads & Resources

• Datasheet - DS-K1102M/MK Card Reader
• User Manual - DS-K1100 Series Card Reader
