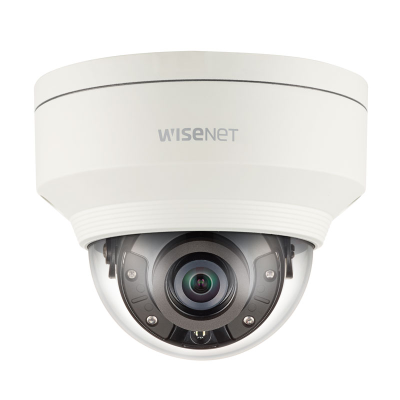

Hanwha Wisenet XNV-8020R 5MP Outdoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 3.7mm

$832.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

5M H.265 IR Dome Camera

With advanced WDR (Wide Dynamic Range) technology, the XNV-8020R can capture clear images even in challenging lighting conditions, such as backlit scenes. The camera includes intelligent video analytics, enabling functions like motion detection, tampering detection, and object classification for enhanced security operations. It is compatible with Hanwha Techwin’s Wisenet SSM (Security Solution Management) software, offering seamless integration into larger surveillance systems.

Key Features

  • Built-in 3.7mm/4.6mm/7mm fixed lens
  • Max. 30fps@all resolutions (H.265/H.264)
  • Loitering, Directional detection, Fog detection
  • Digital auto tracking, Sound classification, Heatmap
  • People counting, Queue management, Tampering
  • Motion detection, Handover
  • Hallway view, WiseStreamII support
  • IR viewable length 30m, IP67/IP66, IK10

Code/SKU: XNV-8020R
Quick Specs:

  • Focal Length (Zoom Ratio): 3.7mm fixed focal
  • Max. Aperture Ratio: F1.6
  • Angular Field of View: H: 97.5° / V: 71.9° / D: 126.2°
  • Min. Object Distance: 0.4m (1.31ft)
  • Focus Control: Fixed

Specifications

Video
Imaging Device 1/1.8" 6MP CMOS
Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max.30fps/25fps(60Hz/50Hz)
MJPEG: Max.30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3.7mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 97.5° / V: 71.9° / D: 126.2°
Min. Object Distance 0.4m(1.31ft)
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~354° / 0°~67°/ 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRV
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support(built-in optical filter)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Audio In Selectable(mic in/line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 30m(98.43ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC : 48Kbps at 8/16/32/48KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66/IP67, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 9.00W
12VDC: Max 8.00W
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight Ø120.0x97.5mm(Ø4.72x3.84"), 615g(1.36 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet XNV-8020R 5MP Outdoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 3.7mm

$832.00 AUD
 per

The Hanwha Vision 5M H.265 IR Dome Camera, model XNV-8020R, is a high-performance surveillance solution designed for both indoor and outdoor applications. Equipped with a 5-megapixel sensor, it delivers clear and detailed video, ensuring optimal security coverage. The camera supports H.265 video compression, significantly reducing bandwidth and storage requirements without compromising image quality. Its built-in infrared (IR) LEDs provide excellent night vision capabilities, enabling monitoring in complete darkness up to a certain distance. The camera is housed in a rugged, vandal-resistant dome enclosure, rated IP66 and IK10, ensuring durability in harsh environments. It also features a motorized varifocal lens, allowing for remote zoom and focus adjustments, making installation and maintenance more convenient. With advanced WDR (Wide Dynamic Range) technology, the XNV-8020R can capture clear images even in challenging lighting conditions, such as backlit scenes.

The camera includes intelligent video analytics, enabling functions like motion detection, tampering detection, and object classification for enhanced security operations. It is compatible with Hanwha Techwin’s Wisenet SSM (Security Solution Management) software, offering seamless integration into larger surveillance systems. The XNV-8020R supports PoE (Power over Ethernet), simplifying installation by reducing the need for additional power cables. Its operating temperature range ensures reliable performance in extreme weather conditions. Additionally, the camera's defog feature improves visibility in foggy conditions, enhancing image clarity. The camera is ideal for various applications, including commercial, industrial, and public safety environments, where reliable and high-quality surveillance is critical. With a user-friendly interface and robust security features, the XNV-8020R is an excellent choice for comprehensive video surveillance.

Features

  • Built-in 3.7mm/4.6mm/7mm fixed lens
  • Max. 30fps@all resolutions (H.265/H.264)
  • Loitering, Directional detection, Fog detection
  • Digital auto tracking, Sound classification, Heatmap
  • People counting, Queue management, Tampering
  • Motion detection, Handover
  • Hallway view, WiseStreamII support
  • IR viewable length 30m, IP67/IP66, IK10
Technical Specifications:
Video
Imaging Device 1/1.8" 6MP CMOS
Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max.30fps/25fps(60Hz/50Hz)
MJPEG: Max.30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3.7mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 97.5° / V: 71.9° / D: 126.2°
Min. Object Distance 0.4m(1.31ft)
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~354° / 0°~67°/ 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRV
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support(built-in optical filter)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Audio In Selectable(mic in/line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 30m(98.43ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC : 48Kbps at 8/16/32/48KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66/IP67, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 9.00W
12VDC: Max 8.00W
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight Ø120.0x97.5mm(Ø4.72x3.84"), 615g(1.36 lb)
