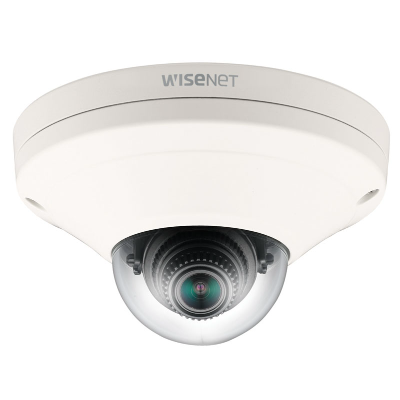

Hanwha Wisenet XNV-6011 2MP Outdoor Mini Dome Camera, H.265, 60fps, 150dB WDR, 2.8mm
2M H.265 Dome Camera
The XNV-6011 is equipped with a 2.8mm fixed lens, offering a wide field of view ideal for monitoring large areas. Its WDR (Wide Dynamic Range) capability enhances visibility in challenging lighting conditions, capturing clear images even in scenes with both bright and dark areas. The camera is housed in a durable, vandal-resistant casing rated at IP66, making it suitable for outdoor installations in harsh environments. Additionally, it supports PoE (Power over Ethernet), simplifying installation by combining power and data transmission through a single cable. The XNV-6011 also includes motion detection, defog, and privacy masking features, enhancing its versatility in various security setups.
Key Features
- Built-in 2.8mm fixed lens, max 60fps (H.265/H.264)
- WDR (150dB), defog
- Loitering, directional detection, fog detection
- Defocus detection, digital auto tracking, heatmap
- People counting, queue management, tampering
- Motion detection, handover
- microSD/SDHC/SDXC memory slot (max. 256GB)
- Hallway view, WiseStreamII, IP66, IK10, NEMA4X
Code/SKU: XNV-6011
Quick Specs:
- Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Max. Framerate: H.265/H.264: Max. 60fps/50fps (60Hz/50Hz); MJPEG: Max. 30fps/25fps (60Hz/50Hz)
- Min. Illumination: Color: 0.055Lux (F2.0, 1/30sec); BW: 0.055Lux (F2.0, 1/30sec)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision XNV-6011 is a 2-megapixel H.265 dome camera designed for robust and high-quality video surveillance. This compact camera features advanced H.265 video compression, significantly reducing bandwidth and storage needs without compromising image quality. It provides full HD 1080p resolution, ensuring clear and detailed video footage suitable for various security applications. The XNV-6011 is equipped with a 2.8mm fixed lens, offering a wide field of view ideal for monitoring large areas. Its WDR (Wide Dynamic Range) capability enhances visibility in challenging lighting conditions, capturing clear images even in scenes with both bright and dark areas. The camera is housed in a durable, vandal-resistant casing rated at IP66, making it suitable for outdoor installations in harsh environments. Additionally, it supports PoE (Power over Ethernet), simplifying installation by combining power and data transmission through a single cable.
The XNV-6011 also includes motion detection, defog, and privacy masking features, enhancing its versatility in various security setups. Its compact design and discreet appearance make it ideal for applications where aesthetics and unobtrusiveness are important. The camera’s advanced video analytics capabilities, such as tampering detection, help ensure proactive monitoring. It is also ONVIF compliant, ensuring compatibility with a wide range of network video recorders and video management systems. The XNV-6011 offers reliable and consistent performance, making it a top choice for both indoor and outdoor security needs. It provides excellent low-light performance with its built-in IR LEDs, ensuring visibility even in complete darkness. This camera is an ideal solution for those seeking a durable, feature-rich surveillance option that delivers high-quality images and flexible installation options.
Features
- Built-in 2.8mm fixed lens, max 60fps (H.265/H.264)
- WDR (150dB), defog
- Loitering, directional detection, fog detection
- Defocus detection, digital auto tracking, heatmap
- People counting, queue management, tampering
- Motion detection, handover
- microSD/SDHC/SDXC memory slot (max. 256GB)
- Hallway view, WiseStreamII, IP66, IK10, NEMA4X
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.055Lux(F2.0, 1/30sec) BW: 0.055Lux(F2.0, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 112˚, V: 62˚, D: 130˚ |
| Min. Object Distance | 0.2m(0.66ft) |
| Lens Type | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~353˚ / 0˚~59˚ / 0˚~353˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers DPTZ preset |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE : Max 6.5W |
| Mechanical | |
| Color / Material | Ivory / Metal |
| Product Dimensions / Weight | Ø112.8x63.7mm(4.44"x2.51"), 420g(0.93 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.9m(84.98ft) |
| Observe (63PPM/ 19PPF) | 10.4m(33.99ft) |
| Recognize (125PPM/ 38PPF) | 5.2m(17.00ft) |
| Identify (250PPM/ 76PPF) | 2.6m(8.50ft) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
2M H.265 Dome Camera
The XNV-6011 is equipped with a 2.8mm fixed lens, offering a wide field of view ideal for monitoring large areas. Its WDR (Wide Dynamic Range) capability enhances visibility in challenging lighting conditions, capturing clear images even in scenes with both bright and dark areas. The camera is housed in a durable, vandal-resistant casing rated at IP66, making it suitable for outdoor installations in harsh environments. Additionally, it supports PoE (Power over Ethernet), simplifying installation by combining power and data transmission through a single cable. The XNV-6011 also includes motion detection, defog, and privacy masking features, enhancing its versatility in various security setups.
Key Features
- Built-in 2.8mm fixed lens, max 60fps (H.265/H.264)
- WDR (150dB), defog
- Loitering, directional detection, fog detection
- Defocus detection, digital auto tracking, heatmap
- People counting, queue management, tampering
- Motion detection, handover
- microSD/SDHC/SDXC memory slot (max. 256GB)
- Hallway view, WiseStreamII, IP66, IK10, NEMA4X
Code/SKU: XNV-6011
Quick Specs:
- Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Max. Framerate: H.265/H.264: Max. 60fps/50fps (60Hz/50Hz); MJPEG: Max. 30fps/25fps (60Hz/50Hz)
- Min. Illumination: Color: 0.055Lux (F2.0, 1/30sec); BW: 0.055Lux (F2.0, 1/30sec)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.055Lux(F2.0, 1/30sec) BW: 0.055Lux(F2.0, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 112˚, V: 62˚, D: 130˚ |
| Min. Object Distance | 0.2m(0.66ft) |
| Lens Type | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~353˚ / 0˚~59˚ / 0˚~353˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers DPTZ preset |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE : Max 6.5W |
| Mechanical | |
| Color / Material | Ivory / Metal |
| Product Dimensions / Weight | Ø112.8x63.7mm(4.44"x2.51"), 420g(0.93 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.9m(84.98ft) |
| Observe (63PPM/ 19PPF) | 10.4m(33.99ft) |
| Recognize (125PPM/ 38PPF) | 5.2m(17.00ft) |
| Identify (250PPM/ 76PPF) | 2.6m(8.50ft) |
