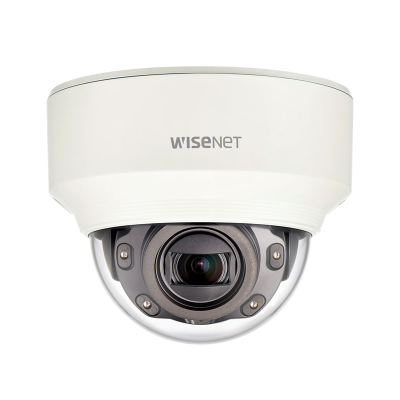

Hanwha Wisenet XND-6080RV 2MP Indoor Dome Camera, H.265, 60fps, 150dB WDR, 30m IR, 2.8-12mm
2MP Network IR Dome Camera
The XND-6080RV supports H.265, H.264, and MJPEG compression formats, optimizing bandwidth usage without compromising image quality. It is IP66-rated, offering protection against dust and water, making it suitable for both indoor and outdoor installations. The IK10-rated vandal-resistant housing ensures durability in high-risk environments. This camera also includes a defog feature, which improves visibility in foggy or misty conditions.
Key Features
- 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- Dual microSD/SDHC/SDXC memory slots (Total maximum 512GB)
- Hallway view, WiseStream II support
- IR viewable length 30m, IK08
- LDC support (Lens Distortion Correction)
- PoE / 12V DC, Bi-directional audio support, built-in microphone
Code/SKU: XND-6080RV
Quick Specs:
- Focal Length (Zoom Ratio): 2.8~12mm (4.3x) motorized varifocal
- Max. Aperture Ratio: F1.4 (Wide) ~ F3.6 (Tele)
- Angular Field of View:
- Horizontal (H): 119.5° (Wide) ~ 27.9° (Tele)
- Vertical (V): 62.8° (Wide) ~ 15.7° (Tele)
- Total (T): 142.1° (Wide) ~ 32.0° (Tele)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision XND-6080RV is a versatile 2MP Network IR Dome Camera designed for high-quality surveillance in various environments. This camera offers 2-megapixel resolution, ensuring clear and detailed imagery. Equipped with a motorized varifocal lens, it allows for easy adjustment of the field of view to suit different monitoring needs. The built-in IR LEDs provide night vision capabilities, enabling the camera to capture clear images in low-light conditions up to a significant range. With Wide Dynamic Range (WDR) technology, the XND-6080RV effectively handles challenging lighting conditions, ensuring balanced exposure in scenes with both bright and dark areas. The camera is also equipped with advanced motion detection and video analytics features, enhancing its effectiveness in security applications.
The XND-6080RV supports H.265, H.264, and MJPEG compression formats, optimizing bandwidth usage without compromising image quality. It is IP66-rated, offering protection against dust and water, making it suitable for both indoor and outdoor installations. The IK10-rated vandal-resistant housing ensures durability in high-risk environments. This camera also includes a defog feature, which improves visibility in foggy or misty conditions. Additionally, it supports Power over Ethernet (PoE), simplifying installation by reducing the need for separate power cables. The XND-6080RV integrates seamlessly with various network management software, providing flexibility in system integration. Its compact design and flexible mounting options allow for discreet installation in various locations. The camera's intelligent video analytics capabilities include tampering detection, loitering detection, and audio analysis. Finally, the XND-6080RV is NDAA compliant, making it suitable for use in government and other regulated environments.
Features
- 2MP resolution for clear and detailed images
- Equipped with a 2.8-12mm motorized varifocal lens
- Supports up to 120dB WDR (Wide Dynamic Range)
- Built-in IR LEDs with a range of up to 30 meters for night vision
- Defog function to improve image clarity in foggy conditions
- Advanced video analytics including tampering, motion detection, and face detection
- H.265, H.264, and MJPEG codec support
- Audio and alarm I/O for additional security features
- IP66-rated weatherproof and IK10-rated vandal-resistant housing
- Supports PoE (Power over Ethernet) for easy installation
- MicroSD/SDHC/SDXC memory slot for edge storage
- Hallway view for optimized vertical viewing
Specifications
- Image Sensor: 1/2.8" 2MP CMOS
- Resolution: 1920x1080
- Lens: 2.8-12mm motorized varifocal lens
- Day/Night: ICR (Infrared Cutfilter Removal)
- IR Distance: Up to 30m
- WDR: 120dB
- Video Compression: H.265, H.264, MJPEG
- Frame Rate: Max. 60fps at all resolutions
- Audio I/O: 1 input, 1 output
- Alarm I/O: 1 input, 1 output
- Network: RJ-45 (10/100BASE-T)
- Edge Storage: MicroSD/SDHC/SDXC (up to 128GB)
- Operating Conditions: -40°C to +55°C (-40°F to +131°F)
- Ingress Protection: IP66
- Vandal Resistance: IK10
- Power Supply: 12V DC, PoE (IEEE 802.3af)
Additional Details
| General | |
|---|---|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C~+60°C(-14°F ~ +140°F)(Max) 0~95%RH(non-condensing) |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IK08 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE : Max 10W 12VDC : Max 9W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø140.8x113.0mm(Ø5.54x4.45"), 724g(1.6 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
2MP Network IR Dome Camera
The XND-6080RV supports H.265, H.264, and MJPEG compression formats, optimizing bandwidth usage without compromising image quality. It is IP66-rated, offering protection against dust and water, making it suitable for both indoor and outdoor installations. The IK10-rated vandal-resistant housing ensures durability in high-risk environments. This camera also includes a defog feature, which improves visibility in foggy or misty conditions.
Key Features
- 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- Dual microSD/SDHC/SDXC memory slots (Total maximum 512GB)
- Hallway view, WiseStream II support
- IR viewable length 30m, IK08
- LDC support (Lens Distortion Correction)
- PoE / 12V DC, Bi-directional audio support, built-in microphone
Code/SKU: XND-6080RV
Quick Specs:
- Focal Length (Zoom Ratio): 2.8~12mm (4.3x) motorized varifocal
- Max. Aperture Ratio: F1.4 (Wide) ~ F3.6 (Tele)
- Angular Field of View:
- Horizontal (H): 119.5° (Wide) ~ 27.9° (Tele)
- Vertical (V): 62.8° (Wide) ~ 15.7° (Tele)
- Total (T): 142.1° (Wide) ~ 32.0° (Tele)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.015 lux(F1.4, 1./30sec) B/W: 0 Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation USB: Micro USB Type B, 1280x720, for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
| Angular Field of View | H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), T: 142.1°(Wide)~32.0°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~354° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover |
| Audio In | Selectable(Mic in/Line in, Built-in mic), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | 30m(98.4ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area) WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C~+60°C(-14°F ~ +140°F)(Max) 0~95%RH(non-condensing) |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IK08 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE : Max 10W 12VDC : Max 9W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø140.8x113.0mm(Ø5.54x4.45"), 724g(1.6 lb) |
