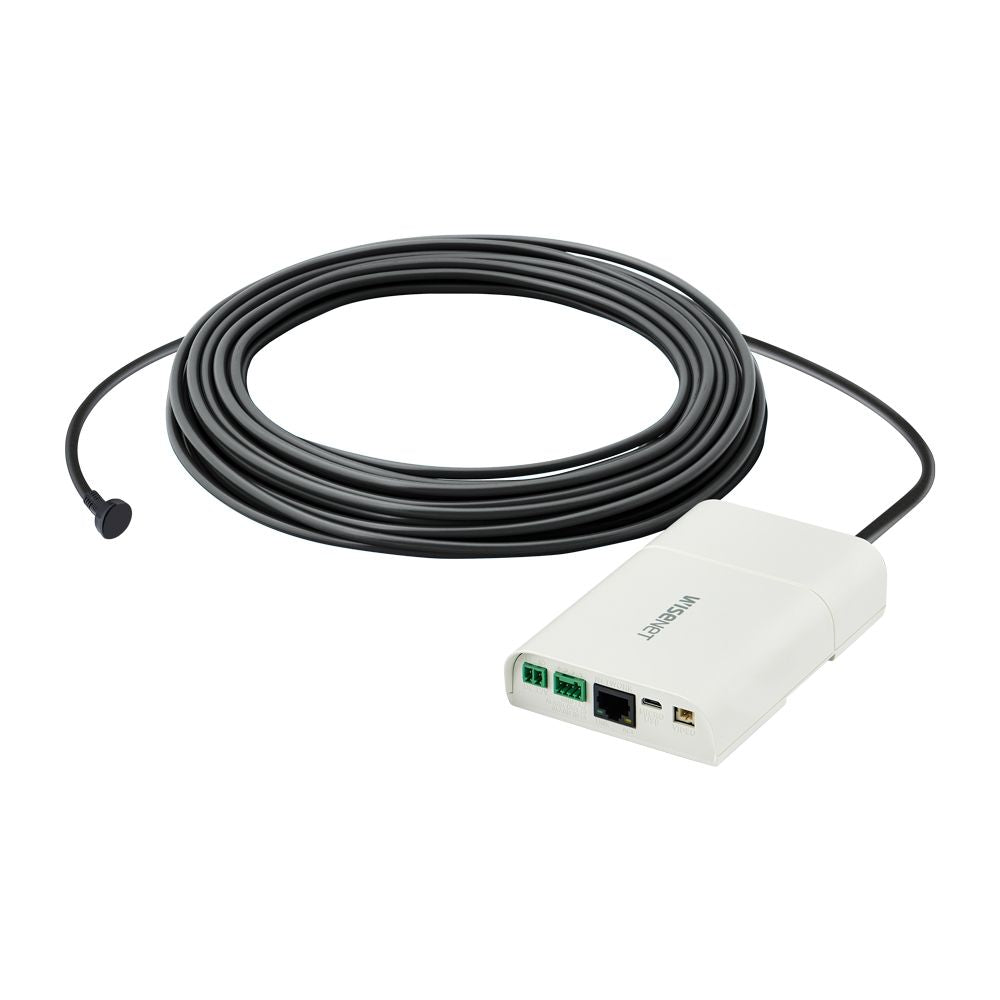

Hanwha Wisenet XNB-6001 Covert Camera, Body Only, 1ch, Supports 2MP Sensor Module
Remote Head Cam & Lens modules
The XNB-6001 includes intelligent analytics features that aid in accurate object detection and tracking. The module is built to withstand harsh conditions, offering durability and reliability in diverse settings. Its ease of integration with existing surveillance systems ensures a hassle-free upgrade. With its robust design and cutting-edge technology, the XNB-6001 is well-suited for both commercial and residential security needs.
Key Features
- Max. 2 Megapixel (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support; Multiple streaming
- Max. 60fps @ 2MP (H.265 / H.264)
- WDR (120dB), Defog, DIS, WiseStreamII
- Tampering, Loitering, Directional detection, Fog detection
- Audio detection, Digital auto tracking, Heatmap
Code/SKU: XNB-6001
Quick Specs:
- Storage Temperature / Humidity: -30°C~+60°C (-22°F~+140°F) / Less than 90% RH
- Input Voltage: PoE (IEEE802.3af, Class3), 12VDC
- Power Consumption:
- PoE: Max. 6.5W
- 12VDC: Max. 6W
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The XNB-6001 from Hanwha Vision is a versatile remote head camera and lens module designed for high-performance surveillance applications. Featuring a compact, discreet design, it integrates seamlessly into a variety of environments while delivering exceptional image clarity. The module supports high-definition video output, ensuring that every detail is captured with precision. Its remote head functionality allows for flexible placement and adjustment, making it ideal for installations where space is limited.
The camera is equipped with advanced image processing technologies that enhance low-light performance and reduce noise. Additionally, the XNB-6001 includes intelligent analytics features that aid in accurate object detection and tracking. The module is built to withstand harsh conditions, offering durability and reliability in diverse settings. Its ease of integration with existing surveillance systems ensures a hassle-free upgrade. With its robust design and cutting-edge technology, the XNB-6001 is well-suited for both commercial and residential security needs. Overall, this product exemplifies Hanwha Vision's commitment to delivering high-quality, innovative solutions for modern surveillance challenges.
Features
- Max. 2Megapixel (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support, Multiple streaming
- Max. 60fps@2MP (H.265 / H.264)
- WDR (120dB), Defog, DIS, WiseStreamII
- Tampering, Loitering, Directional detection, Fog detection
- Audio detection, Digital auto tracking, Heatmap
- Queue management, Face detection, People counting
- Motion detection, Handover
- Memory slot (Max. 256GB), Hallway View
- LDC, PoE / 12V DC, Bi-directional audio support
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
Technical Specifications:
| Video | |
|---|---|
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Optional Lens | SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680, SLA-T4680V |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4 point polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Remote Head Cam & Lens modules
The XNB-6001 includes intelligent analytics features that aid in accurate object detection and tracking. The module is built to withstand harsh conditions, offering durability and reliability in diverse settings. Its ease of integration with existing surveillance systems ensures a hassle-free upgrade. With its robust design and cutting-edge technology, the XNB-6001 is well-suited for both commercial and residential security needs.
Key Features
- Max. 2 Megapixel (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support; Multiple streaming
- Max. 60fps @ 2MP (H.265 / H.264)
- WDR (120dB), Defog, DIS, WiseStreamII
- Tampering, Loitering, Directional detection, Fog detection
- Audio detection, Digital auto tracking, Heatmap
Code/SKU: XNB-6001
Quick Specs:
- Storage Temperature / Humidity: -30°C~+60°C (-22°F~+140°F) / Less than 90% RH
- Input Voltage: PoE (IEEE802.3af, Class3), 12VDC
- Power Consumption:
- PoE: Max. 6.5W
- 12VDC: Max. 6W
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Optional Lens | SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680, SLA-T4680V |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4 point polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming (Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C~+55°C (-14°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C~+60°C (-22°F~+140°F) / Less than 90% RH |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max. 6.5W 12VDC: Max. 6W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product Dimensions / Weight | 131.1(W)x28(H)x86(D)mm(5.16x1.1x3.39"), 245g(0.54 lb) |
