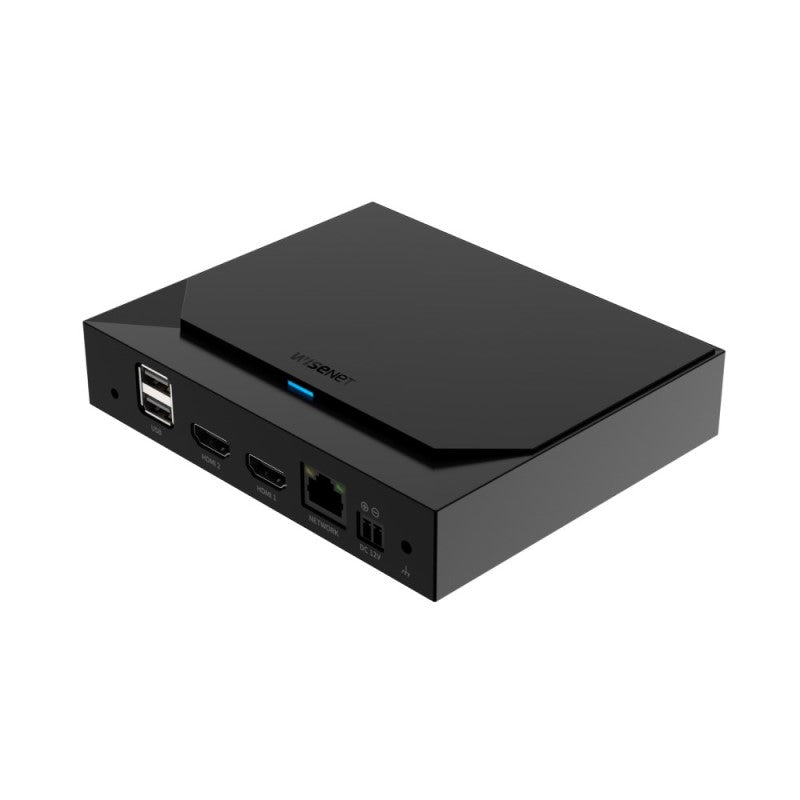

Hanwha Wisenet SPD-152 Decoder, 64ch, 60fps at 8MP, HDMI, PoE, 12VDC
Hanwha Vision 64CH Network Video Decoder
The SPD-152 supports various video formats, including H.265, H.264, and MJPEG, providing flexibility in how video data is encoded and transmitted. It features advanced video processing capabilities that enhance the clarity and detail of the video output. The device is equipped with multiple output options, including HDMI and VGA, to accommodate different display setups. Its user-friendly interface allows for easy configuration and operation, making it accessible for both novice and experienced users. Additionally, the SPD-152 is compatible with a range of Hanwha Vision NVRs, ensuring integration into existing security systems.
Key Features
- Max 64 channels, 8M@60fps decoding performance
- Dual HDMI display ports (HDMI#1 UHD, HDMI#2 FHD)
- Various installation options: Monitor-Back and Pole mount
- ONVIF, SUNAPI, RTSP support
- PoE and DC 12V dual power
Code/SKU: SPD-152
Quick Specs:
- Color / Material: Black / Metal & Plastic
- Dimension (WxHxD): 140 x 29.5 x 115.4 mm
- Weight: 260 g
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision SPD-152 is a high-performance 64-channel network video decoder designed for seamless and efficient video management. With the ability to decode and display video streams from multiple cameras simultaneously, it ensures that users can monitor and analyze security footage in real-time. The SPD-152 supports various video formats, including H.265, H.264, and MJPEG, providing flexibility in how video data is encoded and transmitted. It features advanced video processing capabilities that enhance the clarity and detail of the video output. The device is equipped with multiple output options, including HDMI and VGA, to accommodate different display setups. Its user-friendly interface allows for easy configuration and operation, making it accessible for both novice and experienced users.
Additionally, the SPD-152 is compatible with a range of Hanwha Vision NVRs, ensuring integration into existing security systems. The decoder supports high-resolution video up to 4K, allowing for sharp and detailed surveillance images. It also includes features like video wall support and PTZ control, enhancing the functionality of video surveillance setups. With its robust build quality and reliable performance, the SPD-152 is suited for demanding surveillance environments. Its efficient decoding process minimizes latency, ensuring that live video streams are displayed with minimal delay. The SPD-152 is designed to meet the needs of large-scale installations, providing a scalable solution for comprehensive video monitoring.
Features
- Clone & Expand mode support (HDMI#1 UHD, HDMI#2 FHD)
- Maximum 64 channels (HDMI 1 Clone mode), 36 (HDMI 1) / 25 (HDMI 2) Expand mode
- Maximum decoding performance 8MP@60fps, 2MP@360fps
- ONVIF, SUNAPI, RTSP cameras supported
- Freely adjust camera size to highlight important areas (Tile merge)
- H.265, H.264, MJPEG codec support
- Up to 20 layouts and sequence
- Fisheye dewarping, PTZ Controls, thermal camera temperature check, save snapshot to USB drive
- Management using USB mouse or web interface
- Easy installation with included VESA monitor-back mount or pole mount with optional pole straps
- PoE and DC 12V Dual power for Power Redundancy Failover
- NDAA / FCC Compliant
Technical Specifications
| Software | ||
|---|---|---|
| Video | ||
| Codec | H.265 / H.264 / MJPEG | |
| Max. Decoding Performance | 8M@60fps, 2M@360fps | |
| Division (/Monitor) | ■ Clone mode (HDMI#1) Max. 64 ■ Expand mode (HDMI#1) Max. 36 (HDMI#2) Max. 25 |
|
| Layout | Up to 20, Sequence support | |
| Audio | ||
| Codec | G.711 / G.726 / AAC | |
| Management | Local UI, Web-Viewer, SSM | |
| Time Setting | NTP/Manual | |
| Export/Import | Configuration Export/Import | |
| Log | Max. 100,000 (System log) | |
| Protocol | RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF | |
| セキュリティ | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware | |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Hanwha Vision 64CH Network Video Decoder
The SPD-152 supports various video formats, including H.265, H.264, and MJPEG, providing flexibility in how video data is encoded and transmitted. It features advanced video processing capabilities that enhance the clarity and detail of the video output. The device is equipped with multiple output options, including HDMI and VGA, to accommodate different display setups. Its user-friendly interface allows for easy configuration and operation, making it accessible for both novice and experienced users. Additionally, the SPD-152 is compatible with a range of Hanwha Vision NVRs, ensuring integration into existing security systems.
Key Features
- Max 64 channels, 8M@60fps decoding performance
- Dual HDMI display ports (HDMI#1 UHD, HDMI#2 FHD)
- Various installation options: Monitor-Back and Pole mount
- ONVIF, SUNAPI, RTSP support
- PoE and DC 12V dual power
Code/SKU: SPD-152
Quick Specs:
- Color / Material: Black / Metal & Plastic
- Dimension (WxHxD): 140 x 29.5 x 115.4 mm
- Weight: 260 g
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| System | ||
|---|---|---|
| CPU | Embedded CPU | |
| Operating System | Embedded Linux | |
| Video Output | ||
| HDMI#1 | 1EA (up-to 4K), Audio support | |
| HDMI#2 | 1EA (up-to 1080p), Audio not support | |
| Video-out Format | 3840 X 2160@30Hz (HDMI#1) 2560 X 1440@30Hz (HDMI#1) 1920 X 1080@60Hz (HDMI#1, HDMI#2) 1280 X 1024@60Hz (HDMI#1, HDMI#2) 1280 X 720@60Hz (HDMI#1, HDMI#2) | |
| External | ||
| Ethernet | 1EA (10/100/1000BASE-T) | |
| USB | 2EA(USB 2.0) | |
| LED | Power, Network | |
| Network | ||
| Bandwidth | Max. 150Mbps | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C (32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 12VDC, PoE (IEEE802.3af) | |
| Power Consumption | Max. 11.0W (12V DC), Max. 12.95W (PoE) | |
| Mechanical | ||
| Color / Material | Black / Metal&Plastic | |
| Dimension (WxHxD) | 140 x 29.5 x 115.4mm | |
| Weight | 260g | |
| Software | ||
| Video | ||
| Codec | H.265 / H.264 / MJPEG | |
| Max. Decoding Performance | 8M@60fps, 2M@360fps | |
| Division (/Monitor) | ■ Clone mode (HDMI#1) Max. 64 ■ Expand mode (HDMI#1) Max. 36 (HDMI#2) Max. 25 | |
| Layout | Up to 20, Sequence support | |
| Audio | ||
| Codec | G.711 / G.726 / AAC | |
| Management | Local UI, Web-Viewer, SSM | |
| Time Setting | NTP/Manual | |
| Export/Import | Configuration Export/Import | |
| Log | Max. 100,000 (System log) | |
| Protocol | RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF | |
| セキュリティ | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware | |
